An error bar plot displays data points with associated uncertainty or variability represented by bars extending above and below (or left and right of) each point. Error bars commonly represent standard deviation, standard error, confidence intervals, or min/max ranges. This visualization is essential for communicating the reliability and precision of measurements or statistical estimates.

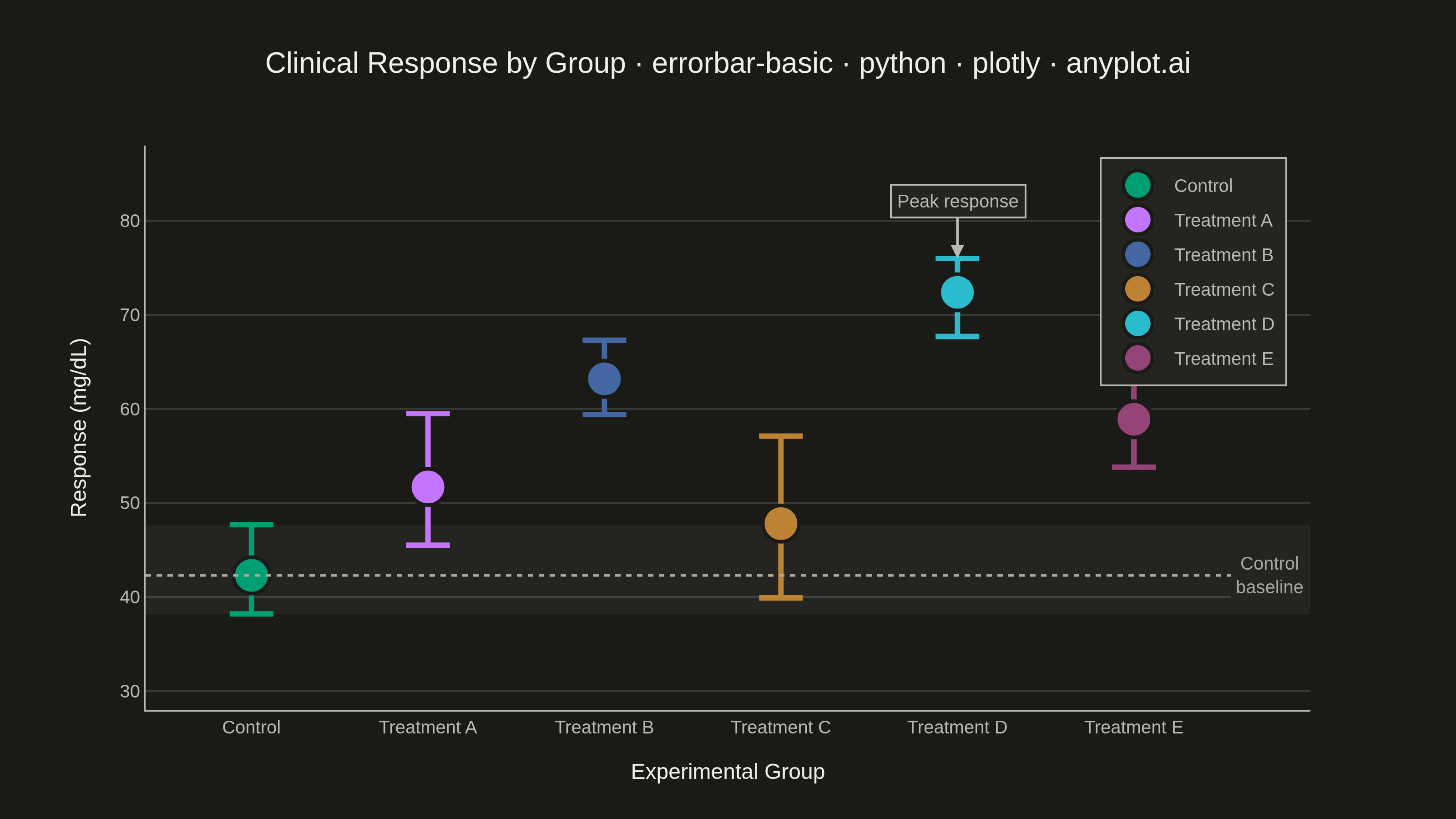

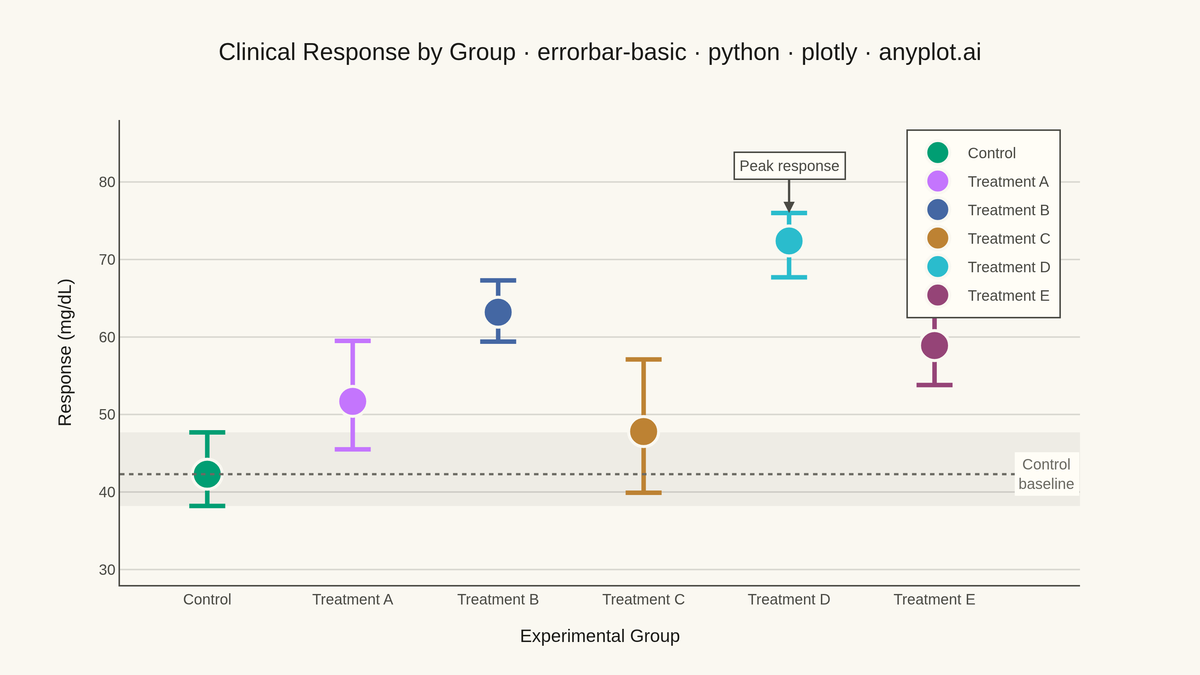

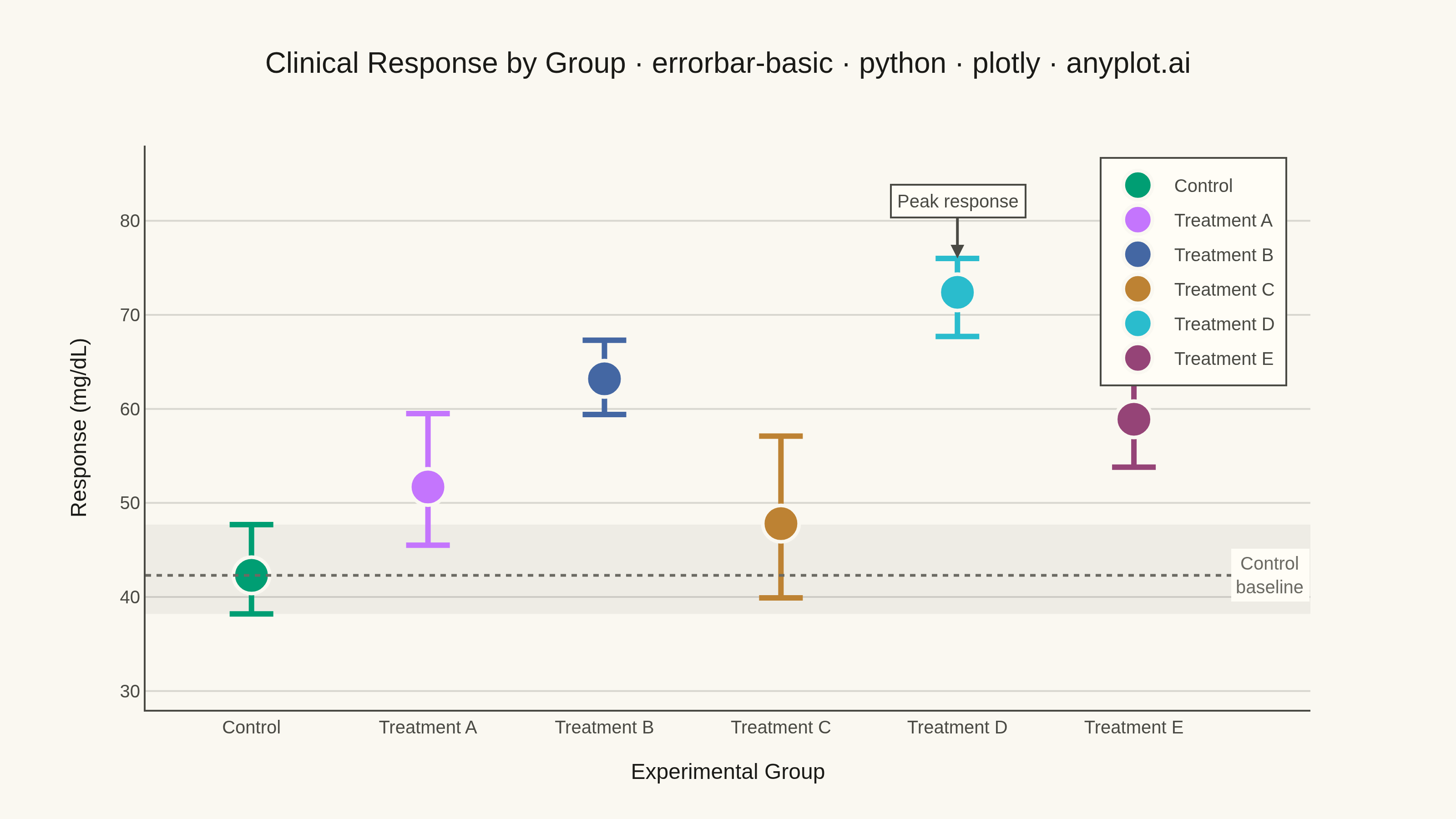

Basic Error Bar Plot rendered with Plotly

Python source (Plotly)

""" anyplot.ai
errorbar-basic: Basic Error Bar Plot
Library: plotly 6.8.0 | Python 3.13.14
Quality: 91/100 | Updated: 2026-06-30
"""

import importlib
import os
import sys


# Drop script directory from sys.path so the `plotly` package resolves, not this file
sys.path[:] = [p for p in sys.path if os.path.abspath(p or ".") != os.path.dirname(os.path.abspath(__file__))]
go = importlib.import_module("plotly.graph_objects")
np = importlib.import_module("numpy")

# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"
GRID = "rgba(26,26,23,0.15)" if THEME == "light" else "rgba(240,239,232,0.15)"
CTRL_FILL = "rgba(26,26,23,0.05)" if THEME == "light" else "rgba(240,239,232,0.05)"

# Imprint palette — one hue per group (positions 1–6)
IMPRINT_PALETTE = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#2ABCCD", "#954477"]

# Data — clinical trial response (mg/dL) with asymmetric 95% confidence intervals
groups = ["Control", "Treatment A", "Treatment B", "Treatment C", "Treatment D", "Treatment E"]
x_positions = list(range(len(groups)))
means = np.array([42.3, 51.7, 63.2, 47.8, 72.4, 58.9])
err_upper = np.array([5.4, 7.8, 4.1, 9.3, 3.6, 6.5])
err_lower = np.array([4.1, 6.2, 3.8, 7.9, 4.7, 5.1])

# Control CI bounds — reference band for comparison
control_lo = float(means[0] - err_lower[0])
control_hi = float(means[0] + err_upper[0])

fig = go.Figure()

# Subtle control CI reference band (drawn below data)
fig.add_hrect(y0=control_lo, y1=control_hi, fillcolor=CTRL_FILL, line_width=0, layer="below")

# Control baseline dashed reference line
fig.add_hline(y=float(means[0]), line_dash="dot", line_color=INK_MUTED, line_width=1.5)

# Per-group traces — Imprint palette assigns each group a distinct hue
for i, (group, x, mean, eu, el) in enumerate(
    zip(groups, x_positions, means.tolist(), err_upper.tolist(), err_lower.tolist(), strict=False)
):
    color = IMPRINT_PALETTE[i]
    fig.add_trace(
        go.Scatter(
            x=[x],
            y=[mean],
            mode="markers",
            marker={"size": 20, "color": color, "line": {"color": PAGE_BG, "width": 2}},
            error_y={
                "type": "data",
                "symmetric": False,
                "array": [eu],
                "arrayminus": [el],
                "visible": True,
                "thickness": 3,
                "width": 12,
                "color": color,
            },
            name=group,
            customdata=[[group, round(mean - el, 1), round(mean + eu, 1)]],
            hovertemplate=(
                "<b>%{customdata[0]}</b><br>"
                "Mean: %{y:.1f} mg/dL<br>"
                "95%% CI: [%{customdata[1]}, %{customdata[2]}]"
                "<extra></extra>"
            ),
        )
    )

# Annotation: Treatment D (index 4) — highest mean response
fig.add_annotation(
    x=4,
    y=float(means[4] + err_upper[4]),
    text="Peak response",
    showarrow=True,
    arrowhead=2,
    arrowcolor=INK_SOFT,
    arrowwidth=1.5,
    ax=0,
    ay=-32,
    font={"size": 10, "color": INK_SOFT},
    bgcolor=ELEVATED_BG,
    bordercolor=INK_SOFT,
    borderwidth=1,
    borderpad=3,
    xanchor="center",
)

# Annotation: control baseline label
fig.add_annotation(
    x=5.55,
    y=float(means[0]),
    text="Control<br>baseline",
    showarrow=False,
    font={"size": 10, "color": INK_MUTED},
    xanchor="left",
    yanchor="middle",
    bgcolor=ELEVATED_BG,
    borderpad=2,
)

fig.update_layout(
    autosize=False,
    title={
        "text": "Clinical Response by Group · errorbar-basic · python · plotly · anyplot.ai",
        "font": {"size": 16, "color": INK},
        "x": 0.5,
        "xanchor": "center",
    },
    xaxis={
        "title": {"text": "Experimental Group", "font": {"size": 12, "color": INK}},
        "tickfont": {"size": 10, "color": INK_SOFT},
        "tickmode": "array",
        "tickvals": x_positions,
        "ticktext": groups,
        "showgrid": False,
        "linecolor": INK_SOFT,
        "zeroline": False,
        "ticks": "",
        "range": [-0.6, 6.0],
    },
    yaxis={
        "title": {"text": "Response (mg/dL)", "font": {"size": 12, "color": INK}},
        "tickfont": {"size": 10, "color": INK_SOFT},
        "gridcolor": GRID,
        "gridwidth": 1,
        "linecolor": INK_SOFT,
        "zeroline": False,
        "range": [28, 88],
        "ticks": "",
    },
    paper_bgcolor=PAGE_BG,
    plot_bgcolor=PAGE_BG,
    font={"color": INK},
    margin={"l": 80, "r": 80, "t": 80, "b": 60},
    showlegend=True,
    legend={
        "font": {"size": 10, "color": INK_SOFT},
        "bgcolor": ELEVATED_BG,
        "bordercolor": INK_SOFT,
        "borderwidth": 1,
        "x": 0.98,
        "y": 0.98,
        "xanchor": "right",
        "yanchor": "top",
    },
    hoverlabel={"bgcolor": ELEVATED_BG, "bordercolor": INK_SOFT, "font": {"color": INK, "size": 10}},
)

# Save — landscape 3200 × 1800 (width=800 × scale=4, height=450 × scale=4)
fig.write_image(f"plot-{THEME}.png", width=800, height=450, scale=4)
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")
