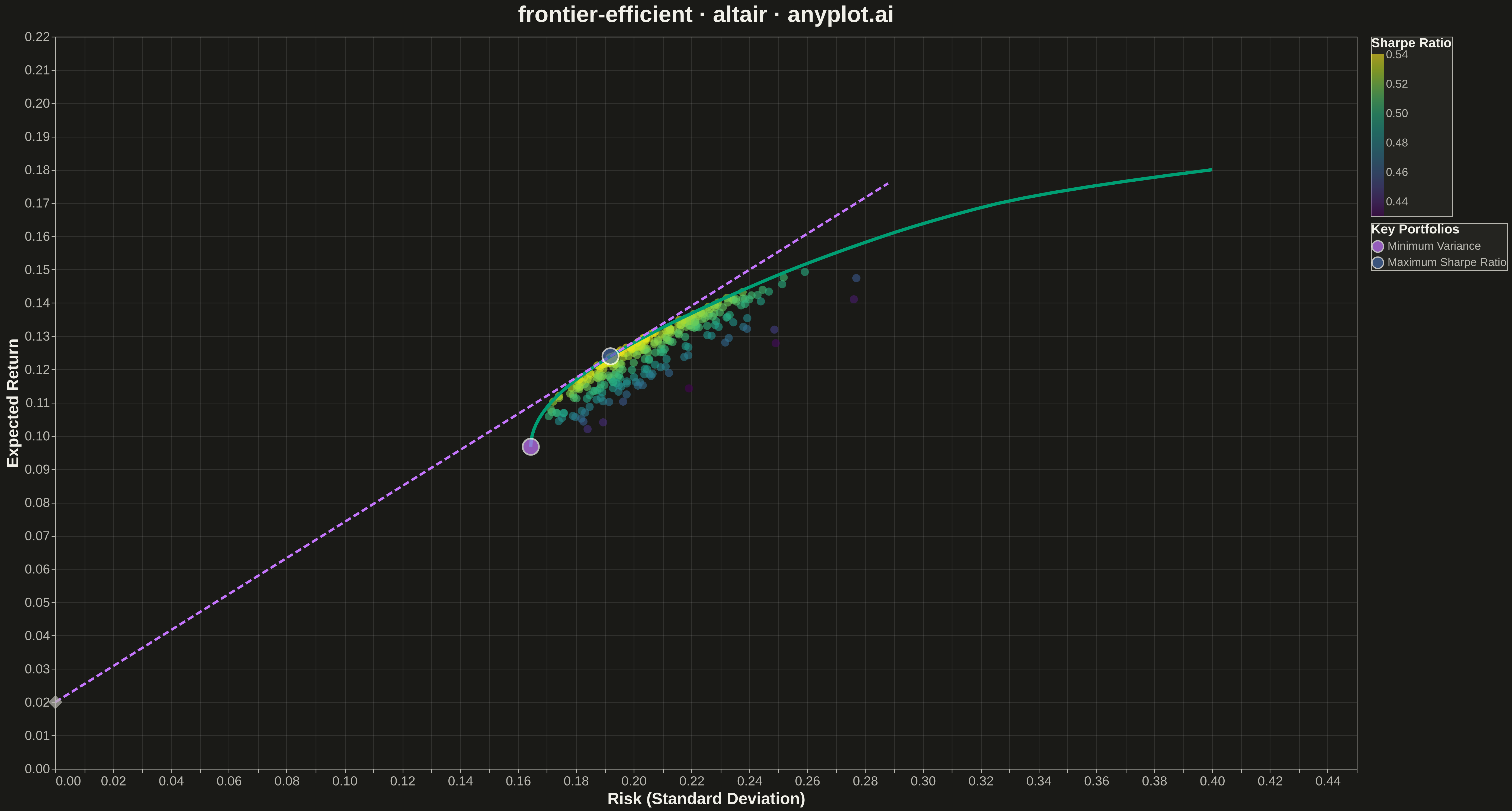

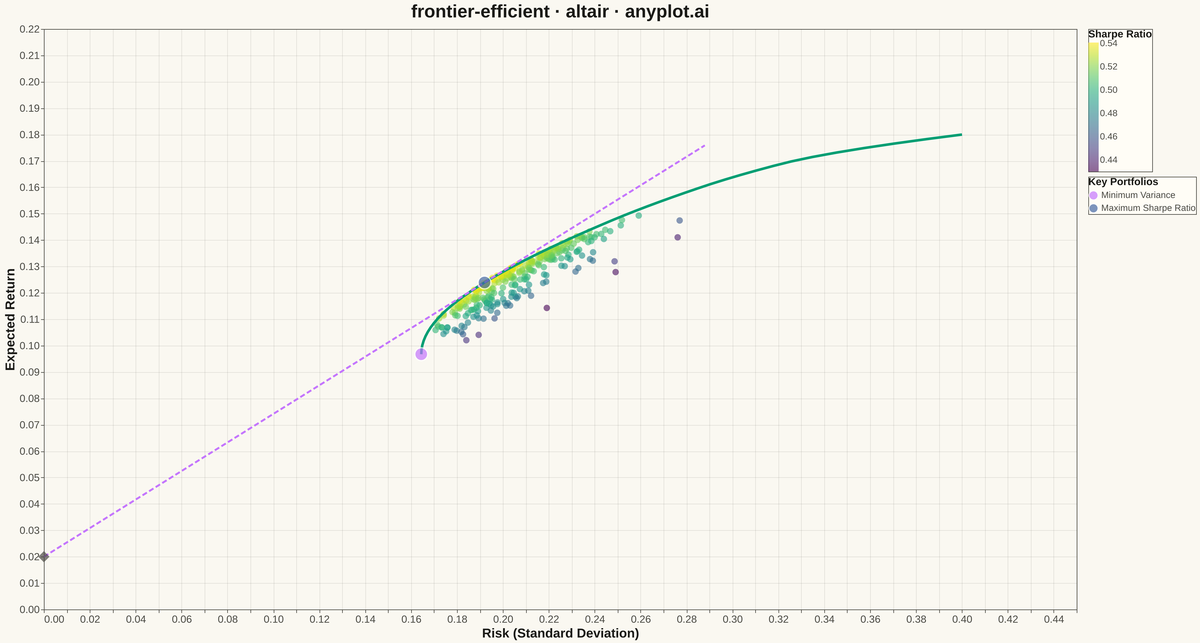

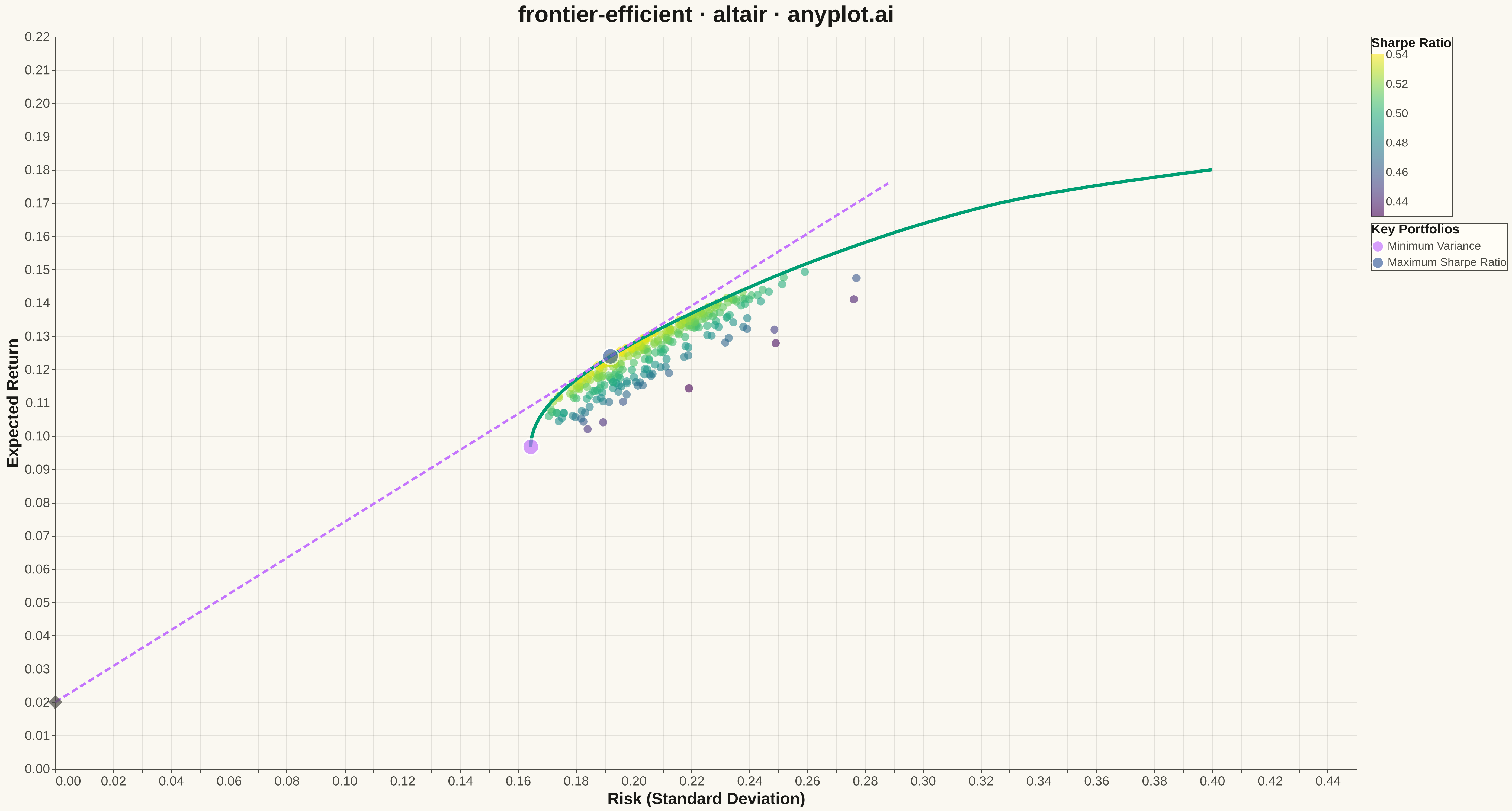

The efficient frontier is a fundamental visualization in Modern Portfolio Theory (MPT) that displays a curve of optimal portfolios offering the highest expected return for each level of risk (standard deviation). Portfolios on the frontier are "efficient" because no other portfolio exists with higher return for the same risk, or lower risk for the same return. This plot is essential for asset allocation decisions and understanding the risk-return tradeoff in investment portfolios.
""" anyplot.ai
frontier-efficient: Efficient Frontier for Portfolio Optimization
Library: altair 6.1.0 | Python 3.13.13
Quality: 92/100 | Updated: 2026-05-17
"""
import os
import altair as alt
import numpy as np
import pandas as pd
from scipy.optimize import minimize
# Theme tokens (see prompts/default-style-guide.md)
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
BRAND = "#009E73" # Okabe-Ito position 1
# Okabe-Ito palette
IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD"]
# Data - Portfolio simulation with efficient frontier
np.random.seed(42)
# Asset parameters (5 assets)
n_assets = 5
n_portfolios = 300
# Expected returns and covariance (realistic annualized values)
expected_returns = np.array([0.08, 0.10, 0.12, 0.15, 0.18])
cov_matrix = np.array(
[
[0.04, 0.01, 0.02, 0.01, 0.02],
[0.01, 0.06, 0.02, 0.03, 0.02],
[0.02, 0.02, 0.09, 0.04, 0.03],
[0.01, 0.03, 0.04, 0.12, 0.05],
[0.02, 0.02, 0.03, 0.05, 0.16],
]
)
risk_free_rate = 0.02
# Generate random portfolios
portfolio_returns = []
portfolio_risks = []
portfolio_sharpes = []
for _ in range(n_portfolios):
weights = np.random.random(n_assets)
weights /= np.sum(weights)
ret = np.dot(weights, expected_returns)
risk = np.sqrt(np.dot(weights.T, np.dot(cov_matrix, weights)))
sharpe = (ret - risk_free_rate) / risk
portfolio_returns.append(ret)
portfolio_risks.append(risk)
portfolio_sharpes.append(sharpe)
# Find minimum variance portfolio first
constraints = ({"type": "eq", "fun": lambda w: np.sum(w) - 1},)
bounds = tuple((0, 1) for _ in range(n_assets))
result_minvar = minimize(
lambda w: np.sqrt(np.dot(w.T, np.dot(cov_matrix, w))),
np.ones(n_assets) / n_assets,
method="SLSQP",
bounds=bounds,
constraints=constraints,
)
min_var_risk = result_minvar.fun
min_var_return = np.dot(result_minvar.x, expected_returns)
# Calculate efficient frontier using optimization (from min variance to max return)
frontier_risks_opt = []
frontier_returns_opt = []
target_returns = np.linspace(min_var_return, max(expected_returns), 50)
for target in target_returns:
constraints = (
{"type": "eq", "fun": lambda w: np.sum(w) - 1},
{"type": "eq", "fun": lambda w, t=target: np.dot(w, expected_returns) - t},
)
bounds = tuple((0, 1) for _ in range(n_assets))
result = minimize(
lambda w: np.sqrt(np.dot(w.T, np.dot(cov_matrix, w))),
np.ones(n_assets) / n_assets,
method="SLSQP",
bounds=bounds,
constraints=constraints,
)
if result.success:
frontier_returns_opt.append(target)
frontier_risks_opt.append(result.fun)
# Maximum Sharpe ratio portfolio
sharpe_ratios = [(r - risk_free_rate) / v for r, v in zip(frontier_returns_opt, frontier_risks_opt, strict=True)]
max_sharpe_idx = np.argmax(sharpe_ratios)
max_sharpe_risk = frontier_risks_opt[max_sharpe_idx]
max_sharpe_return = frontier_returns_opt[max_sharpe_idx]
# Create DataFrames
portfolios_df = pd.DataFrame(
{"Risk (Std Dev)": portfolio_risks, "Expected Return": portfolio_returns, "Sharpe Ratio": portfolio_sharpes}
)
frontier_df = pd.DataFrame({"Risk (Std Dev)": frontier_risks_opt, "Expected Return": frontier_returns_opt})
special_points_df = pd.DataFrame(
{
"Risk (Std Dev)": [min_var_risk, max_sharpe_risk],
"Expected Return": [min_var_return, max_sharpe_return],
"Portfolio": ["Minimum Variance", "Maximum Sharpe Ratio"],
}
)
# Capital Market Line
cml_risk = np.array([0, max_sharpe_risk * 1.5])
cml_return = risk_free_rate + (max_sharpe_return - risk_free_rate) / max_sharpe_risk * cml_risk
cml_df = pd.DataFrame({"Risk (Std Dev)": cml_risk, "Expected Return": cml_return})
# Risk-free rate point
rf_df = pd.DataFrame({"Risk (Std Dev)": [0], "Expected Return": [risk_free_rate], "Point": ["Risk-Free Rate"]})
# Plot
# Scatter plot of random portfolios colored by Sharpe ratio
scatter = (
alt.Chart(portfolios_df)
.mark_circle(size=100, opacity=0.6)
.encode(
x=alt.X("Risk (Std Dev):Q", scale=alt.Scale(domain=[0, 0.45]), title="Risk (Standard Deviation)"),
y=alt.Y("Expected Return:Q", scale=alt.Scale(domain=[0, 0.22]), title="Expected Return"),
color=alt.Color(
"Sharpe Ratio:Q",
scale=alt.Scale(scheme="viridis"),
legend=alt.Legend(title="Sharpe Ratio", titleFontSize=16, labelFontSize=14),
),
tooltip=["Risk (Std Dev)", "Expected Return", "Sharpe Ratio"],
)
)
# Efficient frontier line
frontier_line = (
alt.Chart(frontier_df).mark_line(strokeWidth=4, color=BRAND).encode(x="Risk (Std Dev):Q", y="Expected Return:Q")
)
# Capital market line
cml_line = (
alt.Chart(cml_df)
.mark_line(strokeWidth=3, strokeDash=[8, 4], color=IMPRINT[1])
.encode(x="Risk (Std Dev):Q", y="Expected Return:Q")
)
# Special points
special_points = (
alt.Chart(special_points_df)
.mark_point(size=400, filled=True, stroke="white", strokeWidth=2)
.encode(
x="Risk (Std Dev):Q",
y="Expected Return:Q",
color=alt.Color(
"Portfolio:N",
scale=alt.Scale(domain=["Minimum Variance", "Maximum Sharpe Ratio"], range=[IMPRINT[1], IMPRINT[2]]),
legend=alt.Legend(title="Key Portfolios", titleFontSize=16, labelFontSize=14),
),
tooltip=["Portfolio", "Risk (Std Dev)", "Expected Return"],
)
)
# Risk-free rate point
rf_point = (
alt.Chart(rf_df)
.mark_point(size=300, shape="diamond", filled=True, color=INK_SOFT)
.encode(x="Risk (Std Dev):Q", y="Expected Return:Q", tooltip=["Point", "Expected Return"])
)
# Combine all layers
chart = (
alt.layer(scatter, frontier_line, cml_line, special_points, rf_point)
.properties(
width=1600,
height=900,
background=PAGE_BG,
title=alt.Title("frontier-efficient · altair · anyplot.ai", fontSize=28, anchor="middle"),
)
.configure_axis(
domainColor=INK_SOFT,
tickColor=INK_SOFT,
gridColor=INK,
gridOpacity=0.10,
labelColor=INK_SOFT,
labelFontSize=16,
titleColor=INK,
titleFontSize=20,
)
.configure_title(color=INK)
.configure_legend(
fillColor=ELEVATED_BG,
strokeColor=INK_SOFT,
labelColor=INK_SOFT,
titleColor=INK,
titleFontSize=16,
labelFontSize=14,
symbolSize=200,
)
.configure_view(fill=PAGE_BG, stroke=INK_SOFT)
)
# Save
chart.save(f"plot-{THEME}.png", scale_factor=3.0)
chart.save(f"plot-{THEME}.html")
Part of Efficient Frontier for Portfolio Optimization on anyplot.ai.
