The efficient frontier is a fundamental visualization in Modern Portfolio Theory (MPT) that displays a curve of optimal portfolios offering the highest expected return for each level of risk (standard deviation). Portfolios on the frontier are "efficient" because no other portfolio exists with higher return for the same risk, or lower risk for the same return. This plot is essential for asset allocation decisions and understanding the risk-return tradeoff in investment portfolios.
""" anyplot.ai
frontier-efficient: Efficient Frontier for Portfolio Optimization
Library: seaborn 0.13.2 | Python 3.13.13
Quality: 92/100 | Updated: 2026-05-17
"""
import os
import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
from scipy.optimize import minimize
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
BRAND = "#009E73" # Okabe-Ito position 1
ACCENT_1 = "#C475FD" # Okabe-Ito position 2 (orange)
ACCENT_2 = "#4467A3" # Okabe-Ito position 3 (blue)
# Data - Generate random portfolios and efficient frontier
np.random.seed(42)
# Simulate 5 assets with expected returns and covariance
n_assets = 5
expected_returns = np.array([0.08, 0.12, 0.10, 0.15, 0.07])
# Generate a valid positive semi-definite covariance matrix
volatilities = np.array([0.15, 0.22, 0.18, 0.28, 0.12])
correlation = np.array(
[
[1.0, 0.3, 0.2, 0.4, 0.1],
[0.3, 1.0, 0.5, 0.3, 0.2],
[0.2, 0.5, 1.0, 0.4, 0.3],
[0.4, 0.3, 0.4, 1.0, 0.2],
[0.1, 0.2, 0.3, 0.2, 1.0],
]
)
cov_matrix = np.outer(volatilities, volatilities) * correlation
# Generate random portfolios
n_portfolios = 300
portfolio_returns = []
portfolio_risks = []
portfolio_sharpe = []
risk_free_rate = 0.02
for _ in range(n_portfolios):
weights = np.random.random(n_assets)
weights /= np.sum(weights)
ret = np.dot(weights, expected_returns)
risk = np.sqrt(np.dot(weights.T, np.dot(cov_matrix, weights)))
sharpe = (ret - risk_free_rate) / risk
portfolio_returns.append(ret)
portfolio_risks.append(risk)
portfolio_sharpe.append(sharpe)
portfolio_returns = np.array(portfolio_returns)
portfolio_risks = np.array(portfolio_risks)
portfolio_sharpe = np.array(portfolio_sharpe)
# Optimization objective functions
def calc_vol(w):
return np.sqrt(np.dot(w.T, np.dot(cov_matrix, w)))
def calc_neg_sharpe(w):
ret = np.dot(w, expected_returns)
vol = np.sqrt(np.dot(w.T, np.dot(cov_matrix, w)))
return -(ret - risk_free_rate) / vol
# Find minimum variance portfolio
constraints = {"type": "eq", "fun": lambda x: np.sum(x) - 1}
bounds = tuple((0, 1) for _ in range(n_assets))
init_weights = np.array([1 / n_assets] * n_assets)
min_var_result = minimize(calc_vol, init_weights, method="SLSQP", bounds=bounds, constraints=constraints)
min_var_weights = min_var_result.x
min_var_risk = calc_vol(min_var_weights)
min_var_return = np.dot(min_var_weights, expected_returns)
# Find maximum Sharpe ratio (tangency) portfolio
max_sharpe_result = minimize(calc_neg_sharpe, init_weights, method="SLSQP", bounds=bounds, constraints=constraints)
max_sharpe_weights = max_sharpe_result.x
max_sharpe_risk = calc_vol(max_sharpe_weights)
max_sharpe_return = np.dot(max_sharpe_weights, expected_returns)
# Generate efficient frontier curve
target_returns = np.linspace(min_var_return, max(expected_returns) * 0.98, 50)
frontier_risks = []
frontier_returns = []
for target in target_returns:
constraints_ef = [
{"type": "eq", "fun": lambda x: np.sum(x) - 1},
{"type": "eq", "fun": lambda x, t=target: np.dot(x, expected_returns) - t},
]
result = minimize(calc_vol, init_weights, method="SLSQP", bounds=bounds, constraints=constraints_ef)
if result.success:
frontier_risks.append(calc_vol(result.x))
frontier_returns.append(target)
frontier_risks = np.array(frontier_risks)
frontier_returns = np.array(frontier_returns)
# Plot
sns.set_theme(
style="whitegrid",
rc={
"figure.facecolor": PAGE_BG,
"axes.facecolor": PAGE_BG,
"axes.edgecolor": INK_SOFT,
"axes.labelcolor": INK,
"text.color": INK,
"xtick.color": INK_SOFT,
"ytick.color": INK_SOFT,
"grid.color": INK,
"grid.alpha": 0.10,
"legend.facecolor": ELEVATED_BG,
"legend.edgecolor": INK_SOFT,
},
)

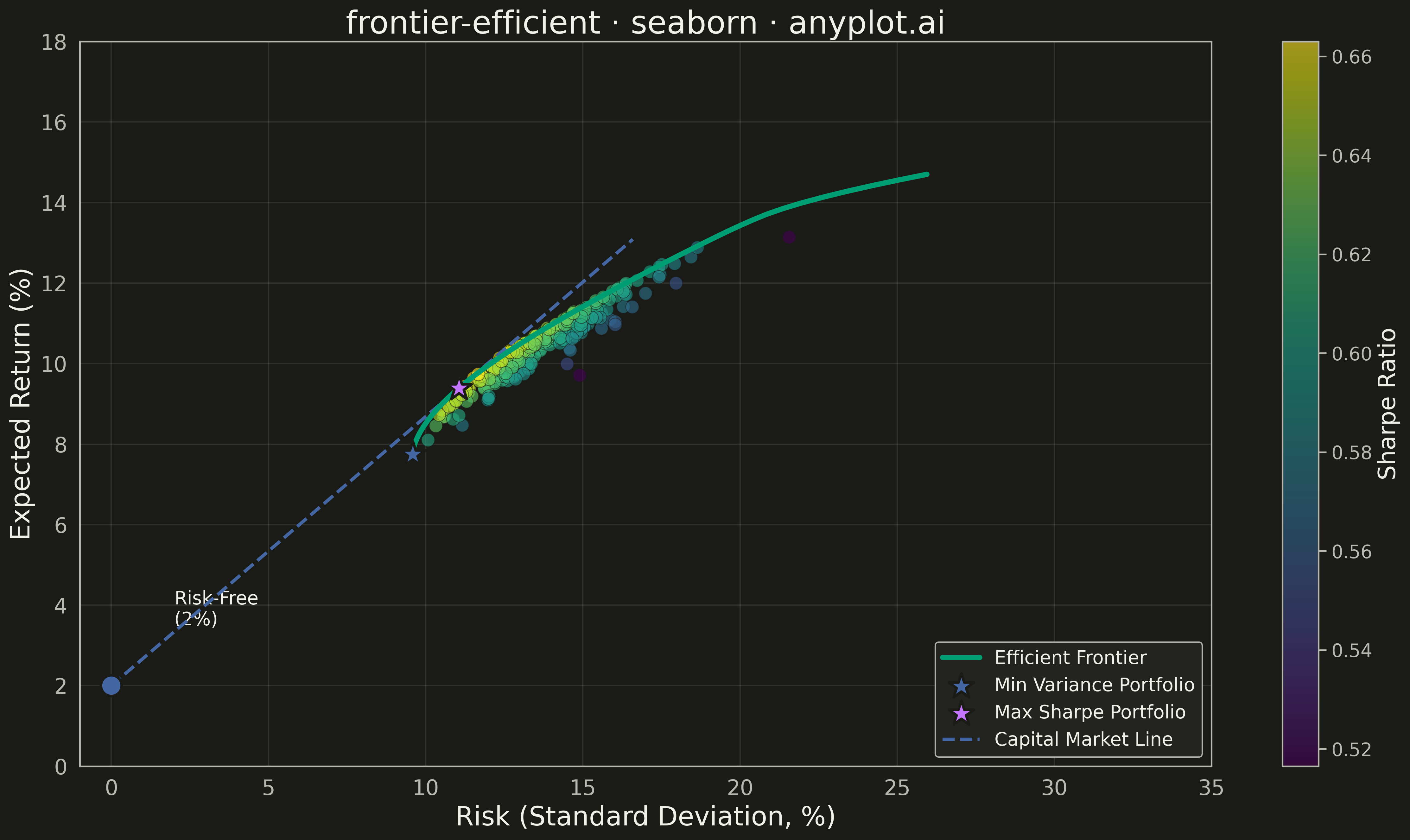

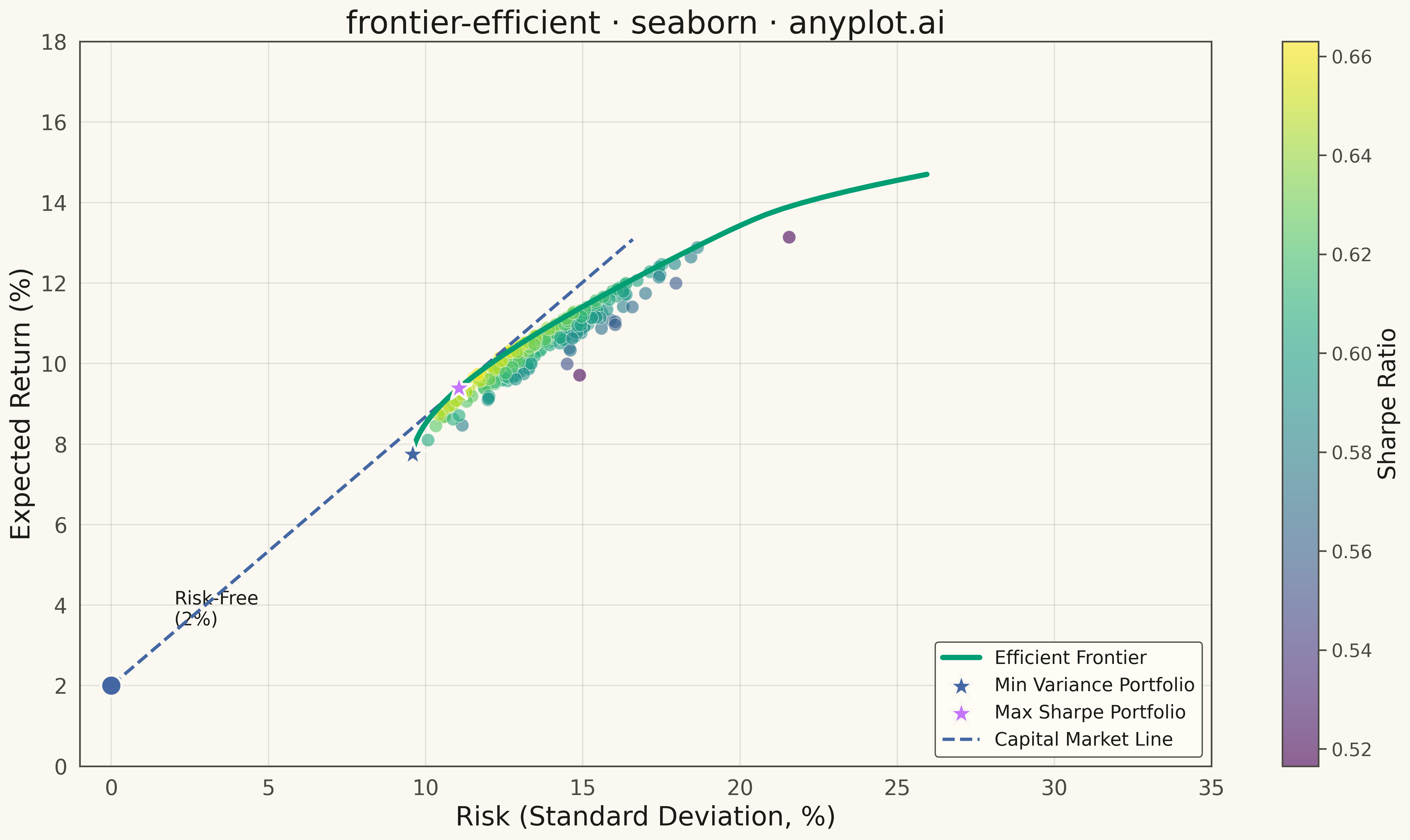

fig, ax = plt.subplots(figsize=(16, 9), facecolor=PAGE_BG)
# Scatter plot of random portfolios colored by Sharpe ratio
scatter = ax.scatter(
portfolio_risks * 100,
portfolio_returns * 100,
c=portfolio_sharpe,
cmap="viridis",
s=100,
alpha=0.6,
edgecolors=PAGE_BG,
linewidth=0.5,
)
# Colorbar for Sharpe ratio
cbar = plt.colorbar(scatter, ax=ax)
cbar.set_label("Sharpe Ratio", fontsize=18, color=INK)
cbar.ax.tick_params(labelsize=14, colors=INK_SOFT)
# Plot efficient frontier curve (use brand color)
ax.plot(frontier_risks * 100, frontier_returns * 100, color=BRAND, linewidth=4, label="Efficient Frontier", zorder=5)
# Mark minimum variance portfolio
ax.scatter(
min_var_risk * 100,
min_var_return * 100,
color=ACCENT_2,
s=400,
marker="*",
edgecolors=PAGE_BG,
linewidths=2,
zorder=10,
label="Min Variance Portfolio",
)
# Mark maximum Sharpe ratio (tangency) portfolio
ax.scatter(
max_sharpe_risk * 100,
max_sharpe_return * 100,
color=ACCENT_1,
s=400,
marker="*",
edgecolors=PAGE_BG,
linewidths=2,
zorder=10,
label="Max Sharpe Portfolio",
)
# Capital Market Line
cml_x = np.array([0, max_sharpe_risk * 100 * 1.5])
cml_slope = (max_sharpe_return - risk_free_rate) / max_sharpe_risk
cml_y = risk_free_rate * 100 + cml_slope * cml_x
ax.plot(cml_x, cml_y, color=ACCENT_2, linewidth=2.5, linestyle="--", label="Capital Market Line", zorder=4)
# Mark risk-free rate
ax.scatter(0, risk_free_rate * 100, color=ACCENT_2, s=250, marker="o", edgecolors=PAGE_BG, linewidths=2, zorder=10)
ax.annotate(
f"Risk-Free\n({risk_free_rate * 100:.0f}%)",
xy=(0, risk_free_rate * 100),
xytext=(2, risk_free_rate * 100 + 1.5),
fontsize=14,
color=INK,
)
# Style
ax.set_xlabel("Risk (Standard Deviation, %)", fontsize=20, color=INK)
ax.set_ylabel("Expected Return (%)", fontsize=20, color=INK)
ax.set_title("frontier-efficient · seaborn · anyplot.ai", fontsize=24, fontweight="medium", color=INK)
ax.tick_params(axis="both", labelsize=16, colors=INK_SOFT)
ax.legend(loc="lower right", fontsize=14, framealpha=0.95)
ax.set_xlim(-1, 35)
ax.set_ylim(0, 18)
ax.grid(True, alpha=0.10, linestyle="-")
plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)
Part of Efficient Frontier for Portfolio Optimization on anyplot.ai.
