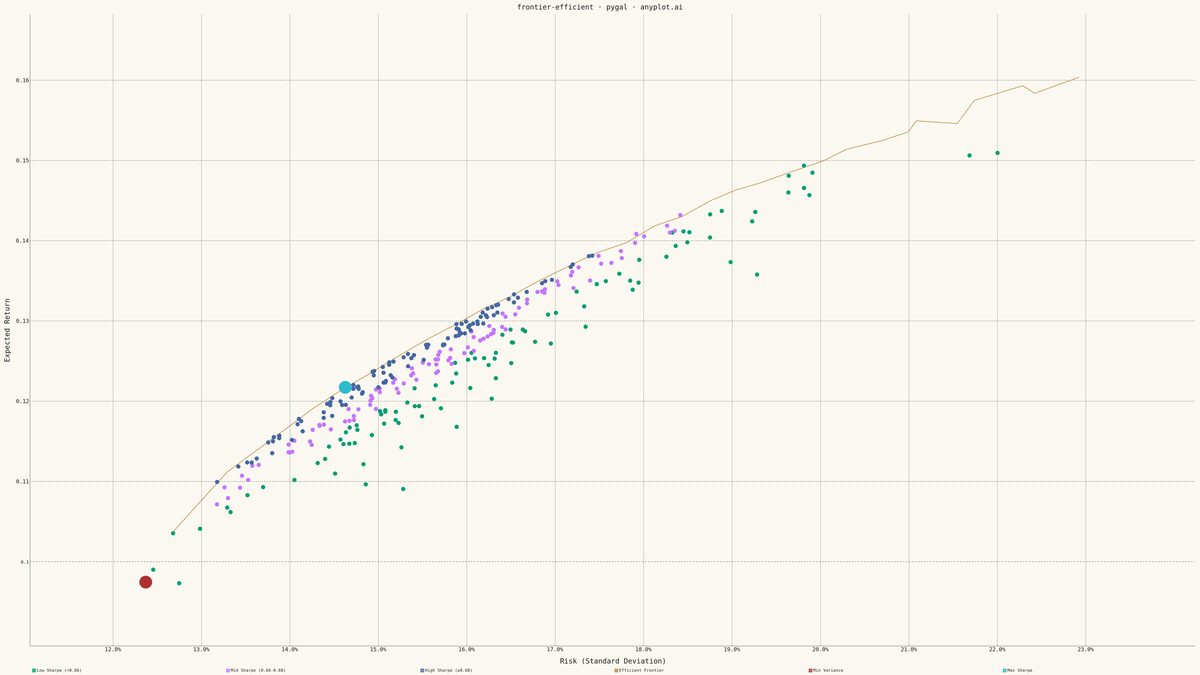

The efficient frontier is a fundamental visualization in Modern Portfolio Theory (MPT) that displays a curve of optimal portfolios offering the highest expected return for each level of risk (standard deviation). Portfolios on the frontier are "efficient" because no other portfolio exists with higher return for the same risk, or lower risk for the same return. This plot is essential for asset allocation decisions and understanding the risk-return tradeoff in investment portfolios.
""" anyplot.ai
frontier-efficient: Efficient Frontier for Portfolio Optimization
Library: pygal 3.1.0 | Python 3.13.13
Quality: 85/100 | Updated: 2026-05-17
"""
import os
import numpy as np
import pygal
from pygal.style import Style
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"
IMPRINT = ("#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477")
# Data - Generate simulated portfolios and efficient frontier
np.random.seed(42)
# Simulate 5 assets with expected returns and volatilities
n_assets = 5
expected_returns = np.array([0.08, 0.12, 0.15, 0.10, 0.18])
volatilities = np.array([0.15, 0.20, 0.25, 0.18, 0.30])
# Create correlation matrix and covariance matrix
correlations = np.array(
[
[1.0, 0.3, 0.4, 0.2, 0.3],
[0.3, 1.0, 0.5, 0.3, 0.4],
[0.4, 0.5, 1.0, 0.3, 0.5],
[0.2, 0.3, 0.3, 1.0, 0.3],
[0.3, 0.4, 0.5, 0.3, 1.0],
]
)
cov_matrix = np.outer(volatilities, volatilities) * correlations
# Generate 300 random portfolios
n_portfolios = 300
portfolio_returns = []
portfolio_risks = []
portfolio_sharpes = []
risk_free_rate = 0.02
for _ in range(n_portfolios):
weights = np.random.random(n_assets)
weights /= weights.sum()
port_return = np.dot(weights, expected_returns)
port_risk = np.sqrt(np.dot(weights.T, np.dot(cov_matrix, weights)))
sharpe = (port_return - risk_free_rate) / port_risk
portfolio_returns.append(port_return)
portfolio_risks.append(port_risk)
portfolio_sharpes.append(sharpe)
# Generate efficient frontier by finding optimal portfolios at each risk level
n_samples = 5000
all_returns = []
all_risks = []
all_sharpes = []
for _ in range(n_samples):
weights = np.random.random(n_assets)
weights /= weights.sum()
port_return = np.dot(weights, expected_returns)
port_risk = np.sqrt(np.dot(weights.T, np.dot(cov_matrix, weights)))
sharpe = (port_return - risk_free_rate) / port_risk
all_returns.append(port_return)
all_risks.append(port_risk)
all_sharpes.append(sharpe)
# Find efficient frontier points (pareto optimal)
risk_buckets = np.linspace(min(all_risks), max(all_risks), 40)
frontier_risks = []
frontier_returns = []
for i in range(len(risk_buckets) - 1):
mask = (np.array(all_risks) >= risk_buckets[i]) & (np.array(all_risks) < risk_buckets[i + 1])
if np.any(mask):
bucket_returns = np.array(all_returns)[mask]
best_idx = np.argmax(bucket_returns)
bucket_risks = np.array(all_risks)[mask]
frontier_risks.append(bucket_risks[best_idx])
frontier_returns.append(bucket_returns[best_idx])
# Sort frontier by risk
sorted_indices = np.argsort(frontier_risks)
frontier_risks = [frontier_risks[i] for i in sorted_indices]
frontier_returns = [frontier_returns[i] for i in sorted_indices]
# Find minimum variance portfolio (lowest risk)
min_var_idx = np.argmin(all_risks)
min_var_risk = all_risks[min_var_idx]
min_var_return = all_returns[min_var_idx]
# Find maximum Sharpe ratio portfolio
max_sharpe_idx = np.argmax(all_sharpes)
max_sharpe_risk = all_risks[max_sharpe_idx]
max_sharpe_return = all_returns[max_sharpe_idx]
# Custom style - theme-adaptive tokens, Okabe-Ito palette
custom_style = Style(
background=PAGE_BG,
plot_background=PAGE_BG,
foreground=INK,
foreground_strong=INK,
foreground_subtle=INK_MUTED,
colors=IMPRINT,
title_font_size=28,
label_font_size=22,
major_label_font_size=18,
legend_font_size=16,
value_font_size=14,
stroke_width=3,
)
# Calculate appropriate axis ranges based on actual data
data_max_risk = max(max(portfolio_risks), max(frontier_risks), max_sharpe_risk, min_var_risk)
data_min_risk = min(min(portfolio_risks), min(frontier_risks), max_sharpe_risk, min_var_risk)
data_max_return = max(max(portfolio_returns), max(frontier_returns), max_sharpe_return, min_var_return)
data_min_return = min(min(portfolio_returns), min(frontier_returns), max_sharpe_return, min_var_return)
# Add small padding for better visualization
x_padding = (data_max_risk - data_min_risk) * 0.1
y_padding = (data_max_return - data_min_return) * 0.1
# Create XY chart (scatter plot capability)
chart = pygal.XY(
width=4800,
height=2700,
style=custom_style,
title="frontier-efficient · pygal · anyplot.ai",
x_title="Risk (Standard Deviation)",
y_title="Expected Return",
show_x_guides=True,
show_y_guides=True,
dots_size=8,
stroke=False,
legend_at_bottom=True,
legend_at_bottom_columns=6,
truncate_legend=-1,
x_value_formatter=lambda x: f"{x:.1%}",
y_value_formatter=lambda y: f"{y:.1%}",
range=(max(0, data_min_return - y_padding), data_max_return + y_padding),
xrange=(max(0, data_min_risk - x_padding), data_max_risk + x_padding),
)
# Add random portfolios grouped by Sharpe ratio
sharpe_33 = np.percentile(portfolio_sharpes, 33)
sharpe_66 = np.percentile(portfolio_sharpes, 66)
low_sharpe = [
(portfolio_risks[i], portfolio_returns[i]) for i in range(n_portfolios) if portfolio_sharpes[i] < sharpe_33
]
mid_sharpe = [
(portfolio_risks[i], portfolio_returns[i])
for i in range(n_portfolios)
if sharpe_33 <= portfolio_sharpes[i] < sharpe_66
]
high_sharpe = [
(portfolio_risks[i], portfolio_returns[i]) for i in range(n_portfolios) if portfolio_sharpes[i] >= sharpe_66
]
chart.add(f"Low Sharpe (<{sharpe_33:.2f})", low_sharpe, dots_size=8)
chart.add(f"Mid Sharpe ({sharpe_33:.2f}-{sharpe_66:.2f})", mid_sharpe, dots_size=8)
chart.add(f"High Sharpe (≥{sharpe_66:.2f})", high_sharpe, dots_size=8)
# Add efficient frontier as connected line
frontier_points = list(zip(frontier_risks, frontier_returns, strict=False))
chart.add("Efficient Frontier", frontier_points, stroke=True, dots_size=0, stroke_style={"width": 8})
# Add special marker points for key portfolios
chart.add("Min Variance", [(min_var_risk, min_var_return)], dots_size=25)
chart.add("Max Sharpe", [(max_sharpe_risk, max_sharpe_return)], dots_size=25)
# Save outputs

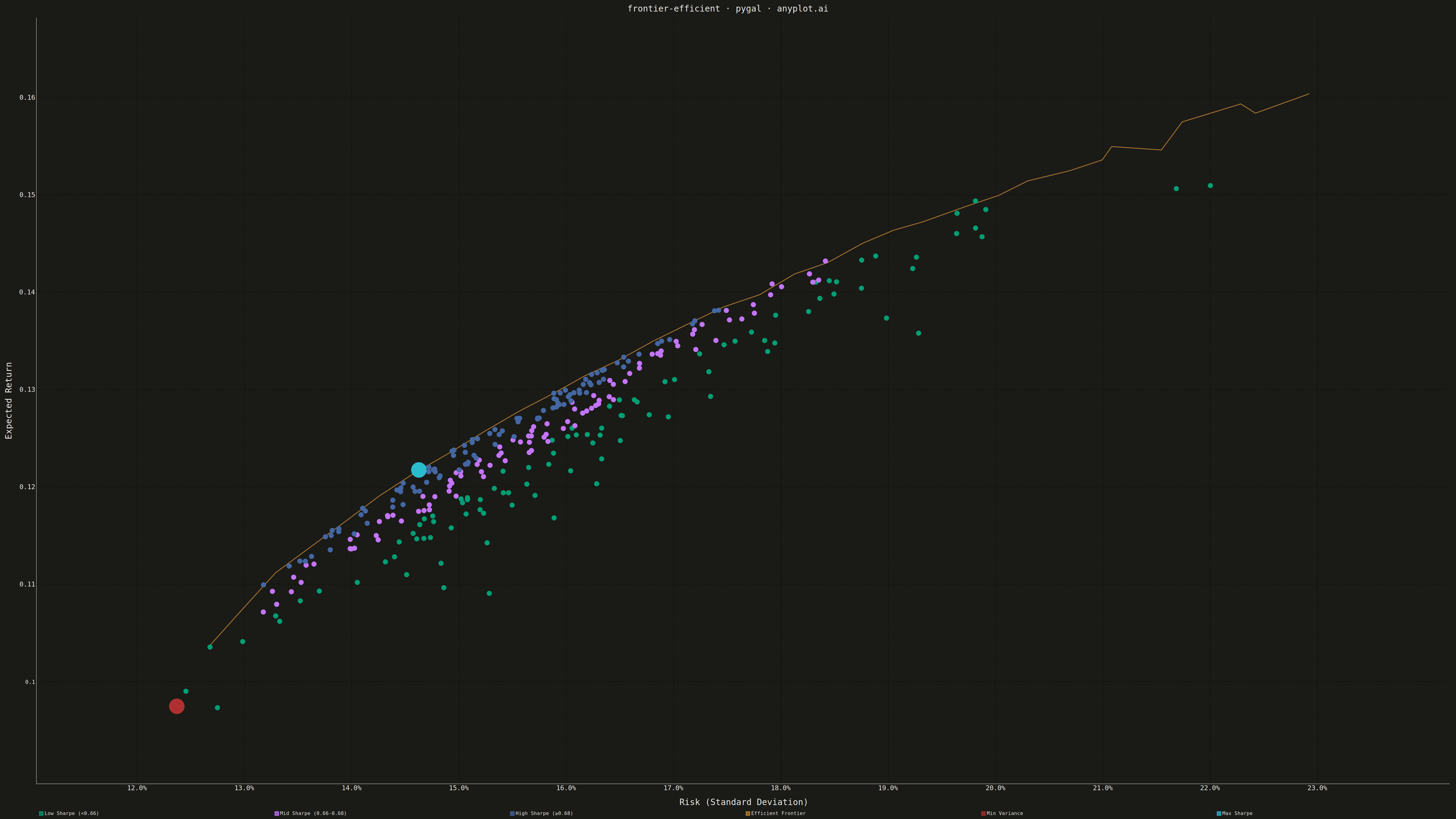

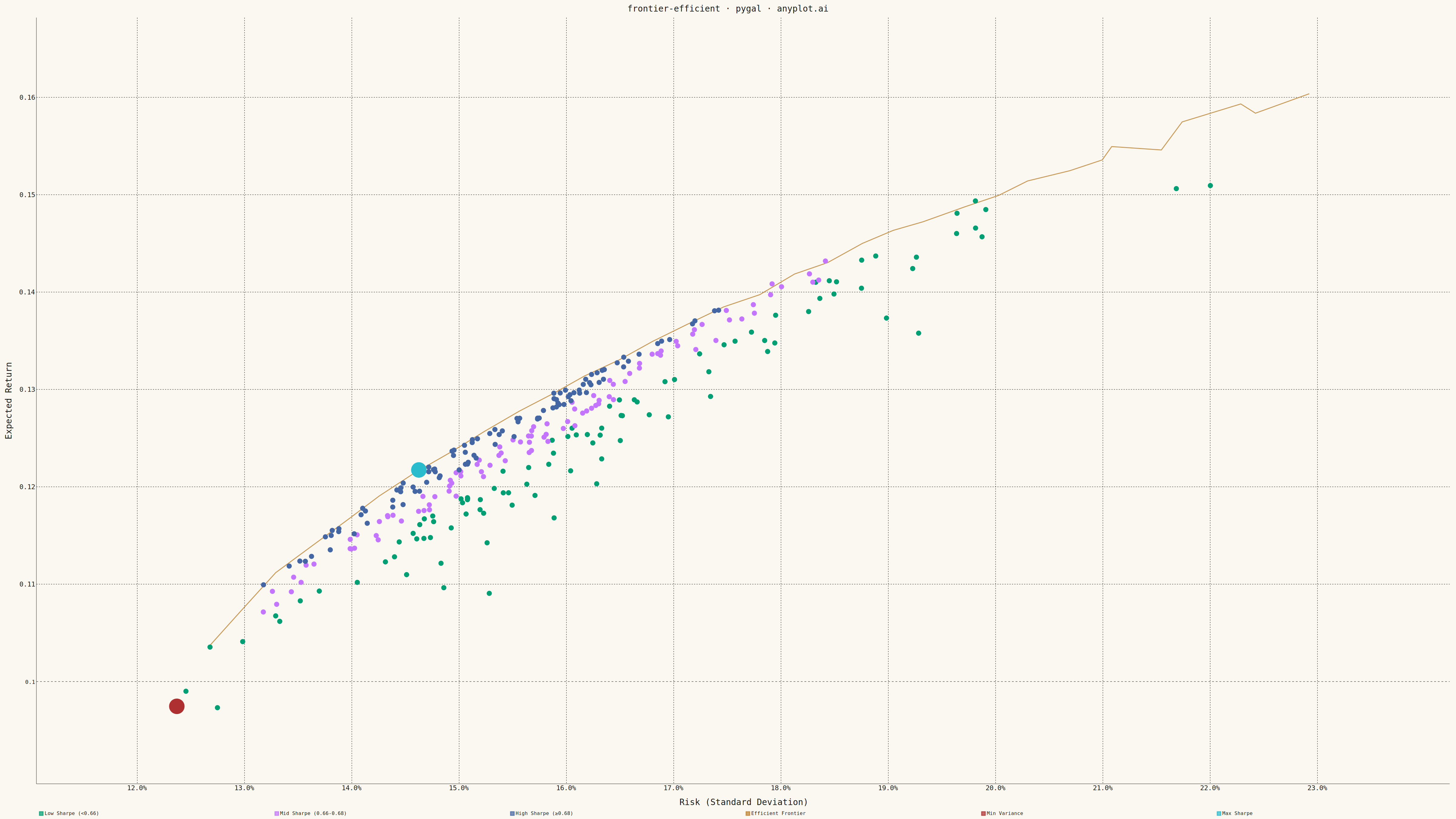

chart.render_to_png(f"plot-{THEME}.png")
# Save HTML for interactive version
with open(f"plot-{THEME}.html", "w") as f:
f.write(chart.render().decode("utf-8"))
Part of Efficient Frontier for Portfolio Optimization on anyplot.ai.
