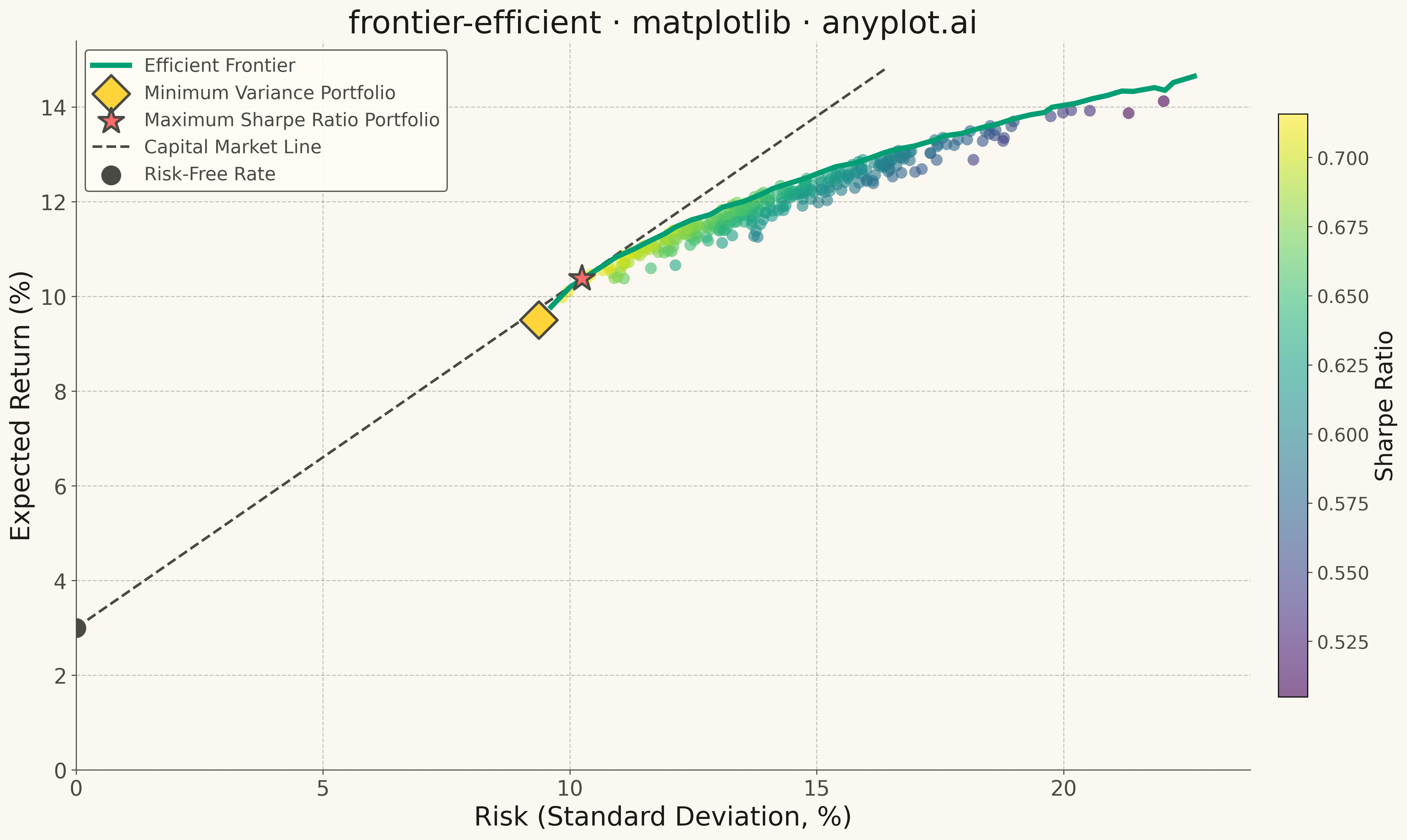

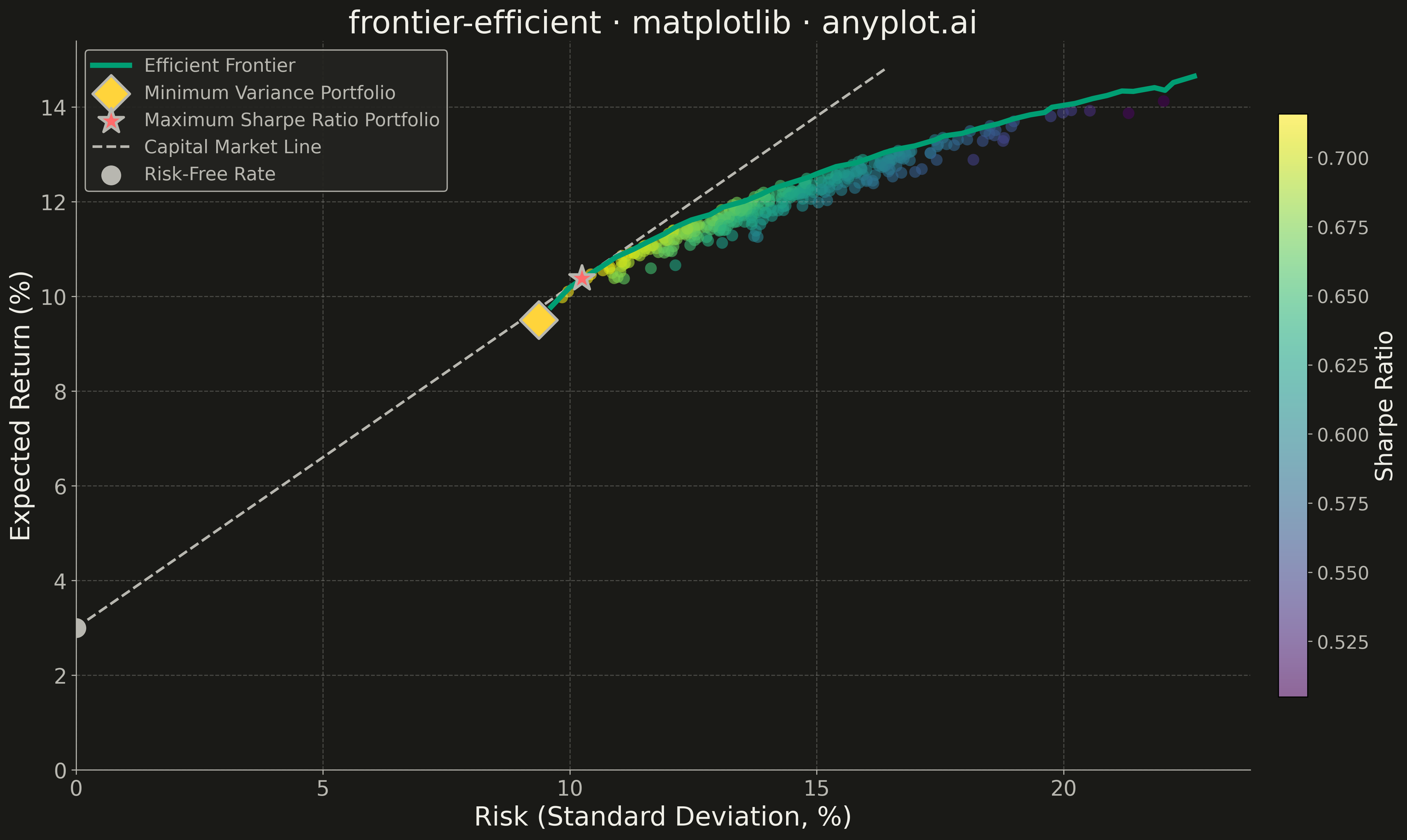

The efficient frontier is a fundamental visualization in Modern Portfolio Theory (MPT) that displays a curve of optimal portfolios offering the highest expected return for each level of risk (standard deviation). Portfolios on the frontier are "efficient" because no other portfolio exists with higher return for the same risk, or lower risk for the same return. This plot is essential for asset allocation decisions and understanding the risk-return tradeoff in investment portfolios.
""" anyplot.ai
frontier-efficient: Efficient Frontier for Portfolio Optimization
Library: matplotlib 3.10.9 | Python 3.13.13
Quality: 85/100 | Updated: 2026-05-17
"""
import matplotlib.pyplot as plt
import numpy as np
# Data - Simulating portfolios from a 5-asset universe
np.random.seed(42)
# Asset parameters (annualized returns and covariance matrix)
n_assets = 5
expected_returns = np.array([0.12, 0.10, 0.14, 0.08, 0.16]) # Annual returns
asset_volatilities = np.array([0.18, 0.12, 0.25, 0.10, 0.30])
# Create realistic correlation matrix
correlations = np.array(
[
[1.00, 0.30, 0.50, 0.20, 0.40],
[0.30, 1.00, 0.25, 0.60, 0.35],
[0.50, 0.25, 1.00, 0.15, 0.55],
[0.20, 0.60, 0.15, 1.00, 0.25],
[0.40, 0.35, 0.55, 0.25, 1.00],
]
)
cov_matrix = np.outer(asset_volatilities, asset_volatilities) * correlations
risk_free_rate = 0.03
# Generate many random portfolios to approximate efficient frontier
n_portfolios = 5000
all_returns = []
all_risks = []
all_sharpes = []
all_weights = []
for _ in range(n_portfolios):
weights = np.random.random(n_assets)
weights /= weights.sum()
ret = np.dot(weights, expected_returns)
risk = np.sqrt(np.dot(weights.T, np.dot(cov_matrix, weights)))
sharpe = (ret - risk_free_rate) / risk
all_returns.append(ret)
all_risks.append(risk)
all_sharpes.append(sharpe)
all_weights.append(weights)
all_returns = np.array(all_returns)
all_risks = np.array(all_risks)
all_sharpes = np.array(all_sharpes)
# Extract efficient frontier points (highest return for each risk level)
# Bin by risk and find max return in each bin
risk_bins = np.linspace(all_risks.min(), all_risks.max(), 50)
efficient_returns = []
efficient_risks = []
for i in range(len(risk_bins) - 1):
mask = (all_risks >= risk_bins[i]) & (all_risks < risk_bins[i + 1])
if mask.sum() > 0:
max_return_idx = np.argmax(all_returns[mask])
idx = np.where(mask)[0][max_return_idx]
efficient_returns.append(all_returns[idx])
efficient_risks.append(all_risks[idx])
efficient_returns = np.array(efficient_returns)
efficient_risks = np.array(efficient_risks)
# Sort by risk for smooth curve
sort_idx = np.argsort(efficient_risks)
efficient_risks = efficient_risks[sort_idx]
efficient_returns = efficient_returns[sort_idx]
# Find minimum variance portfolio (lowest risk)
min_var_idx = np.argmin(all_risks)
min_var_return = all_returns[min_var_idx]
min_var_risk = all_risks[min_var_idx]
# Find maximum Sharpe ratio portfolio
max_sharpe_idx = np.argmax(all_sharpes)
max_sharpe_return = all_returns[max_sharpe_idx]
max_sharpe_risk = all_risks[max_sharpe_idx]
# Filter efficient frontier to points above minimum variance
frontier_mask = efficient_returns >= min_var_return - 0.005
efficient_risks = efficient_risks[frontier_mask]
efficient_returns = efficient_returns[frontier_mask]
# Sample portfolios for scatter plot (subset for visibility)
sample_idx = np.random.choice(len(all_returns), size=300, replace=False)
sample_returns = all_returns[sample_idx]
sample_risks = all_risks[sample_idx]
sample_sharpes = all_sharpes[sample_idx]
# Plot
fig, ax = plt.subplots(figsize=(16, 9))
# Random portfolios colored by Sharpe ratio
scatter = ax.scatter(
sample_risks * 100, sample_returns * 100, c=sample_sharpes, cmap="viridis", s=80, alpha=0.6, edgecolors="none"
)
# Efficient frontier curve
ax.plot(
efficient_risks * 100, efficient_returns * 100, color="#306998", linewidth=4, label="Efficient Frontier", zorder=5
)
# Minimum variance portfolio
ax.scatter(
min_var_risk * 100,
min_var_return * 100,
color="#FFD43B",
s=400,
marker="D",
edgecolors="#306998",
linewidth=2,
label="Minimum Variance Portfolio",
zorder=6,
)
# Maximum Sharpe ratio portfolio
ax.scatter(
max_sharpe_risk * 100,
max_sharpe_return * 100,
color="#FF6B6B",
s=400,
marker="*",
edgecolors="#306998",
linewidth=2,
label="Maximum Sharpe Ratio Portfolio",
zorder=6,
)
# Capital Market Line
cml_x_end = max_sharpe_risk * 1.6
cml_slope = (max_sharpe_return - risk_free_rate) / max_sharpe_risk
cml_x = np.array([0, cml_x_end]) * 100
cml_y = (risk_free_rate + cml_slope * np.array([0, cml_x_end])) * 100
ax.plot(cml_x, cml_y, color="#888888", linewidth=2, linestyle="--", label="Capital Market Line", zorder=4)
# Risk-free rate point
ax.scatter(0, risk_free_rate * 100, color="#888888", s=200, marker="o", zorder=6, label="Risk-Free Rate")
# Colorbar for Sharpe ratio
cbar = plt.colorbar(scatter, ax=ax, shrink=0.8, pad=0.02)
cbar.set_label("Sharpe Ratio", fontsize=18)
cbar.ax.tick_params(labelsize=14)
# Labels and styling
ax.set_xlabel("Risk (Standard Deviation, %)", fontsize=20)
ax.set_ylabel("Expected Return (%)", fontsize=20)
ax.set_title("frontier-efficient · matplotlib · pyplots.ai", fontsize=24)
ax.tick_params(axis="both", labelsize=16)
ax.grid(True, alpha=0.3, linestyle="--")
ax.legend(fontsize=14, loc="upper left", framealpha=0.9)
ax.set_xlim(left=0)
ax.set_ylim(bottom=0)
plt.tight_layout()
plt.savefig("plot.png", dpi=300, bbox_inches="tight")
Part of Efficient Frontier for Portfolio Optimization on anyplot.ai.
