A matrix-based representation of a network or graph where rows and columns represent nodes and cell color indicates the presence or weight of edges between them. This visualization complements node-link diagrams by excelling at revealing clusters, structural patterns, and density in large or dense networks where node-link layouts become cluttered. Reordering nodes by cluster, degree, or community membership exposes block-diagonal structure and makes group boundaries immediately visible.
// anyplot.ai

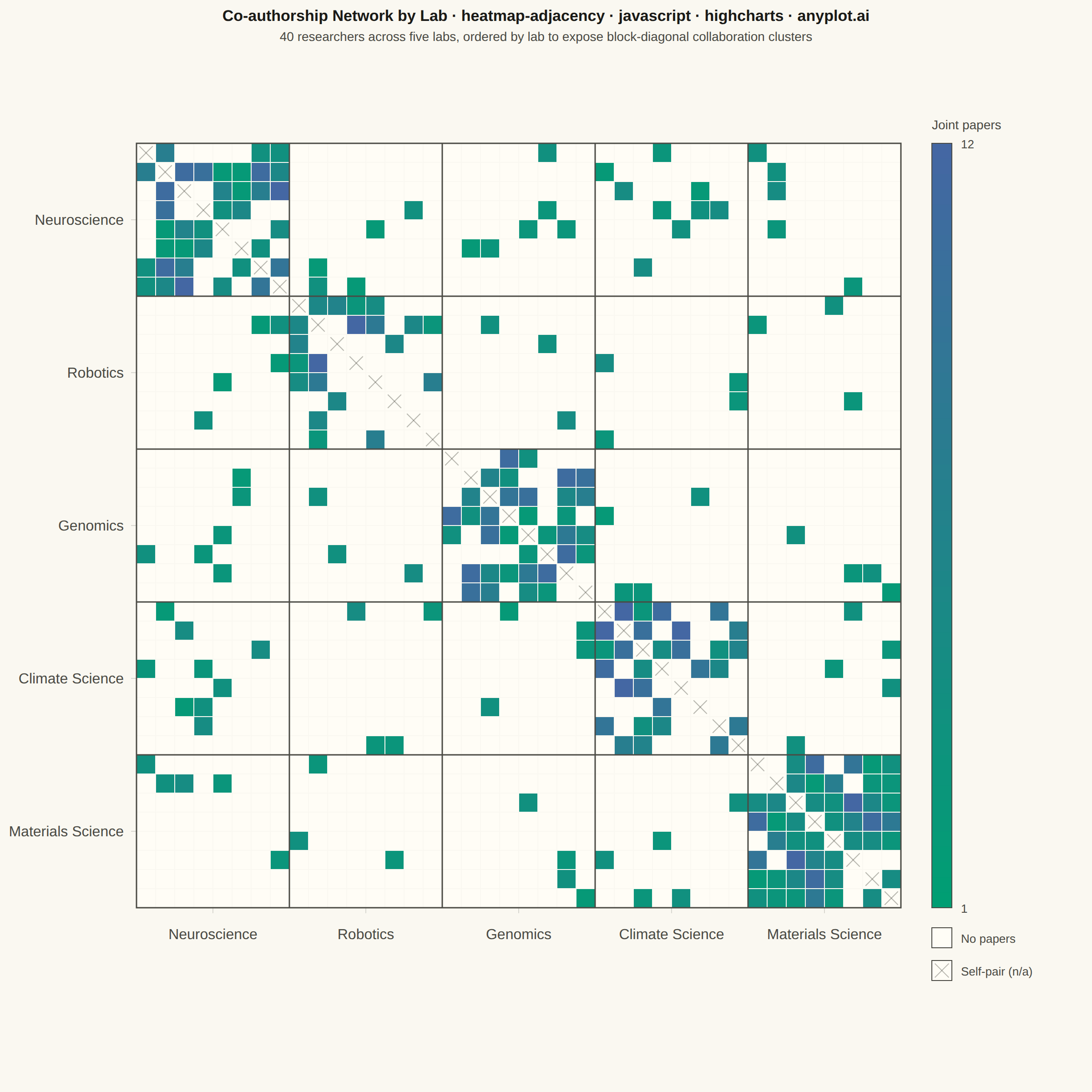

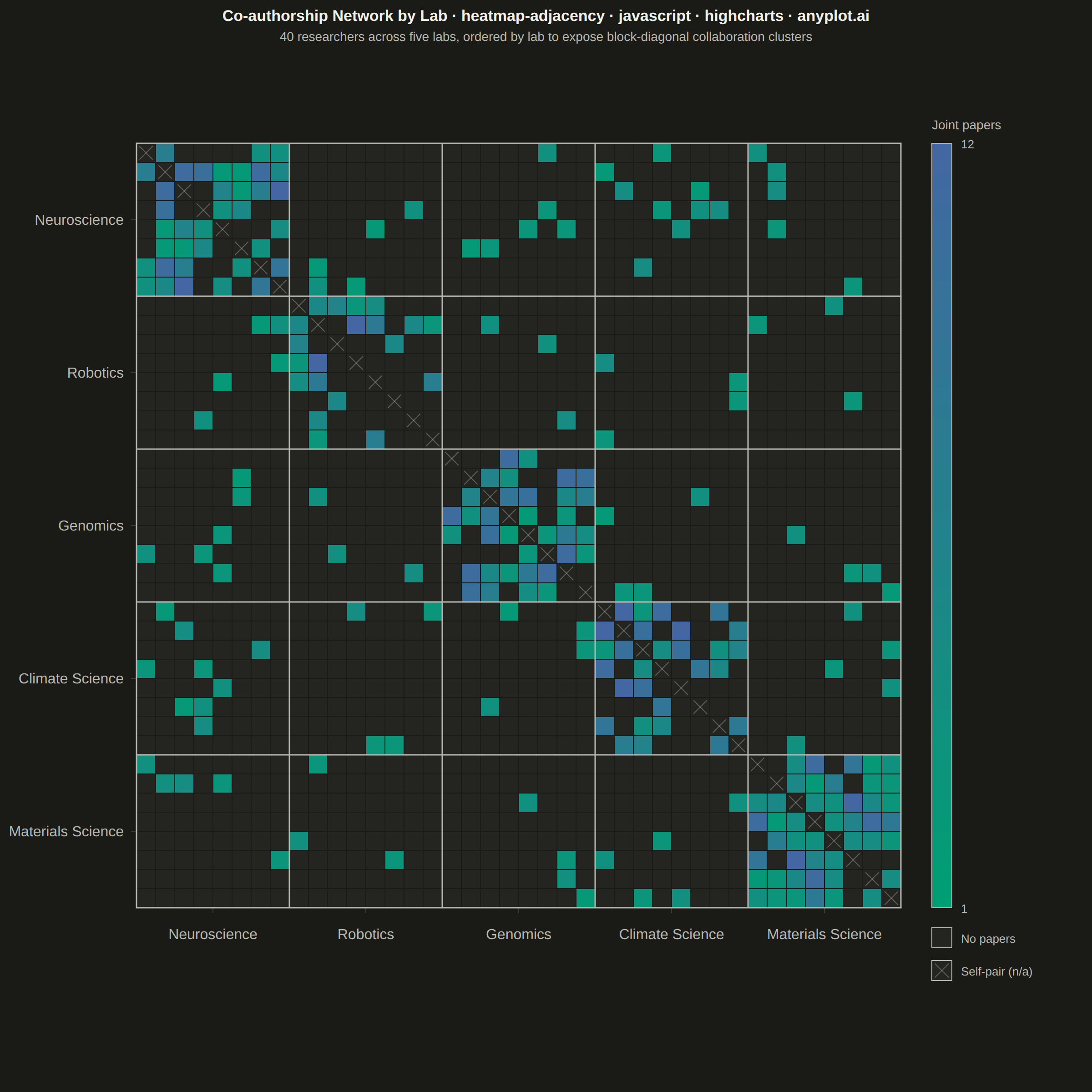

// heatmap-adjacency: Network Adjacency Matrix Heatmap
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 90/100 | Created: 2026-09-05
//# anyplot-orientation: square
const t = window.ANYPLOT_TOKENS;
// --- Data: co-authorship network across five university research labs ------
// The core Highcharts bundle has no heatmap/colorAxis module loaded, so the
// matrix is drawn cell-by-cell with the SVG renderer, same as any other
// vector shape Highcharts can draw natively.
const LABS = ['Neuroscience', 'Robotics', 'Genomics', 'Climate Science', 'Materials Science'];
const LAB_SIZE = 8;
const N = LABS.length * LAB_SIZE; // 40 researchers total across five labs
const labOf = (i) => Math.floor(i / LAB_SIZE);
const NODE_NAMES = Array.from({ length: N }, (_, i) => `${LABS[labOf(i)].slice(0, 2).toUpperCase()}${(i % LAB_SIZE) + 1}`);
// Deterministic LCG — the browser has no seeded RNG.
let seed = 42;
function rand() {
seed = (seed * 1103515245 + 12345) & 0x7fffffff;
return seed / 0x7fffffff;
}
// Nodes are already ordered by lab (cluster) so the block-diagonal structure
// is visible without a separate reordering step. Intra-lab pairs collaborate
// far more often and more deeply than cross-lab pairs, which is what produces
// the dense diagonal blocks against a sparse off-diagonal background.
const WEIGHT = Array.from({ length: N }, () => new Array(N).fill(0));
for (let i = 0; i < N; i++) {
for (let j = i + 1; j < N; j++) {
const sameLab = labOf(i) === labOf(j);
const edgeProbability = sameLab ? 0.6 : 0.07;
if (rand() < edgeProbability) {
const maxPapers = sameLab ? 12 : 4;
const papers = 1 + Math.round(rand() * (maxPapers - 1));
WEIGHT[i][j] = papers;
WEIGHT[j][i] = papers; // undirected graph — fill both triangles
}
}
}
// Diagonal (self-pairs) carries no meaning; it is hatched (see drawAll) to
// disambiguate "not applicable" from a genuine zero-weight absent edge.
let maxWeight = 0;
WEIGHT.forEach((row) => row.forEach((w) => { if (w > maxWeight) maxWeight = w; }));
// --- Color: imprint_seq — single-polarity data (joint-paper count >= 0) ----
function hexToRgb(hex) {
return [parseInt(hex.slice(1, 3), 16), parseInt(hex.slice(3, 5), 16), parseInt(hex.slice(5, 7), 16)];
}
const SEQ_LO = hexToRgb(t.seq[0]); // #009E73
const SEQ_HI = hexToRgb(t.seq[1]); // #4467A3
function lerp(a, b, f) {
return a + (b - a) * f;
}
function weightFill(w) {
if (w === 0) return t.elevatedBg; // absent edge — distinct from the color scale
const f = w / maxWeight;
const [red, green, blue] = [lerp(SEQ_LO[0], SEQ_HI[0], f), lerp(SEQ_LO[1], SEQ_HI[1], f), lerp(SEQ_LO[2], SEQ_HI[2], f)];
return `rgb(${Math.round(red)},${Math.round(green)},${Math.round(blue)})`;
}
// --- Title (fontsize scaled off the 67-char baseline) -----------------------
const TITLE_TEXT = 'Co-authorship Network by Lab · heatmap-adjacency · javascript · highcharts · anyplot.ai';
const TITLE_FS = Math.max(Math.round(22 * Math.min(1, 67 / TITLE_TEXT.length)), 14);
// Fixed chart geometry (square canvas, harness-guaranteed 1200x1200 CSS px) —
// a single source of truth for the margin, the grid, and the invisible hover
// layer below, so everything lines up without a runtime resync. A fixed
// column is reserved to the right of the grid for the colorbar + its labels
// so long strings like "Joint papers" never run past the canvas edge.
const CHART_MARGIN = [130, 10, 175, 150]; // [top, right, bottom, left]
const COLORBAR_COLUMN = 200;
const size = window.ANYPLOT_SIZE;
const gridSpan = Math.min(
size.width - CHART_MARGIN[1] - CHART_MARGIN[3] - COLORBAR_COLUMN,
size.height - CHART_MARGIN[0] - CHART_MARGIN[2]
);
const CELL = gridSpan / N;
const MARKER_RADIUS = Math.max(CELL / 2 - 1, 2);
const drawn = [];
function clearDrawn() {
drawn.forEach((el) => {
try {
el.destroy();
} catch (_err) {
// already removed
}
});
drawn.length = 0;
}
function drawAll() {
const chart = this;
clearDrawn();
const r = chart.renderer;
const gridLeft = chart.plotLeft + (chart.plotWidth - COLORBAR_COLUMN - gridSpan) / 2;
const gridTop = chart.plotTop + (chart.plotHeight - gridSpan) / 2;
// Matrix cells — full N x N grid, both triangles filled (undirected graph).
// Diagonal (self-pair) cells get a hatch overlay so "not applicable" reads
// as visually distinct from a genuine zero-weight absent edge.
for (let row = 0; row < N; row++) {
for (let col = 0; col < N; col++) {
const w = WEIGHT[row][col];
const x = gridLeft + col * CELL;
const y = gridTop + row * CELL;
drawn.push(
r
.rect(x + 0.5, y + 0.5, CELL - 1, CELL - 1, 0)
.attr({ fill: weightFill(w), stroke: 'none', zIndex: 2 })
.add()
);
if (row === col) {
const pad = Math.max(CELL * 0.15, 1);
drawn.push(
r.path(['M', x + pad, y + pad, 'L', x + CELL - pad, y + CELL - pad]).attr({ stroke: t.inkSoft, 'stroke-width': 1, opacity: 0.4, zIndex: 3 }).add()
);
drawn.push(
r.path(['M', x + CELL - pad, y + pad, 'L', x + pad, y + CELL - pad]).attr({ stroke: t.inkSoft, 'stroke-width': 1, opacity: 0.4, zIndex: 3 }).add()
);
}
}
}
// Block-boundary dividers between labs — thicker lines so the cluster
// structure the node ordering encodes is immediately legible.
for (let b = 1; b < LABS.length; b++) {
const pos = gridLeft + b * LAB_SIZE * CELL;
drawn.push(
r.path(['M', pos, gridTop, 'L', pos, gridTop + gridSpan]).attr({ stroke: t.inkSoft, 'stroke-width': 1.5, zIndex: 3 }).add()
);
const posY = gridTop + b * LAB_SIZE * CELL;
drawn.push(
r.path(['M', gridLeft, posY, 'L', gridLeft + gridSpan, posY]).attr({ stroke: t.inkSoft, 'stroke-width': 1.5, zIndex: 3 }).add()
);
}
// Outer frame around the full matrix.
drawn.push(
r.rect(gridLeft, gridTop, gridSpan, gridSpan).attr({ fill: 'none', stroke: t.inkSoft, 'stroke-width': 1.5, zIndex: 3 }).add()
);
// Sparse tick marks halfway through each block — full per-node labels would
// crowd a 40x40 grid, but a light mid-block tick gives orientation within
// each lab's rows/columns without adding text.
for (let i = LAB_SIZE / 2; i < N; i += LAB_SIZE) {
const x = gridLeft + i * CELL;
drawn.push(r.path(['M', x, gridTop + gridSpan, 'L', x, gridTop + gridSpan + 6]).attr({ stroke: t.grid, 'stroke-width': 1, zIndex: 2 }).add());
const y = gridTop + i * CELL;
drawn.push(r.path(['M', gridLeft - 6, y, 'L', gridLeft, y]).attr({ stroke: t.grid, 'stroke-width': 1, zIndex: 2 }).add());
}
// Lab labels centered on each block — per-node tick labels would crowd a
// 40x40 grid, so only the group boundaries are labeled (x below, y left).
LABS.forEach((lab, b) => {
const center = gridLeft + (b + 0.5) * LAB_SIZE * CELL;
drawn.push(
r.text(lab, center, gridTop + gridSpan + 34).attr({ align: 'center', zIndex: 2 }).css({ color: t.inkSoft, fontSize: '16px', fontWeight: '500' }).add()
);
const centerY = gridTop + (b + 0.5) * LAB_SIZE * CELL;
drawn.push(
r
.text(lab, gridLeft - 14, centerY + 5)
.attr({ align: 'right', zIndex: 2 })
.css({ color: t.inkSoft, fontSize: '16px', fontWeight: '500' })
.add()
);
});
// Vertical colorbar in the freed right margin.
const barLeft = gridLeft + gridSpan + 34;
const barTop = gridTop;
const barWidth = 22;
const barHeight = gridSpan;
const segments = 50;
const segH = barHeight / segments;
for (let i = 0; i < segments; i++) {
const w = maxWeight - ((maxWeight * i) / (segments - 1));
drawn.push(r.rect(barLeft, barTop + i * segH, barWidth, segH + 0.5).attr({ fill: weightFill(Math.max(w, 0.01)), zIndex: 2 }).add());
}
drawn.push(r.rect(barLeft, barTop, barWidth, barHeight).attr({ fill: 'none', stroke: t.inkSoft, 'stroke-width': 1, zIndex: 3 }).add());
[
[maxWeight, 0],
[1, 1],
].forEach(([w, frac]) => {
drawn.push(
r.text(String(w), barLeft + barWidth + 10, barTop + frac * barHeight + 5).attr({ align: 'left', zIndex: 2 }).css({ color: t.inkSoft, fontSize: '13px' }).add()
);
});
drawn.push(r.text('Joint papers', barLeft, barTop - 16).attr({ align: 'left', zIndex: 2 }).css({ color: t.inkSoft, fontSize: '14px', fontWeight: '500' }).add());
// "No collaboration" swatch below the colorbar for the absent-edge fill.
const swatchTop = barTop + barHeight + 22;
drawn.push(r.rect(barLeft, swatchTop, barWidth, barWidth).attr({ fill: t.elevatedBg, stroke: t.inkSoft, 'stroke-width': 1, zIndex: 3 }).add());
drawn.push(
r.text('No papers', barLeft + barWidth + 10, swatchTop + barWidth / 2 + 5).attr({ align: 'left', zIndex: 2 }).css({ color: t.inkSoft, fontSize: '13px' }).add()
);
// "Self-pair" swatch — same hatch pattern drawn on the matrix diagonal, so
// the legend disambiguates "not applicable" from a genuine absent edge.
const swatch2Top = swatchTop + barWidth + 14;
drawn.push(r.rect(barLeft, swatch2Top, barWidth, barWidth).attr({ fill: t.elevatedBg, stroke: t.inkSoft, 'stroke-width': 1, zIndex: 3 }).add());
const hp = barWidth * 0.15;
drawn.push(
r.path(['M', barLeft + hp, swatch2Top + hp, 'L', barLeft + barWidth - hp, swatch2Top + barWidth - hp]).attr({ stroke: t.inkSoft, 'stroke-width': 1, opacity: 0.4, zIndex: 3 }).add()
);
drawn.push(
r.path(['M', barLeft + barWidth - hp, swatch2Top + hp, 'L', barLeft + hp, swatch2Top + barWidth - hp]).attr({ stroke: t.inkSoft, 'stroke-width': 1, opacity: 0.4, zIndex: 3 }).add()
);
drawn.push(
r.text('Self-pair (n/a)', barLeft + barWidth + 10, swatch2Top + barWidth / 2 + 5).attr({ align: 'left', zIndex: 2 }).css({ color: t.inkSoft, fontSize: '13px' }).add()
);
}
// Invisible scatter layer aligned to each cell so hovering exposes a real
// Highcharts tooltip — the core bundle has no heatmap/colorAxis module, but a
// matched-axis scatter series recovers native hover interactivity without
// disturbing the hand-drawn matrix above it.
const cellPoints = [];
for (let row = 0; row < N; row++) {
for (let col = 0; col < N; col++) {
cellPoints.push({ x: col, y: row, papers: WEIGHT[row][col], from: NODE_NAMES[row], to: NODE_NAMES[col] });
}
}
Highcharts.chart('container', {
chart: {
backgroundColor: 'transparent',
animation: false,
style: { fontFamily: 'inherit' },
margin: CHART_MARGIN,
events: { load: drawAll, redraw: drawAll },
},
credits: { enabled: false },
title: {
text: TITLE_TEXT,
style: { color: t.ink, fontSize: TITLE_FS + 'px', fontWeight: '600' },
},
subtitle: {
text: '40 researchers across five labs, ordered by lab to expose block-diagonal collaboration clusters',
style: { color: t.inkSoft, fontSize: '14px' },
},
xAxis: { visible: false, min: -0.5, max: N - 0.5 },
yAxis: { visible: false, gridLineWidth: 0, min: -0.5, max: N - 0.5, reversed: true },
legend: { enabled: false },
tooltip: {
enabled: true,
backgroundColor: t.elevatedBg,
borderColor: t.inkSoft,
borderRadius: 6,
style: { color: t.ink, fontSize: '13px' },
formatter: function () {
const p = this.point;
if (p.from === p.to) return `<b>${p.from}</b><br/>Self-pair — not applicable`;
return p.papers > 0 ? `<b>${p.from} ↔ ${p.to}</b><br/>${p.papers} joint paper${p.papers === 1 ? '' : 's'}` : `<b>${p.from} ↔ ${p.to}</b><br/>No collaboration`;
},
},
plotOptions: {
series: { animation: false },
scatter: {
enableMouseTracking: true,
stickyTracking: false,
marker: {
enabled: true,
symbol: 'square',
radius: MARKER_RADIUS,
fillColor: 'rgba(0,0,0,0.001)',
lineWidth: 0,
states: { hover: { enabled: false } },
},
},
},
series: [
{
type: 'scatter',
name: 'Collaboration',
data: cellPoints,
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/heatmap-adjacency/highcharts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "heatmap-adjacency",
"language": "javascript",
"library": "highcharts",
"page": "https://anyplot.ai/heatmap-adjacency/javascript/highcharts",
"hub": "https://anyplot.ai/heatmap-adjacency",
"code_json": "https://api.anyplot.ai/specs/heatmap-adjacency/highcharts/code",
"spec_json": "https://api.anyplot.ai/specs/heatmap-adjacency",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/heatmap-adjacency/javascript/highcharts/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/heatmap-adjacency/javascript/highcharts/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/heatmap-adjacency/javascript/highcharts/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/heatmap-adjacency/javascript/highcharts/plot-dark.html",
"quality_score": 90.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Network Adjacency Matrix Heatmap on anyplot.ai.
