A calendar heatmap visualizes time-series data on a calendar grid, where each day is represented as a cell and color intensity indicates the value magnitude. The layout follows a calendar structure with days as cells, weeks as rows, and months as columns or sections. This visualization excels at revealing daily patterns, seasonal trends, and temporal anomalies over extended time periods.
// anyplot.ai
// heatmap-calendar: Basic Calendar Heatmap
// Library: echarts 6.1.0 | JavaScript 22.23.1
// Quality: 90/100 | Created: 2026-07-23
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ----------------------------------------
// Daily open-source commit counts across two calendar years, generated with a
// small fixed-seed LCG (weekday-biased, with a handful of streak/rest cycles).
let seed = 42;
function nextRand() {
seed = (seed * 1103515245 + 12345) % 2147483648;
return seed / 2147483648;
}
function datesInYear(year) {
const dates = [];
const start = new Date(Date.UTC(year, 0, 1));
const end = new Date(Date.UTC(year, 11, 31));
for (let d = start; d <= end; d.setUTCDate(d.getUTCDate() + 1)) {
dates.push(d.toISOString().slice(0, 10));
}
return dates;
}
function commitSeries(year) {
return datesInYear(year).map((dateStr) => {
const dow = new Date(dateStr + "T00:00:00Z").getUTCDay(); // 0=Sun..6=Sat
const weekdayBias = dow === 0 || dow === 6 ? 1.5 : 6;
const streak = Math.sin(new Date(dateStr).getTime() / 6.5e8) > 0.3 ? 3 : 0;
const value = Math.round(weekdayBias * nextRand() + streak * nextRand());
return [dateStr, value];
});
}
const MONTH_ABBR = [
"Jan",
"Feb",
"Mar",
"Apr",
"May",
"Jun",
"Jul",
"Aug",
"Sep",
"Oct",
"Nov",
"Dec",
];
function busiestWeek(series) {
let bestStart = 0;
let bestSum = -1;
for (let start = 0; start <= series.length - 7; start++) {
const sum = series
.slice(start, start + 7)
.reduce((acc, [, value]) => acc + value, 0);
if (sum > bestSum) {
bestSum = sum;
bestStart = start;
}
}
const week = series.slice(bestStart, bestStart + 7);
const dates = new Set(week.map(([dateStr]) => dateStr));
const fmt = (dateStr) => {
const d = new Date(dateStr + "T00:00:00Z");
return `${MONTH_ABBR[d.getUTCMonth()]} ${d.getUTCDate()}`;
};
return { dates, label: `${fmt(week[0][0])} – ${fmt(week[6][0])}` };
}
const years = [2023, 2024];
const seriesData = years.map((year) => commitSeries(year));
const maxValue = Math.max(...seriesData.flat().map((d) => d[1]));
const busiestWeeks = seriesData.map((series) => busiestWeek(series));
const highlightedData = seriesData.map((series, i) =>
series.map(([dateStr, value]) =>
busiestWeeks[i].dates.has(dateStr)
? { value: [dateStr, value], itemStyle: { borderColor: t.amber, borderWidth: 2 } }
: [dateStr, value],
),
);
// --- Init --------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
// --- Option --------------------------------------------------------------------
const calendarTop = 130;
const calendarHeight = 260;
const calendarGap = 70;
chart.setOption({
animation: false,
backgroundColor: "transparent",
title: [
{
text: "heatmap-calendar · javascript · echarts · anyplot.ai",
left: "center",
top: 20,
textStyle: { color: t.ink, fontSize: 22, fontWeight: 500 },
},
...years.map((year, i) => ({
text: String(year),
left: 90,
top: calendarTop + i * (calendarHeight + calendarGap) - 42,
textStyle: { color: t.ink, fontSize: 18, fontWeight: 600 },
})),
...years.map((year, i) => ({
text: `Busiest week: ${busiestWeeks[i].label}`,
right: 60,
top: calendarTop + i * (calendarHeight + calendarGap) - 42,
textAlign: "right",
textStyle: { color: t.amber, fontSize: 13, fontWeight: 500 },
})),
{
text: "Commits per day",
left: "center",
bottom: 34,
textStyle: { color: t.inkSoft, fontSize: 12, fontWeight: 400 },
},
],
visualMap: {
min: 0,
max: maxValue,
calculable: true,
orient: "horizontal",
left: "center",
bottom: 10,
inRange: { color: t.seq },
textStyle: { color: t.inkSoft, fontSize: 13 },
},
calendar: years.map((year, i) => ({
top: calendarTop + i * (calendarHeight + calendarGap),
left: 90,
right: 60,
cellSize: [24, calendarHeight / 7],
range: String(year),
splitLine: { lineStyle: { color: t.grid, width: 1 } },
itemStyle: { borderColor: t.pageBg, borderWidth: 3 },
dayLabel: {
firstDay: 1,
nameMap: ["Sun", "Mon", "Tue", "Wed", "Thu", "Fri", "Sat"],
color: t.inkSoft,
fontSize: 13,
},
monthLabel: { color: t.inkSoft, fontSize: 14 },
yearLabel: { show: false },
})),
series: years.map((year, i) => ({
type: "heatmap",
coordinateSystem: "calendar",
calendarIndex: i,
data: highlightedData[i],
})),
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/heatmap-calendar/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "heatmap-calendar",
"language": "javascript",
"library": "echarts",
"page": "https://anyplot.ai/heatmap-calendar/javascript/echarts",
"hub": "https://anyplot.ai/heatmap-calendar",
"code_json": "https://api.anyplot.ai/specs/heatmap-calendar/echarts/code",
"spec_json": "https://api.anyplot.ai/specs/heatmap-calendar",

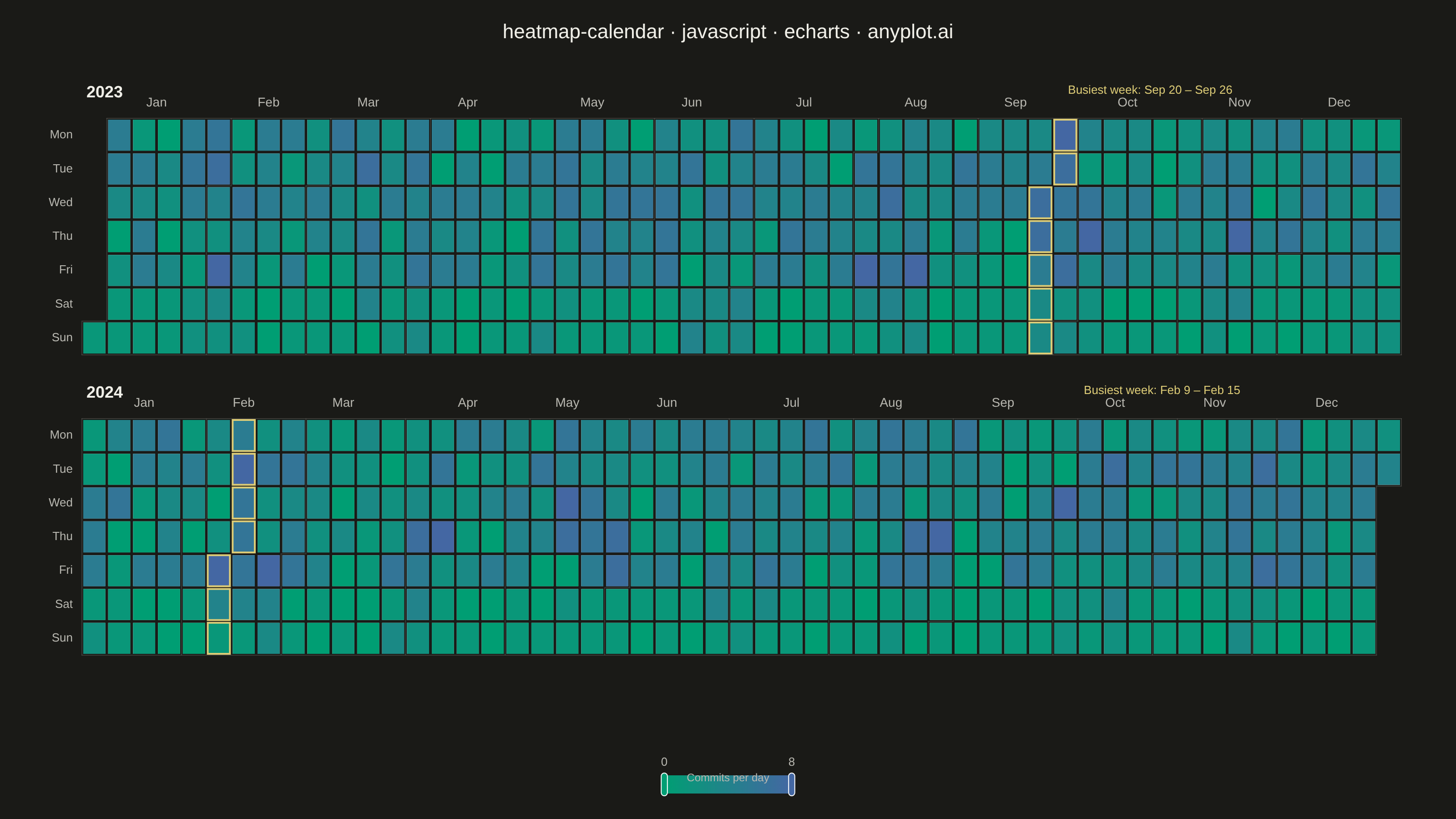

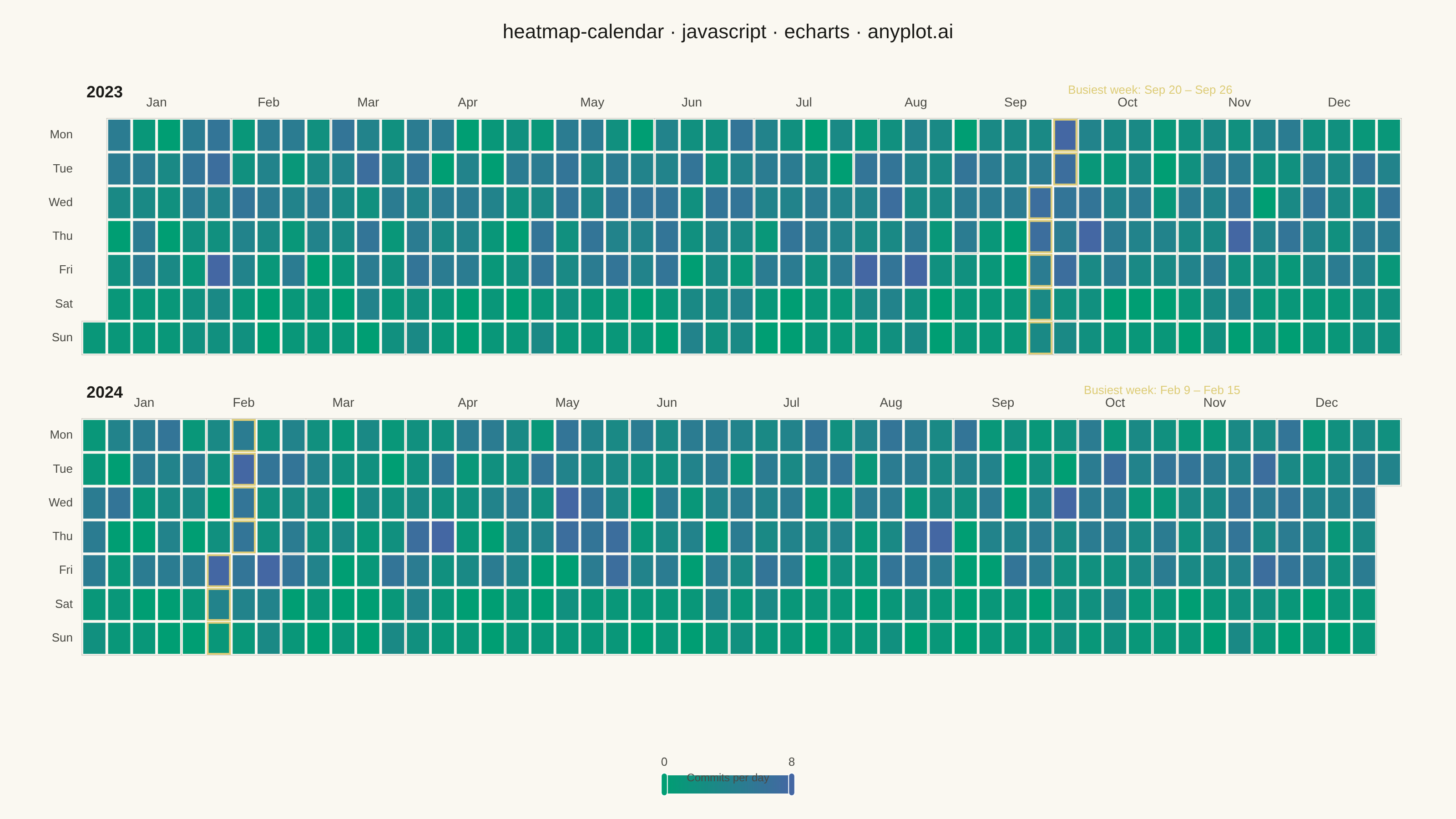

"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/heatmap-calendar/javascript/echarts/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/heatmap-calendar/javascript/echarts/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/heatmap-calendar/javascript/echarts/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/heatmap-calendar/javascript/echarts/plot-dark.html",
"quality_score": 90.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Basic Calendar Heatmap on anyplot.ai.
