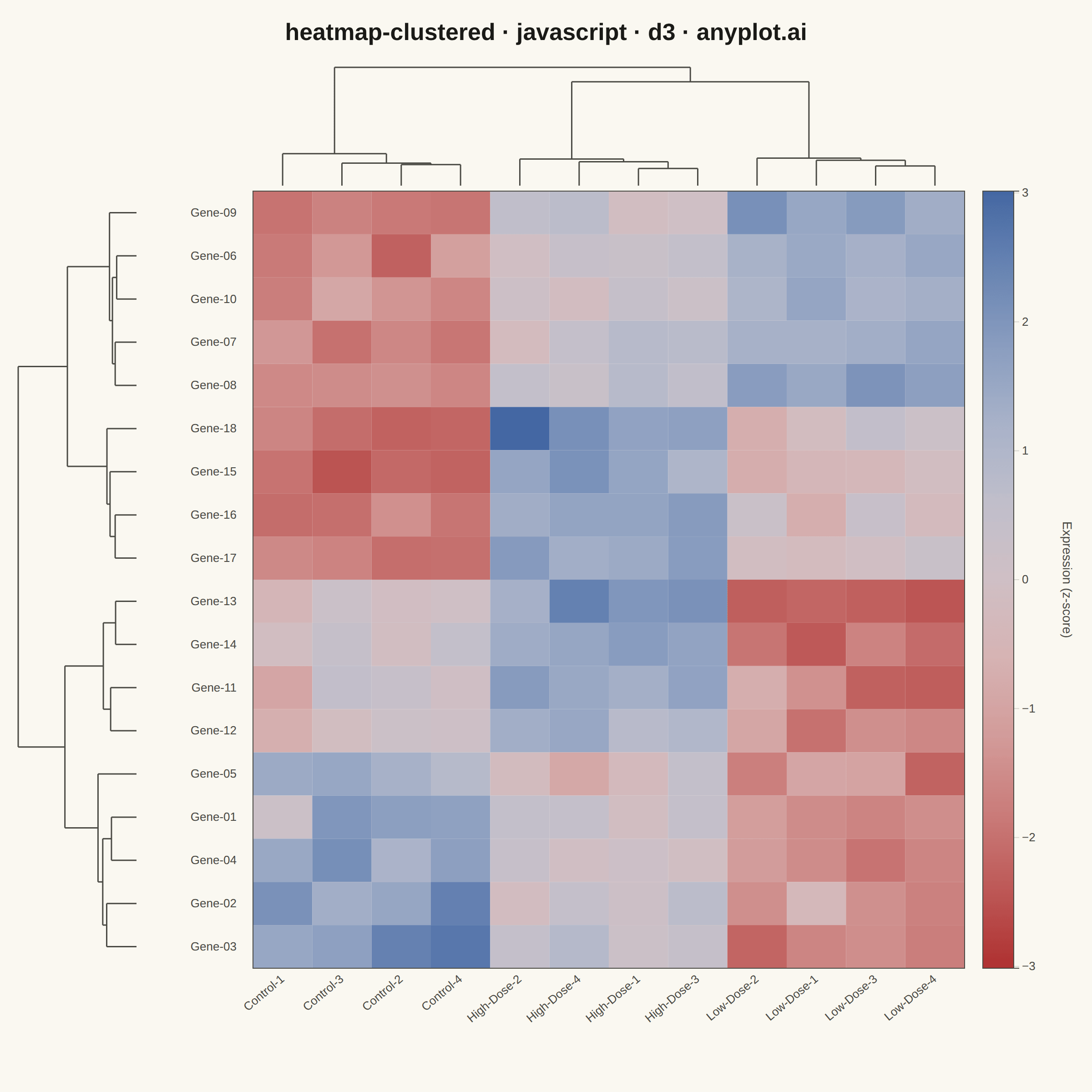

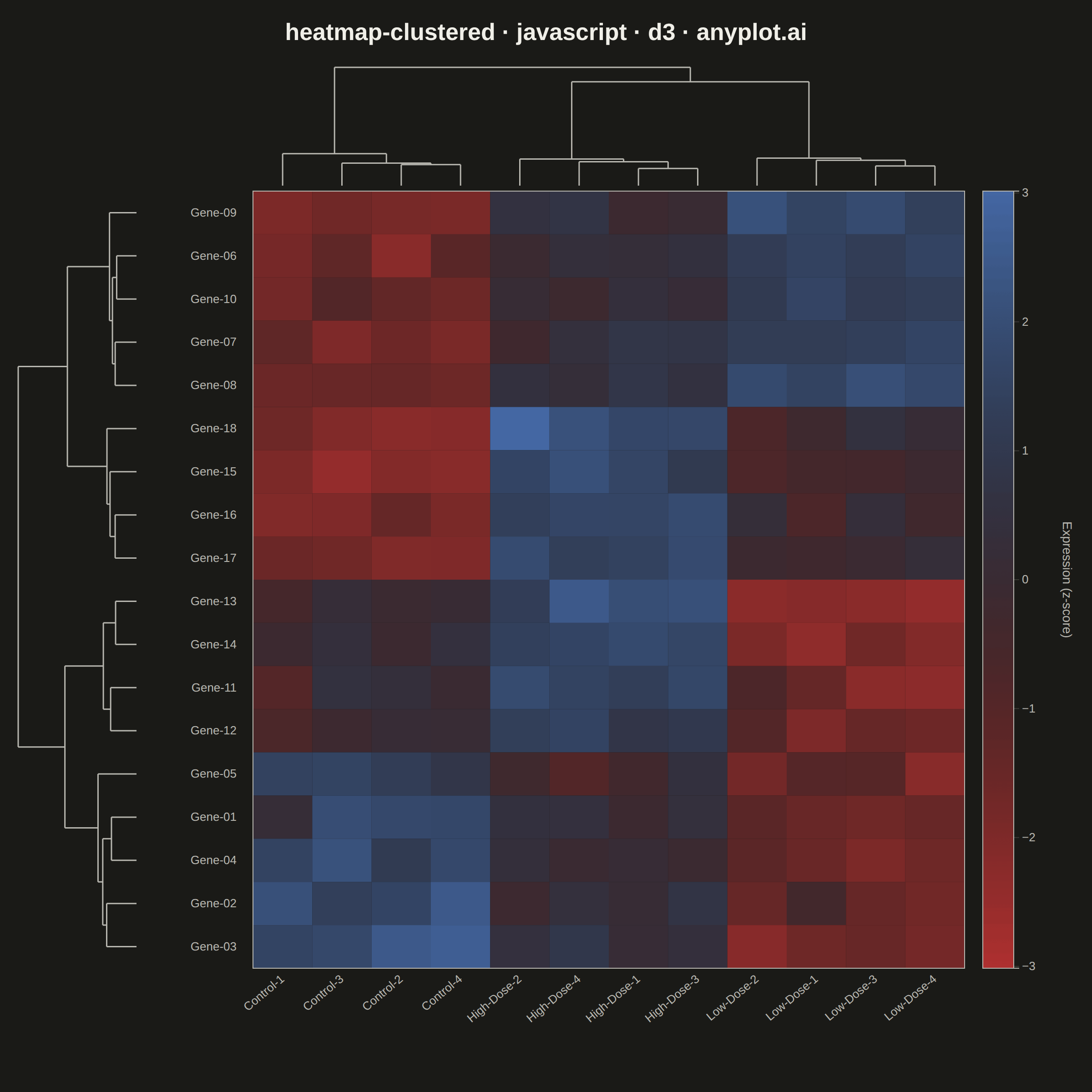

A heatmap with hierarchical clustering dendrograms on rows and/or columns, showing both data values and their hierarchical relationships. Rows and columns are automatically reordered based on clustering results to reveal natural groupings in the data. Essential for discovering patterns in high-dimensional data where similar observations or variables should be visually grouped together.
// anyplot.ai
// heatmap-clustered: Clustered Heatmap
// Library: d3 7.9.0 | JavaScript 22.23.2
// Quality: 87/100 | Created: 2026-09-05
//# anyplot-orientation: square
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
// --- Deterministic PRNG (browser has no seeded RNG) -------------------------
function lcg(seed) {
let state = seed % 2147483647;
if (state <= 0) state += 2147483646;
return function () {
state = (state * 16807) % 2147483647;
return (state - 1) / 2147483646;
};
}
const rng = lcg(42);
function randomNormal() {
const u1 = rng();
const u2 = rng();
return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
}
// --- Data: gene-expression z-scores across dosage groups --------------------
// Rows = genes grouped into 4 co-expression modules, columns = dosage-group
// replicates. Values are already centered on zero, matching the diverging cmap.
const groups = ["Control", "Low-Dose", "High-Dose"];
const replicatesPerGroup = 4;
const columnLabels = [];
groups.forEach((g) => {
for (let r = 1; r <= replicatesPerGroup; r++) columnLabels.push(`${g}-${r}`);
});
const modules = [
{ size: 5, effect: [1.8, -1.5, 0.2] },
{ size: 5, effect: [-1.6, 1.7, 0.3] },
{ size: 4, effect: [0.1, -1.8, 1.6] },
{ size: 4, effect: [-1.9, -0.2, 1.8] },
];
const rowLabels = [];
const matrix = [];
let geneIndex = 1;
modules.forEach((mod) => {
for (let i = 0; i < mod.size; i++) {
rowLabels.push(`Gene-${String(geneIndex).padStart(2, "0")}`);
geneIndex++;
const row = [];
groups.forEach((_, gi) => {
for (let r = 0; r < replicatesPerGroup; r++) {
row.push(mod.effect[gi] + randomNormal() * 0.4);
}
});
matrix.push(row);
}
});
function transpose(m) {
return m[0].map((_, j) => m.map((row) => row[j]));
}
// --- Hierarchical clustering (UPGMA / average linkage, Euclidean distance) --
function euclideanDistance(a, b) {
let sum = 0;
for (let i = 0; i < a.length; i++) sum += (a[i] - b[i]) ** 2;
return Math.sqrt(sum);
}
function averageLinkageCluster(vectors) {
let active = vectors.map((v, i) => ({ indices: [i], height: 0, children: null }));
while (active.length > 1) {
let bestI = 0;
let bestJ = 1;
let bestD = Infinity;
for (let i = 0; i < active.length; i++) {
for (let j = i + 1; j < active.length; j++) {
let total = 0;
let count = 0;
for (const ai of active[i].indices) {
for (const aj of active[j].indices) {
total += euclideanDistance(vectors[ai], vectors[aj]);
count++;
}
}
const d = total / count;
if (d < bestD) {
bestD = d;
bestI = i;
bestJ = j;
}
}
}
const a = active[bestI];
const b = active[bestJ];
const merged = { indices: a.indices.concat(b.indices), height: bestD, children: [a, b] };
active = active.filter((_, k) => k !== bestI && k !== bestJ);
active.push(merged);
}
return active[0];
}
// Assigns each node a leaf-order position `u` and a merge-height `v`, and
// records the left-to-right leaf visitation order (no branch crossings).
function assignPositions(node, leafOrder) {
if (!node.children) {
node.u = leafOrder.length;
node.v = 0;
leafOrder.push(node.indices[0]);
return;
}
assignPositions(node.children[0], leafOrder);
assignPositions(node.children[1], leafOrder);
node.u = (node.children[0].u + node.children[1].u) / 2;
node.v = node.height;
}
// Elbow-style dendrogram links in abstract (u = leaf position, v = height) space.
function collectSegments(node, segments) {
if (!node.children) return;
const [c0, c1] = node.children;
segments.push({ u1: c0.u, v1: c0.v, u2: c0.u, v2: node.v });
segments.push({ u1: c1.u, v1: c1.v, u2: c1.u, v2: node.v });
segments.push({ u1: c0.u, v1: node.v, u2: c1.u, v2: node.v });
collectSegments(c0, segments);
collectSegments(c1, segments);
}
const rowTree = averageLinkageCluster(matrix);
const rowOrder = [];
assignPositions(rowTree, rowOrder);
const rowSegments = [];
collectSegments(rowTree, rowSegments);
const rowMaxHeight = rowTree.v;
const colTree = averageLinkageCluster(transpose(matrix));
const colOrder = [];
assignPositions(colTree, colOrder);
const colSegments = [];
collectSegments(colTree, colSegments);
const colMaxHeight = colTree.v;
const orderedRowLabels = rowOrder.map((i) => rowLabels[i]);
const orderedColLabels = colOrder.map((i) => columnLabels[i]);
const orderedMatrix = rowOrder.map((ri) => colOrder.map((ci) => matrix[ri][ci]));
// --- Layout -------------------------------------------------------------
const marginLeft = 20;
const rowDendroWidth = 130;
const rowLabelWidth = 120;
const gapLeft = 8;
const gapRight = 20;
const colorbarWidth = 34;
const colorbarAxisWidth = 60;
const marginRight = 26;
const marginTop = 74;
const colDendroHeight = 130;
const gapTop = 6;
const colLabelHeight = 110;
const marginBottom = 26;
const heatmapX = marginLeft + rowDendroWidth + rowLabelWidth + gapLeft;
const heatmapWidth =
width - heatmapX - gapRight - colorbarWidth - colorbarAxisWidth - marginRight;
const heatmapY = marginTop + colDendroHeight + gapTop;
const heatmapHeight = height - heatmapY - colLabelHeight - marginBottom;
const xCell = d3.scaleBand().domain(d3.range(colOrder.length)).range([0, heatmapWidth]);
const yCell = d3.scaleBand().domain(d3.range(rowOrder.length)).range([0, heatmapHeight]);
const rowLeafScale = d3
.scaleLinear()
.domain([0, rowOrder.length - 1])
.range([yCell.bandwidth() / 2, heatmapHeight - yCell.bandwidth() / 2]);
const colLeafScale = d3
.scaleLinear()
.domain([0, colOrder.length - 1])
.range([xCell.bandwidth() / 2, heatmapWidth - xCell.bandwidth() / 2]);
const rowHeightScale = d3.scaleLinear().domain([0, rowMaxHeight]).range([rowDendroWidth, 0]);
const colHeightScale = d3.scaleLinear().domain([0, colMaxHeight]).range([colDendroHeight, 0]);
const maxAbs = d3.max(matrix.flat().map(Math.abs));
const colorScale = d3.scaleSequential(d3.interpolateRgbBasis(t.div)).domain([-maxAbs, maxAbs]);
// --- SVG mount ----------------------------------------------------------
const svg = d3.select("#container").append("svg").attr("width", width).attr("height", height);
svg
.append("text")
.attr("x", width / 2)
.attr("y", 44)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "26px")
.style("font-weight", "600")
.text("heatmap-clustered · javascript · d3 · anyplot.ai");
// --- Row dendrogram (left of the heatmap) --------------------------------
const rowDendro = svg
.append("g")
.attr("transform", `translate(${marginLeft},${heatmapY})`);
rowDendro
.selectAll("line")
.data(rowSegments)
.join("line")
.attr("x1", (d) => rowHeightScale(d.v1))
.attr("y1", (d) => rowLeafScale(d.u1))
.attr("x2", (d) => rowHeightScale(d.v2))
.attr("y2", (d) => rowLeafScale(d.u2))
.attr("stroke", t.inkSoft)
.attr("stroke-width", 1.5)
.attr("fill", "none");
// --- Column dendrogram (above the heatmap) -------------------------------
const colDendro = svg
.append("g")
.attr("transform", `translate(${heatmapX},${marginTop})`);
colDendro
.selectAll("line")
.data(colSegments)
.join("line")
.attr("x1", (d) => colLeafScale(d.u1))
.attr("y1", (d) => colHeightScale(d.v1))
.attr("x2", (d) => colLeafScale(d.u2))
.attr("y2", (d) => colHeightScale(d.v2))
.attr("stroke", t.inkSoft)
.attr("stroke-width", 1.5)
.attr("fill", "none");
// --- Row labels -----------------------------------------------------------
const rowLabelG = svg
.append("g")
.attr("transform", `translate(${marginLeft + rowDendroWidth},${heatmapY})`);
rowLabelG
.selectAll("text")
.data(orderedRowLabels)
.join("text")
.attr("x", rowLabelWidth - 10)
.attr("y", (_, i) => yCell(i) + yCell.bandwidth() / 2)
.attr("dy", "0.32em")
.attr("text-anchor", "end")
.attr("fill", t.inkSoft)
.style("font-size", "13px")
.text((d) => d);
// --- Column labels ----------------------------------------------------------
const colLabelG = svg
.append("g")
.attr("transform", `translate(${heatmapX},${heatmapY + heatmapHeight + 10})`);
colLabelG
.selectAll("text")
.data(orderedColLabels)
.join("text")
.attr(
"transform",
(_, j) => `translate(${xCell(j) + xCell.bandwidth() / 2},0) rotate(-40)`
)
.attr("text-anchor", "end")
.attr("dy", "0.32em")
.attr("fill", t.inkSoft)
.style("font-size", "13px")
.text((d) => d);
// --- Heatmap cells ----------------------------------------------------------
const heatmapG = svg.append("g").attr("transform", `translate(${heatmapX},${heatmapY})`);
const cells = [];
orderedMatrix.forEach((row, i) => {
row.forEach((value, j) => cells.push({ i, j, value }));
});
heatmapG
.selectAll("rect")
.data(cells)
.join("rect")
.attr("x", (d) => xCell(d.j))
.attr("y", (d) => yCell(d.i))
.attr("width", xCell.bandwidth())
.attr("height", yCell.bandwidth())
.attr("fill", (d) => colorScale(d.value));
heatmapG
.append("rect")
.attr("x", 0)
.attr("y", 0)
.attr("width", heatmapWidth)
.attr("height", heatmapHeight)
.attr("fill", "none")
.attr("stroke", t.inkSoft)
.attr("stroke-width", 1);
// --- Colorbar legend --------------------------------------------------------
const colorbarX = heatmapX + heatmapWidth + gapRight;
const colorbarSteps = d3.range(0, 1.001, 0.1);
svg
.append("linearGradient")
.attr("id", "imprint-div-gradient")
.attr("x1", "0")
.attr("x2", "0")
.attr("y1", "1")
.attr("y2", "0")
.selectAll("stop")
.data(colorbarSteps)
.join("stop")
.attr("offset", (d) => `${d * 100}%`)
.attr("stop-color", (d) => colorScale(-maxAbs + d * 2 * maxAbs));
svg
.append("rect")
.attr("x", colorbarX)
.attr("y", heatmapY)
.attr("width", colorbarWidth)
.attr("height", heatmapHeight)
.attr("fill", "url(#imprint-div-gradient)")
.attr("stroke", t.inkSoft)
.attr("stroke-width", 1);
const colorbarScale = d3.scaleLinear().domain([-maxAbs, maxAbs]).range([heatmapHeight, 0]);
const colorbarAxis = svg
.append("g")
.attr("transform", `translate(${colorbarX + colorbarWidth},${heatmapY})`)
.call(d3.axisRight(colorbarScale).ticks(5).tickSize(6));
colorbarAxis.selectAll("text").attr("fill", t.inkSoft).style("font-size", "13px");
colorbarAxis.selectAll("line").attr("stroke", t.grid);
colorbarAxis.select(".domain").attr("stroke", t.inkSoft);
svg
.append("text")
.attr(
"transform",
`translate(${colorbarX + colorbarWidth + colorbarAxisWidth - 6},${heatmapY + heatmapHeight / 2}) rotate(90)`
)
.attr("text-anchor", "middle")
.attr("fill", t.inkSoft)
.style("font-size", "14px")
.text("Expression (z-score)");
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/heatmap-clustered/d3/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "heatmap-clustered",
"language": "javascript",
"library": "d3",
"page": "https://anyplot.ai/heatmap-clustered/javascript/d3",
"hub": "https://anyplot.ai/heatmap-clustered",
"code_json": "https://api.anyplot.ai/specs/heatmap-clustered/d3/code",
"spec_json": "https://api.anyplot.ai/specs/heatmap-clustered",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/heatmap-clustered/javascript/d3/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/heatmap-clustered/javascript/d3/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/heatmap-clustered/javascript/d3/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/heatmap-clustered/javascript/d3/plot-dark.html",
"quality_score": 87.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Clustered Heatmap on anyplot.ai.
