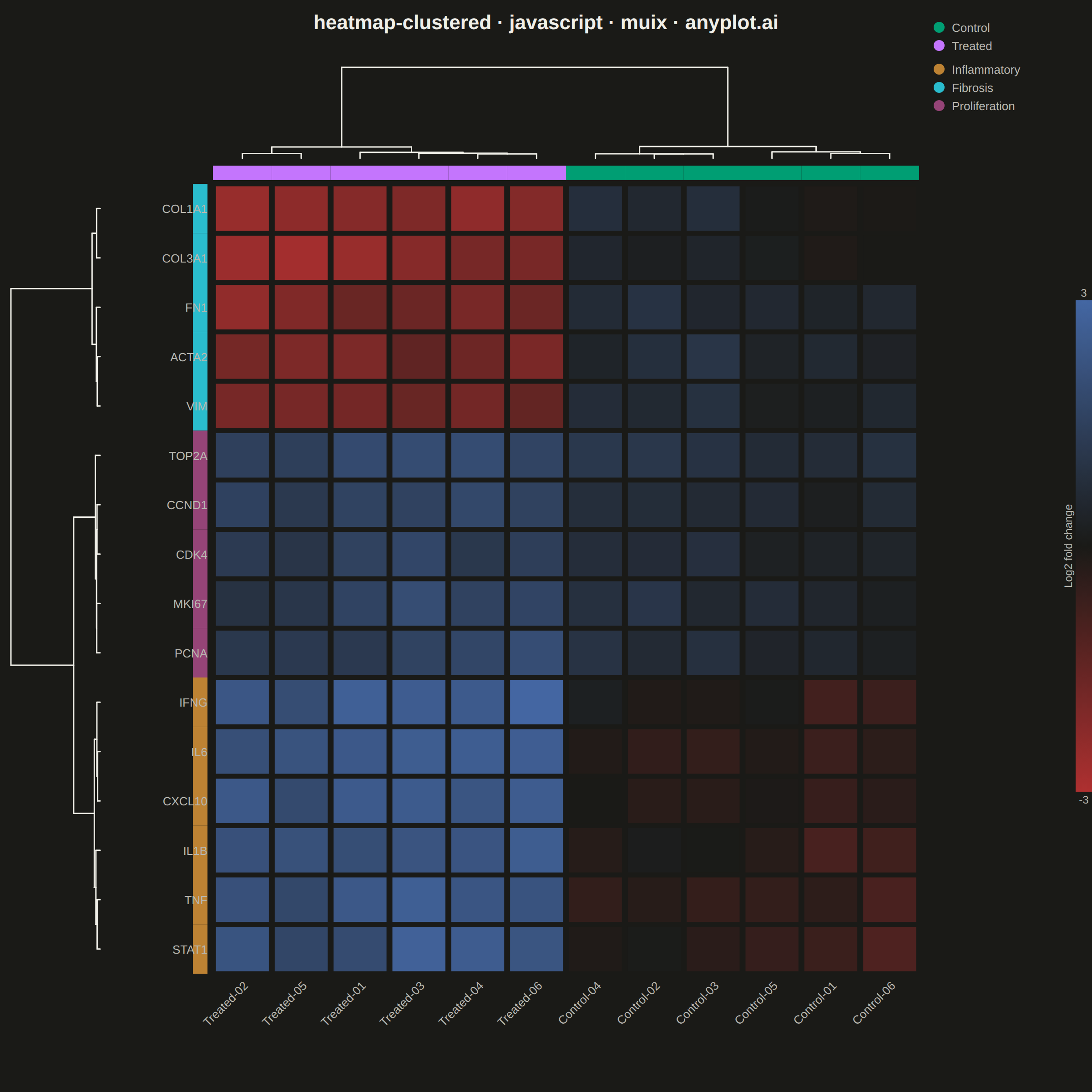

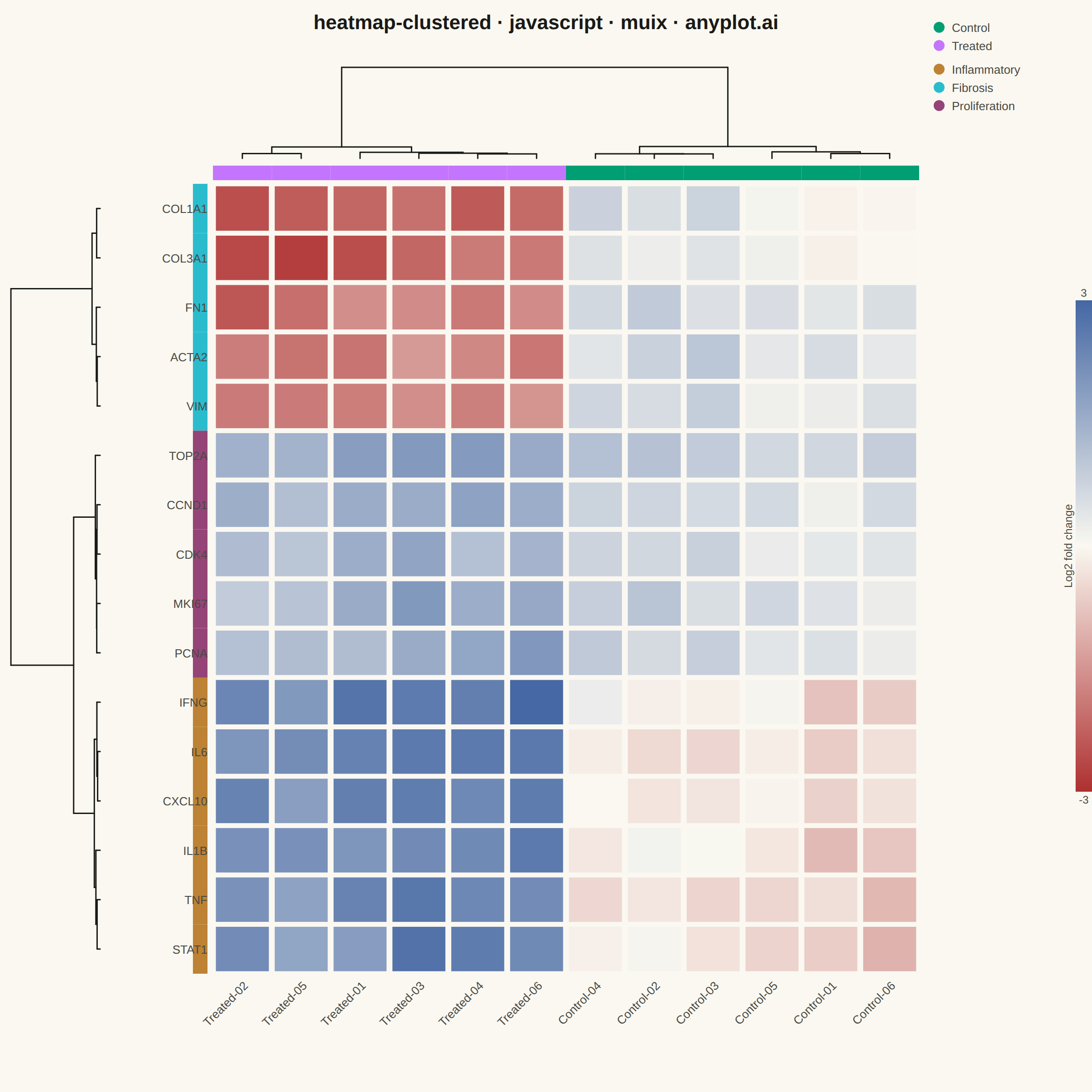

A heatmap with hierarchical clustering dendrograms on rows and/or columns, showing both data values and their hierarchical relationships. Rows and columns are automatically reordered based on clustering results to reveal natural groupings in the data. Essential for discovering patterns in high-dimensional data where similar observations or variables should be visually grouped together.
// anyplot.ai
// heatmap-clustered: Clustered Heatmap
// Library: muix 7.29.1 | JavaScript 22.23.2
// Quality: 87/100 | Created: 2026-09-05
//# anyplot-orientation: square
// anyplot.ai
// heatmap-clustered: Clustered Heatmap
// Library: MUI X Charts | React | Node 22
// License: @mui/x-charts — MIT (community). Pro/Premium are out of scope.
// Quality: pending | Created: 2026-09-05
import { ChartContainer } from "@mui/x-charts/ChartContainer";
import { ChartsXAxis } from "@mui/x-charts/ChartsXAxis";
import { ChartsYAxis } from "@mui/x-charts/ChartsYAxis";
import { ChartsText } from "@mui/x-charts/ChartsText";
import { ContinuousColorLegend } from "@mui/x-charts/ChartsLegend";
import { useXScale, useYScale, useZColorScale, useDrawingArea } from "@mui/x-charts/hooks";
const t = window.ANYPLOT_TOKENS;
const SIZE = window.ANYPLOT_SIZE;
// --- Data: synthetic gene-expression matrix (in-memory, deterministic LCG) ---------
function makeLcg(seed) {
let state = seed >>> 0;
return () => {
state = (state * 1664525 + 1013904223) >>> 0;
return state / 4294967296;
};
}
const rand = makeLcg(42);
const noise = (range) => (rand() * 2 - 1) * range;
const GENES = [
"IL6", "TNF", "IFNG", "IL1B", "CXCL10", "STAT1", // inflammatory response
"COL1A1", "COL3A1", "ACTA2", "FN1", "VIM", // fibrosis markers
"MKI67", "PCNA", "TOP2A", "CCND1", "CDK4", // proliferation markers
];
const geneClusterOf = (i) => (i < 6 ? 0 : i < 11 ? 1 : 2);
const GENE_CLUSTER_LABELS = ["Inflammatory", "Fibrosis", "Proliferation"];
// Palette positions distinct from the Control/Treated strip (0, 1) and from the
// diverging heatmap's red/blue endpoints (4, 2), so the row groups read as their own signal.
const GENE_CLUSTER_PALETTE_IDX = [3, 5, 6];
const SAMPLES = [
"Control-01", "Control-02", "Control-03", "Control-04", "Control-05", "Control-06",
"Treated-01", "Treated-02", "Treated-03", "Treated-04", "Treated-05", "Treated-06",
];
const conditionOf = (j) => (j < 6 ? 0 : 1);
// Representative log2 fold-change per (gene cluster, condition)
const CLUSTER_BASE = [
[-0.3, 2.4], // inflammatory: flat in control, up in treated
[0.3, -2.2], // fibrosis: flat in control, down in treated
[0.6, 1.4], // proliferation: mild rise under treatment
];
const geneOffset = GENES.map(() => noise(0.25));
const sampleBatch = SAMPLES.map(() => noise(0.3));
const matrix = GENES.map((_, i) =>
SAMPLES.map((_, j) => {
const base = CLUSTER_BASE[geneClusterOf(i)][conditionOf(j)];
return base + geneOffset[i] + sampleBatch[j] + noise(0.35);
}),
);
const maxAbsValue = Math.max(...matrix.flat().map(Math.abs));
const COLOR_DOMAIN = Math.ceil(maxAbsValue * 10) / 10;
// --- Hierarchical clustering (Ward's minimum-variance linkage, Euclidean distance) -
function squaredEuclidean(a, b) {
let sum = 0;
for (let k = 0; k < a.length; k += 1) sum += (a[k] - b[k]) ** 2;
return sum;
}
function buildTree(vectors) {
let nodes = vectors.map((v, i) => ({
height: 0,
leaves: [i],
children: null,
pos: 0,
centroid: v.slice(),
size: 1,
}));
while (nodes.length > 1) {
let minCost = Infinity;
let mi = 0;
let mj = 1;
for (let i = 0; i < nodes.length; i += 1) {
for (let j = i + 1; j < nodes.length; j += 1) {
const a = nodes[i];
const b = nodes[j];
// Ward's criterion: increase in within-cluster sum of squares from merging a, b.
const cost = ((a.size * b.size) / (a.size + b.size)) * squaredEuclidean(a.centroid, b.centroid);
if (cost < minCost) {
minCost = cost;
mi = i;
mj = j;
}
}
}
const a = nodes[mi];
const b = nodes[mj];
const size = a.size + b.size;
const centroid = a.centroid.map((v, k) => (v * a.size + b.centroid[k] * b.size) / size);
const merged = {
height: Math.sqrt(minCost),
leaves: [...a.leaves, ...b.leaves],
children: [a, b],
pos: 0,
centroid,
size,
};
nodes.splice(mj, 1);
nodes.splice(mi, 1);
nodes.push(merged);
}
return nodes[0];
}
function leafOrder(node) {
if (!node.children) return [node.leaves[0]];
return [...leafOrder(node.children[0]), ...leafOrder(node.children[1])];
}
function assignPos(node, posMap) {
if (!node.children) {
node.pos = posMap[node.leaves[0]];
return;
}
assignPos(node.children[0], posMap);
assignPos(node.children[1], posMap);
node.pos = (node.children[0].pos + node.children[1].pos) / 2;
}
function getSegments(node) {
if (!node.children) return [];
const [l, r] = node.children;
return [
{ p1: l.pos, d1: node.height, p2: r.pos, d2: node.height },
{ p1: l.pos, d1: l.height, p2: l.pos, d2: node.height },
{ p1: r.pos, d1: r.height, p2: r.pos, d2: node.height },
...getSegments(l),
...getSegments(r),
];
}
const rowTree = buildTree(matrix);
const colTree = buildTree(SAMPLES.map((_, j) => GENES.map((_, i) => matrix[i][j])));
const rowOrder = leafOrder(rowTree);
const colOrder = leafOrder(colTree);
const rowPosMap = {};
rowOrder.forEach((gi, pos) => { rowPosMap[gi] = pos; });
const colPosMap = {};
colOrder.forEach((sj, pos) => { colPosMap[sj] = pos; });
assignPos(rowTree, rowPosMap);
assignPos(colTree, colPosMap);
const rowSegments = getSegments(rowTree);
const colSegments = getSegments(colTree);
const orderedGeneLabels = rowOrder.map((i) => GENES[i]);
const orderedSampleLabels = colOrder.map((j) => SAMPLES[j]);
const cells = [];
for (let pr = 0; pr < orderedGeneLabels.length; pr += 1) {
for (let pc = 0; pc < orderedSampleLabels.length; pc += 1) {
const gi = rowOrder[pr];
const sj = colOrder[pc];
cells.push({
id: `${gi}-${sj}`,
x: orderedSampleLabels[pc],
y: orderedGeneLabels[pr],
value: matrix[gi][sj],
});
}
}
// --- Colour: diverging Imprint colormap (imprint_div) ------------------------------
function hexToRgb(hex) {
const int = parseInt(hex.slice(1), 16);
return [(int >> 16) & 255, (int >> 8) & 255, int & 255];
}
function lerp(a, b, ratio) {
return Math.round(a + (b - a) * ratio);
}
function imprintDivInterpolator(stops) {
const [low, mid, high] = stops.map(hexToRgb);
return (position) => {
const [start, end, localRatio] =
position < 0.5 ? [low, mid, position / 0.5] : [mid, high, (position - 0.5) / 0.5];
const [r, g, b] = [0, 1, 2].map((c) => lerp(start[c], end[c], localRatio));
return `rgb(${r}, ${g}, ${b})`;
};
}
// --- Layout constants (square 1200x1200 CSS mount) ---------------------------------
const TITLE_H = 60;
const COL_DENDRO_H = 100;
const ANNOT_H = 16;
const ROW_DENDRO_W = 110;
const LABEL_RESERVE = 88;
const ROW_ANNOT_W = 16;
const ROW_ANNOT_GAP = 6;
const MARGIN = {
top: TITLE_H + 14 + COL_DENDRO_H + 6 + ANNOT_H + 6,
right: 190,
bottom: 130,
left: ROW_DENDRO_W + 8 + LABEL_RESERVE + ROW_ANNOT_GAP + ROW_ANNOT_W + ROW_ANNOT_GAP,
};
// --- Overlay: dendrograms, condition strip, and heatmap cells drawn in one pass ----
function ClusteredOverlay() {
const xScale = useXScale();
const yScale = useYScale();
const colorScale = useZColorScale();
const drawingArea = useDrawingArea();
const colCenterX = (pos) => drawingArea.left + (drawingArea.width / orderedSampleLabels.length) * (pos + 0.5);
const rowCenterY = (pos) => drawingArea.top + (drawingArea.height / orderedGeneLabels.length) * (pos + 0.5);
const colDendroYBottom = drawingArea.top - ANNOT_H - 12;
const colDendroYTop = TITLE_H + 14;
const colDistY = (dist) =>
colDendroYBottom - (dist / colTree.height) * (colDendroYBottom - colDendroYTop);
const rowDendroXRight = drawingArea.left - ROW_ANNOT_GAP - ROW_ANNOT_W - ROW_ANNOT_GAP - LABEL_RESERVE - 8;
const rowDendroXLeft = 12;
const rowDistX = (dist) =>
rowDendroXRight - (dist / rowTree.height) * (rowDendroXRight - rowDendroXLeft);
const stripTop = drawingArea.top - ANNOT_H - 4;
const rowStripRight = drawingArea.left - ROW_ANNOT_GAP;
const rowStripLeft = rowStripRight - ROW_ANNOT_W;
const rowHeight = drawingArea.height / orderedGeneLabels.length;
return (
<g>
{/* Heatmap cells */}
{cells.map((cell) => (
<rect
key={cell.id}
x={xScale(cell.x) ?? 0}
y={yScale(cell.y) ?? 0}
width={xScale.bandwidth()}
height={yScale.bandwidth()}
fill={colorScale(cell.value)}
/>
))}
{/* Condition annotation strip (Control vs. Treated) */}
{colOrder.map((sj, pos) => (
<rect
key={`strip-${sj}`}
x={colCenterX(pos) - drawingArea.width / orderedSampleLabels.length / 2}
y={stripTop}
width={drawingArea.width / orderedSampleLabels.length}
height={ANNOT_H}
fill={t.palette[conditionOf(sj)]}
/>
))}
{/* Gene-cluster annotation strip (Inflammatory / Fibrosis / Proliferation) */}
{rowOrder.map((gi, pos) => (
<rect
key={`row-strip-${gi}`}
x={rowStripLeft}
y={rowCenterY(pos) - rowHeight / 2}
width={ROW_ANNOT_W}
height={rowHeight}
fill={t.palette[GENE_CLUSTER_PALETTE_IDX[geneClusterOf(gi)]]}
/>
))}
{/* Column dendrogram (samples) */}
{colSegments.map((s, i) => (
<line
key={`col-seg-${i}`}
x1={colCenterX(s.p1)}
y1={colDistY(s.d1)}
x2={colCenterX(s.p2)}
y2={colDistY(s.d2)}
stroke={t.ink}
strokeWidth={1.5}
strokeLinecap="round"
/>
))}
{/* Row dendrogram (genes) */}
{rowSegments.map((s, i) => (
<line
key={`row-seg-${i}`}
x1={rowDistX(s.d1)}
y1={rowCenterY(s.p1)}
x2={rowDistX(s.d2)}
y2={rowCenterY(s.p2)}
stroke={t.ink}
strokeWidth={1.5}
strokeLinecap="round"
/>
))}
{/* Condition legend swatches */}
<circle cx={SIZE.width - 168} cy={30} r={6} fill={t.palette[0]} />
<ChartsText
text="Control"
x={SIZE.width - 154}
y={30}
style={{ fontSize: 13, fill: t.inkSoft, textAnchor: "start", dominantBaseline: "central" }}
/>
<circle cx={SIZE.width - 168} cy={50} r={6} fill={t.palette[1]} />
<ChartsText
text="Treated"
x={SIZE.width - 154}
y={50}
style={{ fontSize: 13, fill: t.inkSoft, textAnchor: "start", dominantBaseline: "central" }}
/>
{/* Gene-cluster legend swatches */}
{GENE_CLUSTER_LABELS.map((label, idx) => (
<g key={`gc-legend-${label}`}>
<circle cx={SIZE.width - 168} cy={76 + idx * 20} r={6} fill={t.palette[GENE_CLUSTER_PALETTE_IDX[idx]]} />
<ChartsText
text={label}
x={SIZE.width - 154}
y={76 + idx * 20}
style={{ fontSize: 13, fill: t.inkSoft, textAnchor: "start", dominantBaseline: "central" }}
/>
</g>
))}
<ChartsText
text="Log2 fold change"
x={SIZE.width - 22}
y={SIZE.height / 2}
style={{ fontSize: 12, fill: t.inkSoft, textAnchor: "middle", angle: -90 }}
/>
</g>
);
}
// --- Chart (default-exported component — the harness mounts it) -------------------
const TITLE = "heatmap-clustered · javascript · muix · anyplot.ai";
export default function Chart() {
return (
<ChartContainer
width={SIZE.width}
height={SIZE.height}
series={[]}
margin={MARGIN}
skipAnimation
xAxis={[
{
scaleType: "band",
data: orderedSampleLabels,
categoryGapRatio: 0.1,
disableLine: true,
disableTicks: true,
tickLabelStyle: { fontSize: 13, fill: t.inkSoft, angle: -45, textAnchor: "end" },
},
]}
yAxis={[
{
scaleType: "band",
data: orderedGeneLabels,
categoryGapRatio: 0.1,
disableLine: true,
disableTicks: true,
tickLabelStyle: { fontSize: 13, fill: t.inkSoft },
},
]}
zAxis={[
{
colorMap: {
type: "continuous",
min: -COLOR_DOMAIN,
max: COLOR_DOMAIN,
color: imprintDivInterpolator(t.div),
},
},
]}
>
<ClusteredOverlay />
<ChartsXAxis />
<ChartsYAxis />
<ContinuousColorLegend
position={{ horizontal: "right", vertical: "middle" }}
direction="column"
length="45%"
thickness={18}
labelStyle={{ fontSize: 12, fill: t.inkSoft }}
/>
<ChartsText
text={TITLE}
x={SIZE.width / 2}
y={32}
style={{ fontSize: 22, fontWeight: 600, fill: t.ink, textAnchor: "middle" }}
/>
</ChartContainer>
);
}
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/heatmap-clustered/muix/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "heatmap-clustered",
"language": "javascript",
"library": "muix",
"page": "https://anyplot.ai/heatmap-clustered/javascript/muix",
"hub": "https://anyplot.ai/heatmap-clustered",
"code_json": "https://api.anyplot.ai/specs/heatmap-clustered/muix/code",
"spec_json": "https://api.anyplot.ai/specs/heatmap-clustered",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/heatmap-clustered/javascript/muix/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/heatmap-clustered/javascript/muix/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/heatmap-clustered/javascript/muix/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/heatmap-clustered/javascript/muix/plot-dark.html",
"quality_score": 87.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Clustered Heatmap on anyplot.ai.
