Basic Hexbin Plot — Matplotlib

A hexagonal binning plot that visualizes the density of 2D point data by aggregating points into hexagonal bins. The color intensity of each hexagon represents the count of points within it, making it ideal for revealing density patterns in large datasets where traditional scatter plots would show overlapping points. Hexagonal bins provide better visual representation than square pixels due to their isotropy (equal distance to neighboring cells in all directions).

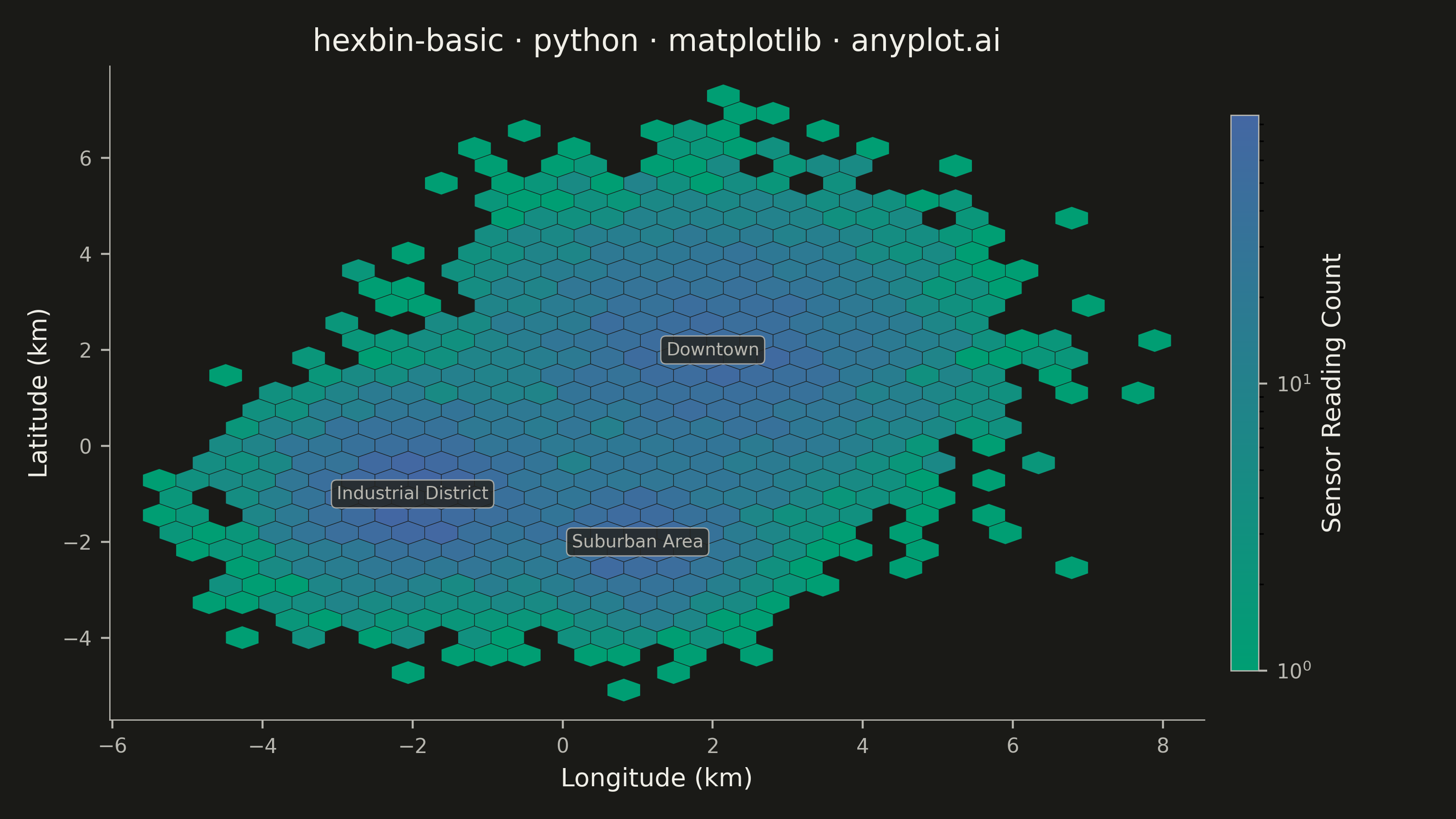

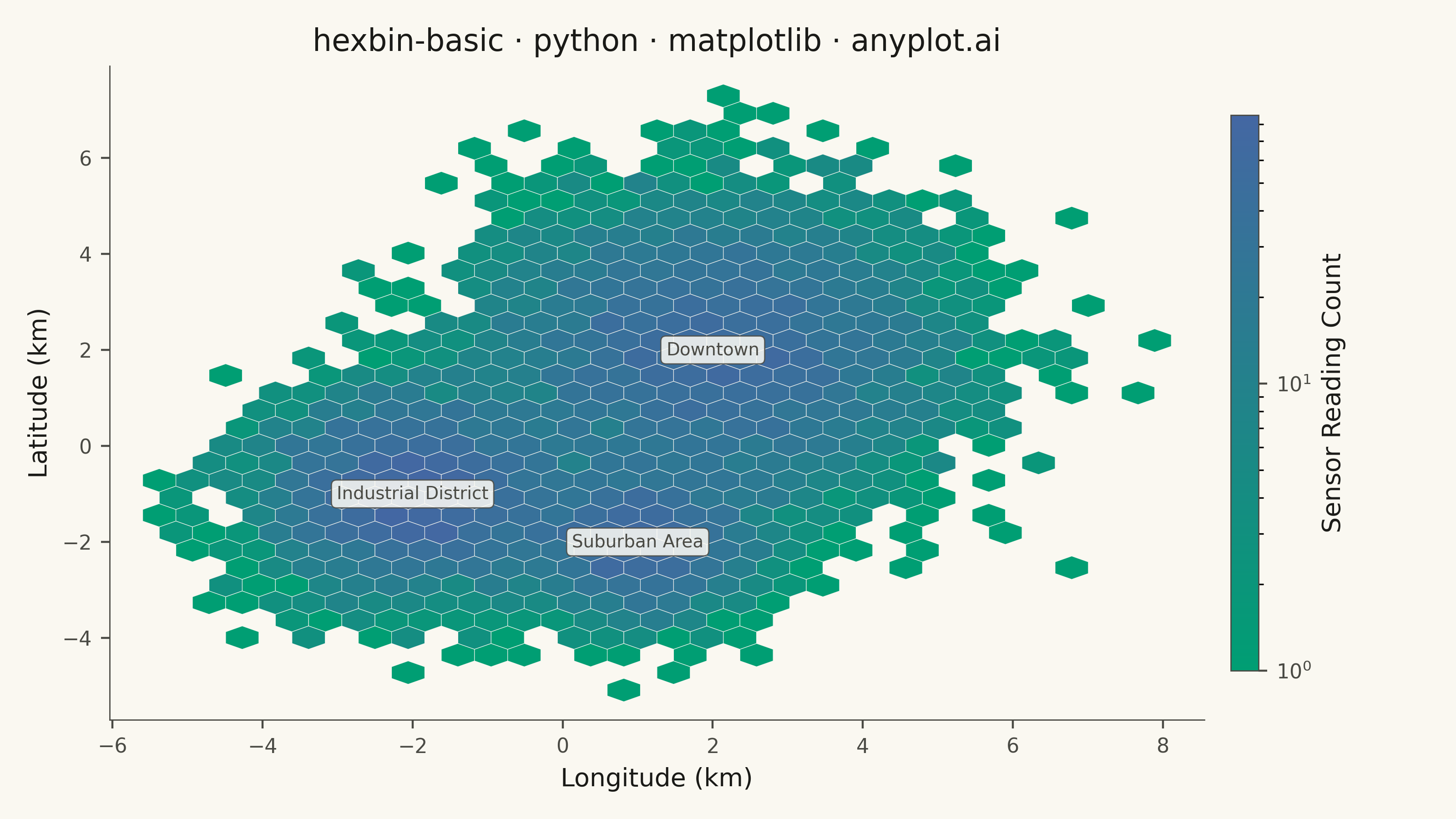

Basic Hexbin Plot rendered with Matplotlib

Python source (Matplotlib)

""" anyplot.ai
hexbin-basic: Basic Hexbin Plot
Library: matplotlib 3.10.9 | Python 3.13.13
Quality: 91/100 | Created: 2026-05-29
"""

import os
import sys


# Remove the script's own directory from sys.path so it doesn't shadow the installed matplotlib package
_script_dir = os.path.dirname(os.path.abspath(__file__))
sys.path = [p for p in sys.path if os.path.abspath(p or ".") != _script_dir]

import matplotlib.colors as mcolors
import matplotlib.pyplot as plt
import numpy as np
from matplotlib.colors import LinearSegmentedColormap
from matplotlib.ticker import LogFormatterSciNotation


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Imprint sequential colormap — brand green → blue (single-polarity density)
imprint_seq = LinearSegmentedColormap.from_list("imprint_seq", ["#009E73", "#4467A3"])

# Data — simulated urban sensor readings with three density clusters
np.random.seed(42)
n_points = 10000

downtown_x = np.random.randn(n_points // 2) * 1.5 + 2
downtown_y = np.random.randn(n_points // 2) * 1.5 + 2
industrial_x = np.random.randn(n_points // 3) * 1.0 - 2
industrial_y = np.random.randn(n_points // 3) * 1.0 - 1
suburb_x = np.random.randn(n_points // 6) * 0.8 + 1
suburb_y = np.random.randn(n_points // 6) * 0.8 - 2

longitude = np.concatenate([downtown_x, industrial_x, suburb_x])
latitude = np.concatenate([downtown_y, industrial_y, suburb_y])

# Plot
fig, ax = plt.subplots(figsize=(8, 4.5), dpi=400, facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)

hb = ax.hexbin(
    longitude,
    latitude,
    gridsize=30,
    cmap=imprint_seq,
    mincnt=1,
    linewidths=0.2,
    edgecolors=PAGE_BG,
    norm=mcolors.LogNorm(),
)

# Colorbar with LogFormatterSciNotation for cleaner log-scale tick labels
cbar = fig.colorbar(hb, ax=ax, shrink=0.85, pad=0.02)
cbar.set_label("Sensor Reading Count", fontsize=10, color=INK)
cbar.ax.yaxis.set_major_formatter(LogFormatterSciNotation())
cbar.ax.tick_params(labelsize=8, colors=INK_SOFT, labelcolor=INK_SOFT)
cbar.outline.set_linewidth(0.5)
cbar.outline.set_edgecolor(INK_SOFT)

# Style
ax.set_xlabel("Longitude (km)", fontsize=10, color=INK)
ax.set_ylabel("Latitude (km)", fontsize=10, color=INK)

title = "hexbin-basic · python · matplotlib · anyplot.ai"
ax.set_title(title, fontsize=12, fontweight="medium", color=INK)

ax.tick_params(axis="both", labelsize=8, colors=INK_SOFT, labelcolor=INK_SOFT)
ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)
ax.spines["left"].set_color(INK_SOFT)
ax.spines["left"].set_linewidth(0.5)
ax.spines["bottom"].set_color(INK_SOFT)
ax.spines["bottom"].set_linewidth(0.5)

# Cluster annotations — label the three density zones to aid data storytelling
_ann_style = {
    "fontsize": 7,
    "color": INK_SOFT,
    "ha": "center",
    "va": "center",
    "bbox": {
        "facecolor": ELEVATED_BG,
        "edgecolor": INK_SOFT,
        "alpha": 0.85,
        "boxstyle": "round,pad=0.3",
        "linewidth": 0.5,
    },
}
ax.text(2, 2, "Downtown", **_ann_style)
ax.text(-2, -1, "Industrial District", **_ann_style)
ax.text(1, -2, "Suburban Area", **_ann_style)

plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=400, facecolor=PAGE_BG)

Part of Basic Hexbin Plot on anyplot.ai.
