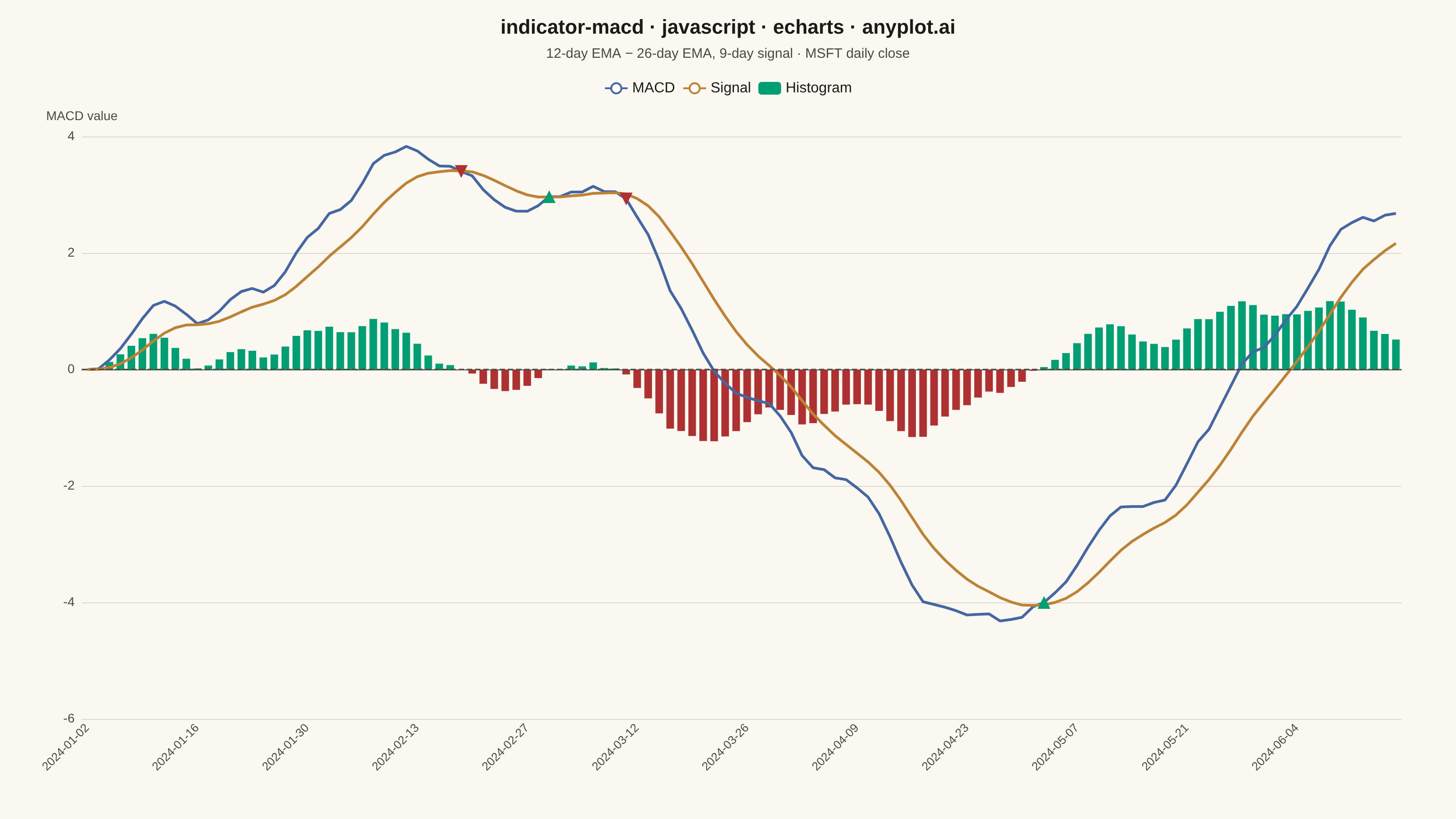

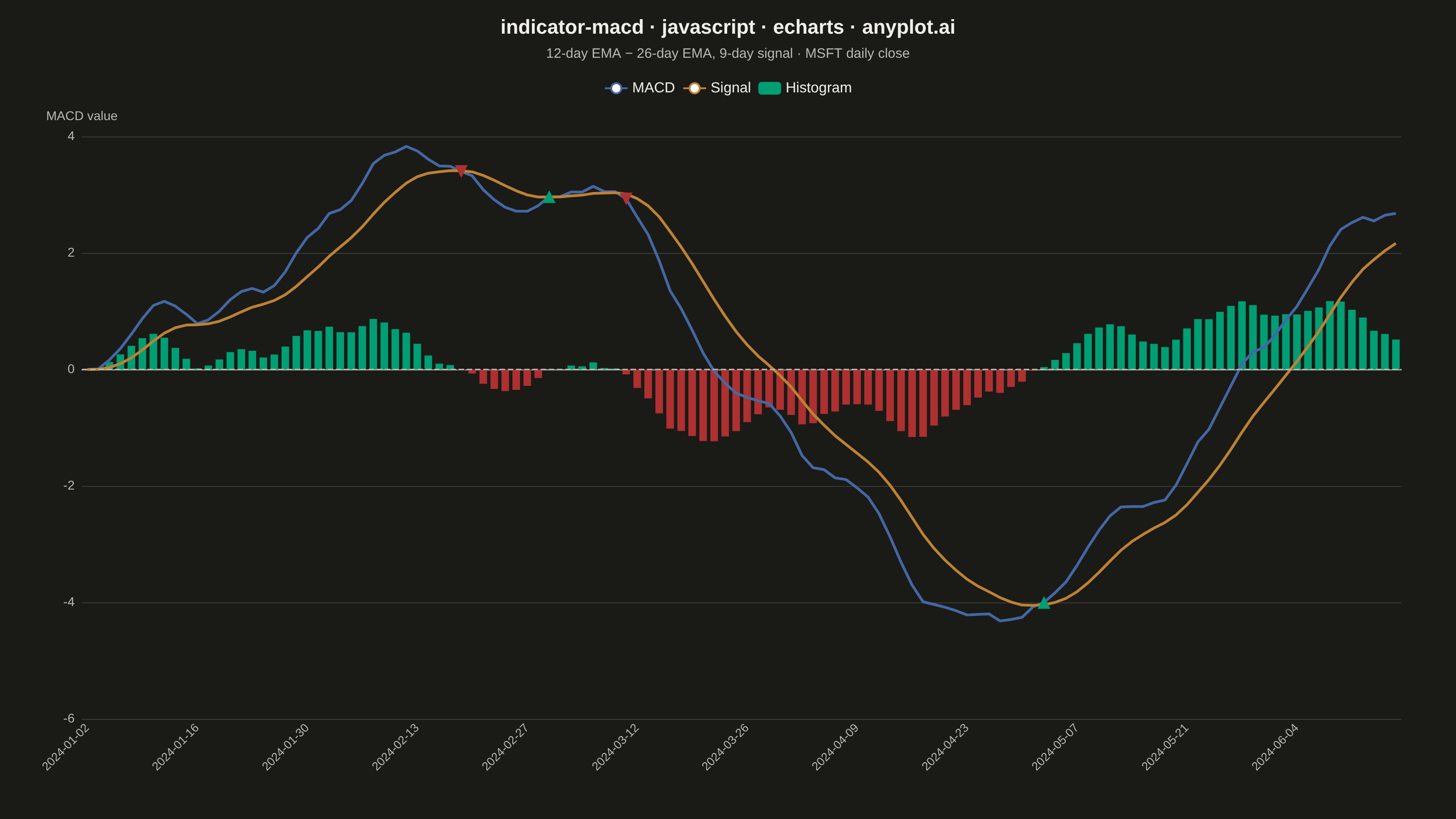

A MACD (Moving Average Convergence Divergence) chart displaying three components: the MACD line, signal line, and histogram. The MACD line represents the difference between 12-day and 26-day exponential moving averages, while the signal line is a 9-day EMA of the MACD. The histogram visualizes the difference between these two lines. This is an essential momentum oscillator for technical analysis, helping traders identify trend direction, momentum strength, and potential buy/sell signals through line crossovers.
// anyplot.ai
// indicator-macd: MACD Technical Indicator Chart
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 87/100 | Created: 2026-09-05
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic LCG price walk) -------------------------
const FAST_PERIOD = 12;
const SLOW_PERIOD = 26;
const SIGNAL_PERIOD = 9;
const N_DAYS = 120;
let seed = 42;
function nextRandom() {
seed = (seed * 1103515245 + 12345) & 0x7fffffff;
return seed / 0x7fffffff;
}
function ema(values, period) {
const k = 2 / (period + 1);
const out = [values[0]];
for (let i = 1; i < values.length; i++) {
out.push(values[i] * k + out[i - 1] * (1 - k));
}
return out;
}
function tradingDayLabels(count) {
const labels = [];
const start = new Date(Date.UTC(2024, 0, 2));
const cursor = new Date(start);
while (labels.length < count) {
const day = cursor.getUTCDay();
if (day !== 0 && day !== 6) {
labels.push(cursor.toISOString().slice(0, 10));
}
cursor.setUTCDate(cursor.getUTCDate() + 1);
}
return labels;
}
const dates = tradingDayLabels(N_DAYS);
let price = 182;
const closes = [];
for (let i = 0; i < N_DAYS; i++) {
const drift = Math.sin(i / 14) * 0.6;
const shock = (nextRandom() - 0.5) * 4.2;
price = Math.max(60, price + drift + shock);
closes.push(price);
}
const emaFast = ema(closes, FAST_PERIOD);
const emaSlow = ema(closes, SLOW_PERIOD);
const macdLine = emaFast.map((v, i) => v - emaSlow[i]);
const signalLine = ema(macdLine, SIGNAL_PERIOD);
const histogram = macdLine.map((v, i) => v - signalLine[i]);
// Bullish/bearish crossover points (histogram sign flips) for markPoint annotations.
const crossovers = [];
for (let i = 1; i < histogram.length; i++) {
if (histogram[i - 1] < 0 && histogram[i] >= 0) {
crossovers.push({
name: "Bullish crossover",
coord: [dates[i], macdLine[i]],
symbol: "triangle",
symbolSize: 14,
itemStyle: { color: t.palette[0] },
label: { show: false },
});
} else if (histogram[i - 1] > 0 && histogram[i] <= 0) {
crossovers.push({
name: "Bearish crossover",
coord: [dates[i], macdLine[i]],
symbol: "triangle",
symbolRotate: 180,
symbolSize: 14,
itemStyle: { color: t.palette[4] },
label: { show: false },
});
}
}
// --- Init --------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
// --- Option --------------------------------------------------------------------
chart.setOption({
animation: false,
color: [t.palette[2], t.palette[3], t.palette[0]],
backgroundColor: "transparent",
title: {
text: "indicator-macd · javascript · echarts · anyplot.ai",
subtext: "12-day EMA − 26-day EMA, 9-day signal · MSFT daily close",
left: "center",
textStyle: { color: t.ink, fontSize: 22 },
subtextStyle: { color: t.inkSoft, fontSize: 15 },
},
legend: {
data: [
{ name: "MACD", itemStyle: { color: t.palette[2] } },
{ name: "Signal", itemStyle: { color: t.palette[3] } },
{ name: "Histogram", itemStyle: { color: t.palette[0] } },
],
top: 84,
textStyle: { color: t.ink, fontSize: 16 },
},
tooltip: {
trigger: "axis",
axisPointer: { type: "cross", label: { color: t.ink, backgroundColor: t.inkSoft } },
backgroundColor: t.elevatedBg,
borderColor: t.grid,
textStyle: { color: t.ink },
valueFormatter: (v) => Number(v).toFixed(2),
},
grid: { left: 90, right: 60, top: 150, bottom: 110 },
xAxis: {
type: "category",
data: dates,
boundaryGap: true,
axisLabel: { color: t.inkSoft, fontSize: 13, rotate: 45, interval: 9 },
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { show: false },
splitLine: { show: false },
},
yAxis: {
type: "value",
name: "MACD value",
nameTextStyle: { color: t.inkSoft, fontSize: 14 },
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { show: false },
splitLine: { lineStyle: { color: t.grid } },
},
series: [
{
name: "Histogram",
type: "bar",
data: histogram.map((v) => v.toFixed(4)),
itemStyle: {
color: (params) => (params.value >= 0 ? t.palette[0] : t.palette[4]),
},
markLine: {
silent: true,
symbol: "none",
label: { show: false },
lineStyle: { color: t.inkSoft, type: "dashed", width: 1.5 },
data: [{ yAxis: 0 }],
},
z: 1,
},
{
name: "MACD",
type: "line",
data: macdLine.map((v) => v.toFixed(4)),
showSymbol: false,
lineStyle: { width: 3, color: t.palette[2] },
emphasis: { focus: "series" },
markPoint: {
symbolSize: 14,
data: crossovers,
},
z: 2,
},
{
name: "Signal",
type: "line",
data: signalLine.map((v) => v.toFixed(4)),
showSymbol: false,
lineStyle: { width: 3, color: t.palette[3] },
emphasis: { focus: "series" },
z: 2,
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/indicator-macd/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
