MACD Technical Indicator Chart — Makie.jl

A MACD (Moving Average Convergence Divergence) chart displaying three components: the MACD line, signal line, and histogram. The MACD line represents the difference between 12-day and 26-day exponential moving averages, while the signal line is a 9-day EMA of the MACD. The histogram visualizes the difference between these two lines. This is an essential momentum oscillator for technical analysis, helping traders identify trend direction, momentum strength, and potential buy/sell signals through line crossovers.

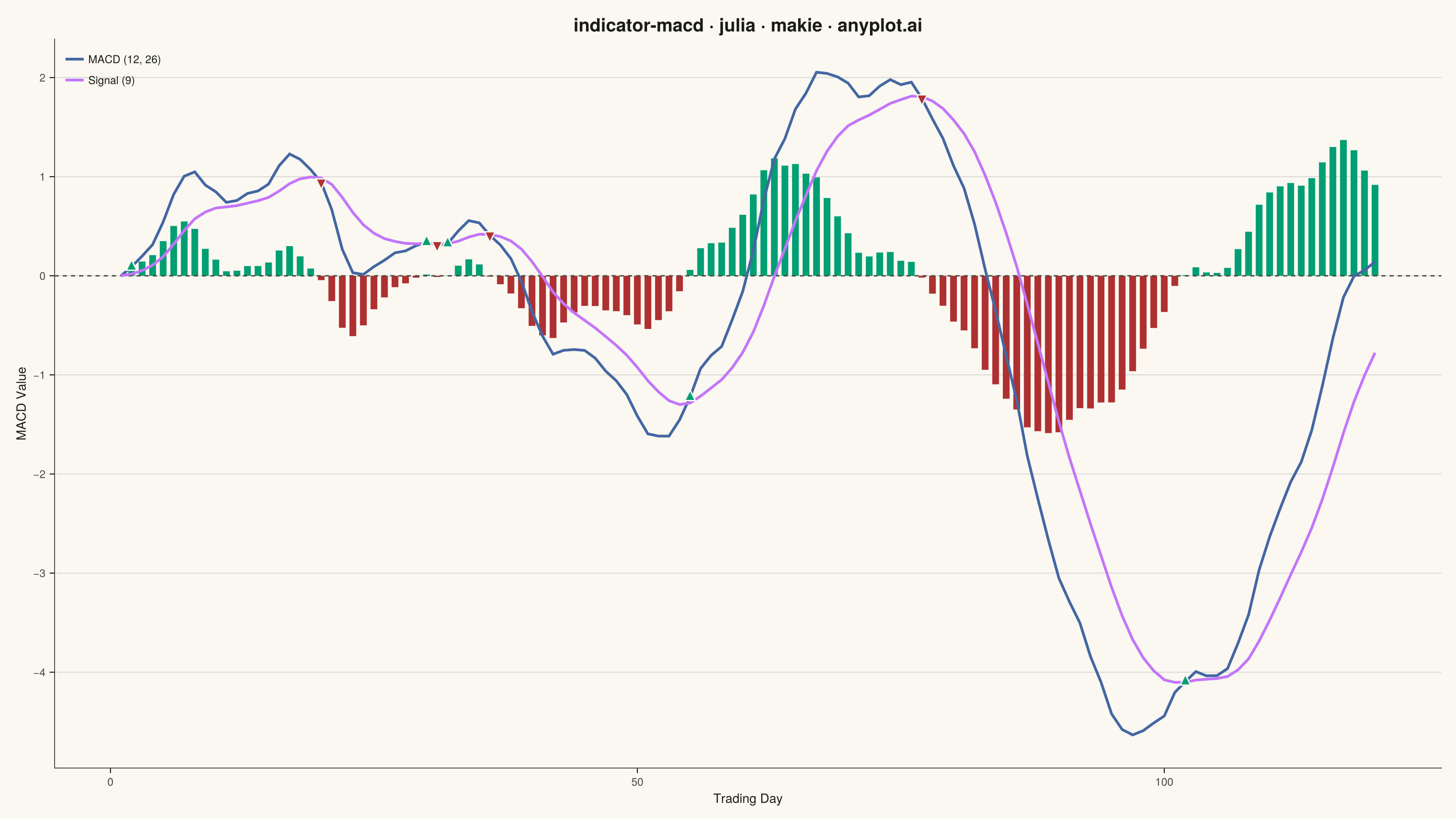

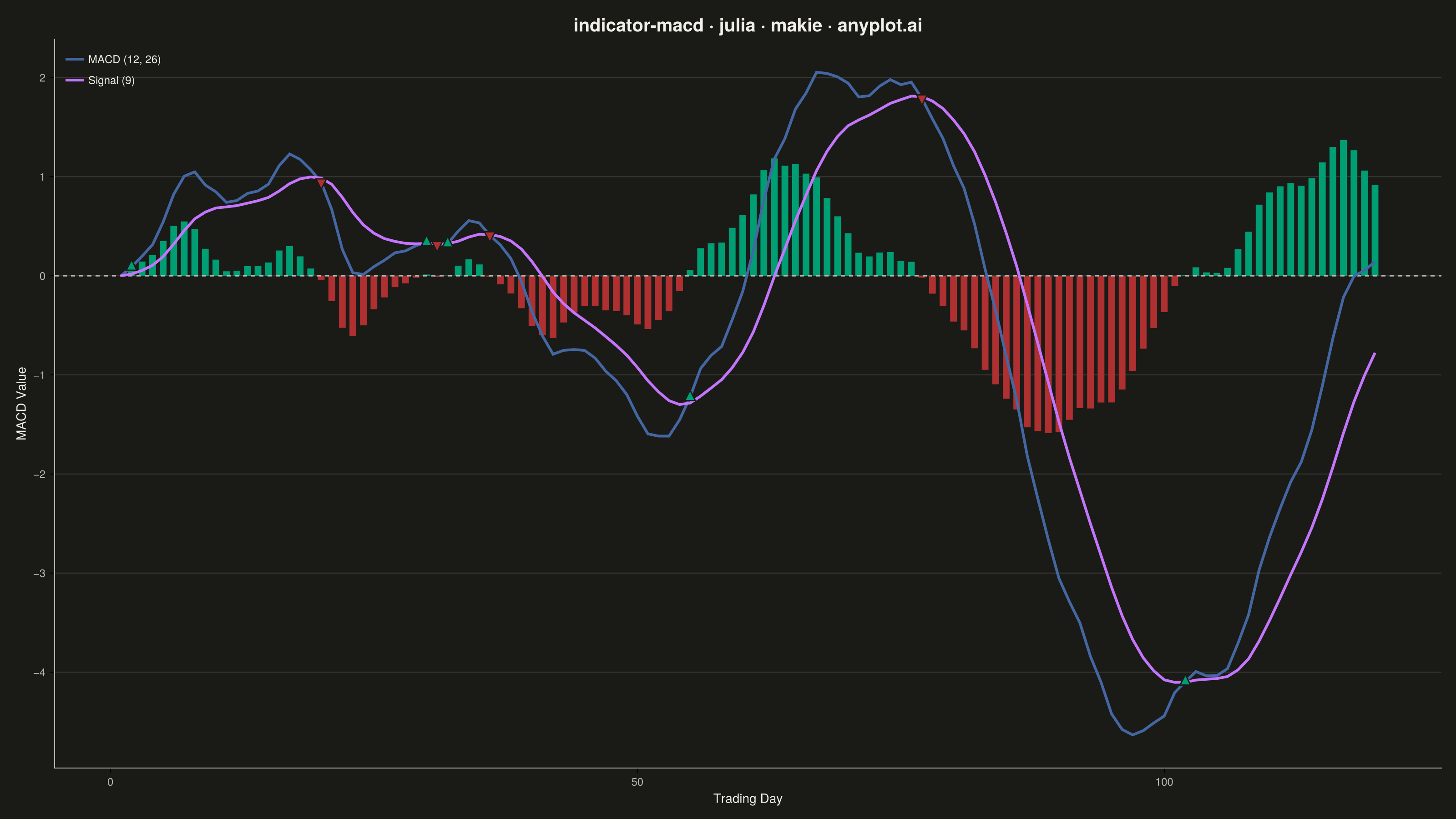

MACD Technical Indicator Chart rendered with Makie.jl

Renders

Julia source (Makie.jl)

# anyplot.ai
# indicator-macd: MACD Technical Indicator Chart
# Library: makie 0.21.9 | Julia 1.11.9
# Quality: 84/100 | Created: 2026-09-05

using CairoMakie
using Colors
using Random

Random.seed!(42)

# Theme tokens (see prompts/default-style-guide.md "Theme-adaptive Chrome")
const THEME    = get(ENV, "ANYPLOT_THEME", "light")
const PAGE_BG  = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
const INK      = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
const INK_SOFT = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"

# Imprint palette — MACD line uses blue so it never blends into the green
# gain bars; histogram keeps the sanctioned green/red finance semantic.
const MACD_COLOR   = colorant"#4467A3"  # Imprint position 3 — blue
const SIGNAL_COLOR = colorant"#C475FD"  # Imprint position 2 — lavender
const GAIN_COLOR   = colorant"#009E73"  # semantic: bullish histogram bars (finance profit/up → green)
const LOSS_COLOR   = colorant"#AE3030"  # semantic: bearish histogram bars (finance loss/down → red)

# Data: simulate 120 trading days of closing prices, derive MACD/signal/histogram
n_days = 120
daily_returns = randn(n_days) .* 1.2
trend = 8 .* sin.(range(0, 4π, length = n_days))
closing_prices = 150 .+ cumsum(daily_returns) .+ trend

function ema(values, span)
    alpha = 2 / (span + 1)
    smoothed = similar(values, Float64)
    smoothed[1] = values[1]
    for i in 2:length(values)
        smoothed[i] = alpha * values[i] + (1 - alpha) * smoothed[i - 1]
    end
    return smoothed
end

ema_fast = ema(closing_prices, 12)
ema_slow = ema(closing_prices, 26)
macd_line = ema_fast .- ema_slow
signal_line = ema(macd_line, 9)
macd_histogram = macd_line .- signal_line

trading_day = 1:n_days
bar_colors = [value >= 0 ? GAIN_COLOR : LOSS_COLOR for value in macd_histogram]

# Crossover points (MACD line crosses the signal line) reinforce the
# buy/sell-signal narrative called out in the spec's Applications section.
crossover_idx = [i for i in 2:n_days if sign(macd_histogram[i - 1]) != sign(macd_histogram[i])]
crossover_x = trading_day[crossover_idx]
crossover_y = macd_line[crossover_idx]
crossover_bullish = [macd_histogram[i] >= 0 for i in crossover_idx]
crossover_colors = [bullish ? GAIN_COLOR : LOSS_COLOR for bullish in crossover_bullish]
crossover_markers = [bullish ? :utriangle : :dtriangle for bullish in crossover_bullish]

# Plot
fig = Figure(
    size            = (1600, 900),
    fontsize        = 14,
    backgroundcolor = PAGE_BG,
)

ax = Axis(
    fig[1, 1];
    title             = "indicator-macd · julia · makie · anyplot.ai",
    titlesize         = 20,
    titlecolor        = INK,
    xlabel            = "Trading Day",
    ylabel            = "MACD Value",
    xlabelsize        = 14,
    ylabelsize        = 14,
    xlabelcolor       = INK,
    ylabelcolor       = INK,
    xticklabelsize    = 12,
    yticklabelsize    = 12,
    xticklabelcolor   = INK_SOFT,
    yticklabelcolor   = INK_SOFT,
    backgroundcolor   = PAGE_BG,
    topspinevisible   = false,
    rightspinevisible = false,
    leftspinecolor    = INK_SOFT,
    bottomspinecolor  = INK_SOFT,
    xgridvisible      = false,
    ygridcolor        = RGBAf(INK.r, INK.g, INK.b, 0.15),
)

barplot!(ax, trading_day, macd_histogram; color = bar_colors, width = 0.8, strokewidth = 0)
hlines!(ax, [0]; color = INK_SOFT, linewidth = 1.5, linestyle = :dash)
lines!(ax, trading_day, macd_line; color = MACD_COLOR, linewidth = 3, label = "MACD (12, 26)")
lines!(ax, trading_day, signal_line; color = SIGNAL_COLOR, linewidth = 3, label = "Signal (9)")
scatter!(
    ax, crossover_x, crossover_y;
    color = crossover_colors, marker = crossover_markers,
    markersize = 16, strokewidth = 1.5, strokecolor = PAGE_BG,
)

axislegend(ax; position = :lt, framevisible = false, labelcolor = INK, labelsize = 12)

# Save
save("plot-$(THEME).png", fig; px_per_unit = 2)

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/indicator-macd/makie/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "indicator-macd",
  "language": "julia",
  "library": "makie",
  "page": "https://anyplot.ai/indicator-macd/julia/makie",
  "hub": "https://anyplot.ai/indicator-macd",
  "code_json": "https://api.anyplot.ai/specs/indicator-macd/makie/code",
  "spec_json": "https://api.anyplot.ai/specs/indicator-macd",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/indicator-macd/julia/makie/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/indicator-macd/julia/makie/plot-dark.png",
  "quality_score": 84.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of MACD Technical Indicator Chart on anyplot.ai.
