MACD Technical Indicator Chart — Plotly

A MACD (Moving Average Convergence Divergence) chart displaying three components: the MACD line, signal line, and histogram. The MACD line represents the difference between 12-day and 26-day exponential moving averages, while the signal line is a 9-day EMA of the MACD. The histogram visualizes the difference between these two lines. This is an essential momentum oscillator for technical analysis, helping traders identify trend direction, momentum strength, and potential buy/sell signals through line crossovers.

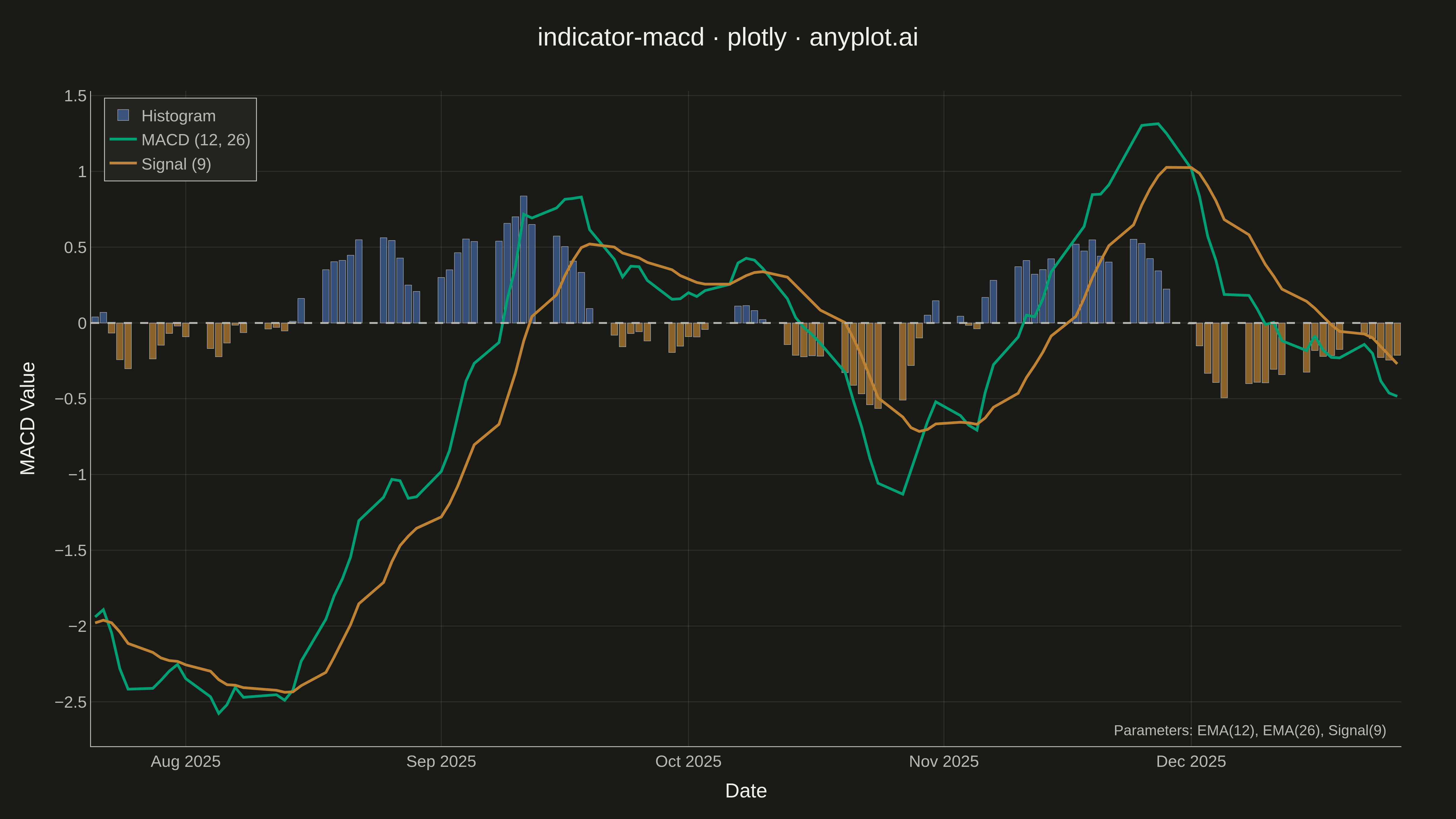

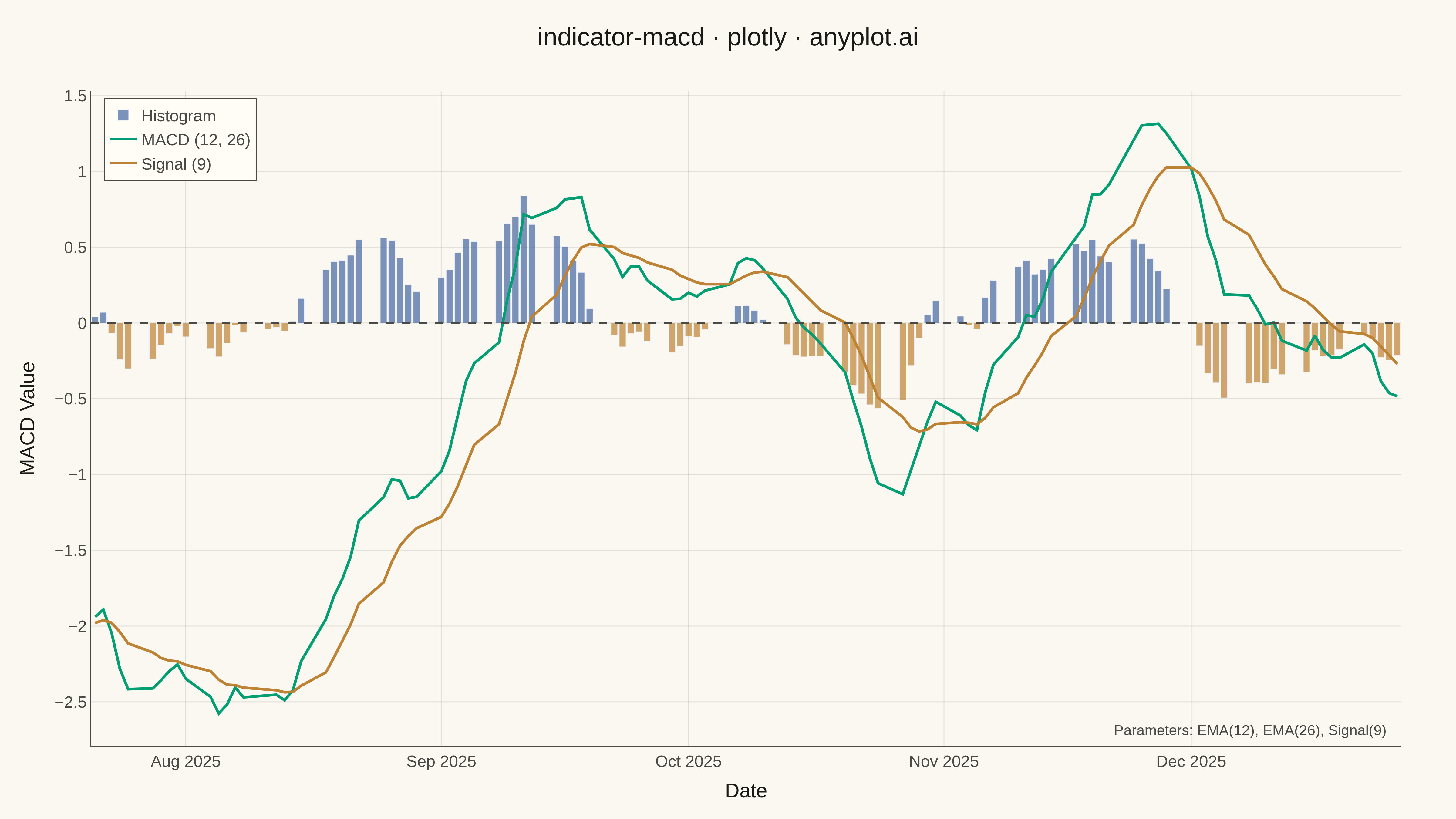

MACD Technical Indicator Chart rendered with Plotly

Python source (Plotly)

""" anyplot.ai
indicator-macd: MACD Technical Indicator Chart
Library: plotly 6.7.0 | Python 3.13.13
Quality: 81/100 | Updated: 2026-05-16
"""

import os

import numpy as np
import pandas as pd
import plotly.graph_objects as go
from plotly.subplots import make_subplots


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
GRID = "rgba(26,26,23,0.10)" if THEME == "light" else "rgba(240,239,232,0.10)"

# Okabe-Ito palette
BRAND = "#009E73"  # MACD
SIGNAL_COLOR = "#BD8233"  # imprint ochre — signal line (categorical contrast)

# Data - Generate realistic stock price data and calculate MACD
np.random.seed(42)

n_days = 150
dates = pd.date_range("2025-06-01", periods=n_days, freq="B")

returns = np.random.normal(0.0005, 0.015, n_days)
price = pd.Series(100 * np.exp(np.cumsum(returns)))

# Calculate EMAs for MACD
ema_12 = price.ewm(span=12, adjust=False).mean()
ema_26 = price.ewm(span=26, adjust=False).mean()

# MACD components
macd_line = ema_12 - ema_26
signal_line = macd_line.ewm(span=9, adjust=False).mean()
histogram = macd_line - signal_line

# Use data from day 35 onwards (stable EMA values)
start_idx = 35
dates = dates[start_idx:]
macd_line = macd_line.values[start_idx:]
signal_line = signal_line.values[start_idx:]
histogram = histogram.values[start_idx:]

# Create histogram colors using diverging approach
hist_positive = histogram >= 0
hist_colors = [
    "#4467A3" if val else "#BD8233"  # Blue for positive, purple for negative
    for val in hist_positive
]

# Create figure
fig = make_subplots(rows=1, cols=1, vertical_spacing=0.1)

# Add MACD histogram bars
fig.add_trace(
    go.Bar(x=dates, y=histogram, name="Histogram", marker={"color": hist_colors}, opacity=0.7, showlegend=True)
)

# Add MACD line
fig.add_trace(go.Scatter(x=dates, y=macd_line, name="MACD (12, 26)", line={"color": BRAND, "width": 3}, mode="lines"))

# Add Signal line
fig.add_trace(
    go.Scatter(x=dates, y=signal_line, name="Signal (9)", line={"color": SIGNAL_COLOR, "width": 3}, mode="lines")
)

# Add zero reference line
fig.add_hline(
    y=0,
    line={"color": INK_SOFT, "width": 2, "dash": "dash"},
    annotation_text="Zero Line",
    annotation_position="left",
    annotation_font_size=16,
)

# Update layout for theme-adaptive styling
fig.update_layout(
    title={
        "text": "indicator-macd · plotly · anyplot.ai",
        "font": {"size": 28, "color": INK},
        "x": 0.5,
        "xanchor": "center",
    },
    xaxis={
        "title": {"text": "Date", "font": {"size": 22, "color": INK}},
        "tickfont": {"size": 18, "color": INK_SOFT},
        "gridcolor": GRID,
        "linecolor": INK_SOFT,
        "showgrid": True,
    },
    yaxis={
        "title": {"text": "MACD Value", "font": {"size": 22, "color": INK}},
        "tickfont": {"size": 18, "color": INK_SOFT},
        "gridcolor": GRID,
        "linecolor": INK_SOFT,
        "showgrid": True,
        "zeroline": False,
    },
    legend={
        "font": {"size": 18, "color": INK_SOFT},
        "x": 0.01,
        "y": 0.99,
        "xanchor": "left",
        "yanchor": "top",
        "bgcolor": ELEVATED_BG,
        "bordercolor": INK_SOFT,
        "borderwidth": 1,
    },
    paper_bgcolor=PAGE_BG,
    plot_bgcolor=PAGE_BG,
    margin={"l": 100, "r": 60, "t": 100, "b": 80},
    annotations=[
        {
            "text": "Parameters: EMA(12), EMA(26), Signal(9)",
            "xref": "paper",
            "yref": "paper",
            "x": 0.99,
            "y": 0.01,
            "xanchor": "right",
            "yanchor": "bottom",
            "font": {"size": 16, "color": INK_SOFT},
            "showarrow": False,
        }
    ],
)

# Save as PNG
fig.write_image(f"plot-{THEME}.png", width=1600, height=900, scale=3)

# Save as HTML for interactivity
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")

Part of MACD Technical Indicator Chart on anyplot.ai.
