MACD Technical Indicator Chart — Pygal

A MACD (Moving Average Convergence Divergence) chart displaying three components: the MACD line, signal line, and histogram. The MACD line represents the difference between 12-day and 26-day exponential moving averages, while the signal line is a 9-day EMA of the MACD. The histogram visualizes the difference between these two lines. This is an essential momentum oscillator for technical analysis, helping traders identify trend direction, momentum strength, and potential buy/sell signals through line crossovers.

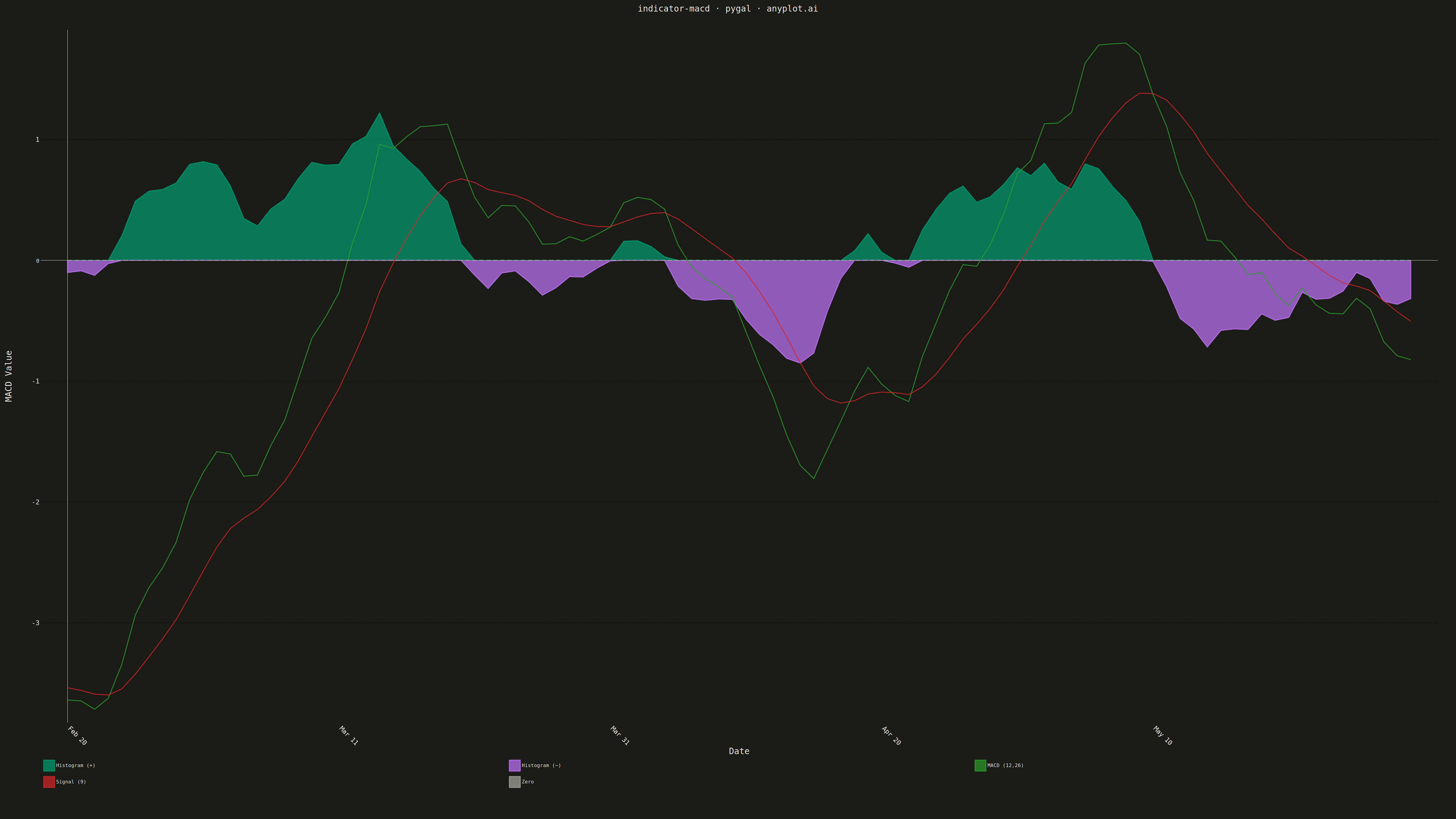

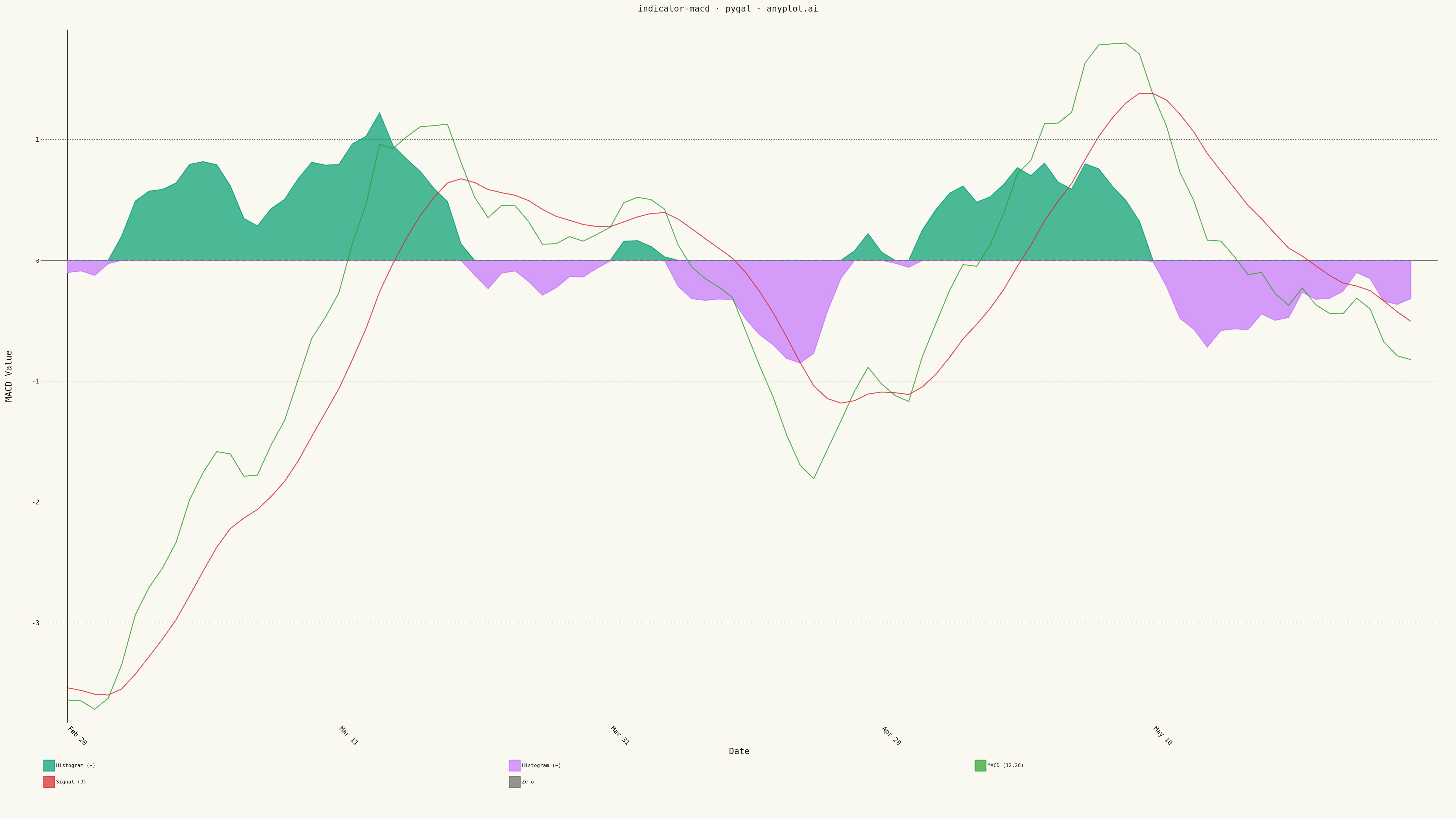

MACD Technical Indicator Chart rendered with Pygal

Python source (Pygal)

""" anyplot.ai
indicator-macd: MACD Technical Indicator Chart
Library: pygal 3.1.0 | Python 3.13.13
Quality: 80/100 | Updated: 2026-05-16
"""

import os

import numpy as np
import pandas as pd
import pygal
from pygal.style import Style


THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"

np.random.seed(42)

n_days = 150
dates = pd.date_range("2024-01-01", periods=n_days, freq="D")
price = 100 + np.cumsum(np.random.randn(n_days) * 2 + 0.05)

price_series = pd.Series(price)
ema_12 = price_series.ewm(span=12, adjust=False).mean().values
ema_26 = price_series.ewm(span=26, adjust=False).mean().values

macd_line = ema_12 - ema_26

macd_series = pd.Series(macd_line)
signal_line = macd_series.ewm(span=9, adjust=False).mean().values

histogram = macd_line - signal_line

start_idx = 50
dates = dates[start_idx:]
macd_line = macd_line[start_idx:]
signal_line = signal_line[start_idx:]
histogram = histogram[start_idx:]

custom_style = Style(
    background=PAGE_BG,
    plot_background=PAGE_BG,
    foreground=INK,
    foreground_strong=INK,
    foreground_subtle=INK_MUTED,
    colors=("#009E73", "#C475FD", "#2CA02C", "#D62728", INK_MUTED),
    title_font_size=28,
    label_font_size=22,
    major_label_font_size=18,
    legend_font_size=16,
    value_font_size=14,
    stroke_width=3,
)

chart = pygal.Line(
    width=4800,
    height=2700,
    style=custom_style,
    title="indicator-macd · pygal · anyplot.ai",
    x_title="Date",
    y_title="MACD Value",
    show_x_guides=False,
    show_y_guides=True,
    x_label_rotation=45,
    legend_at_bottom=True,
    legend_box_size=36,
    margin=60,
    show_dots=False,
    fill=False,
    zero=0,
)

date_labels = [d.strftime("%b %d") if i % 20 == 0 else "" for i, d in enumerate(dates)]
chart.x_labels = date_labels

hist_positive = [h if h >= 0 else 0 for h in histogram]
hist_negative = [h if h < 0 else 0 for h in histogram]

chart.add("Histogram (+)", hist_positive, fill=True, stroke_style={"width": 0})
chart.add("Histogram (−)", hist_negative, fill=True, stroke_style={"width": 0})

chart.add("MACD (12,26)", list(macd_line), stroke_style={"width": 3})
chart.add("Signal (9)", list(signal_line), stroke_style={"width": 3})

zero_line = [0] * len(macd_line)
chart.add("Zero", zero_line, stroke_style={"width": 2, "dasharray": "15, 8"})

chart.render_to_png(f"plot-{THEME}.png")

with open(f"plot-{THEME}.html", "wb") as f:
    f.write(chart.render())

Part of MACD Technical Indicator Chart on anyplot.ai.
