3D Line Plot for Trajectory Visualization — Altair

A 3D line plot that displays paths, trajectories, or curves as connected lines in three-dimensional space. Unlike scatter plots that show discrete points, this visualization connects data points sequentially to reveal continuous paths, making it ideal for understanding motion, mathematical curves, and temporal evolution in 3D. Interactive rotation is essential for exploring the spatial structure of complex trajectories.

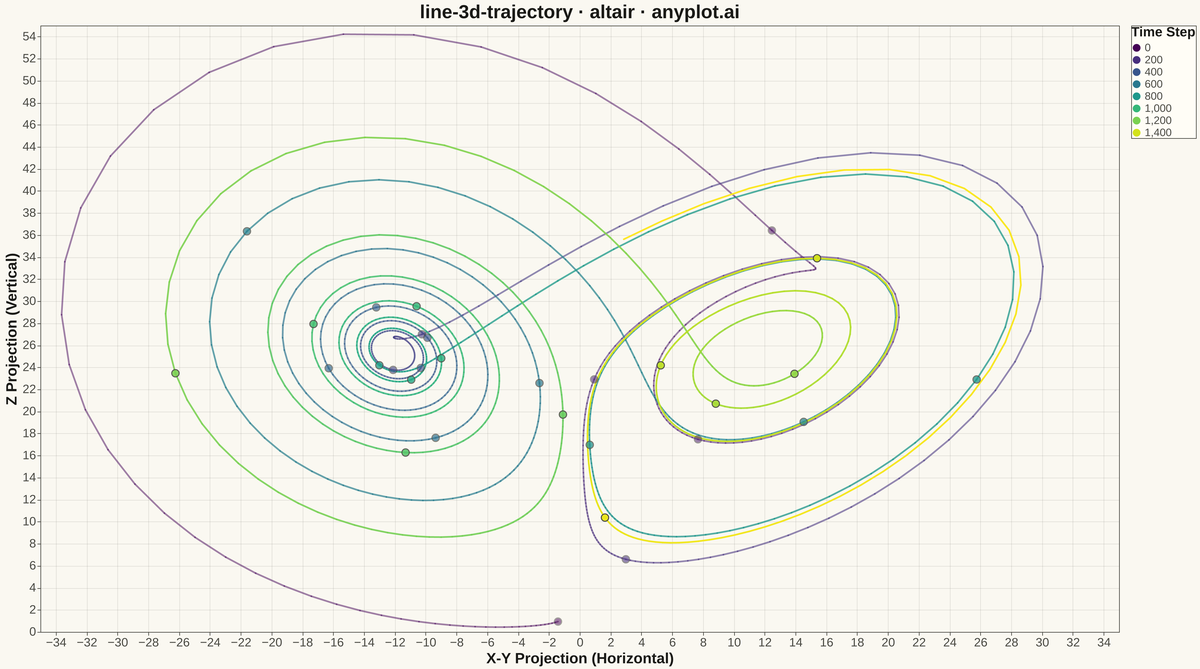

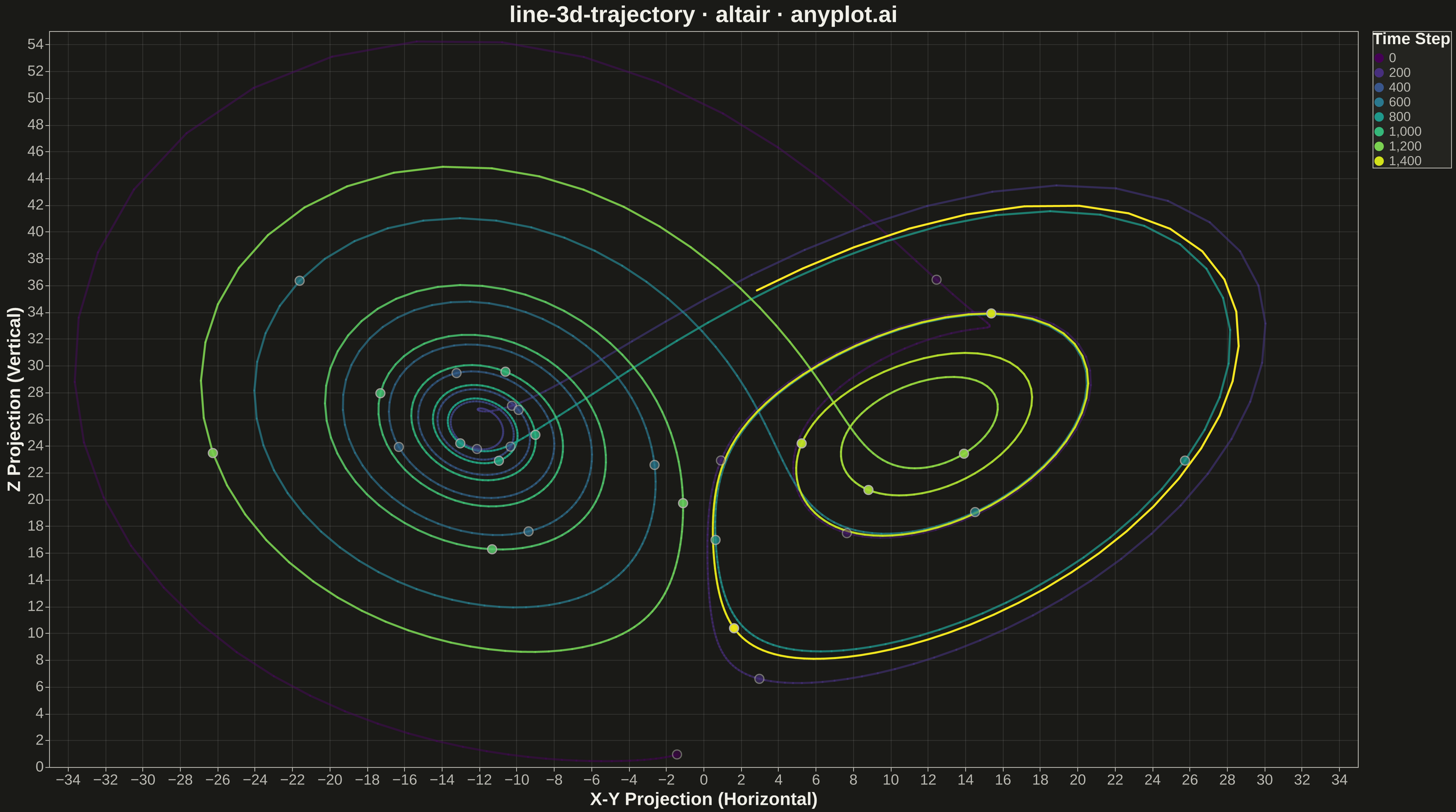

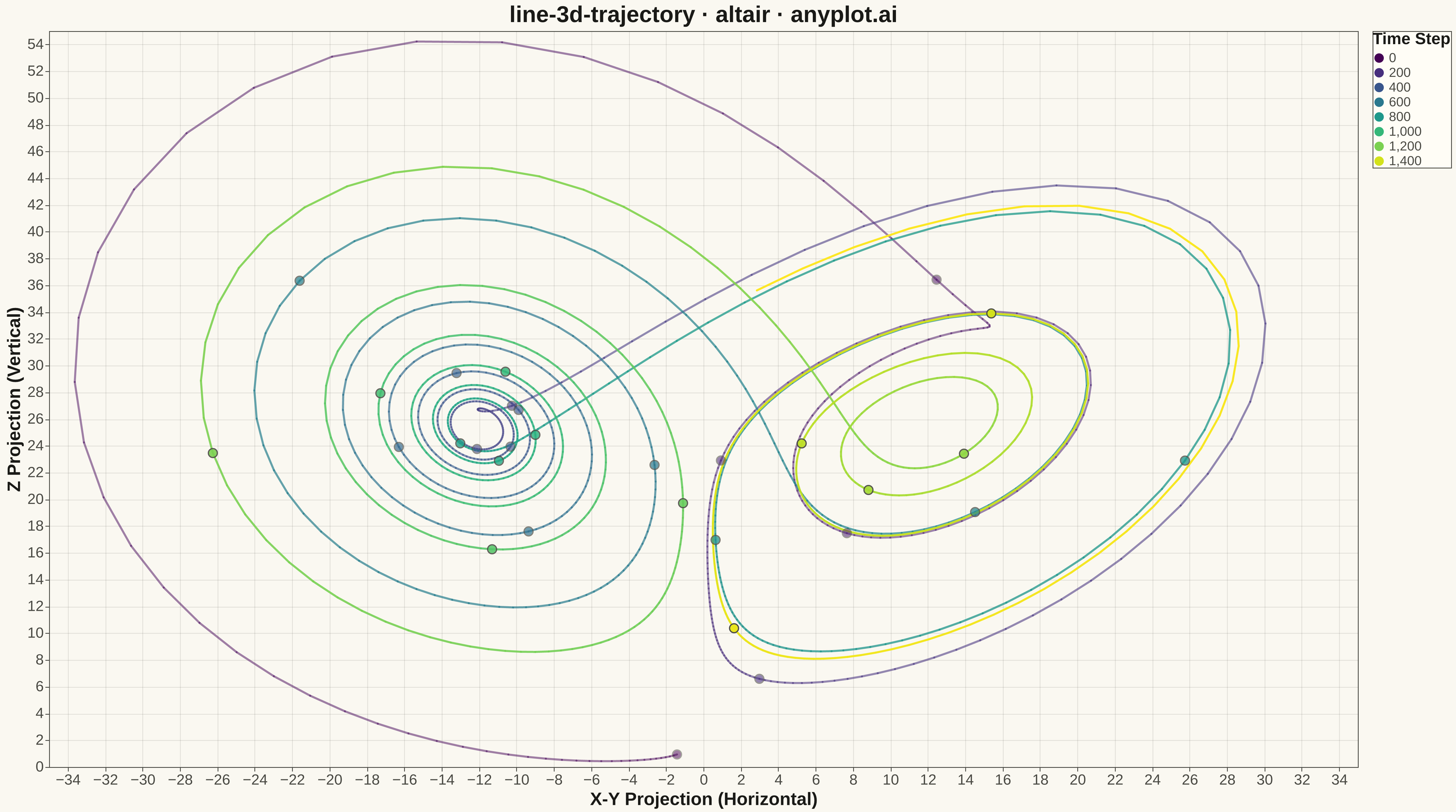

3D Line Plot for Trajectory Visualization rendered with Altair

Python source (Altair)

""" anyplot.ai
line-3d-trajectory: 3D Line Plot for Trajectory Visualization
Library: altair 6.1.0 | Python 3.13.13
Quality: 89/100 | Updated: 2026-05-16
"""

import os

import altair as alt
import numpy as np
import pandas as pd


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Data - Lorenz attractor trajectory (chaotic system)
np.random.seed(42)

# Lorenz system parameters
sigma = 10.0
rho = 28.0
beta = 8.0 / 3.0

# Generate trajectory using Euler integration
n_points = 1500
dt = 0.01

x_traj = np.zeros(n_points)
y_traj = np.zeros(n_points)
z_traj = np.zeros(n_points)

# Initial conditions
x_traj[0], y_traj[0], z_traj[0] = 1.0, 1.0, 1.0

for i in range(1, n_points):
    x, y, z = x_traj[i - 1], y_traj[i - 1], z_traj[i - 1]
    x_traj[i] = x + sigma * (y - x) * dt
    y_traj[i] = y + (x * (rho - z) - y) * dt
    z_traj[i] = z + (x * y - beta * z) * dt

# 3D to 2D isometric projection (elevation=20°, azimuth=135° for good view of Lorenz wings)
elev_rad = np.radians(20)
azim_rad = np.radians(135)

# Rotation around z-axis (azimuth)
x_rot = x_traj * np.cos(azim_rad) - y_traj * np.sin(azim_rad)
y_rot = x_traj * np.sin(azim_rad) + y_traj * np.cos(azim_rad)

# Rotation around x-axis (elevation) and project to 2D
x_proj = x_rot
z_proj = y_rot * np.sin(elev_rad) + z_traj * np.cos(elev_rad)

# Create line segments dataframe for mark_rule (each row is a segment)
segments = []
for i in range(n_points - 1):
    segments.append(
        {
            "x": x_proj[i],
            "y": z_proj[i],
            "x2": x_proj[i + 1],
            "y2": z_proj[i + 1],
            "time": i,
            "x_orig": x_traj[i],
            "y_orig": y_traj[i],
            "z_orig": z_traj[i],
        }
    )

df_segments = pd.DataFrame(segments)

# Create trajectory using mark_rule for line segments with color gradient
trajectory = (
    alt.Chart(df_segments)
    .mark_rule(strokeWidth=2.5, strokeCap="round")
    .encode(
        x=alt.X("x:Q", axis=alt.Axis(title="X-Y Projection (Horizontal)", labelFontSize=18, titleFontSize=22)),
        y=alt.Y("y:Q", axis=alt.Axis(title="Z Projection (Vertical)", labelFontSize=18, titleFontSize=22)),
        x2="x2:Q",
        y2="y2:Q",
        color=alt.Color(
            "time:Q",
            scale=alt.Scale(scheme="viridis"),
            legend=alt.Legend(title="Time Step", titleFontSize=20, labelFontSize=16, orient="right"),
        ),
        tooltip=[
            alt.Tooltip("x_orig:Q", title="X", format=".2f"),
            alt.Tooltip("y_orig:Q", title="Y", format=".2f"),
            alt.Tooltip("z_orig:Q", title="Z", format=".2f"),
            alt.Tooltip("time:Q", title="Time Step"),
        ],
    )
)

# Add pan and zoom interactivity
pan_zoom = alt.selection_interval(bind="scales", encodings=["x", "y"])

# Final chart
chart = (
    trajectory.add_params(pan_zoom)
    .properties(
        width=1600,
        height=900,
        background=PAGE_BG,
        title=alt.Title(text="line-3d-trajectory · altair · anyplot.ai", fontSize=28, color=INK),
    )
    .configure_view(fill=PAGE_BG, stroke=INK_SOFT)
    .configure_axis(
        domainColor=INK_SOFT, tickColor=INK_SOFT, gridColor=INK, gridOpacity=0.10, labelColor=INK_SOFT, titleColor=INK
    )
    .configure_title(color=INK)
    .configure_legend(fillColor=ELEVATED_BG, strokeColor=INK_SOFT, labelColor=INK_SOFT, titleColor=INK)
)

# Save outputs
chart.save(f"plot-{THEME}.png", scale_factor=3.0)
chart.save(f"plot-{THEME}.html")

Part of 3D Line Plot for Trajectory Visualization on anyplot.ai.
