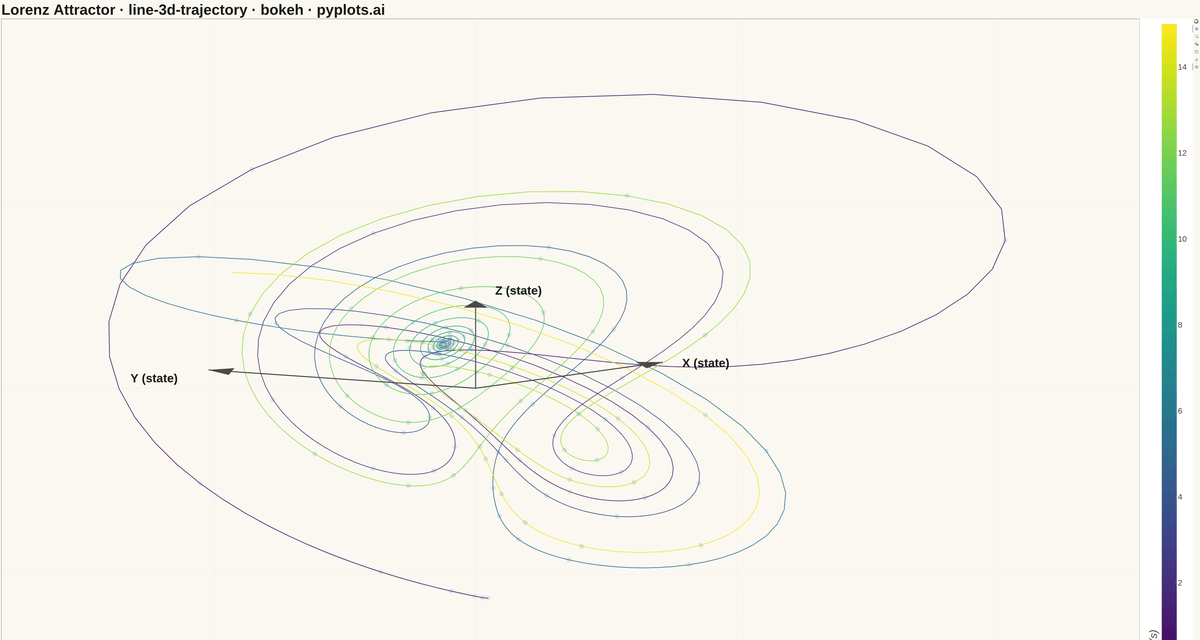

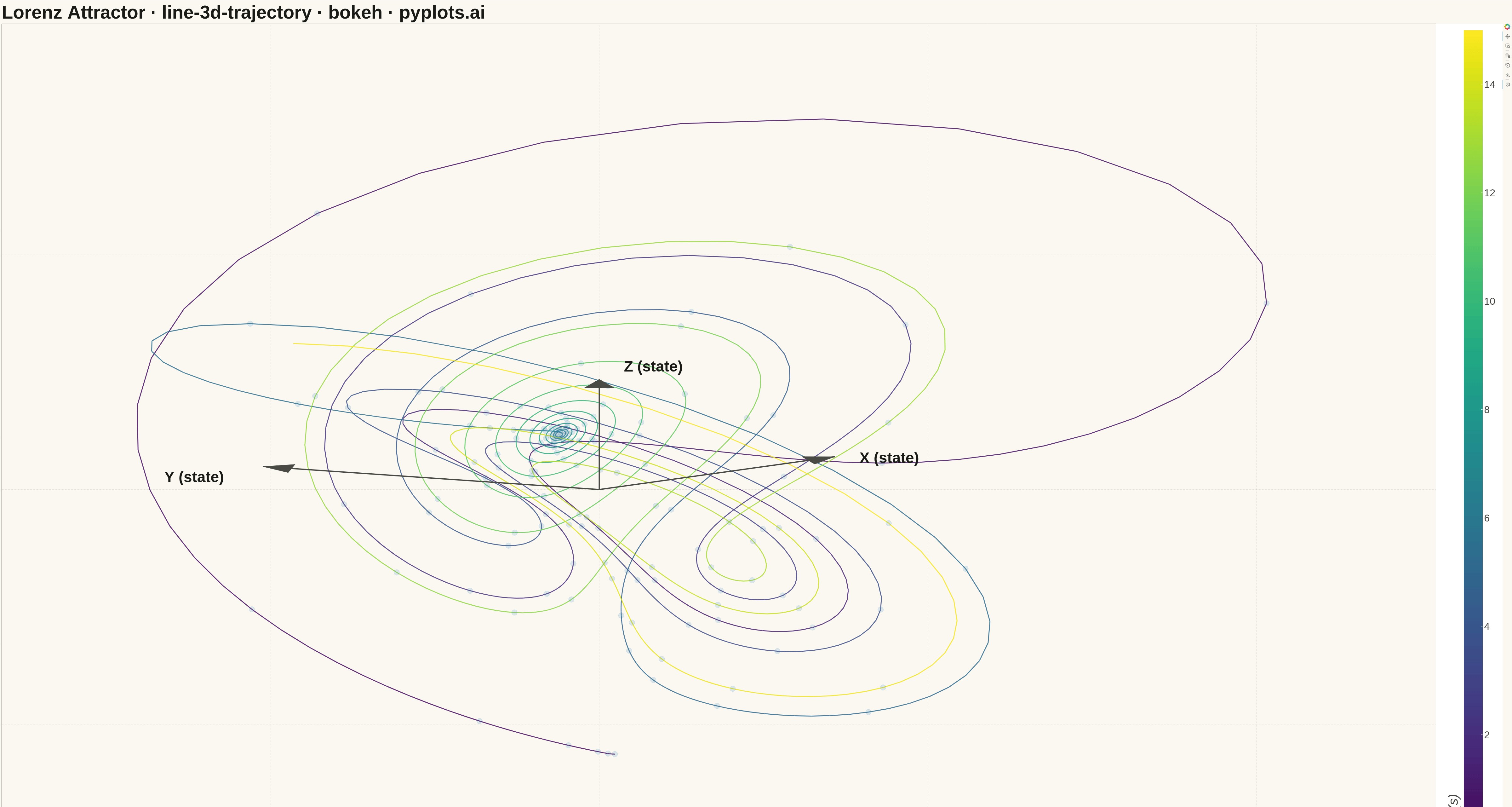

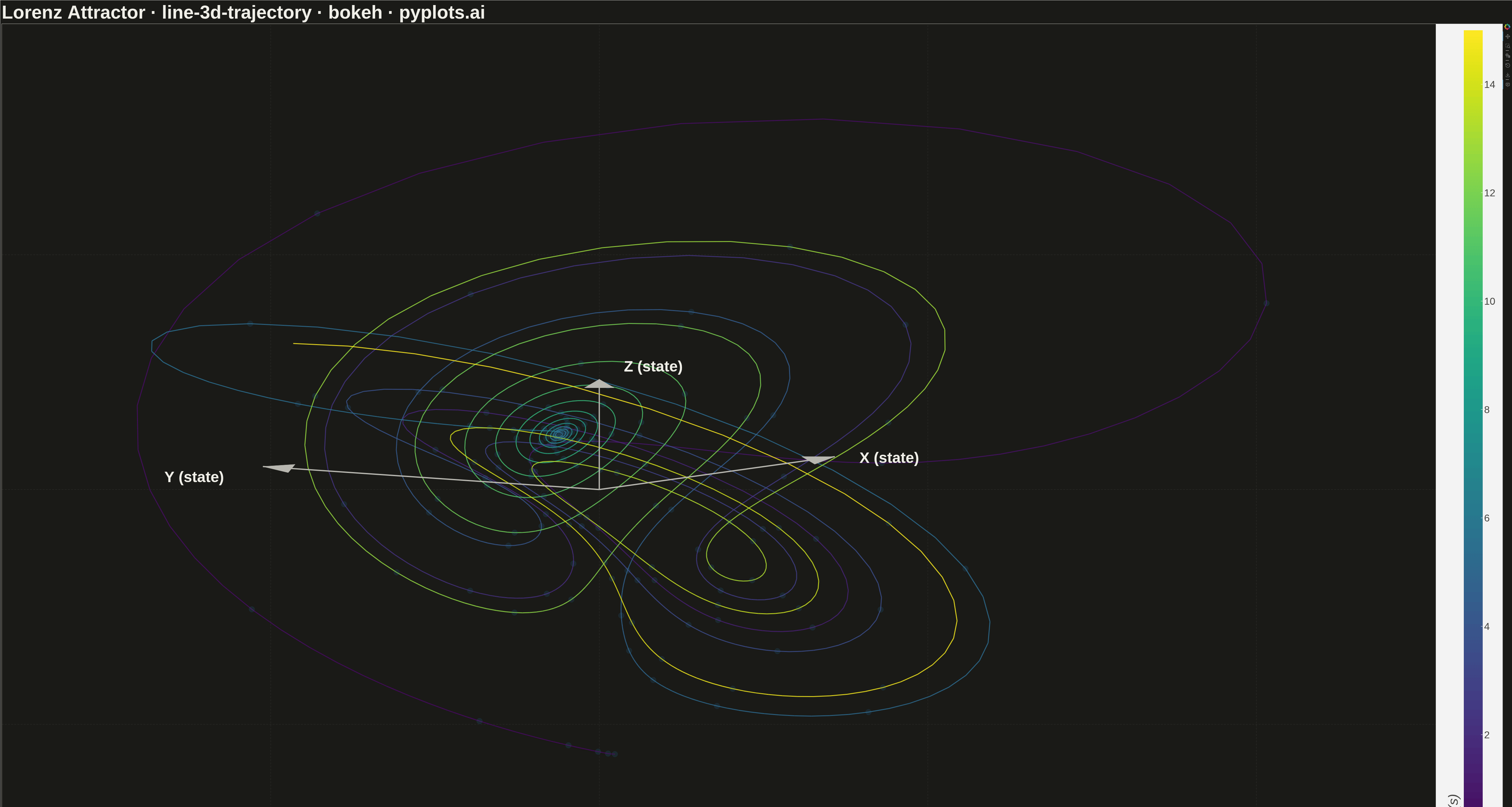

A 3D line plot that displays paths, trajectories, or curves as connected lines in three-dimensional space. Unlike scatter plots that show discrete points, this visualization connects data points sequentially to reveal continuous paths, making it ideal for understanding motion, mathematical curves, and temporal evolution in 3D. Interactive rotation is essential for exploring the spatial structure of complex trajectories.
""" anyplot.ai
line-3d-trajectory: 3D Line Plot for Trajectory Visualization
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 94/100 | Updated: 2026-05-16
"""
import os
import time
from pathlib import Path
import numpy as np
from bokeh.io import output_file, save
from bokeh.models import ColorBar, ColumnDataSource, HoverTool, Label, LinearColorMapper, Range1d
from bokeh.palettes import Viridis256
from bokeh.plotting import figure
from bokeh.resources import CDN
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
# Theme tokens (read from environment)
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
# Data - Lorenz attractor trajectory (classic chaotic system)
np.random.seed(42)
# Lorenz system parameters
sigma = 10.0
rho = 28.0
beta = 8.0 / 3.0
# Generate trajectory with 1500 points for smooth visualization (inline Euler integration)
n_points = 1500
dt = 0.01
x, y, z = np.zeros(n_points), np.zeros(n_points), np.zeros(n_points)
x[0], y[0], z[0] = 0.1, 0.0, 0.0 # Initial conditions
for i in range(n_points - 1):
dx = sigma * (y[i] - x[i]) * dt
dy = (x[i] * (rho - z[i]) - y[i]) * dt
dz = (x[i] * y[i] - beta * z[i]) * dt
x[i + 1] = x[i] + dx
y[i + 1] = y[i] + dy
z[i + 1] = z[i] + dz
# Normalize coordinates for better visualization
x = (x - x.mean()) / x.std() * 2
y = (y - y.mean()) / y.std() * 2
z = (z - z.mean()) / z.std() * 2
# 3D to 2D isometric projection (elevation=20°, azimuth=55°)
elev_rad = np.radians(20)
azim_rad = np.radians(55)
# Rotation around z-axis (azimuth)
x_rot = x * np.cos(azim_rad) - y * np.sin(azim_rad)
y_rot = x * np.sin(azim_rad) + y * np.cos(azim_rad)
# Rotation around x-axis (elevation) and project to 2D
x_proj = x_rot
z_proj = y_rot * np.sin(elev_rad) + z * np.cos(elev_rad)
# Time/progression for color gradient (shows trajectory evolution)
time_seconds = np.linspace(0, n_points * dt, n_points)
max_time = n_points * dt # 15 seconds
# Color mapping using actual simulation time values
color_mapper = LinearColorMapper(palette=Viridis256, low=0, high=max_time)
# Create segments for multi-colored line with gradient
n_segments = n_points - 1
xs = [[x_proj[i], x_proj[i + 1]] for i in range(n_segments)]
ys = [[z_proj[i], z_proj[i + 1]] for i in range(n_segments)]
# Vectorized color mapping for line segments
segment_times = time_seconds[:-1]
color_indices = np.clip((segment_times / max_time * 255).astype(int), 0, 255)
colors = [Viridis256[idx] for idx in color_indices]
# Create ColumnDataSource for line segments
source = ColumnDataSource(data={"xs": xs, "ys": ys, "color": colors})
# Create scatter points for hover functionality
hover_source = ColumnDataSource(
data={
"x": x_proj[::10],
"y": z_proj[::10],
"time": time_seconds[::10],
"x_coord": x[::10],
"y_coord": y[::10],
"z_coord": z[::10],
}
)
# Create Bokeh figure with interactive tools
p = figure(
width=4800,
height=2700,
title="Lorenz Attractor · line-3d-trajectory · bokeh · pyplots.ai",
toolbar_location="right",
tools="pan,wheel_zoom,box_zoom,reset,save",
)
# Draw trajectory as multi-line with color gradient showing time progression
p.multi_line(xs="xs", ys="ys", line_color="color", line_width=3, line_alpha=0.85, source=source)
# Add subtle scatter points for hover interaction
scatter = p.scatter(x="x", y="y", source=hover_source, size=18, alpha=0.15, hover_alpha=0.9, hover_color="orange")
# Add HoverTool for interactivity (Bokeh distinctive feature)
hover = HoverTool(
renderers=[scatter],
tooltips=[("Time", "@time{0.2f} s"), ("X", "@x_coord{0.2f}"), ("Y", "@y_coord{0.2f}"), ("Z", "@z_coord{0.2f}")],
mode="mouse",
)
p.add_tools(hover)
# Set appropriate ranges with padding
x_min, x_max = x_proj.min(), x_proj.max()
y_min, y_max = z_proj.min(), z_proj.max()
x_pad = (x_max - x_min) * 0.15
y_pad = (y_max - y_min) * 0.15
# Center the plot with balanced padding
p.x_range = Range1d(x_min - x_pad * 0.8, x_max + x_pad * 1.0)
p.y_range = Range1d(y_min - y_pad * 1.0, y_max + y_pad * 1.0)
# Hide default axes for cleaner 3D projection look
p.xaxis.visible = False
p.yaxis.visible = False
# Custom 3D axis lines positioned at the projected origin
origin_3d_x, origin_3d_y, origin_3d_z = 0, 0, 0
origin_x_rot = origin_3d_x * np.cos(azim_rad) - origin_3d_y * np.sin(azim_rad)
origin_y_rot = origin_3d_x * np.sin(azim_rad) + origin_3d_y * np.cos(azim_rad)
origin_x = origin_x_rot
origin_y = origin_y_rot * np.sin(elev_rad) + origin_3d_z * np.cos(elev_rad)
# Axis styling with theme-adaptive colors
axis_color = INK_SOFT
axis_width = 4
axis_length = 2.5
# Project 3D axis endpoints to 2D
# X-axis: point (axis_length, 0, 0)
x_end_x_rot = axis_length * np.cos(azim_rad)
x_end_y_rot = axis_length * np.sin(azim_rad)
x_axis_end_x = x_end_x_rot
x_axis_end_y = x_end_y_rot * np.sin(elev_rad)
# Y-axis: point (0, axis_length, 0)
y_end_x_rot = -axis_length * np.sin(azim_rad)
y_end_y_rot = axis_length * np.cos(azim_rad)
y_axis_end_x = y_end_x_rot
y_axis_end_y = y_end_y_rot * np.sin(elev_rad)
# Z-axis: point (0, 0, axis_length)
z_axis_end_x = origin_x
z_axis_end_y = origin_y + axis_length * np.cos(elev_rad)
# Draw axis lines from projected origin
p.line(x=[origin_x, x_axis_end_x], y=[origin_y, x_axis_end_y], line_color=axis_color, line_width=axis_width)
p.line(x=[origin_x, y_axis_end_x], y=[origin_y, y_axis_end_y], line_color=axis_color, line_width=axis_width)
p.line(x=[origin_x, z_axis_end_x], y=[origin_y, z_axis_end_y], line_color=axis_color, line_width=axis_width)
# Add axis arrows (small triangles at the end of each axis)
arrow_size = 0.18
# X-axis arrow
x_dir = np.array([x_axis_end_x - origin_x, x_axis_end_y - origin_y])
x_dir = x_dir / np.linalg.norm(x_dir)
x_perp = np.array([-x_dir[1], x_dir[0]])
p.patch(
x=[
x_axis_end_x,
x_axis_end_x - arrow_size * x_dir[0] + arrow_size * 0.5 * x_perp[0],
x_axis_end_x - arrow_size * x_dir[0] - arrow_size * 0.5 * x_perp[0],
],
y=[
x_axis_end_y,
x_axis_end_y - arrow_size * x_dir[1] + arrow_size * 0.5 * x_perp[1],
x_axis_end_y - arrow_size * x_dir[1] - arrow_size * 0.5 * x_perp[1],
],
fill_color=axis_color,
line_color=axis_color,
)
# Y-axis arrow
y_dir = np.array([y_axis_end_x - origin_x, y_axis_end_y - origin_y])
y_dir = y_dir / np.linalg.norm(y_dir)
y_perp = np.array([-y_dir[1], y_dir[0]])
p.patch(
x=[
y_axis_end_x,
y_axis_end_x - arrow_size * y_dir[0] + arrow_size * 0.5 * y_perp[0],
y_axis_end_x - arrow_size * y_dir[0] - arrow_size * 0.5 * y_perp[0],
],
y=[
y_axis_end_y,
y_axis_end_y - arrow_size * y_dir[1] + arrow_size * 0.5 * y_perp[1],
y_axis_end_y - arrow_size * y_dir[1] - arrow_size * 0.5 * y_perp[1],
],
fill_color=axis_color,
line_color=axis_color,
)
# Z-axis arrow
z_dir = np.array([z_axis_end_x - origin_x, z_axis_end_y - origin_y])
z_dir = z_dir / np.linalg.norm(z_dir)
z_perp = np.array([-z_dir[1], z_dir[0]])
p.patch(
x=[
z_axis_end_x,
z_axis_end_x - arrow_size * z_dir[0] + arrow_size * 0.5 * z_perp[0],
z_axis_end_x - arrow_size * z_dir[0] - arrow_size * 0.5 * z_perp[0],
],
y=[
z_axis_end_y,
z_axis_end_y - arrow_size * z_dir[1] + arrow_size * 0.5 * z_perp[1],
z_axis_end_y - arrow_size * z_dir[1] - arrow_size * 0.5 * z_perp[1],
],
fill_color=axis_color,
line_color=axis_color,
)
# Add descriptive axis labels with theme-adaptive colors
x_label = Label(
x=x_axis_end_x + 0.15,
y=x_axis_end_y - 0.2,
text="X (state)",
text_font_size="36pt",
text_color=INK,
text_font_style="bold",
)
p.add_layout(x_label)
y_label = Label(
x=y_axis_end_x - 0.6,
y=y_axis_end_y - 0.4,
text="Y (state)",
text_font_size="36pt",
text_color=INK,
text_font_style="bold",
)
p.add_layout(y_label)
z_label = Label(
x=z_axis_end_x + 0.15,
y=z_axis_end_y + 0.1,
text="Z (state)",
text_font_size="36pt",
text_color=INK,
text_font_style="bold",
)
p.add_layout(z_label)
# Add color bar for time progression with correct time range (0-15 seconds)
color_bar = ColorBar(
color_mapper=color_mapper,
width=60,
location=(0, 0),
title="Time (s)",
title_text_font_size="32pt",
major_label_text_font_size="24pt",
title_standoff=20,
margin=40,
padding=20,
)
p.add_layout(color_bar, "right")
# Title styling for large canvas
p.title.text_font_size = "44pt"
p.title.text_font_style = "bold"
p.title.text_color = INK
# Grid styling - subtle with theme-adaptive colors
p.xgrid.grid_line_color = INK
p.ygrid.grid_line_color = INK
p.xgrid.grid_line_alpha = 0.10
p.ygrid.grid_line_alpha = 0.10
p.xgrid.grid_line_dash = [6, 4]
p.ygrid.grid_line_dash = [6, 4]
# Background styling with theme-adaptive colors
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = INK_SOFT
p.min_border_right = 220
# Save HTML for interactive version
output_file(f"plot-{THEME}.html")
save(p, resources=CDN, title="line-3d-trajectory · bokeh · pyplots.ai")
# Screenshot with headless Chrome via Selenium
W, H = 4800, 2700
opts = Options()
for arg in (
"--headless=new",
"--no-sandbox",
"--disable-dev-shm-usage",
"--disable-gpu",
f"--window-size={W},{H}",
"--hide-scrollbars",
):
opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)
driver.save_screenshot(f"plot-{THEME}.png")
driver.quit()
Part of 3D Line Plot for Trajectory Visualization on anyplot.ai.
