3D Line Plot for Trajectory Visualization in Seaborn (Python)

The same plot in 13 other libraries — Python: Altair, Bokeh, lets-plot, Matplotlib, Plotly, Pygal; R: ggplot2; Julia: Makie.jl; JavaScript: Chart.js, D3.js, Apache ECharts, Highcharts, MUI X Charts. Compare all 14 side by side: 3D Line Plot for Trajectory Visualization in Python, R, Julia and JavaScript.

A 3D line plot that displays paths, trajectories, or curves as connected lines in three-dimensional space. Unlike scatter plots that show discrete points, this visualization connects data points sequentially to reveal continuous paths, making it ideal for understanding motion, mathematical curves, and temporal evolution in 3D. Interactive rotation is essential for exploring the spatial structure of complex trajectories.

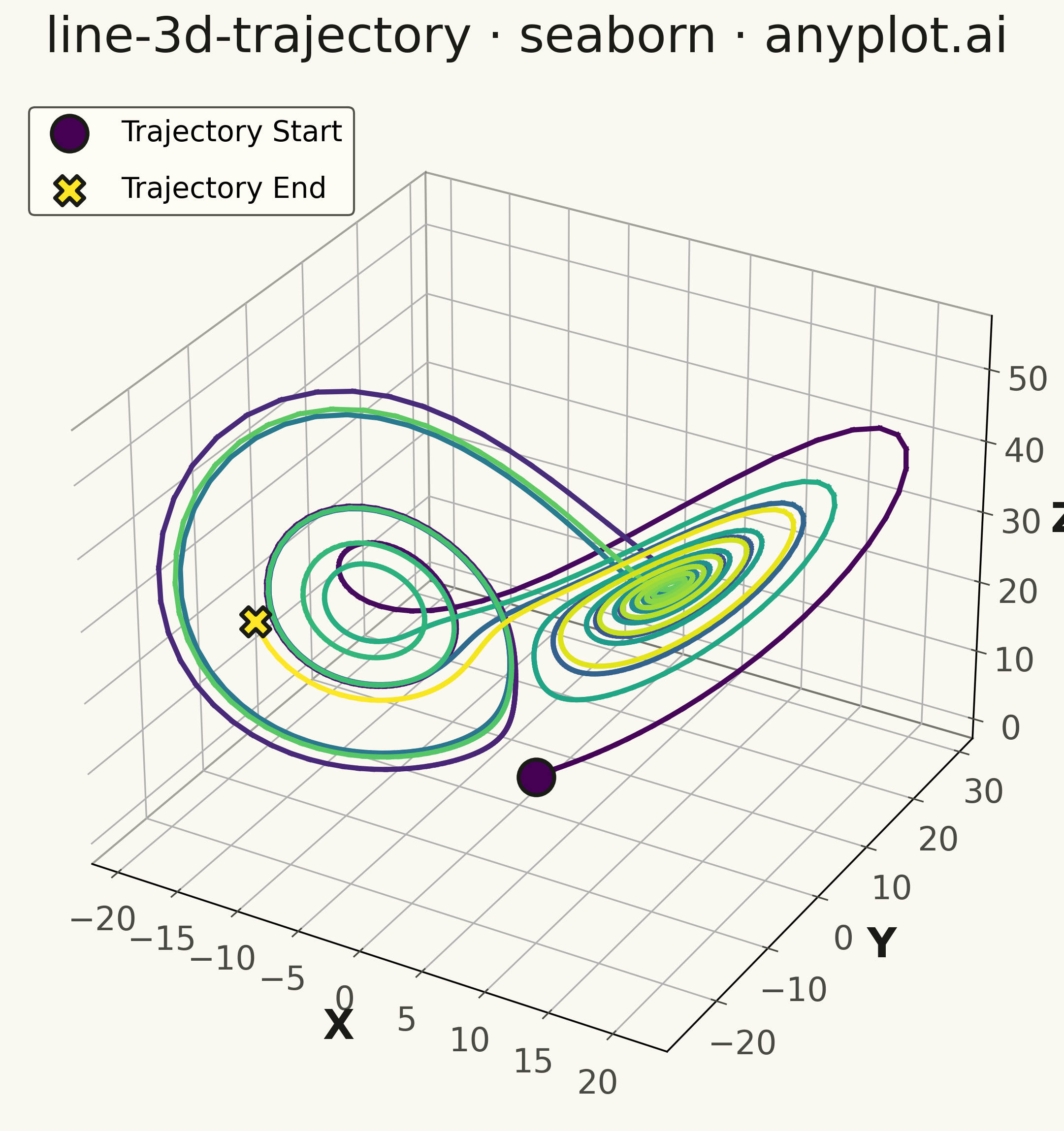

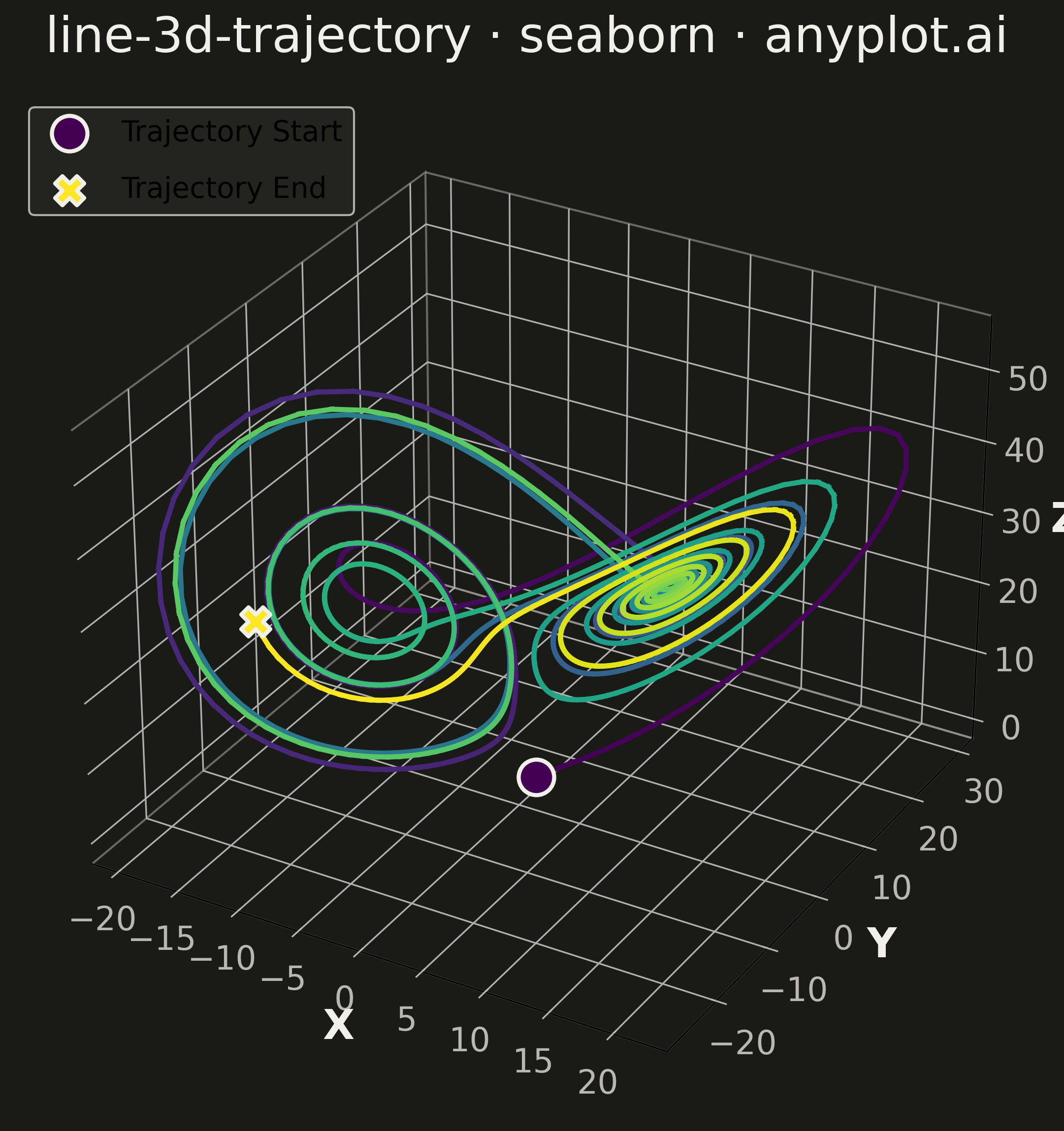

3D Line Plot for Trajectory Visualization rendered with Seaborn

Renders

Python source (Seaborn)

""" anyplot.ai
line-3d-trajectory: 3D Line Plot for Trajectory Visualization
Library: seaborn 0.13.2 | Python 3.13.13
Quality: 82/100 | Created: 2026-05-16
"""

import os

import matplotlib.pyplot as plt
import numpy as np


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Data - Lorenz attractor
np.random.seed(42)
dt = 0.01
num_steps = 2000
x, y, z = np.zeros(num_steps), np.zeros(num_steps), np.zeros(num_steps)
x[0], y[0], z[0] = 1, 1, 1

# Lorenz attractor parameters
sigma, rho, beta = 10, 28, 8 / 3

for i in range(num_steps - 1):
    dx = sigma * (y[i] - x[i])
    dy = x[i] * (rho - z[i]) - y[i]
    dz = x[i] * y[i] - beta * z[i]

    x[i + 1] = x[i] + dt * dx
    y[i + 1] = y[i] + dt * dy
    z[i + 1] = z[i] + dt * dz

# Plot
fig = plt.figure(figsize=(16, 9), facecolor=PAGE_BG)
ax = fig.add_subplot(111, projection="3d")
ax.set_facecolor(PAGE_BG)

# Plot trajectory with time-based coloring
norm = plt.Normalize(vmin=0, vmax=num_steps)
colors = plt.cm.viridis(norm(np.arange(num_steps)))

for i in range(num_steps - 1):
    ax.plot(x[i : i + 2], y[i : i + 2], z[i : i + 2], color=colors[i], linewidth=2.5)

# Style
ax.set_xlabel("X", fontsize=20, color=INK)
ax.set_ylabel("Y", fontsize=20, color=INK)
ax.set_zlabel("Z", fontsize=20, color=INK)
ax.set_title("line-3d-trajectory · seaborn · anyplot.ai", fontsize=24, fontweight="medium", color=INK)
ax.tick_params(axis="both", labelsize=16, colors=INK_SOFT)

# Grid styling
ax.grid(True, alpha=0.1, color=INK_SOFT)

# Save
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/line-3d-trajectory/seaborn/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "line-3d-trajectory",
  "language": "python",
  "library": "seaborn",
  "page": "https://anyplot.ai/line-3d-trajectory/python/seaborn",
  "hub": "https://anyplot.ai/line-3d-trajectory",
  "code_json": "https://api.anyplot.ai/specs/line-3d-trajectory/seaborn/code",
  "spec_json": "https://api.anyplot.ai/specs/line-3d-trajectory",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/line-3d-trajectory/python/seaborn/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/line-3d-trajectory/python/seaborn/plot-dark.png",
  "quality_score": 82.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of 3D Line Plot for Trajectory Visualization on anyplot.ai.
