Arrhenius Plot for Reaction Kinetics — Highcharts

An Arrhenius plot displays ln(k) versus 1/T to determine the activation energy of a chemical reaction from experimental rate constant data. The Arrhenius equation predicts a linear relationship on this transformed scale, where the slope equals -Ea/R (activation energy divided by the gas constant). This visualization is fundamental in physical chemistry and chemical engineering for characterizing reaction kinetics and comparing catalytic performance.

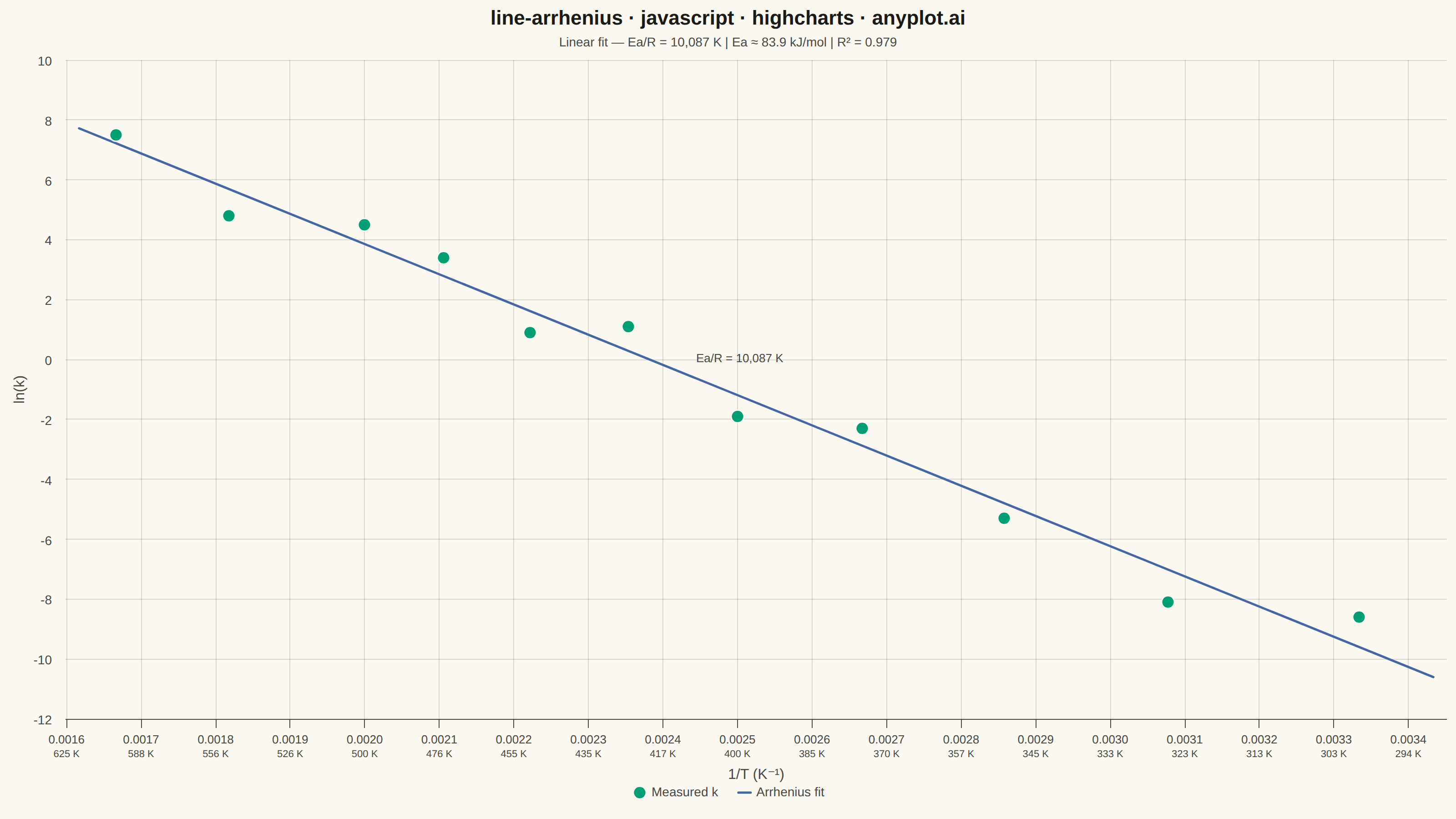

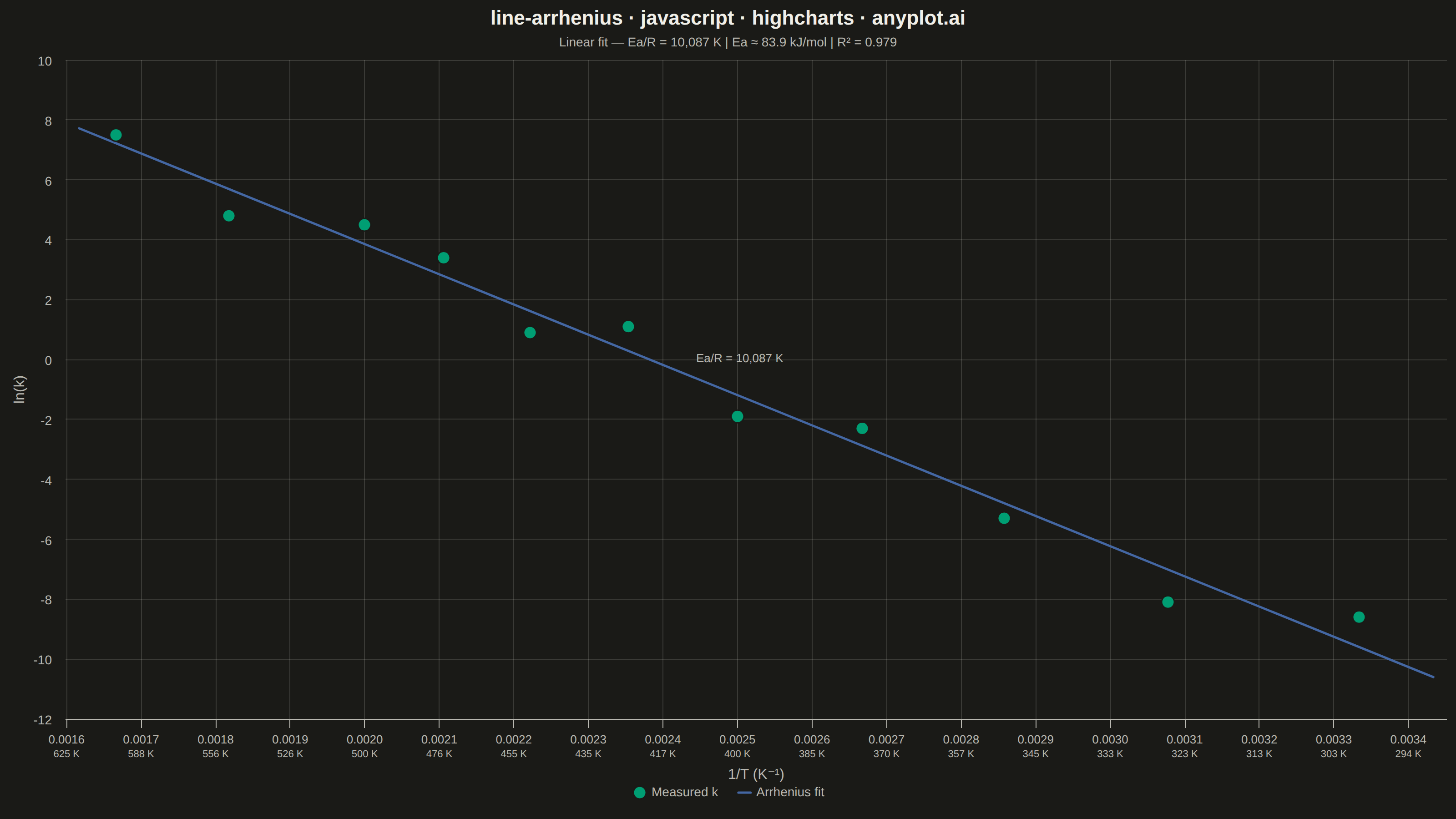

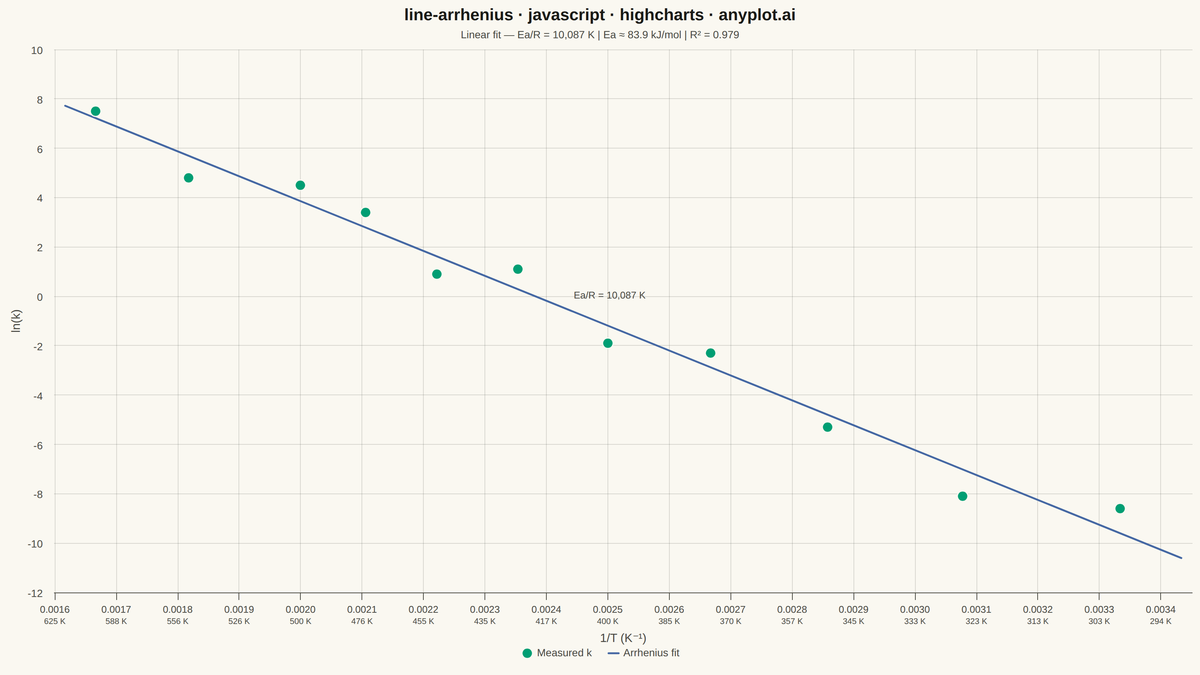

Arrhenius Plot for Reaction Kinetics rendered with Highcharts

Renders

JavaScript source (Highcharts)

// anyplot.ai
// line-arrhenius: Arrhenius Plot for Reaction Kinetics
// Library: highcharts 12.6.0 | JavaScript 22.22.3
// Quality: 87/100 | Created: 2026-06-24

//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;

// --- Data: first-order thermal decomposition with realistic experimental scatter ---
// Temperatures spanning 300–600 K; ln(k) values reflect real measurement noise (R² ≈ 0.98)
const temperatures = [300, 325, 350, 375, 400, 425, 450, 475, 500, 550, 600];
const lnK = [-8.6, -8.1, -5.3, -2.3, -1.9, 1.1, 0.9, 3.4, 4.5, 4.8, 7.5];
const invT = temperatures.map(T => 1 / T);

// --- Linear regression: ln(k) = ln(A) − (Ea/R)·(1/T) ---
const n = invT.length;
const sx = invT.reduce((a, b) => a + b, 0);
const sy = lnK.reduce((a, b) => a + b, 0);
const sxy = invT.reduce((a, x, i) => a + x * lnK[i], 0);
const sxx = invT.reduce((a, x) => a + x * x, 0);
const slope = (n * sxy - sx * sy) / (n * sxx - sx * sx);
const intercept = (sy - slope * sx) / n;
const yMean = sy / n;
const ssTot = lnK.reduce((a, y) => a + (y - yMean) ** 2, 0);
const ssRes = invT.reduce((a, x, i) => a + (lnK[i] - (slope * x + intercept)) ** 2, 0);
const r2 = 1 - ssRes / ssTot;

const eaOverR = Math.round(-slope);
const ea = (-slope * 8.314 / 1000).toFixed(1);

// Fit line from slightly extended x range
const xLo = Math.min(...invT) * 0.97;
const xHi = Math.max(...invT) * 1.03;
const fitLine = [
    [xLo, slope * xLo + intercept],
    [xHi, slope * xHi + intercept]
];

const scatterPoints = invT.map((x, i) => [x, lnK[i]]);

// --- Chart ---
const chart = Highcharts.chart("container", {
    chart: {
        backgroundColor: "transparent",
        animation: false,
        style: { fontFamily: "inherit" },
        marginBottom: 110
    },
    credits: { enabled: false },
    colors: t.palette,

    title: {
        text: "line-arrhenius · javascript · highcharts · anyplot.ai",
        style: { color: t.ink, fontSize: "22px", fontWeight: "600" }
    },
    subtitle: {
        text: "Linear fit — Ea/R = " + eaOverR.toLocaleString() + " K | Ea ≈ " + ea + " kJ/mol | R² = " + r2.toFixed(3),
        style: { color: t.inkSoft, fontSize: "14px" }
    },

    xAxis: {
        title: {
            text: "1/T  (K⁻¹)",
            style: { color: t.inkSoft, fontSize: "16px" }
        },
        lineColor: t.inkSoft,
        tickColor: t.inkSoft,
        gridLineColor: t.grid,
        gridLineWidth: 1,
        labels: {
            useHTML: true,
            style: { color: t.inkSoft, fontSize: "13px", textAlign: "center" },
            formatter: function () {
                const T = Math.round(1 / this.value);
                return this.value.toFixed(4) +
                    "<br><span style=\"font-size:11px;color:" + t.inkSoft + "\">" + T + " K</span>";
            }
        }
    },

    yAxis: {
        title: {
            text: "ln(k)",
            style: { color: t.inkSoft, fontSize: "16px" }
        },
        lineColor: t.inkSoft,
        tickColor: t.inkSoft,
        gridLineColor: t.grid,
        gridLineWidth: 1,
        labels: { style: { color: t.inkSoft, fontSize: "14px" } }
    },

    legend: {
        itemStyle: { color: t.inkSoft, fontSize: "14px" },
        itemHoverStyle: { color: t.ink }
    },

    tooltip: { enabled: false },

    plotOptions: {
        series: { animation: false },
        line: {
            marker: { enabled: false },
            lineWidth: 2.5,
            states: { hover: { lineWidth: 2.5 } }
        },
        scatter: {
            marker: {
                radius: 7,
                symbol: "circle",
                lineColor: t.pageBg,
                lineWidth: 1.5
            }
        }
    },

    series: [
        {
            type: "scatter",
            name: "Measured k",
            data: scatterPoints,
            color: t.palette[0],
            zIndex: 2,
            marker: {
                radius: 7,
                symbol: "circle",
                lineColor: t.pageBg,
                lineWidth: 1.5
            }
        },
        {
            type: "line",
            name: "Arrhenius fit",
            data: fitLine,
            color: t.palette[2],
            lineWidth: 2.5,
            zIndex: 1,
            showInLegend: true
        }
    ]
});

// On-chart Ea/R annotation near the regression line midpoint
const xAnnot = xLo + 0.45 * (xHi - xLo);
const yAnnot = slope * xAnnot + intercept;
const pxAnnot = chart.xAxis[0].toPixels(xAnnot, false);
const pyAnnot = chart.yAxis[0].toPixels(yAnnot, false);
chart.renderer.text("Ea/R = " + eaOverR.toLocaleString() + " K", pxAnnot + 8, pyAnnot - 14)
    .attr({ align: "left", zIndex: 5 })
    .css({ color: t.inkSoft, fontSize: "13px" })
    .add();

Part of Arrhenius Plot for Reaction Kinetics on anyplot.ai.
