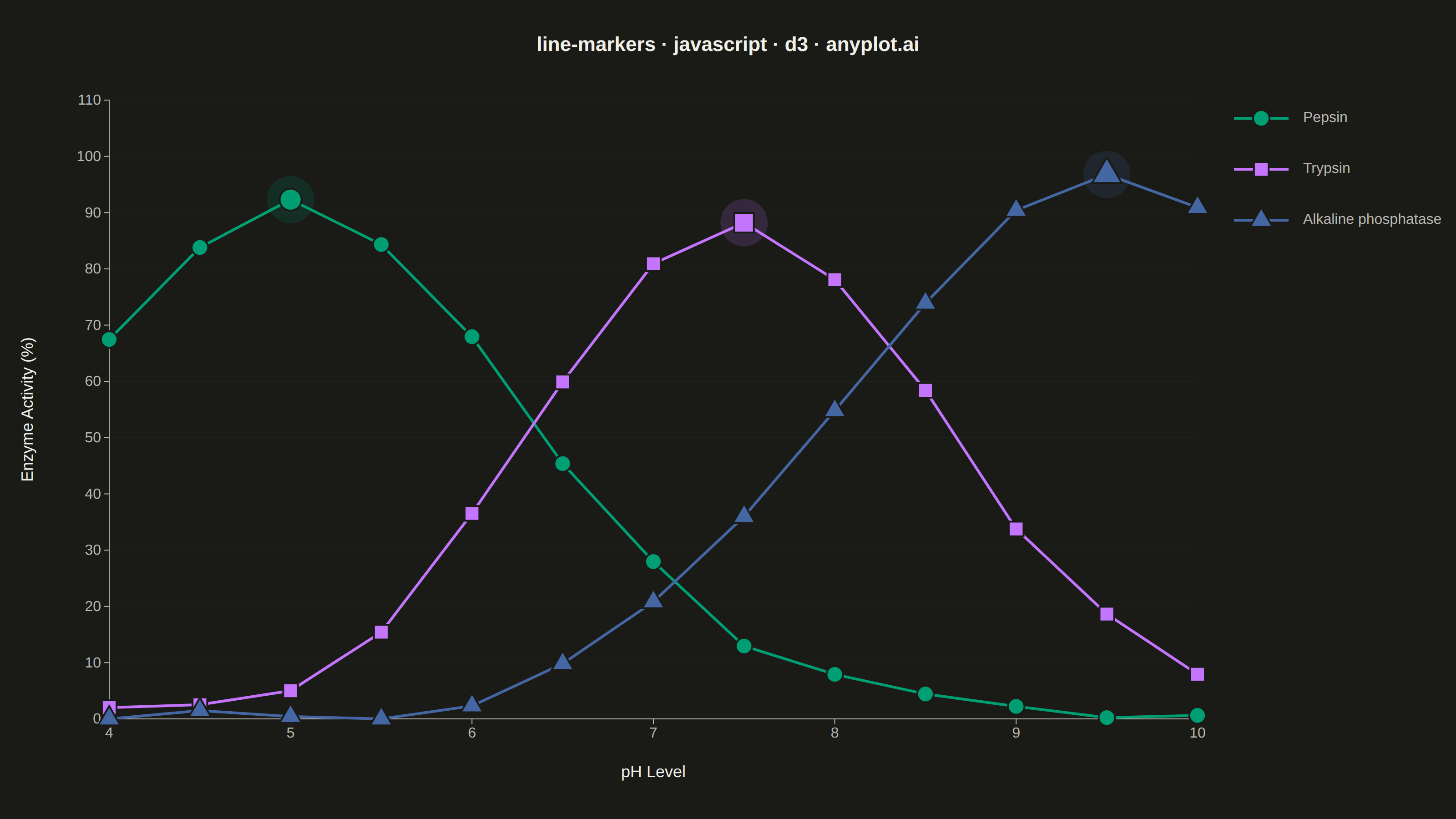

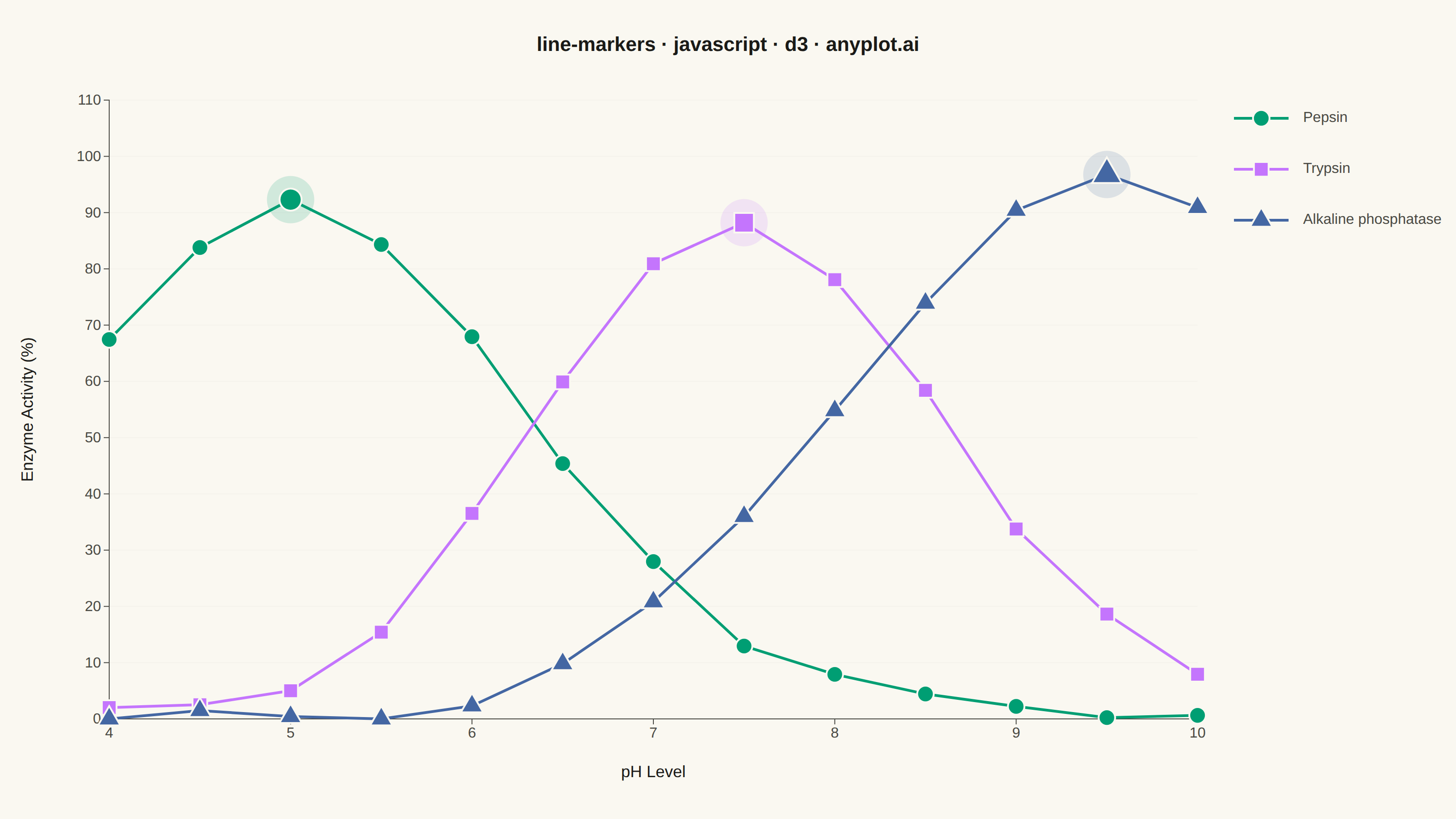

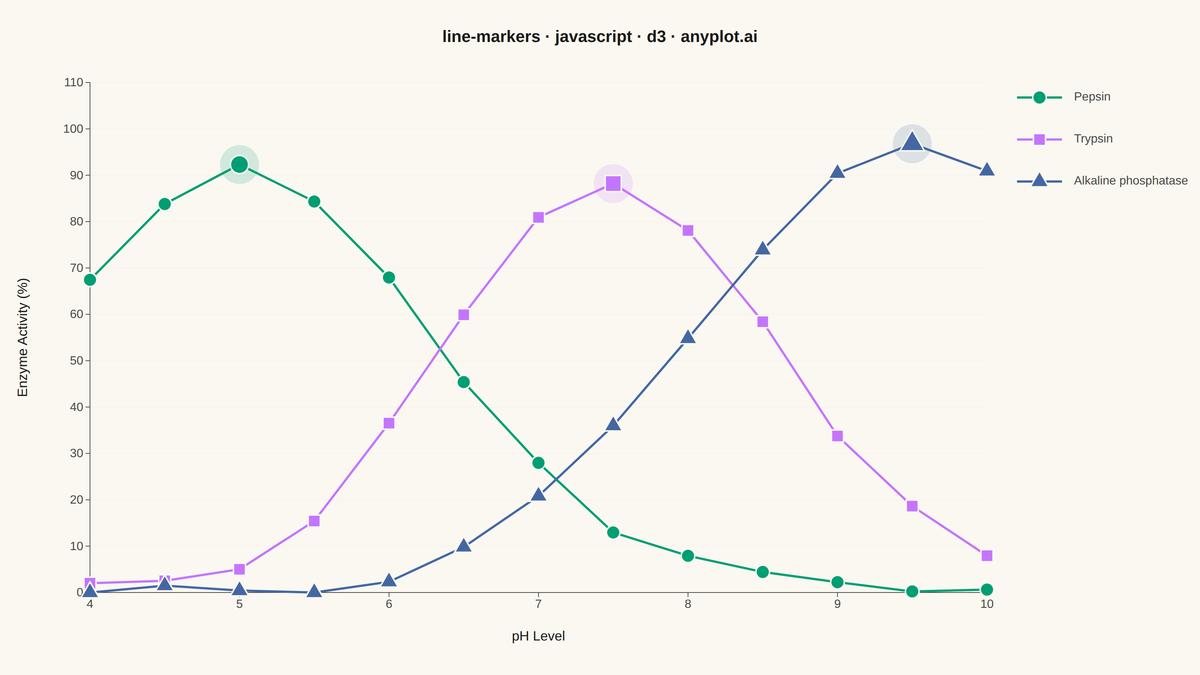

A line plot with visible markers at each data point, combining line and scatter plot features. This is particularly useful for sparse data where individual observations are significant.
// anyplot.ai
// line-markers: Line Plot with Markers
// Library: d3 7.9.0 | JavaScript 22.23.2
// Quality: 88/100 | Created: 2026-09-05
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
const margin = { top: 110, right: 284, bottom: 110, left: 120 };
const iw = width - margin.left - margin.right;
const ih = height - margin.top - margin.bottom;
// --- Data: enzyme activity across a pH gradient, three variants -----------
// Sparse discrete measurements (13 pH readings per enzyme) where each point
// is a meaningful lab observation, not a dense sampled curve.
function lcg(seed) {
let state = seed;
return () => {
state = (state * 1664525 + 1013904223) % 4294967296;
return state / 4294967296;
};
}
const rand = lcg(42);
const phLevels = [4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10.0];
function bellActivity(ph, optimum, sigma, peak) {
const gaussian = peak * Math.exp(-((ph - optimum) ** 2) / (2 * sigma ** 2));
const noise = (rand() - 0.5) * 4;
return Math.max(0, gaussian + noise);
}
const enzymes = [
{
name: "Pepsin",
optimum: 5.0,
sigma: 1.3,
peak: 92,
color: t.palette[0],
symbol: d3.symbolCircle,
},
{
name: "Trypsin",
optimum: 7.5,
sigma: 1.1,
peak: 88,
color: t.palette[1],
symbol: d3.symbolSquare,
},
{
name: "Alkaline phosphatase",
optimum: 9.5,
sigma: 1.4,
peak: 96,
color: t.palette[2],
symbol: d3.symbolTriangle,
},
];
const series = enzymes.map((e) => ({
...e,
values: phLevels.map((ph) => ({ ph, activity: bellActivity(ph, e.optimum, e.sigma, e.peak) })),
}));
// --- SVG mount ---------------------------------------------------------------
const svg = d3.select("#container").append("svg").attr("width", width).attr("height", height);
const g = svg.append("g").attr("transform", `translate(${margin.left},${margin.top})`);
// --- Scales -------------------------------------------------------------------
const x = d3.scaleLinear().domain([4.0, 10.0]).range([0, iw]);
const y = d3
.scaleLinear()
.domain([0, d3.max(series, (s) => d3.max(s.values, (v) => v.activity)) * 1.1])
.nice()
.range([ih, 0]);
// --- Gridlines (y-axis only, subtle) -------------------------------------------
g.append("g")
.attr("class", "grid")
.call(d3.axisLeft(y).tickSize(-iw).tickFormat(""))
.call((sel) => sel.select(".domain").remove())
.selectAll("line")
.attr("stroke", t.grid)
.attr("stroke-opacity", 0.15);
// --- Axes -----------------------------------------------------------------
const xAxis = g
.append("g")
.attr("transform", `translate(0,${ih})`)
.call(d3.axisBottom(x).tickValues([4, 5, 6, 7, 8, 9, 10]).tickFormat((d) => d.toFixed(0)));
const yAxis = g.append("g").call(d3.axisLeft(y));
for (const ax of [xAxis, yAxis]) {
ax.selectAll("text").attr("fill", t.inkSoft).style("font-size", "16px");
ax.selectAll("line").attr("stroke", t.inkSoft);
ax.select(".domain").attr("stroke", t.inkSoft);
}
// --- Lines + markers per series -----------------------------------------------
const line = d3
.line()
.x((d) => x(d.ph))
.y((d) => y(d.activity));
for (const s of series) {
const peak = s.values.reduce((a, b) => (b.activity > a.activity ? b : a));
// Soft halo behind the optimum point gives each curve a clear focal point.
g.append("circle")
.attr("cx", x(peak.ph))
.attr("cy", y(peak.activity))
.attr("r", 26)
.attr("fill", s.color)
.attr("opacity", 0.16);
g.append("path")
.datum(s.values)
.attr("fill", "none")
.attr("stroke", s.color)
.attr("stroke-width", 3)
.attr("d", line);
g.selectAll(`.marker-${s.name.replace(/\s/g, "")}`)
.data(s.values)
.join("path")
.attr("d", (d) => d3.symbol().type(s.symbol).size(d === peak ? 460 : 260)())
.attr("transform", (d) => `translate(${x(d.ph)},${y(d.activity)})`)
.attr("fill", s.color)
.attr("stroke", t.pageBg)
.attr("stroke-width", 2);
}
// --- Axis labels ------------------------------------------------------------
g.append("text")
.attr("x", iw / 2)
.attr("y", ih + 64)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "18px")
.text("pH Level");
g.append("text")
.attr("transform", "rotate(-90)")
.attr("x", -ih / 2)
.attr("y", -84)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "18px")
.text("Enzyme Activity (%)");
// --- Legend (symbol + color + line swatch per series) -------------------------
const legend = svg
.append("g")
.attr("transform", `translate(${margin.left + iw + 40},${margin.top + 20})`);
series.forEach((s, i) => {
const row = legend.append("g").attr("transform", `translate(0,${i * 56})`);
row
.append("line")
.attr("x1", 0)
.attr("x2", 60)
.attr("y1", 0)
.attr("y2", 0)
.attr("stroke", s.color)
.attr("stroke-width", 3);
row
.append("path")
.attr("d", d3.symbol().type(s.symbol).size(260)())
.attr("transform", "translate(30,0)")
.attr("fill", s.color)
.attr("stroke", t.pageBg)
.attr("stroke-width", 2);
row
.append("text")
.attr("x", 76)
.attr("y", 0)
.attr("dominant-baseline", "middle")
.attr("fill", t.inkSoft)
.style("font-size", "16px")
.text(s.name);
});
// --- Title --------------------------------------------------------------------
svg
.append("text")
.attr("x", width / 2)
.attr("y", 56)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "22px")
.style("font-weight", "600")
.text("line-markers · javascript · d3 · anyplot.ai");
