Line Plot with Markers — ggplot2

A line plot with visible markers at each data point, combining line and scatter plot features. This is particularly useful for sparse data where individual observations are significant.

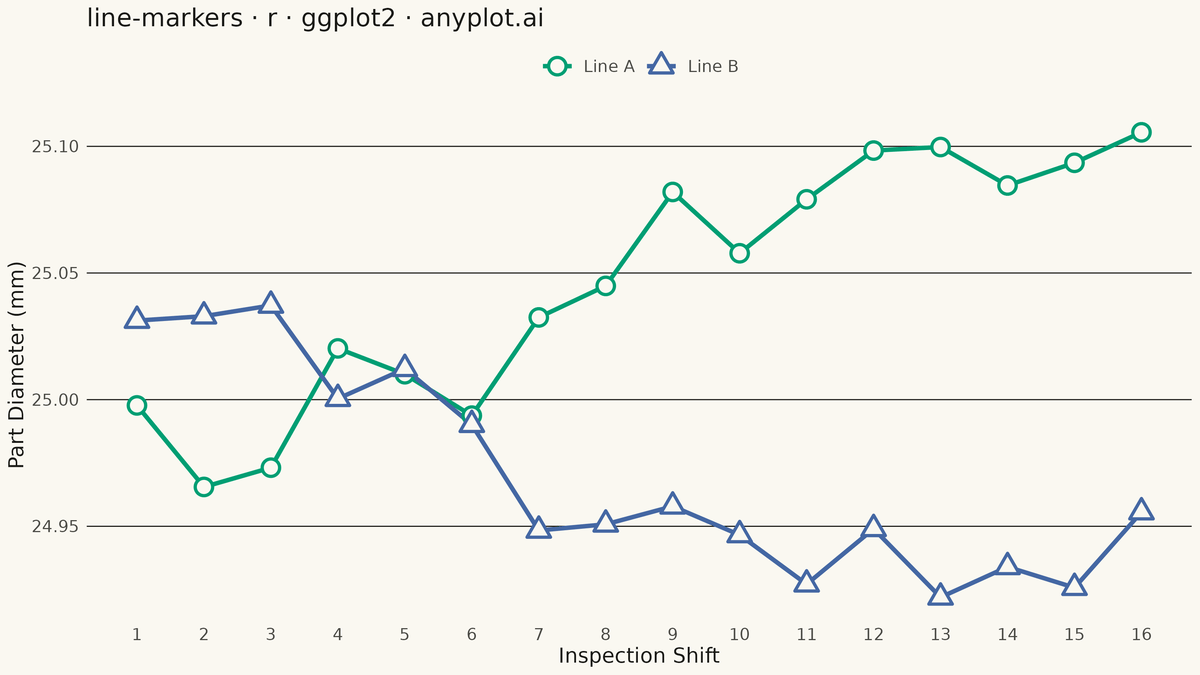

Line Plot with Markers rendered with ggplot2

Renders

R source (ggplot2)

#' anyplot.ai
#' line-markers: Line Plot with Markers
#' Library: ggplot2 3.5.1 | R 4.4.1
#' Quality: 84/100 | Created: 2026-09-05

library(ggplot2)
library(tibble)
library(ragg)

set.seed(42)

# --- Theme tokens -----------------------------------------------------------
THEME       <- Sys.getenv("ANYPLOT_THEME", "light")
PAGE_BG     <- if (THEME == "light") "#FAF8F1" else "#1A1A17"
INK         <- if (THEME == "light") "#1A1A17" else "#F0EFE8"
INK_SOFT    <- if (THEME == "light") "#4A4A44" else "#B8B7B0"

# Imprint palette (see prompts/default-style-guide.md "Categorical Palette")
IMPRINT_PALETTE <- c(
  "#009E73",  # 1 — brand green, always first series
  "#4467A3"   # 3 — blue, second series
)

# --- Data ---------------------------------------------------------------
# Quality-control inspection: diameter readings (mm) of a machined part,
# sampled once per shift across two production lines.
shift <- 1:16

line_a <- 24.98 + cumsum(rnorm(16, mean = 0, sd = 0.015)) +
  rnorm(16, mean = 0, sd = 0.01)
line_b <- 25.02 + cumsum(rnorm(16, mean = 0, sd = 0.015)) +
  rnorm(16, mean = 0, sd = 0.01)

n_shifts <- length(shift)
df <- tibble(
  shift = rep(shift, 2),
  diameter = c(line_a, line_b),
  production_line = factor(rep(c("Line A", "Line B"), each = n_shifts))
)

# Lines converge around shift 6 (diameters within 0.004mm) before diverging —
# call out the crossover as the chart's focal point.
cross_shift <- 6
cross_y <- mean(c(line_a[cross_shift], line_b[cross_shift]))

# --- Plot -----------------------------------------------------------------
title_text <- "line-markers · r · ggplot2 · anyplot.ai"

p <- ggplot(df, aes(x = shift, y = diameter, color = production_line, shape = production_line, fill = production_line)) +
  geom_line(linewidth = 1.0) +
  geom_point(size = 3.2, stroke = 1.1) +
  annotate(
    "point", x = cross_shift, y = cross_y,
    shape = 1, size = 7, stroke = 0.8, color = INK_SOFT
  ) +
  annotate(
    "text", x = cross_shift, y = cross_y - 0.05,
    label = "Lines converge", color = INK_SOFT, size = 2.6, vjust = 1
  ) +
  scale_color_manual(values = IMPRINT_PALETTE) +
  scale_fill_manual(values = c(IMPRINT_PALETTE[1], PAGE_BG)) +
  scale_shape_manual(values = c(21, 24)) +
  scale_x_continuous(breaks = shift) +
  labs(
    title = title_text,
    x = "Inspection Shift",
    y = "Part Diameter (mm)",
    color = "Production Line",
    shape = "Production Line",
    fill = "Production Line"
  ) +
  theme_minimal(base_size = 8) +
  theme(
    plot.background   = element_rect(fill = PAGE_BG, color = PAGE_BG),
    panel.background  = element_rect(fill = PAGE_BG, color = NA),
    panel.grid.major.y = element_line(color = INK, linewidth = 0.25),
    panel.grid.major.x = element_blank(),
    panel.grid.minor  = element_blank(),
    axis.title        = element_text(color = INK, size = 10),
    axis.text         = element_text(color = INK_SOFT, size = 8),
    axis.ticks        = element_blank(),
    plot.title        = element_text(color = INK, size = 12, face = "plain", margin = margin(b = 4)),
    plot.margin       = margin(t = 6, r = 10, b = 6, l = 6),
    legend.position   = "top",
    legend.margin     = margin(t = 0, b = 0),
    legend.box.spacing = unit(2, "pt"),
    legend.title      = element_blank(),
    legend.text       = element_text(color = INK_SOFT, size = 8),
    legend.background = element_rect(fill = PAGE_BG, color = NA),
    legend.key        = element_rect(fill = PAGE_BG, color = NA)
  )

# --- Save -------------------------------------------------------------------
ggsave(
  filename = sprintf("plot-%s.png", THEME),
  plot     = p,
  device   = ragg::agg_png,
  width    = 8,
  height   = 4.5,
  units    = "in",
  dpi      = 400
)

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/line-markers/ggplot2/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "line-markers",
  "language": "r",
  "library": "ggplot2",
  "page": "https://anyplot.ai/line-markers/r/ggplot2",
  "hub": "https://anyplot.ai/line-markers",
  "code_json": "https://api.anyplot.ai/specs/line-markers/ggplot2/code",
  "spec_json": "https://api.anyplot.ai/specs/line-markers",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/line-markers/r/ggplot2/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/line-markers/r/ggplot2/plot-dark.png",
  "quality_score": 84.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Line Plot with Markers on anyplot.ai.
