Line Plot with Markers — Pygal

A line plot with visible markers at each data point, combining line and scatter plot features. This is particularly useful for sparse data where individual observations are significant.

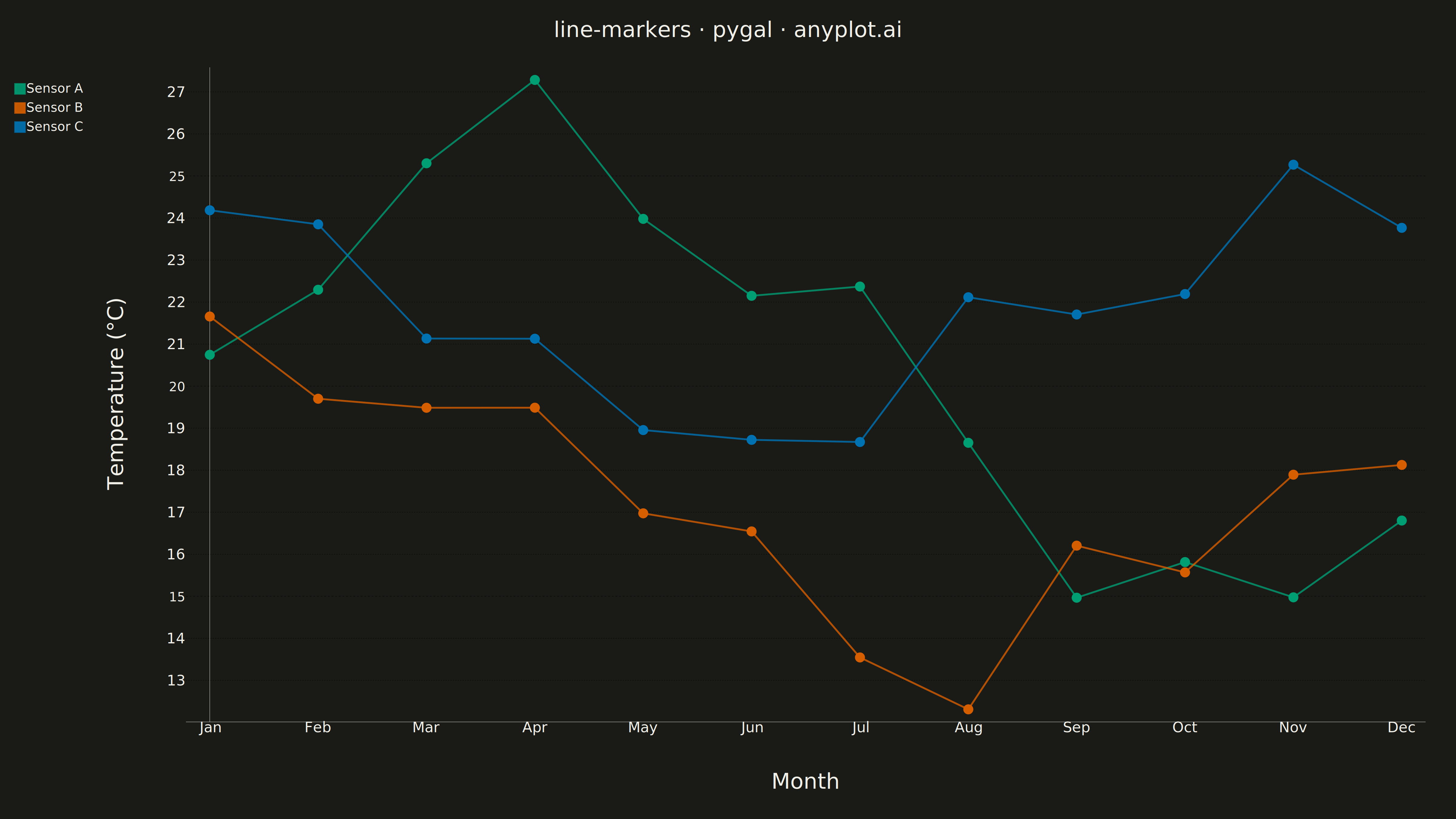

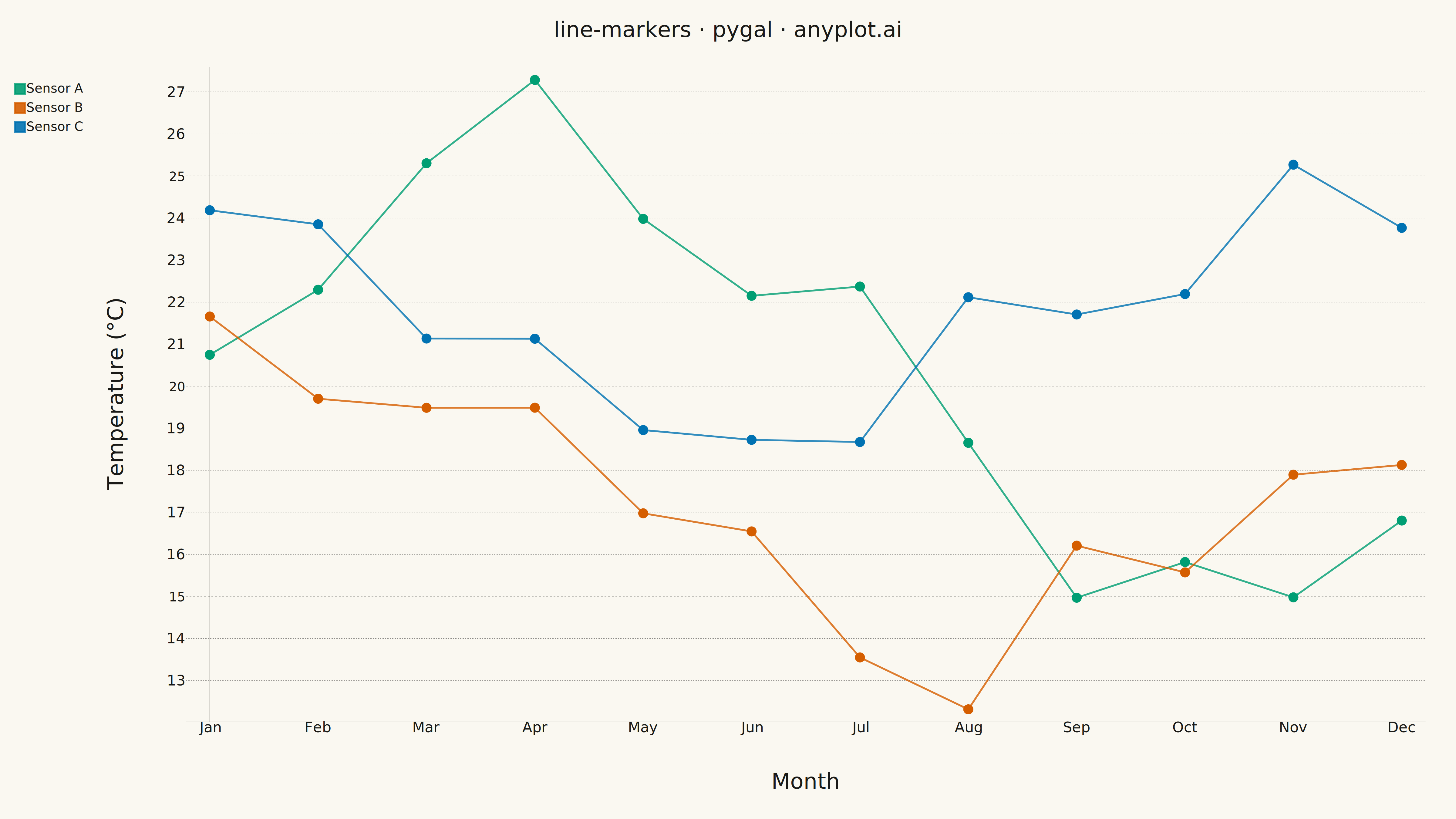

Line Plot with Markers rendered with Pygal

Python source (Pygal)

""" anyplot.ai
line-markers: Line Plot with Markers
Library: pygal 3.1.0 | Python 3.13.13
Quality: 76/100 | Updated: 2026-05-12
"""

import numpy as np
import pygal
from pygal.style import Style


# Data - Temperature readings over time (sparse experimental data)
np.random.seed(42)
x_values = np.arange(0, 12)  # 12 months
sensor_a = 20 + 5 * np.sin(x_values * np.pi / 6) + np.random.randn(12) * 1.5
sensor_b = 18 + 4 * np.sin(x_values * np.pi / 6 + 1) + np.random.randn(12) * 1.2
sensor_c = 22 + 3 * np.sin(x_values * np.pi / 6 + 2) + np.random.randn(12) * 1.0

months = ["Jan", "Feb", "Mar", "Apr", "May", "Jun", "Jul", "Aug", "Sep", "Oct", "Nov", "Dec"]

# Custom style for large canvas
custom_style = Style(
    background="white",
    plot_background="white",
    foreground="#333333",
    foreground_strong="#333333",
    foreground_subtle="#666666",
    colors=("#306998", "#FFD43B", "#E74C3C"),  # Python Blue, Python Yellow, Red
    title_font_size=72,
    label_font_size=48,
    major_label_font_size=42,
    legend_font_size=42,
    value_font_size=36,
    stroke_width=6,
    opacity=0.9,
    opacity_hover=1.0,
    transition="400ms ease-in",
    font_family="sans-serif",
)

# Create line chart with markers
chart = pygal.Line(
    width=4800,
    height=2700,
    style=custom_style,
    title="line-markers · pygal · pyplots.ai",
    x_title="Month",
    y_title="Temperature (°C)",
    show_dots=True,
    dots_size=16,
    stroke_style={"width": 6},
    show_x_guides=False,
    show_y_guides=True,
    legend_at_bottom=False,
    legend_box_size=32,
    margin=100,
    spacing=50,
    explicit_size=True,
    truncate_legend=-1,
    x_label_rotation=0,
    show_x_labels=True,
)

# Set x-axis labels
chart.x_labels = months

# Add data series
chart.add("Sensor A", sensor_a.tolist())
chart.add("Sensor B", sensor_b.tolist())
chart.add("Sensor C", sensor_c.tolist())

# Save as PNG and HTML
chart.render_to_png("plot.png")
chart.render_to_file("plot.html")

Part of Line Plot with Markers on anyplot.ai.
