Line Plot with Markers — Altair

A line plot with visible markers at each data point, combining line and scatter plot features. This is particularly useful for sparse data where individual observations are significant.

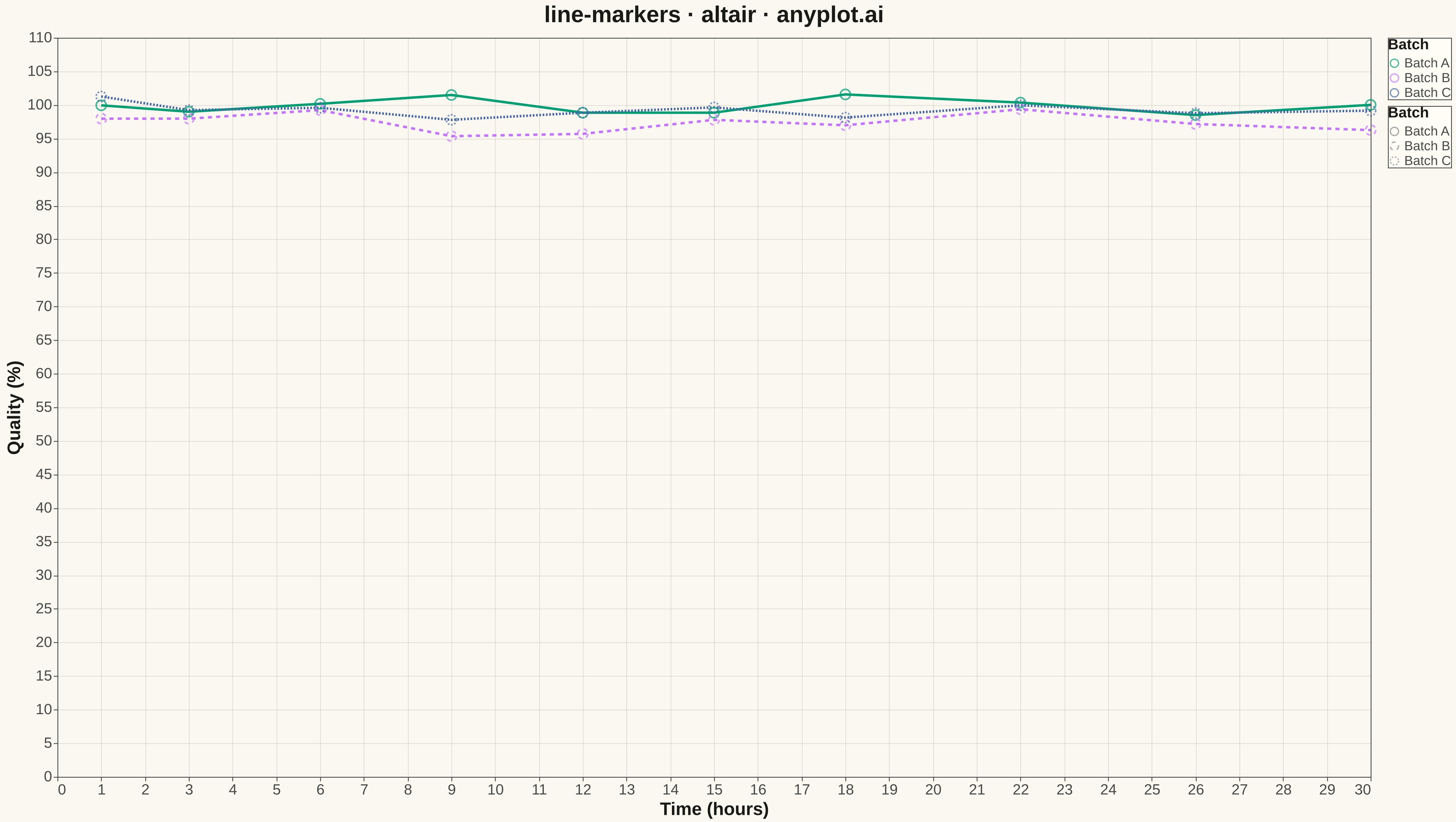

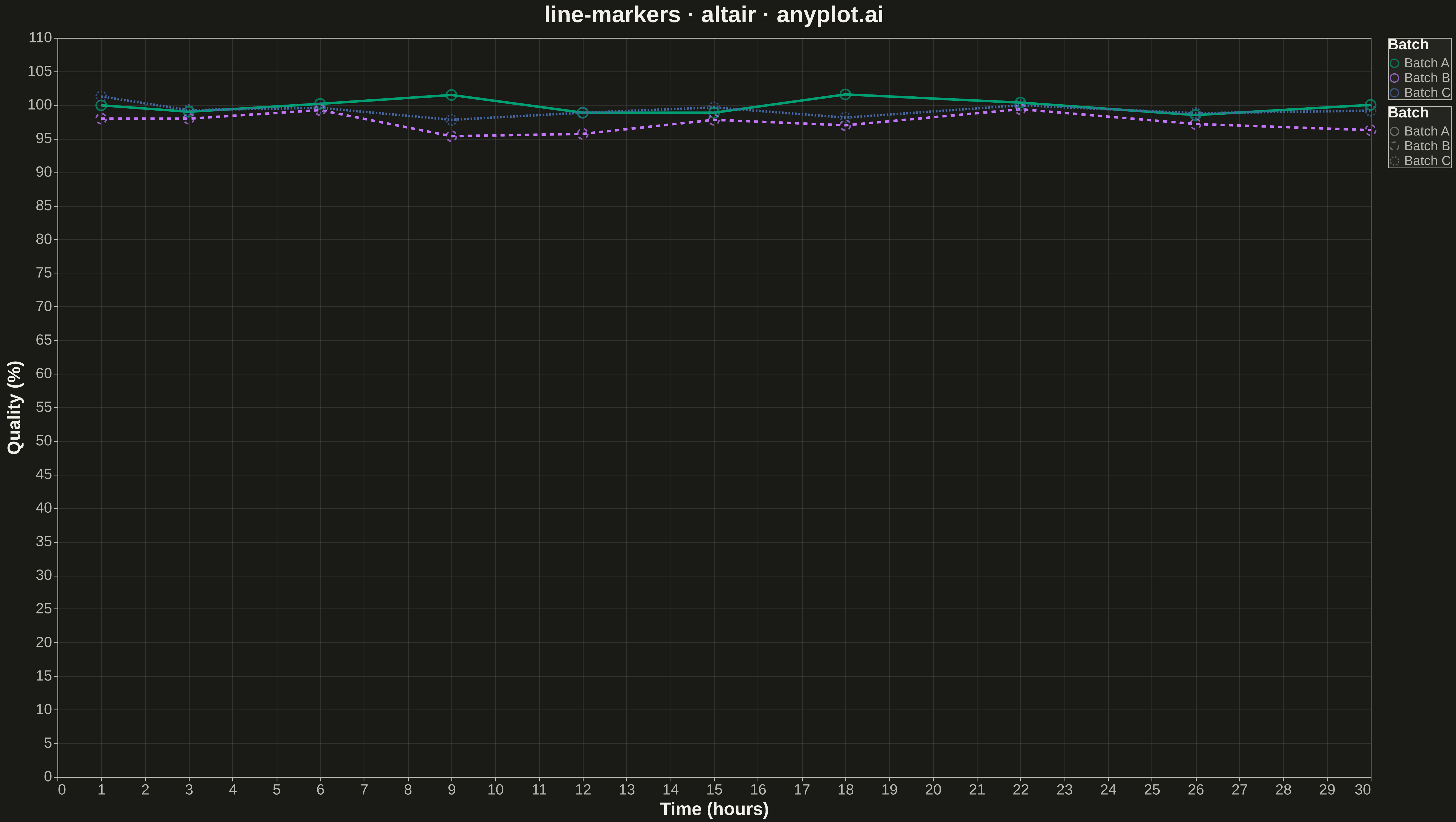

Line Plot with Markers rendered with Altair

Renders

Python source (Altair)

""" anyplot.ai
line-markers: Line Plot with Markers
Library: altair 6.1.0 | Python 3.13.13
Quality: 90/100 | Created: 2026-05-12
"""

import os
import sys

import numpy as np
import pandas as pd


# Handle import shadowing: remove current dir from path temporarily
current_dir = os.path.dirname(os.path.abspath(__file__))
sys.path = [p for p in sys.path if os.path.abspath(p) != current_dir]

import altair as alt


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233"]

# Data: Quality control measurements over time (sparse dataset where each point matters)
np.random.seed(42)
times = np.array([1, 3, 6, 9, 12, 15, 18, 22, 26, 30])
batch_a = 99.2 + np.random.normal(0, 1.5, len(times))
batch_b = 98.8 + np.random.normal(0, 1.8, len(times))
batch_c = 99.5 + np.random.normal(0, 1.2, len(times))

df = pd.DataFrame(
    {
        "Time (hours)": np.concatenate([times, times, times]),
        "Quality (%)": np.concatenate([batch_a, batch_b, batch_c]),
        "Batch": np.repeat(["Batch A", "Batch B", "Batch C"], len(times)),
    }
)

# Plot
base_chart = alt.Chart(df).encode(
    x=alt.X("Time (hours):Q", title="Time (hours)"),
    y=alt.Y("Quality (%):Q", title="Quality (%)"),
    color=alt.Color("Batch:N", scale=alt.Scale(range=IMPRINT[:3])),
    strokeDash=alt.StrokeDash(
        "Batch:N", scale=alt.Scale(domain=["Batch A", "Batch B", "Batch C"], range=[[], [5, 5], [2, 2]])
    ),
)

line_chart = base_chart.mark_line(size=3) + base_chart.mark_point(size=150)

chart = (
    line_chart.properties(
        width=1600, height=900, background=PAGE_BG, title=alt.Title("line-markers · altair · anyplot.ai", fontSize=28)
    )
    .configure_view(fill=PAGE_BG, stroke=INK_SOFT)
    .configure_axis(
        domainColor=INK_SOFT,
        tickColor=INK_SOFT,
        gridColor=INK,
        gridOpacity=0.10,
        labelColor=INK_SOFT,
        titleColor=INK,
        labelFontSize=18,
        titleFontSize=22,
    )
    .configure_title(color=INK)
    .configure_legend(
        fillColor=ELEVATED_BG,
        strokeColor=INK_SOFT,
        labelColor=INK_SOFT,
        titleColor=INK,
        labelFontSize=16,
        titleFontSize=18,
    )
)

# Save
chart.save(f"plot-{THEME}.png", scale_factor=3.0)
chart.save(f"plot-{THEME}.html")

Part of Line Plot with Markers on anyplot.ai.
