Line Plot with Markers — Highcharts

A line plot with visible markers at each data point, combining line and scatter plot features. This is particularly useful for sparse data where individual observations are significant.

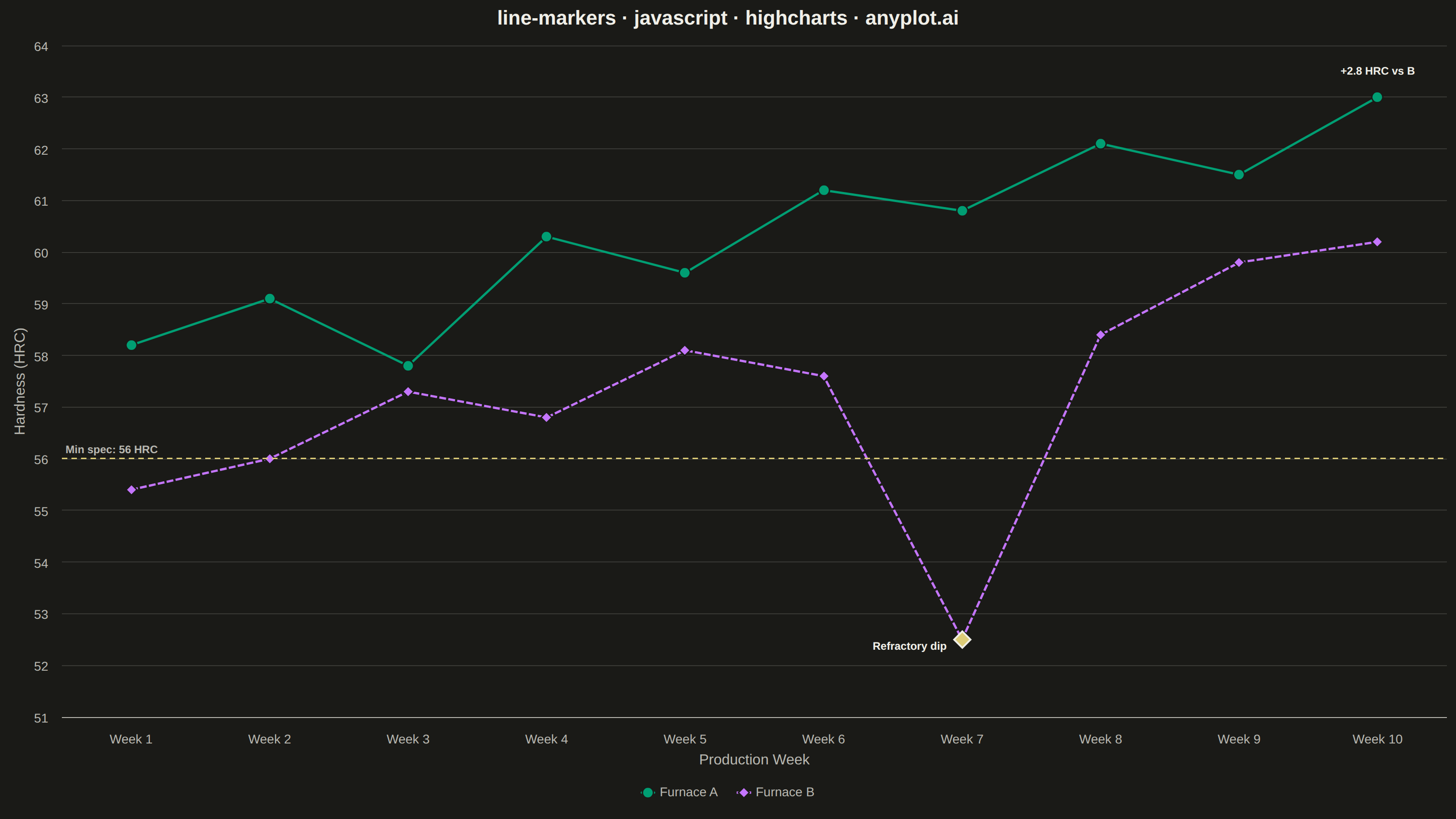

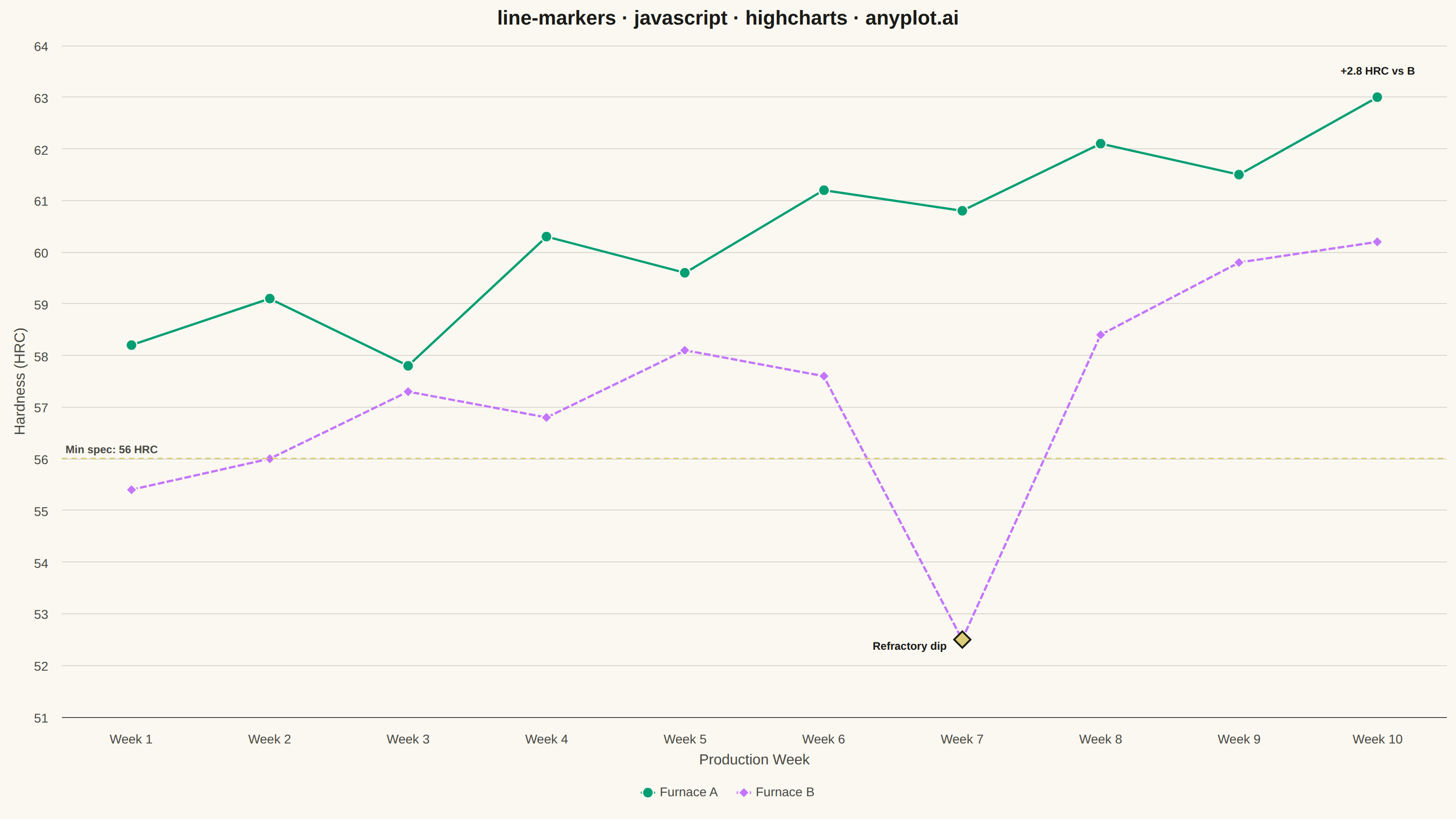

Line Plot with Markers rendered with Highcharts

Renders

JavaScript source (Highcharts)

// anyplot.ai
// line-markers: Line Plot with Markers
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-09-05

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ----------------------------------------
// Weekly hardness readings (Rockwell HRC) from two heat-treatment furnace runs.
// Furnace B week 7 dips below the minimum spec after a refractory lining check.
const weeks = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10];
const MIN_SPEC_HRC = 56;
const furnaceA = [58.2, 59.1, 57.8, 60.3, 59.6, 61.2, 60.8, 62.1, 61.5, 63.0];
const furnaceB = [
  55.4,
  56.0,
  57.3,
  56.8,
  58.1,
  57.6,
  {
    y: 52.5,
    marker: { radius: 9, fillColor: t.amber, lineColor: t.ink, lineWidth: 2 },
    dataLabels: {
      enabled: true,
      format: "Refractory dip",
      align: "right",
      x: -12,
      y: 18,
      style: { color: t.ink, fontSize: "12px", fontWeight: "600", textOutline: "none" },
    },
  },
  58.4,
  59.8,
  60.2,
];

const title = "line-markers · javascript · highcharts · anyplot.ai";

// --- Chart -------------------------------------------------------------------
Highcharts.chart("container", {
  chart: {
    type: "line",
    backgroundColor: "transparent",
    animation: false,
    style: { fontFamily: "inherit" },
  },
  credits: { enabled: false },
  colors: t.palette,
  title: {
    text: title,
    style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
  },
  xAxis: {
    categories: weeks.map((w) => `Week ${w}`),
    lineColor: t.inkSoft,
    tickColor: t.inkSoft,
    gridLineColor: t.grid,
    labels: { style: { color: t.inkSoft, fontSize: "14px" } },
    title: {
      text: "Production Week",
      style: { color: t.inkSoft, fontSize: "16px" },
    },
  },
  yAxis: {
    title: {
      text: "Hardness (HRC)",
      style: { color: t.inkSoft, fontSize: "16px" },
    },
    gridLineColor: t.grid,
    labels: { style: { color: t.inkSoft, fontSize: "14px" } },
    plotLines: [
      {
        value: MIN_SPEC_HRC,
        color: t.amber,
        width: 1.5,
        dashStyle: "Dash",
        zIndex: 5,
        label: {
          text: `Min spec: ${MIN_SPEC_HRC} HRC`,
          align: "left",
          x: 4,
          y: -6,
          style: { color: t.inkSoft, fontSize: "12px", fontWeight: "600" },
        },
      },
    ],
  },
  legend: {
    itemStyle: { color: t.inkSoft, fontSize: "14px" },
    itemHoverStyle: { color: t.ink },
  },
  tooltip: { enabled: false },
  plotOptions: {
    series: {
      animation: false,
      lineWidth: 2.5,
      marker: { radius: 6, lineWidth: 1.5, lineColor: t.pageBg },
    },
  },
  series: [
    {
      name: "Furnace A",
      data: [
        ...furnaceA.slice(0, -1),
        {
          y: furnaceA[furnaceA.length - 1],
          dataLabels: {
            enabled: true,
            format: "+2.8 HRC vs B",
            align: "center",
            y: -18,
            style: { color: t.ink, fontSize: "12px", fontWeight: "600", textOutline: "none" },
          },
        },
      ],
      marker: { symbol: "circle" },
    },
    {
      name: "Furnace B",
      data: furnaceB,
      marker: { symbol: "diamond" },
      dashStyle: "ShortDash",
    },
  ],
});

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/line-markers/highcharts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "line-markers",
  "language": "javascript",
  "library": "highcharts",
  "page": "https://anyplot.ai/line-markers/javascript/highcharts",
  "hub": "https://anyplot.ai/line-markers",
  "code_json": "https://api.anyplot.ai/specs/line-markers/highcharts/code",
  "spec_json": "https://api.anyplot.ai/specs/line-markers",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/line-markers/javascript/highcharts/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/line-markers/javascript/highcharts/plot-dark.png",
  "interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/line-markers/javascript/highcharts/plot-light.html",
  "interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/line-markers/javascript/highcharts/plot-dark.html",
  "quality_score": 91.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Line Plot with Markers on anyplot.ai.
