Line Plot with Markers — plotnine

A line plot with visible markers at each data point, combining line and scatter plot features. This is particularly useful for sparse data where individual observations are significant.

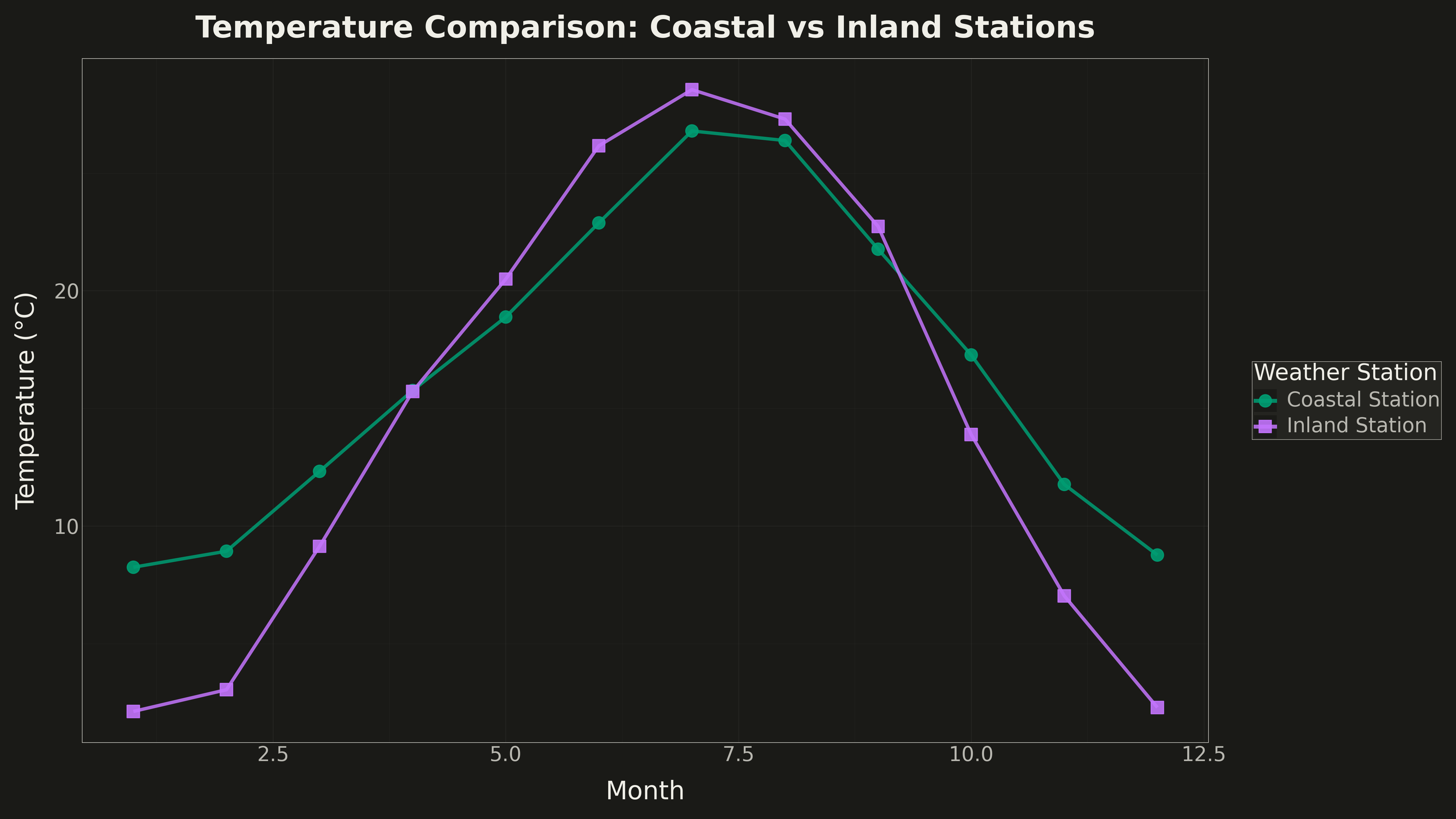

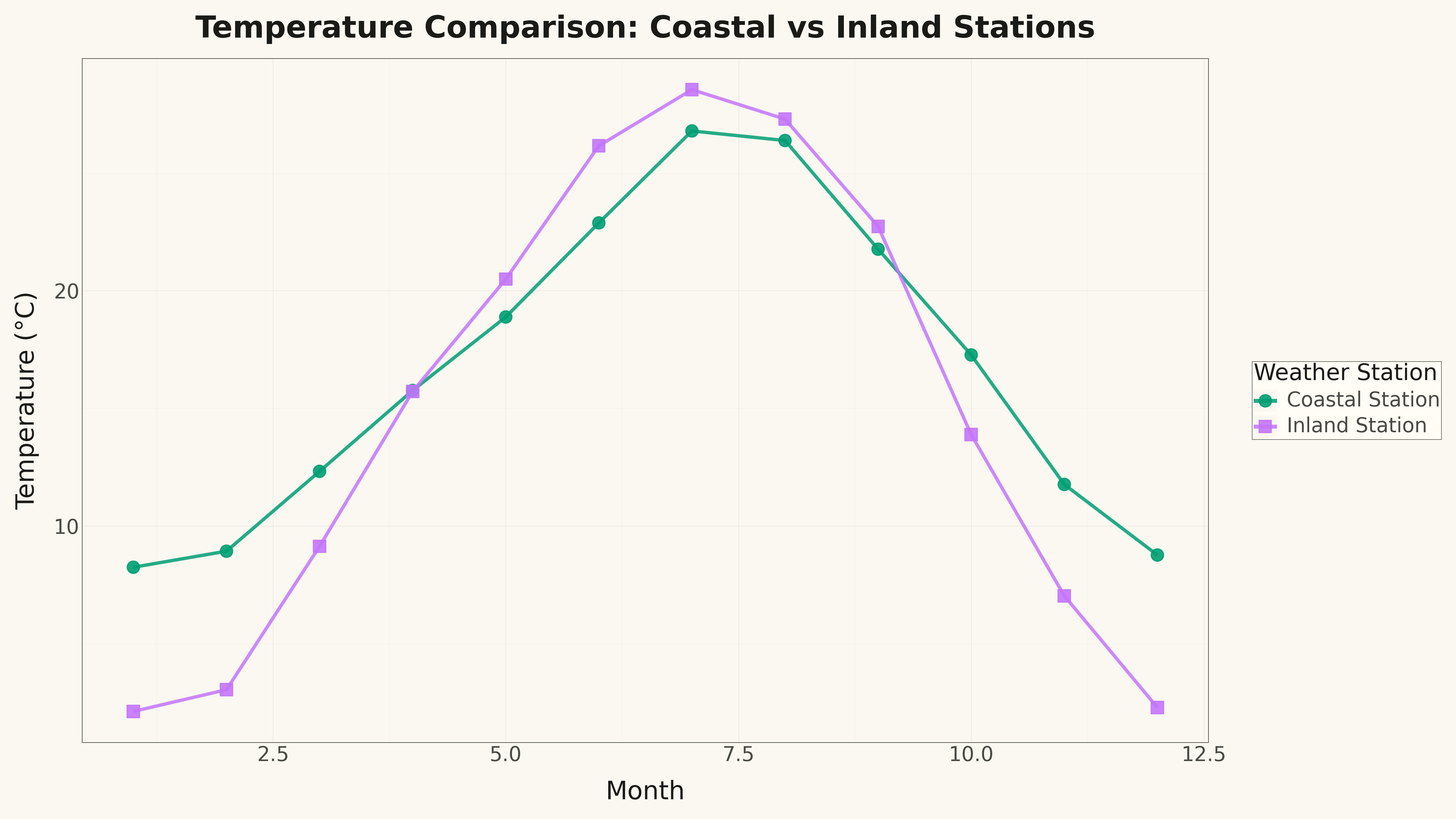

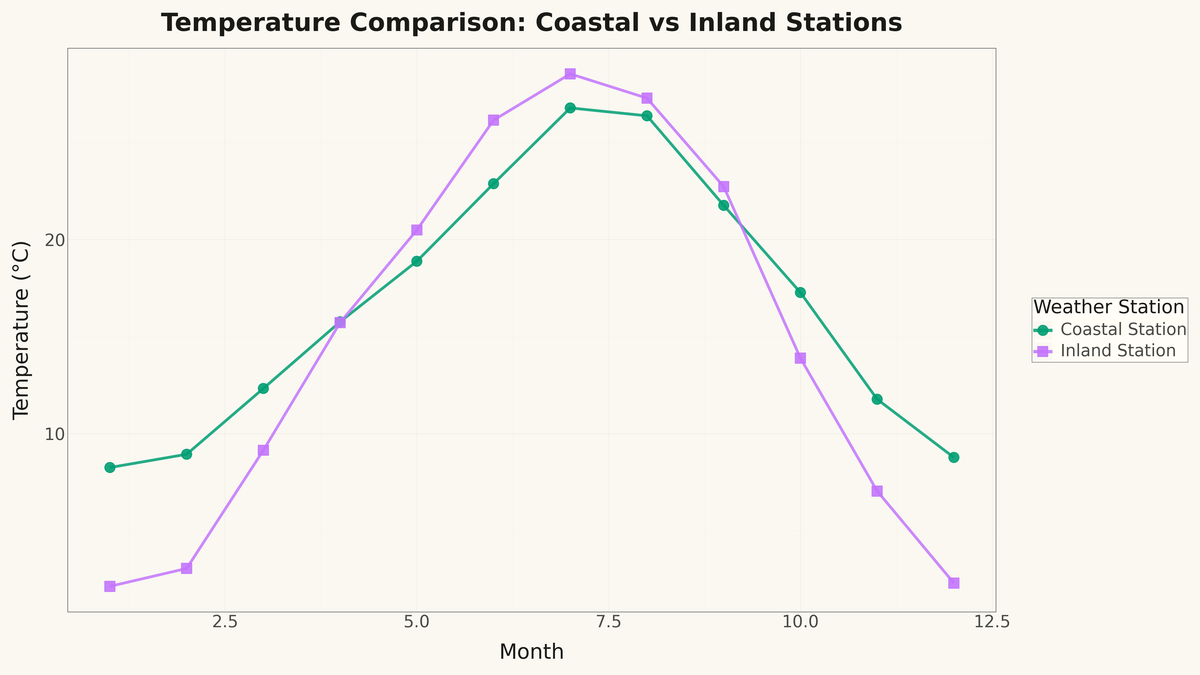

Line Plot with Markers rendered with plotnine

Python source (plotnine)

""" anyplot.ai
line-markers: Line Plot with Markers
Library: plotnine 0.15.4 | Python 3.13.13
Quality: 90/100 | Updated: 2026-05-12
"""

import os

import numpy as np
import pandas as pd
from plotnine import (
    aes,
    element_line,
    element_rect,
    element_text,
    geom_line,
    geom_point,
    ggplot,
    labs,
    scale_color_manual,
    scale_shape_manual,
    theme,
    theme_minimal,
)


# Theme colors
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette
IMPRINT = ["#009E73", "#C475FD"]

# Data: Monthly temperature readings from two weather stations
np.random.seed(42)
months = np.arange(1, 13)
month_labels = ["Jan", "Feb", "Mar", "Apr", "May", "Jun", "Jul", "Aug", "Sep", "Oct", "Nov", "Dec"]

# Station A: Coastal location (milder temperatures)
station_a = np.array([8, 9, 12, 15, 19, 23, 26, 26, 22, 17, 12, 9]) + np.random.randn(12) * 0.5

# Station B: Inland location (more extreme temperatures)
station_b = np.array([2, 4, 10, 16, 21, 26, 29, 28, 22, 14, 7, 3]) + np.random.randn(12) * 0.5

df = pd.DataFrame(
    {
        "Month": month_labels * 2,
        "Month_Num": list(months) * 2,
        "Temperature": np.concatenate([station_a, station_b]),
        "Station": ["Coastal Station"] * 12 + ["Inland Station"] * 12,
    }
)

anyplot_theme = theme(
    figure_size=(16, 9),
    plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
    panel_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
    panel_grid_major=element_line(color=INK, size=0.3, alpha=0.10),
    panel_grid_minor=element_line(color=INK, size=0.2, alpha=0.05),
    panel_border=element_rect(color=INK_SOFT, fill=None, size=0.5),
    axis_title=element_text(color=INK, size=20),
    axis_text=element_text(color=INK_SOFT, size=16),
    axis_line=element_line(color=INK_SOFT, size=0.4),
    plot_title=element_text(color=INK, size=24, face="bold"),
    legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT, size=0.4),
    legend_text=element_text(color=INK_SOFT, size=16),
    legend_title=element_text(color=INK, size=18),
    legend_position="right",
    text=element_text(size=14),
)

# Plot
plot = (
    ggplot(df, aes(x="Month_Num", y="Temperature", color="Station", shape="Station"))
    + geom_line(size=1.5, alpha=0.85)
    + geom_point(size=5, alpha=0.9)
    + scale_color_manual(values=IMPRINT)
    + scale_shape_manual(values=["o", "s"])
    + labs(
        x="Month",
        y="Temperature (°C)",
        title="Temperature Comparison: Coastal vs Inland Stations",
        color="Weather Station",
        shape="Weather Station",
    )
    + theme_minimal()
    + anyplot_theme
)

plot.save(f"plot-{THEME}.png", dpi=300, verbose=False)

Part of Line Plot with Markers on anyplot.ai.
