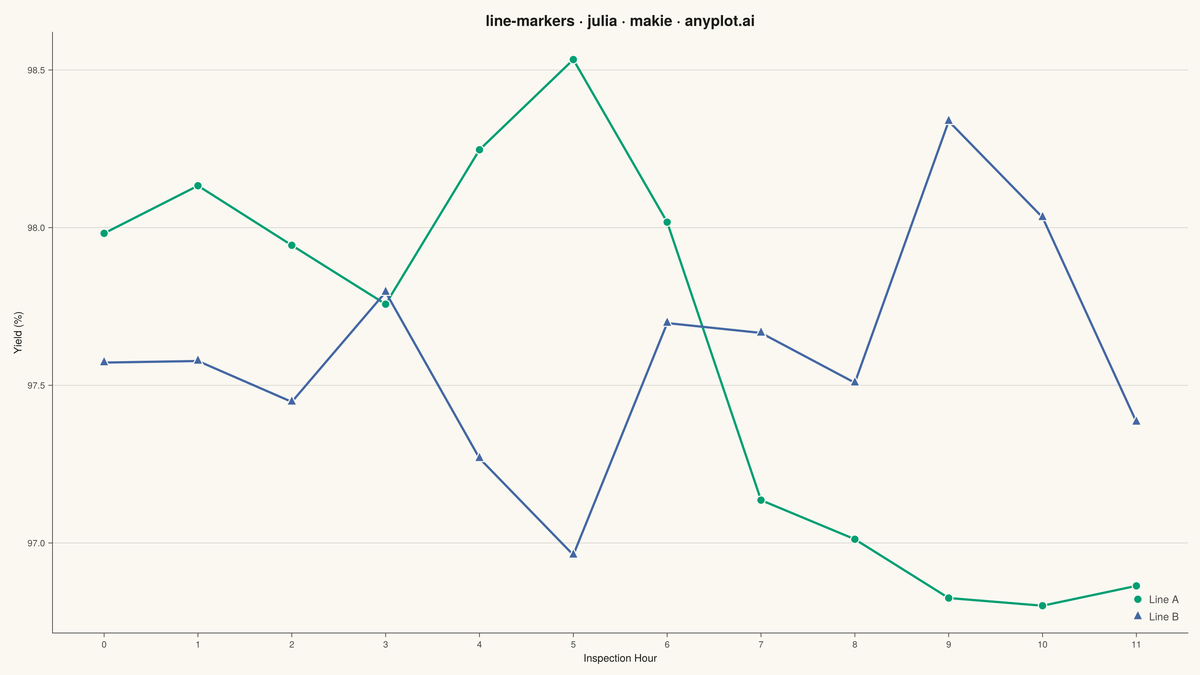

A line plot with visible markers at each data point, combining line and scatter plot features. This is particularly useful for sparse data where individual observations are significant.
# anyplot.ai
# line-markers: Line Plot with Markers
# Library: makie 0.21.9 | Julia 1.11.9
# Quality: 85/100 | Created: 2026-09-05
using CairoMakie
using Colors
using Random
Random.seed!(42)
# --- Theme tokens -----------------------------------------------------------
const THEME = get(ENV, "ANYPLOT_THEME", "light")
const PAGE_BG = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
const INK = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
const INK_SOFT = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"
const IMPRINT_PALETTE = [
colorant"#009E73", colorant"#C475FD",
]
# --- Data ---------------------------------------------------------------
# Quality-control readings: two production lines sampled at hourly checkpoints.
hours = 0:11
line_a = 98.2 .+ cumsum(randn(length(hours)) .* 0.6)
line_b = 96.8 .+ cumsum(randn(length(hours)) .* 0.6)
# Locate the first crossing between the two lines for a storytelling annotation.
diffs = line_a .- line_b
cross_i = findfirst(i -> sign(diffs[i]) != sign(diffs[i + 1]), 1:(length(diffs) - 1))
if cross_i !== nothing
t = diffs[cross_i] / (diffs[cross_i] - diffs[cross_i + 1])
cross_x = hours[cross_i] + t * (hours[cross_i + 1] - hours[cross_i])
cross_y = line_a[cross_i] + t * (line_a[cross_i + 1] - line_a[cross_i])
end
# --- Plot -----------------------------------------------------------------
fig = Figure(
resolution = (1600, 900),
fontsize = 14,
backgroundcolor = PAGE_BG,
)
ax = Axis(
fig[1, 1];
title = "line-markers · julia · makie · anyplot.ai",
titlesize = 20,
titlecolor = INK,
xlabel = "Inspection Hour",
ylabel = "Yield (%)",
xlabelsize = 14,
ylabelsize = 14,
xlabelcolor = INK,
ylabelcolor = INK,
xticklabelsize = 12,
yticklabelsize = 12,
xticklabelcolor = INK_SOFT,
yticklabelcolor = INK_SOFT,
xtickcolor = INK_SOFT,
ytickcolor = INK_SOFT,
backgroundcolor = PAGE_BG,
topspinevisible = false,
rightspinevisible = false,
leftspinecolor = INK_SOFT,
bottomspinecolor = INK_SOFT,
xgridvisible = false,
ygridcolor = RGBAf(INK.r, INK.g, INK.b, 0.15),
xticks = collect(hours),
)
scatterlines!(ax, hours, line_a; color = IMPRINT_PALETTE[1], linewidth = 3,
marker = :circle, markersize = 16, strokewidth = 1.5,
strokecolor = PAGE_BG, label = "Line A")
scatterlines!(ax, hours, line_b; color = IMPRINT_PALETTE[2], linewidth = 3,
marker = :utriangle, markersize = 18, strokewidth = 1.5,
strokecolor = PAGE_BG, label = "Line B")
if cross_i !== nothing
scatter!(ax, [cross_x], [cross_y]; color = :transparent, marker = :circle,
markersize = 30, strokewidth = 2, strokecolor = INK_SOFT)
text!(ax, cross_x, cross_y; text = "crossover", color = INK_SOFT,
fontsize = 12, align = (:center, :bottom), offset = (0, 16))
end
axislegend(ax; position = :rb, labelcolor = INK_SOFT, framevisible = false)
# --- Save -------------------------------------------------------------------
save("plot-$(THEME).png", fig; px_per_unit = 2)
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/line-markers/makie/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "line-markers",
"language": "julia",
"library": "makie",
"page": "https://anyplot.ai/line-markers/julia/makie",
"hub": "https://anyplot.ai/line-markers",
"code_json": "https://api.anyplot.ai/specs/line-markers/makie/code",
"spec_json": "https://api.anyplot.ai/specs/line-markers",

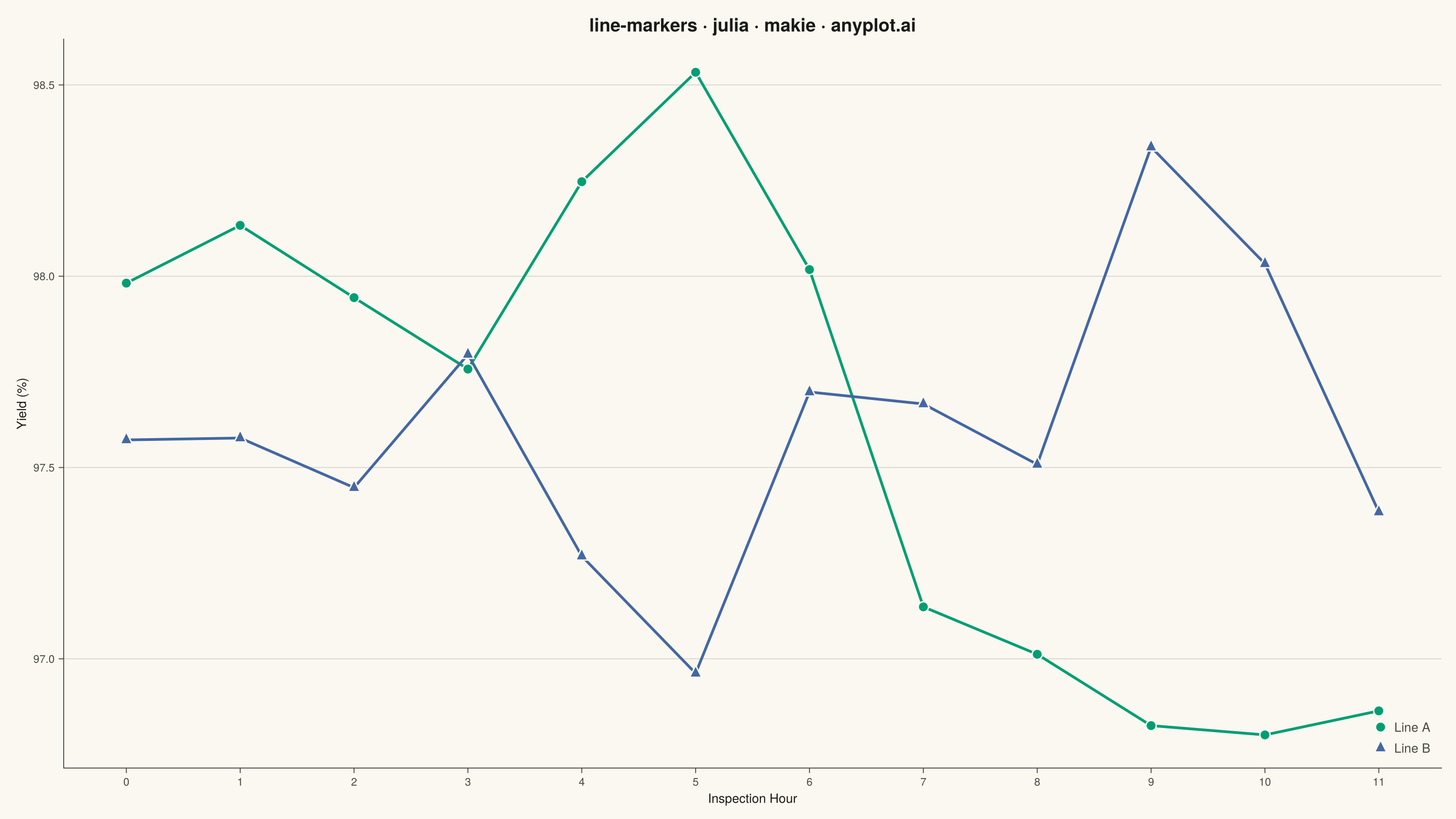

"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/line-markers/julia/makie/plot-light.png",

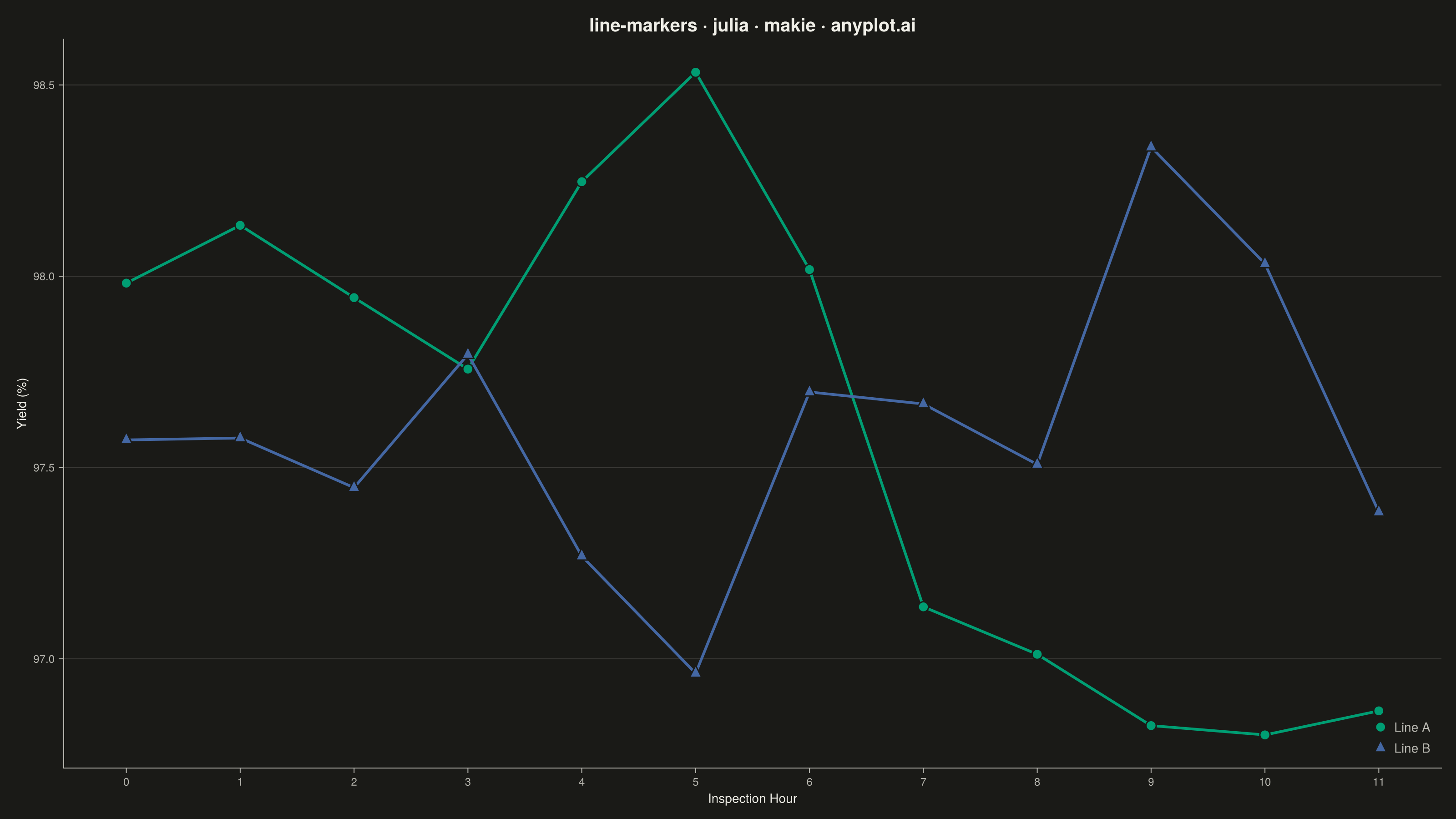

"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/line-markers/julia/makie/plot-dark.png",
"quality_score": 85.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Line Plot with Markers on anyplot.ai.
