Line Plot with Markers — lets-plot

A line plot with visible markers at each data point, combining line and scatter plot features. This is particularly useful for sparse data where individual observations are significant.

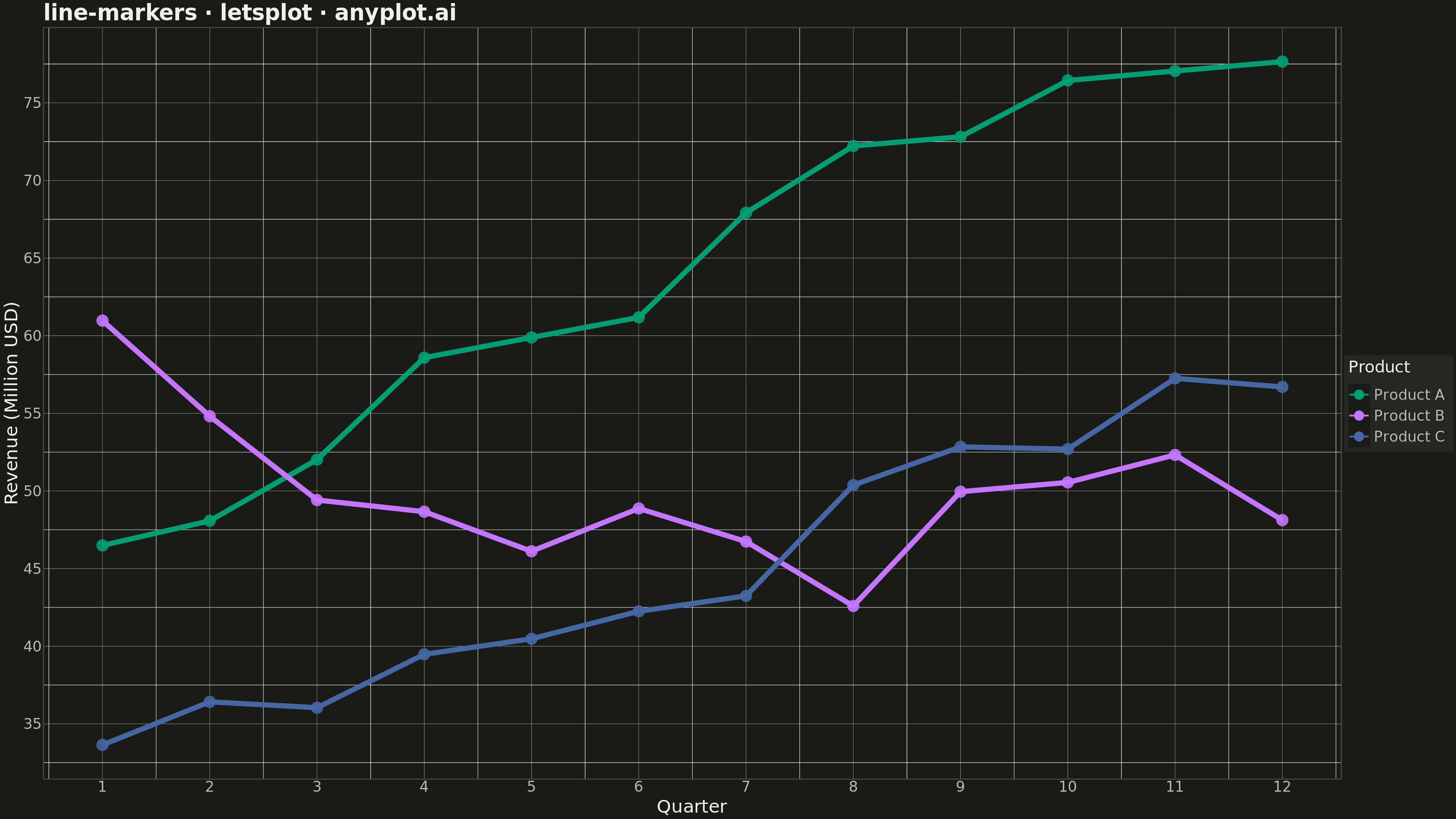

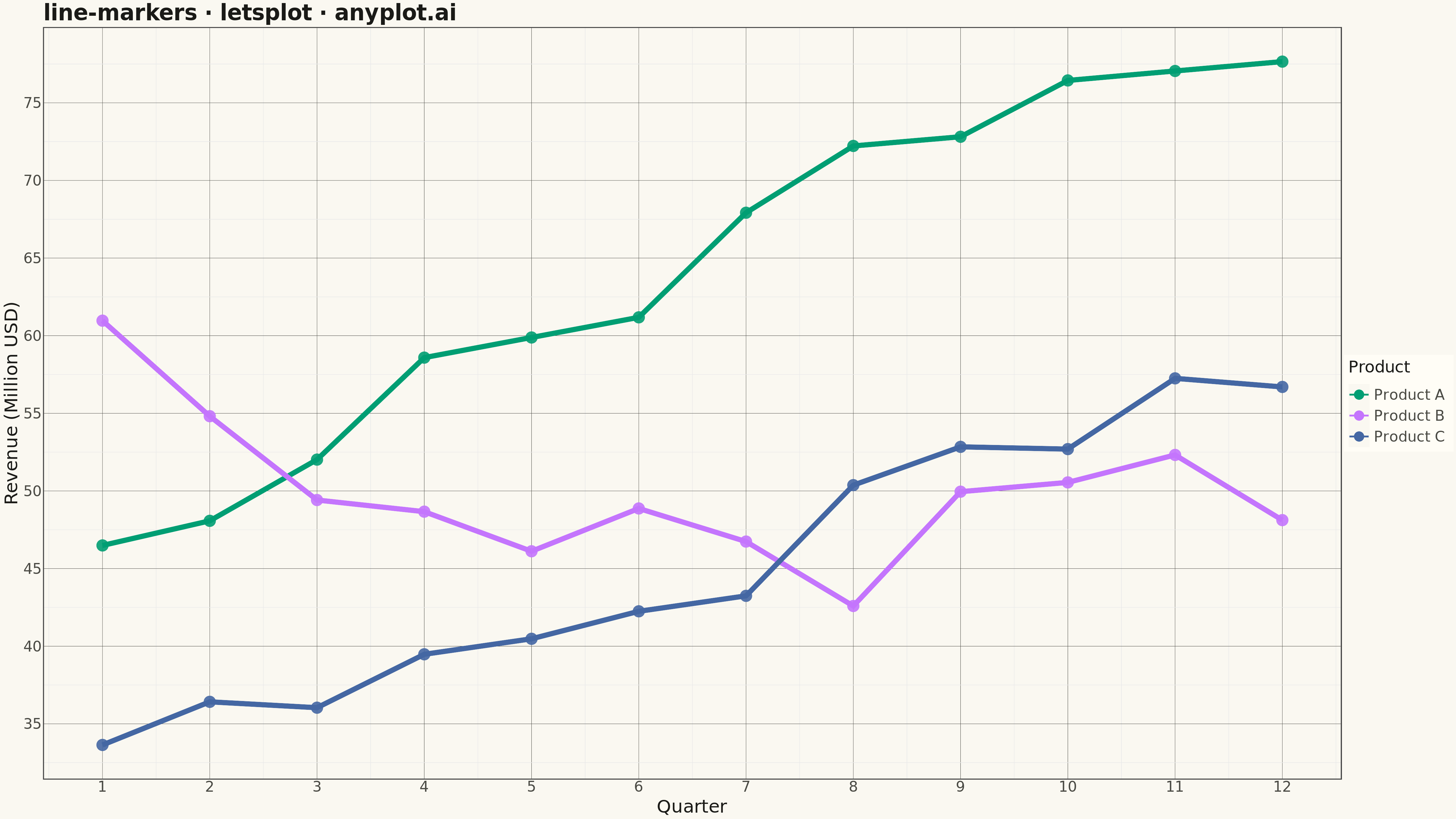

Line Plot with Markers rendered with lets-plot

Python source (lets-plot)

""" anyplot.ai
line-markers: Line Plot with Markers
Library: letsplot 4.9.0 | Python 3.13.13
Quality: 91/100 | Updated: 2026-05-12
"""

import os

import numpy as np
import pandas as pd
from lets_plot import *


LetsPlot.setup_html()

# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette
IMPRINT = ["#009E73", "#C475FD", "#4467A3"]

# Data - Quarterly product performance metrics
np.random.seed(42)
quarters = np.arange(1, 13)

# Three product lines with different growth patterns
product_a = 45 + np.cumsum(np.random.randn(12) * 3) + np.arange(12) * 2
product_b = 60 + np.cumsum(np.random.randn(12) * 4) + np.arange(12) * 1.5
product_c = 35 + np.cumsum(np.random.randn(12) * 2.5) + np.arange(12) * 2.5

df = pd.DataFrame(
    {
        "Quarter": list(quarters) * 3,
        "Revenue": np.concatenate([product_a, product_b, product_c]),
        "Product": ["Product A"] * 12 + ["Product B"] * 12 + ["Product C"] * 12,
    }
)

# Create plot
plot = (
    ggplot(df, aes(x="Quarter", y="Revenue", color="Product"))
    + geom_line(size=2.5)
    + geom_point(size=6, alpha=0.9)
    + scale_color_manual(values=IMPRINT)
    + scale_x_continuous(breaks=list(range(1, 13)))
    + labs(x="Quarter", y="Revenue (Million USD)", title="line-markers · letsplot · anyplot.ai")
    + theme_minimal()
    + theme(
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG),
        panel_grid_major=element_line(color=INK_SOFT, size=0.3),
        plot_title=element_text(size=24, color=INK, face="bold"),
        axis_title=element_text(size=20, color=INK),
        axis_text=element_text(size=16, color=INK_SOFT),
        axis_line=element_line(color=INK_SOFT, size=0.5),
        legend_background=element_rect(fill=ELEVATED_BG),
        legend_text=element_text(size=16, color=INK_SOFT),
        legend_title=element_text(size=18, color=INK),
        legend_position="right",
    )
    + ggsize(1600, 900)
)

# Save outputs
ggsave(plot, f"plot-{THEME}.png", path=".", scale=3)
ggsave(plot, f"plot-{THEME}.html", path=".")

Part of Line Plot with Markers on anyplot.ai.
