Line Plot with Markers — Apache ECharts

A line plot with visible markers at each data point, combining line and scatter plot features. This is particularly useful for sparse data where individual observations are significant.

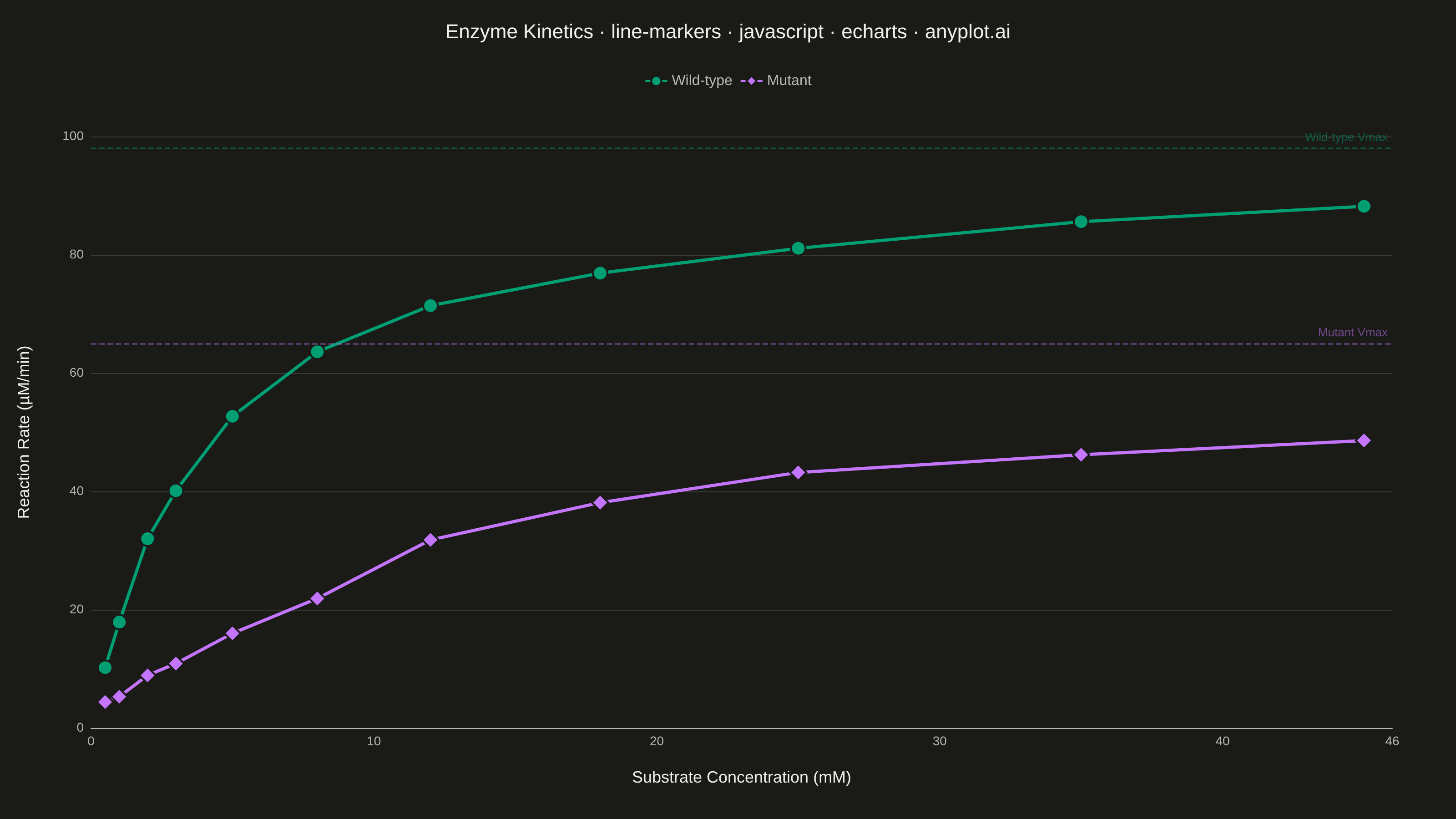

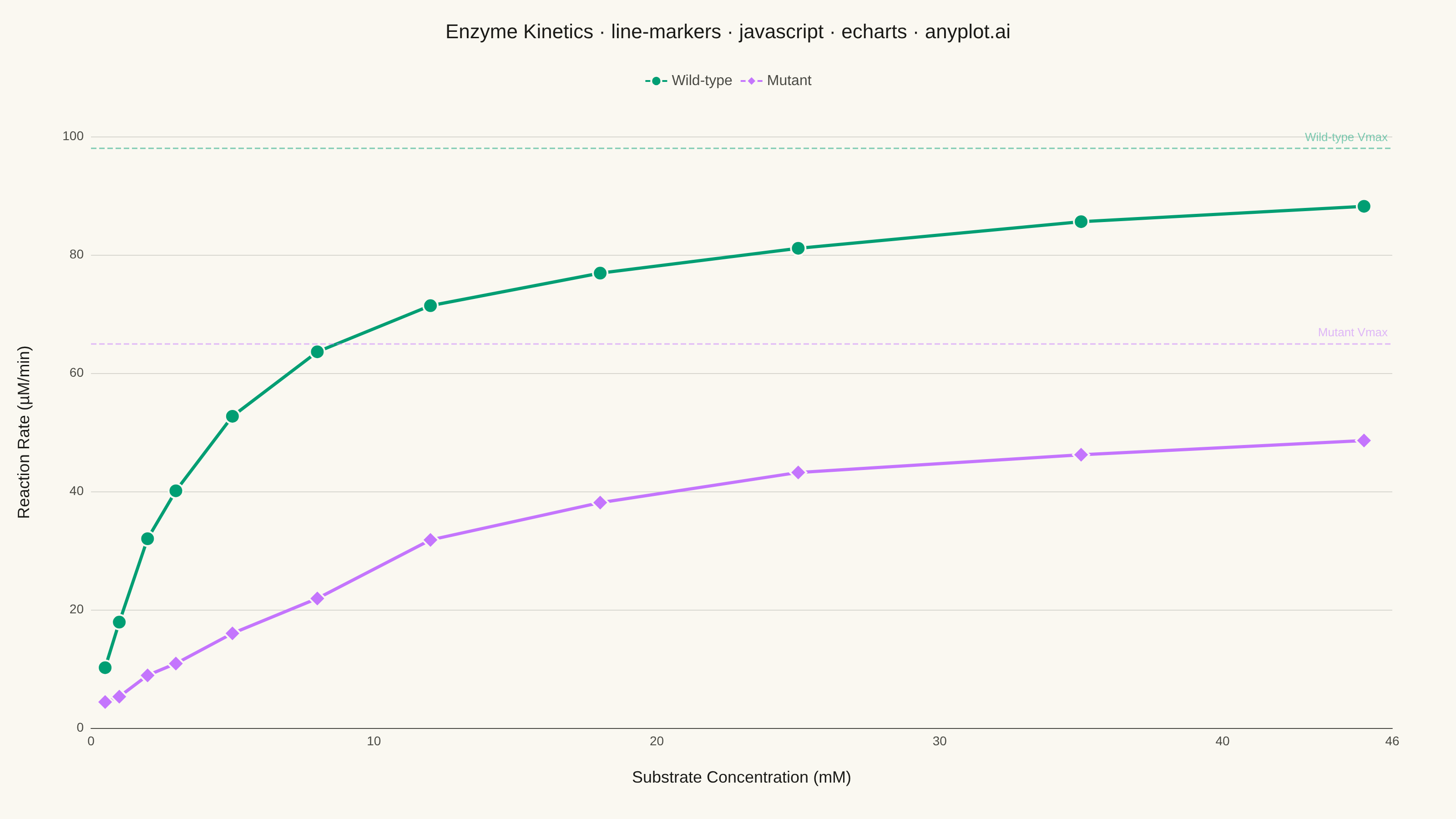

Line Plot with Markers rendered with Apache ECharts

Renders

JavaScript source (Apache ECharts)

// anyplot.ai
// line-markers: Line Plot with Markers
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 87/100 | Created: 2026-09-05

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ----------------------------------------
// Michaelis-Menten enzyme kinetics: v = Vmax * [S] / (Km + [S]), plus a small
// deterministic measurement jitter (fixed-seed LCG — no Math.random in browser).
let seed = 42;
function lcgNoise(scale) {
  seed = (seed * 1103515245 + 12345) & 0x7fffffff;
  return (seed / 0x7fffffff - 0.5) * 2 * scale;
}

const substrate = [0.5, 1, 2, 3, 5, 8, 12, 18, 25, 35, 45];

function michaelisMenten(vmax, km) {
  return substrate.map((s) => {
    const rate = (vmax * s) / (km + s);
    return Math.round((rate + lcgNoise(2.2)) * 10) / 10;
  });
}

const wildTypeVmax = 98;
const mutantVmax = 65;
const wildType = michaelisMenten(wildTypeVmax, 4.5);
const mutant = michaelisMenten(mutantVmax, 14);

// --- Init --------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));

// --- Option --------------------------------------------------------------------
chart.setOption({
  animation: false,
  color: t.palette,
  backgroundColor: "transparent",
  title: {
    text: "Enzyme Kinetics · line-markers · javascript · echarts · anyplot.ai",
    left: "center",
    top: 20,
    textStyle: { color: t.ink, fontSize: 22, fontWeight: 500 },
  },
  legend: {
    data: ["Wild-type", "Mutant"],
    top: 76,
    textStyle: { color: t.inkSoft, fontSize: 16 },
    itemWidth: 24,
    itemHeight: 14,
  },
  grid: { left: 100, right: 70, top: 150, bottom: 100 },
  xAxis: {
    type: "value",
    name: "Substrate Concentration (mM)",
    nameLocation: "middle",
    nameGap: 46,
    nameTextStyle: { color: t.ink, fontSize: 18 },
    min: 0,
    max: 46,
    axisLabel: { color: t.inkSoft, fontSize: 14 },
    axisLine: { lineStyle: { color: t.inkSoft } },
    axisTick: { show: false },
    splitLine: { show: false },
  },
  yAxis: {
    type: "value",
    name: "Reaction Rate (µM/min)",
    nameLocation: "middle",
    nameGap: 64,
    nameTextStyle: { color: t.ink, fontSize: 18 },
    min: 0,
    axisLabel: { color: t.inkSoft, fontSize: 14 },
    axisLine: { show: false },
    axisTick: { show: false },
    splitLine: { lineStyle: { color: t.grid } },
  },
  series: [
    {
      name: "Wild-type",
      type: "line",
      data: substrate.map((s, i) => [s, wildType[i]]),
      symbol: "circle",
      symbolSize: 16,
      lineStyle: { width: 3.5, color: t.palette[0] },
      itemStyle: { color: t.palette[0], borderColor: t.pageBg, borderWidth: 2 },
      markLine: {
        symbol: "none",
        silent: true,
        label: { formatter: "Wild-type Vmax", color: t.palette[0], fontSize: 13, position: "insideEndTop" },
        lineStyle: { type: "dashed", color: t.palette[0], opacity: 0.5, width: 1.5 },
        data: [{ yAxis: wildTypeVmax }],
      },
    },
    {
      name: "Mutant",
      type: "line",
      data: substrate.map((s, i) => [s, mutant[i]]),
      symbol: "diamond",
      symbolSize: 18,
      lineStyle: { width: 3.5, color: t.palette[1] },
      itemStyle: { color: t.palette[1], borderColor: t.pageBg, borderWidth: 2 },
      markLine: {
        symbol: "none",
        silent: true,
        label: { formatter: "Mutant Vmax", color: t.palette[1], fontSize: 13, position: "insideEndTop" },
        lineStyle: { type: "dashed", color: t.palette[1], opacity: 0.5, width: 1.5 },
        data: [{ yAxis: mutantVmax }],
      },
    },
  ],
});

Retrieve this implementation
