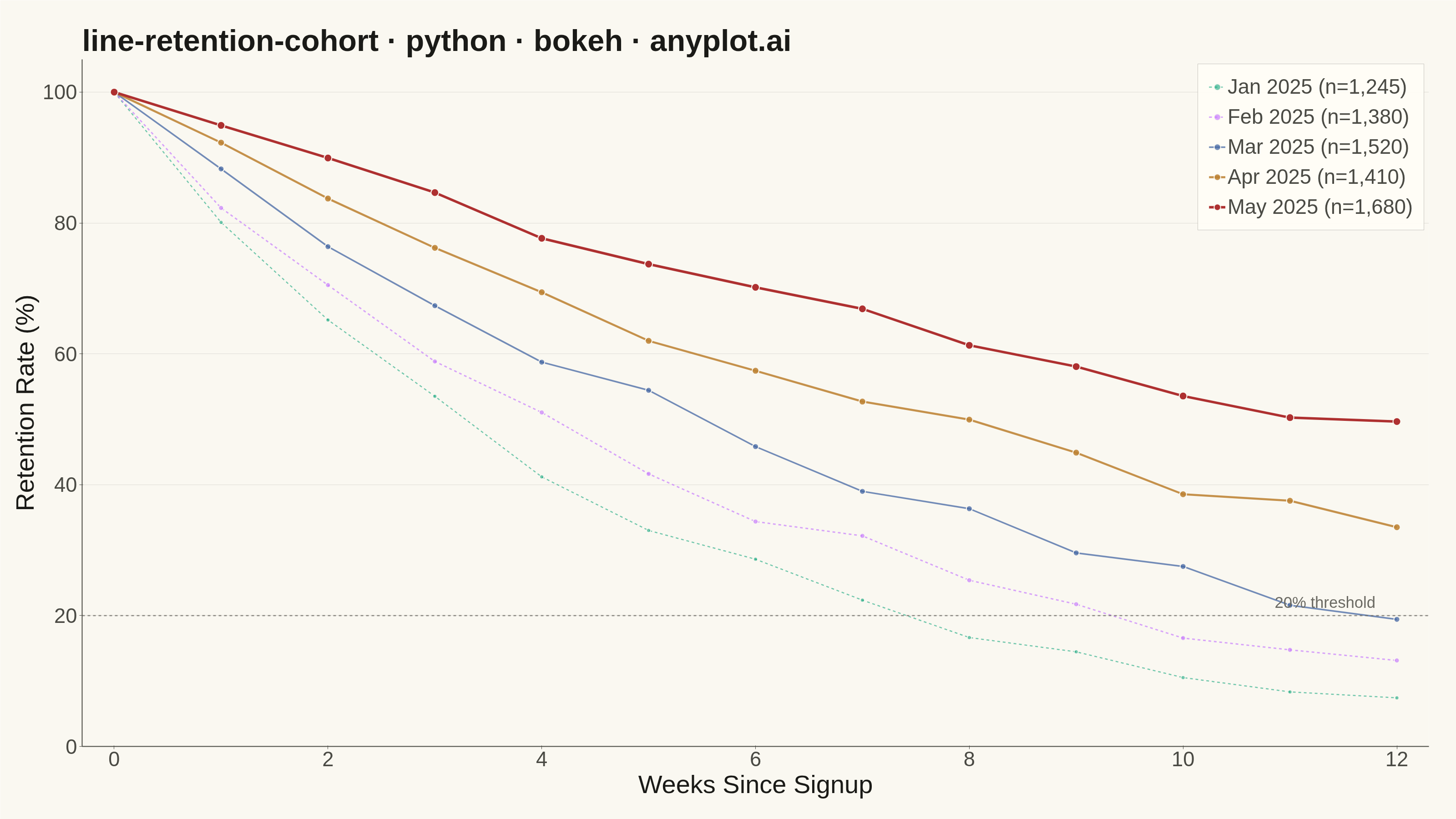

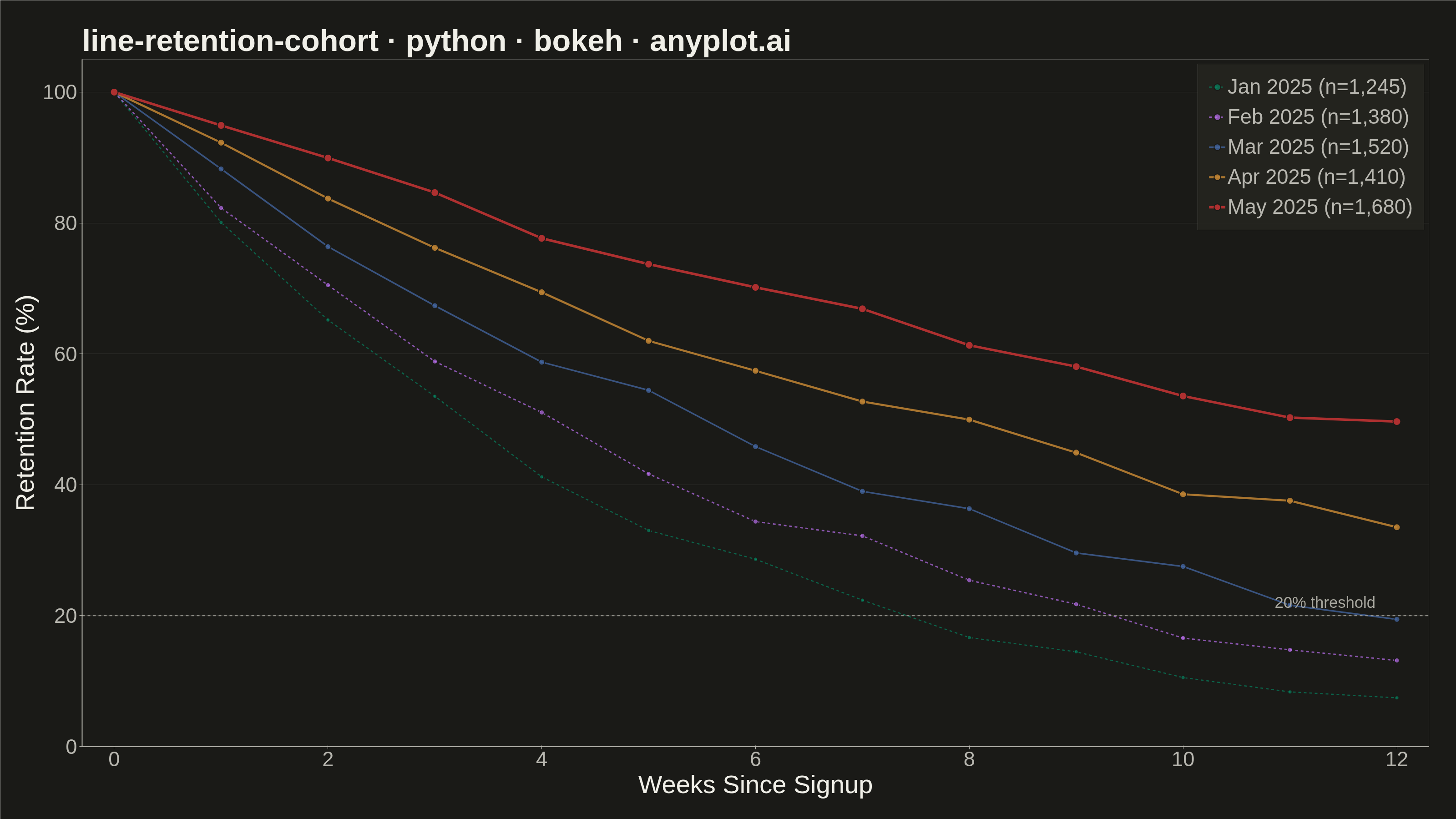

A line chart showing the percentage of retained users over time since signup, with separate curves for different cohorts. All curves start at 100% at time zero and typically exhibit exponential decay, revealing how well a product retains users over their lifecycle. By overlaying multiple cohorts, teams can visually compare whether retention is improving or degrading across signup periods.
""" anyplot.ai
line-retention-cohort: User Retention Curve by Cohort
Library: bokeh 3.9.1 | Python 3.13.14
Quality: 88/100 | Updated: 2026-06-20
"""
import io
import os
import time
from pathlib import Path
import numpy as np
from bokeh.io import output_file, save
from bokeh.models import ColumnDataSource, HoverTool, Label, Legend, Span
from bokeh.plotting import figure
from PIL import Image
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
# Theme tokens — Imprint palette, theme-adaptive chrome
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"
# Imprint categorical palette — positions 1-5
IMPRINT_PALETTE = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030"]
# Data — wider decay spread (0.22 → 0.06) so curves diverge clearly at week 12
np.random.seed(42)
weeks = np.arange(0, 13)
cohorts = {
"Jan 2025": {"size": 1245, "decay": 0.22},
"Feb 2025": {"size": 1380, "decay": 0.17},
"Mar 2025": {"size": 1520, "decay": 0.13},
"Apr 2025": {"size": 1410, "decay": 0.09},
"May 2025": {"size": 1680, "decay": 0.06},
}
retention_data = {}
for cohort, params in cohorts.items():
base = 100 * np.exp(-params["decay"] * weeks)
noise = np.random.normal(0, 1.2, len(weeks))
retention = np.clip(base + noise, 0, 100)
retention[0] = 100.0
retention_data[cohort] = retention
# Title — 52 chars, under the 67-char baseline; no scaling needed
title = "line-retention-cohort · python · bokeh · anyplot.ai"
# Plot — 3200×1800 landscape canvas, toolbar hidden for static PNG
p = figure(
width=3200,
height=1800,
title=title,
x_axis_label="Weeks Since Signup",
y_axis_label="Retention Rate (%)",
toolbar_location=None,
min_border_bottom=160,
min_border_left=180,
min_border_top=130,
min_border_right=60,
)
# Progressive visual weight: older cohorts are thinner and more transparent
line_widths = [2.5, 3.0, 3.5, 4.5, 5.5]
alphas = [0.55, 0.65, 0.75, 0.88, 1.0]
dash_patterns = ["dashed", "dashed", "solid", "solid", "solid"]
legend_items = []
for i, (cohort, params) in enumerate(cohorts.items()):
source = ColumnDataSource(
data={
"week": weeks,
"retention": retention_data[cohort],
"cohort": [cohort] * len(weeks),
"size": [params["size"]] * len(weeks),
"retention_fmt": [f"{r:.1f}" for r in retention_data[cohort]],
}
)
label = f"{cohort} (n={params['size']:,})"
color = IMPRINT_PALETTE[i]
line = p.line(
x="week",
y="retention",
source=source,
line_width=line_widths[i],
line_color=color,
line_alpha=alphas[i],
line_dash=dash_patterns[i],
)
scatter = p.scatter(
x="week",
y="retention",
source=source,
size=9 + i * 2,
fill_color=color,
fill_alpha=alphas[i],
line_color=PAGE_BG,
line_width=2,
)
legend_items.append((label, [line, scatter]))
# HoverTool for interactive HTML
hover = HoverTool(
tooltips=[("Cohort", "@cohort"), ("Week", "@week"), ("Retention", "@retention_fmt%"), ("Cohort Size", "@size{,}")],
mode="mouse",
)
p.add_tools(hover)
# Reference line at 20% retention threshold
threshold = Span(
location=20, dimension="width", line_color=INK_MUTED, line_dash="dashed", line_width=2.5, line_alpha=0.75
)
p.add_layout(threshold)
threshold_label = Label(
x=11.8, y=20, text="20% threshold", text_font_size="26pt", text_color=INK_MUTED, y_offset=10, text_align="right"
)
p.add_layout(threshold_label)
# Legend — larger text for canvas readability
legend = Legend(items=legend_items, location="top_right")
legend.label_text_font_size = "34pt"
legend.label_text_color = INK_SOFT
legend.glyph_height = 36
legend.glyph_width = 36
legend.spacing = 14
legend.padding = 24
legend.background_fill_color = ELEVATED_BG
legend.background_fill_alpha = 0.92
legend.border_line_color = INK_SOFT
legend.border_line_alpha = 0.3
p.add_layout(legend)
# Axis ranges
p.y_range.start = 0
p.y_range.end = 105
p.x_range.start = -0.3
p.x_range.end = 12.3
# Theme-adaptive chrome
p.title.text_font_size = "50pt"
p.title.text_color = INK
p.xaxis.axis_label_text_font_size = "42pt"
p.yaxis.axis_label_text_font_size = "42pt"
p.xaxis.axis_label_text_font_style = "normal"
p.yaxis.axis_label_text_font_style = "normal"
p.xaxis.axis_label_text_color = INK
p.yaxis.axis_label_text_color = INK
p.xaxis.major_label_text_font_size = "34pt"
p.yaxis.major_label_text_font_size = "34pt"
p.xaxis.major_label_text_color = INK_SOFT
p.yaxis.major_label_text_color = INK_SOFT
p.xaxis.axis_line_color = INK_SOFT
p.yaxis.axis_line_color = INK_SOFT
p.xaxis.major_tick_line_color = INK_SOFT
p.yaxis.major_tick_line_color = INK_SOFT
p.xaxis.minor_tick_line_color = None
p.yaxis.minor_tick_line_color = None
p.xgrid.grid_line_alpha = 0
p.ygrid.grid_line_color = INK
p.ygrid.grid_line_alpha = 0.12
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = None # remove box frame — L-shape via axes only
p.axis.axis_line_width = 2
# Save HTML (no toolbar) for screenshot
output_file(f"plot-{THEME}.html")
save(p)
# Screenshot via headless Chrome — use oversized viewport then crop to exact canvas
W, H = 3200, 1800
opts = Options()
for arg in (
"--headless=new",
"--no-sandbox",
"--disable-dev-shm-usage",
"--disable-gpu",
f"--window-size={W},{H + 200}", # extra height absorbs any browser chrome overhead
"--hide-scrollbars",
"--force-device-scale-factor=1",
):
opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H + 200)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)
raw_png = driver.get_screenshot_as_png()
driver.quit()
img = Image.open(io.BytesIO(raw_png)).crop((0, 0, W, H))
img.save(f"plot-{THEME}.png")
# Re-save HTML with toolbar for the interactive catalog artifact
p.toolbar_location = "above"
output_file(f"plot-{THEME}.html")
save(p)
