User Retention Curve by Cohort — lets-plot

A line chart showing the percentage of retained users over time since signup, with separate curves for different cohorts. All curves start at 100% at time zero and typically exhibit exponential decay, revealing how well a product retains users over their lifecycle. By overlaying multiple cohorts, teams can visually compare whether retention is improving or degrading across signup periods.

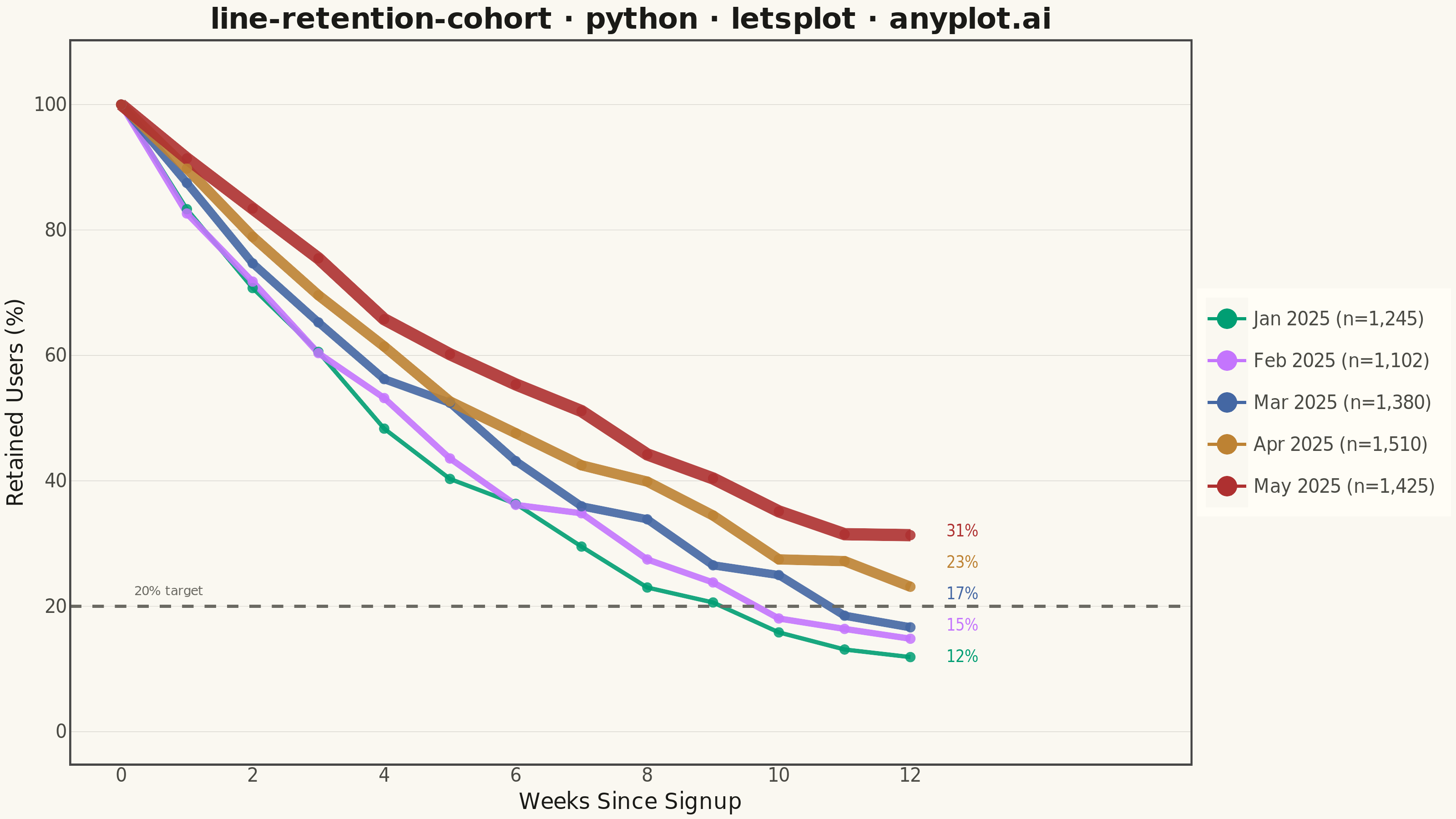

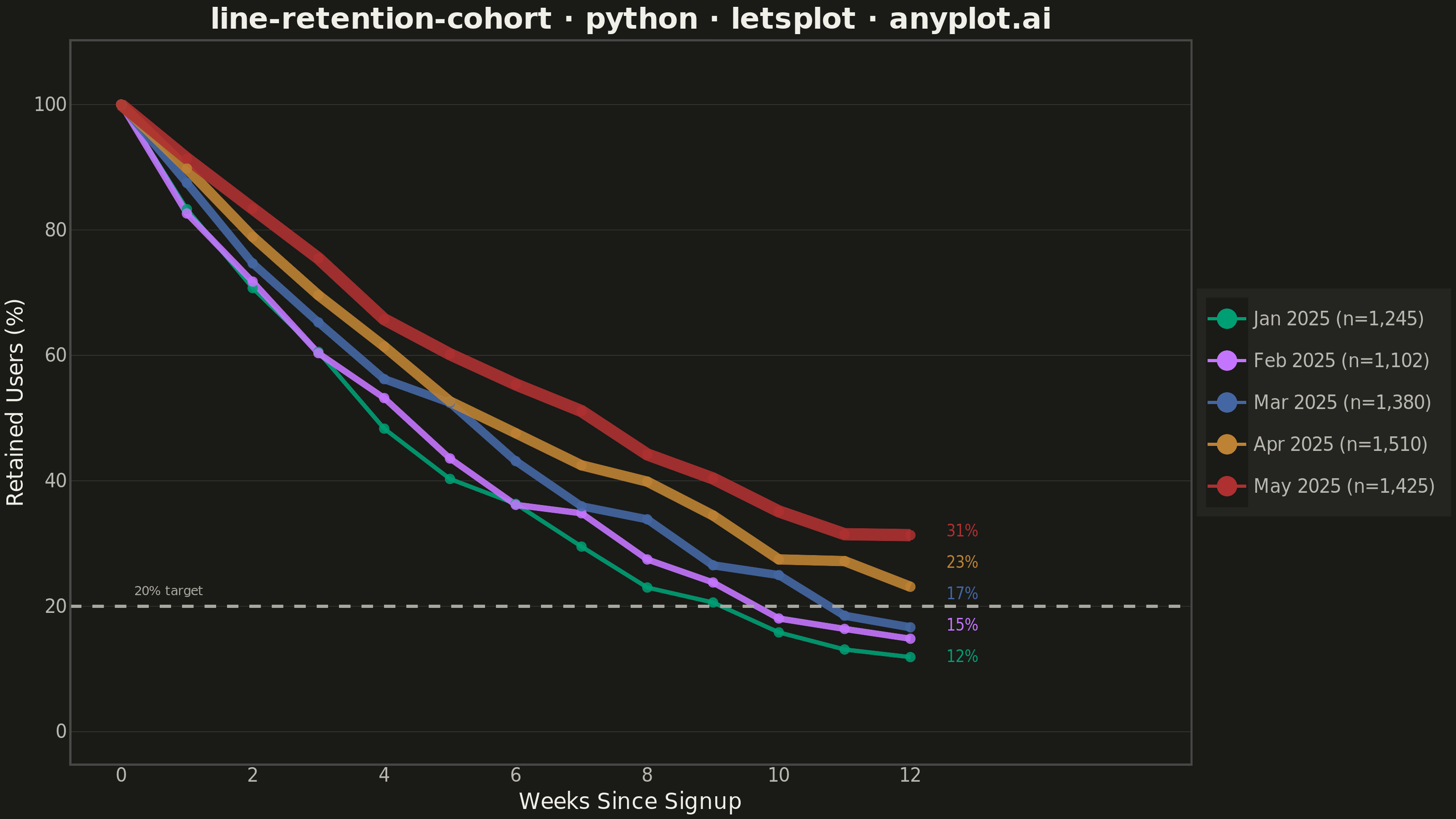

User Retention Curve by Cohort rendered with lets-plot

Python source (lets-plot)

""" anyplot.ai
line-retention-cohort: User Retention Curve by Cohort
Library: letsplot 4.10.1 | Python 3.13.14
Quality: 88/100 | Updated: 2026-06-20
"""

import os

import numpy as np
import pandas as pd
from lets_plot import *


LetsPlot.setup_html()

THEME = os.getenv("ANYPLOT_THEME", "light")

# Imprint palette (canonical order, 5 cohorts)
IMPRINT_PALETTE = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030"]

# Theme-adaptive chrome tokens
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"
GRID_COLOR = "rgba(26,26,23,0.15)" if THEME == "light" else "rgba(240,239,232,0.15)"

# Data: monthly signup cohorts tracked weekly for 12 weeks
np.random.seed(42)
weeks = np.arange(0, 13)

cohorts = {
    "Jan 2025": {"size": 1245, "decay": 0.18},
    "Feb 2025": {"size": 1102, "decay": 0.16},
    "Mar 2025": {"size": 1380, "decay": 0.14},
    "Apr 2025": {"size": 1510, "decay": 0.12},
    "May 2025": {"size": 1425, "decay": 0.10},
}

rows = []
for cohort_name, params in cohorts.items():
    retention = 100 * np.exp(-params["decay"] * weeks)
    noise = np.random.normal(0, 1.5, len(weeks))
    noise[0] = 0
    retention = np.clip(retention + noise, 0, 100)
    retention[0] = 100.0
    label = f"{cohort_name} (n={params['size']:,})"
    for w, r in zip(weeks, retention, strict=False):
        rows.append({"Week": w, "Retention": r, "Cohort": label})

df = pd.DataFrame(rows)

# Endpoint labels at week 12 with overlap prevention
endpoints = df[df["Week"] == 12].copy()
endpoints["label"] = endpoints["Retention"].apply(lambda x: f"{x:.0f}%")
sorted_ep = endpoints.sort_values("Retention").reset_index(drop=True)
min_gap = 5.0  # larger gap to ensure labels don't crowd at lower retention values
for i in range(1, len(sorted_ep)):
    if sorted_ep.loc[i, "Retention"] - sorted_ep.loc[i - 1, "Retention"] < min_gap:
        sorted_ep.loc[i, "Retention"] = sorted_ep.loc[i - 1, "Retention"] + min_gap
endpoints = sorted_ep

# Line widths: older cohorts thinner, newer cohorts bolder for visual hierarchy
line_widths = [1.0, 1.5, 2.0, 2.5, 3.0]
cohort_labels = [f"{k} (n={v['size']:,})" for k, v in cohorts.items()]

plot = ggplot()

# Per-cohort lines with progressive widths
for i, cohort_label in enumerate(cohort_labels):
    cdf = df[df["Cohort"] == cohort_label]
    plot = plot + geom_line(
        aes(x="Week", y="Retention", color="Cohort"),
        data=cdf,
        size=line_widths[i],
        alpha=0.9,
        tooltips=layer_tooltips().line("@Cohort").line("Week @Week").line("Retention @Retention{.1f}%"),
    )

plot = (
    plot
    + geom_point(aes(x="Week", y="Retention", color="Cohort"), data=df, size=2.5, alpha=0.85)
    + geom_hline(yintercept=20, linetype="dashed", color=INK_MUTED, size=0.7)
    + geom_text(
        aes(x="Week", y="Retention", label="label", color="Cohort"), data=endpoints, size=4, nudge_x=0.55, hjust=0
    )
    + geom_text(
        aes(x="x", y="y", label="label"),
        data=pd.DataFrame({"x": [0.2], "y": [20], "label": ["20% target"]}),
        size=3.5,
        color=INK_MUTED,
        hjust=0,
        vjust=-1.2,
    )
    + scale_color_manual(values=IMPRINT_PALETTE)
    + scale_x_continuous(breaks=list(range(0, 13, 2)), limits=[0, 15.5])
    + scale_y_continuous(breaks=list(range(0, 101, 20)), limits=[0, 105])
    + labs(
        title="line-retention-cohort · python · letsplot · anyplot.ai", x="Weeks Since Signup", y="Retained Users (%)"
    )
    + theme_minimal()
    + theme(
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG),
        plot_title=element_text(size=16, hjust=0.5, face="bold", color=INK),
        axis_title=element_text(size=12, color=INK),
        axis_text=element_text(size=10, color=INK_SOFT),
        legend_title=element_blank(),
        legend_text=element_text(size=10, color=INK_SOFT),
        legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
        legend_position="right",
        panel_grid_major=element_line(color=GRID_COLOR, size=0.3),
        panel_grid_major_x=element_blank(),
        panel_grid_minor=element_blank(),
        panel_border=element_blank(),
        axis_line=element_line(color=INK_SOFT),
    )
    + ggsize(800, 450)
)

ggsave(plot, f"plot-{THEME}.png", path=".", scale=4)
ggsave(plot, f"plot-{THEME}.html", path=".")

Part of User Retention Curve by Cohort on anyplot.ai.
