User Retention Curve by Cohort — Plotly

A line chart showing the percentage of retained users over time since signup, with separate curves for different cohorts. All curves start at 100% at time zero and typically exhibit exponential decay, revealing how well a product retains users over their lifecycle. By overlaying multiple cohorts, teams can visually compare whether retention is improving or degrading across signup periods.

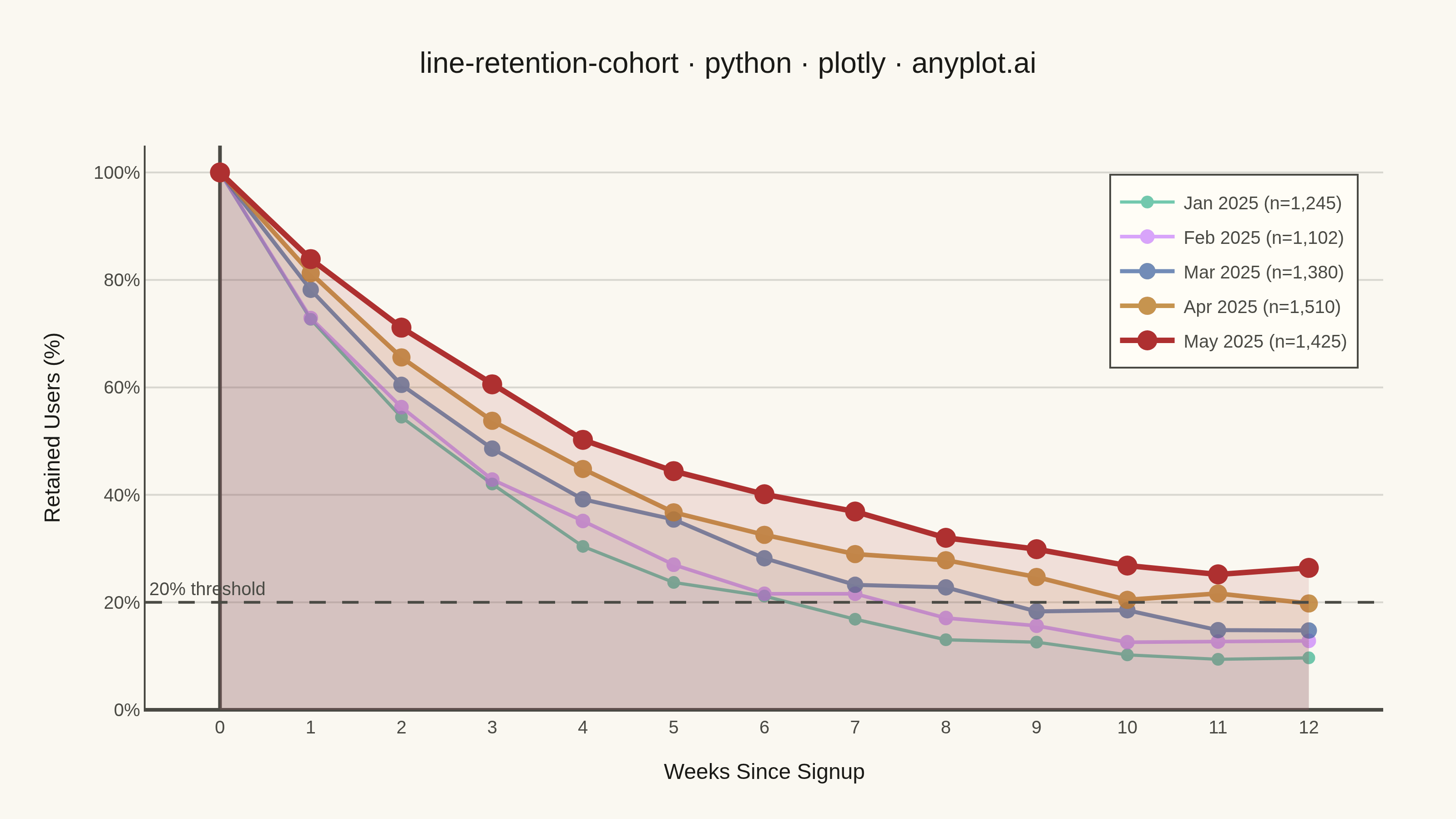

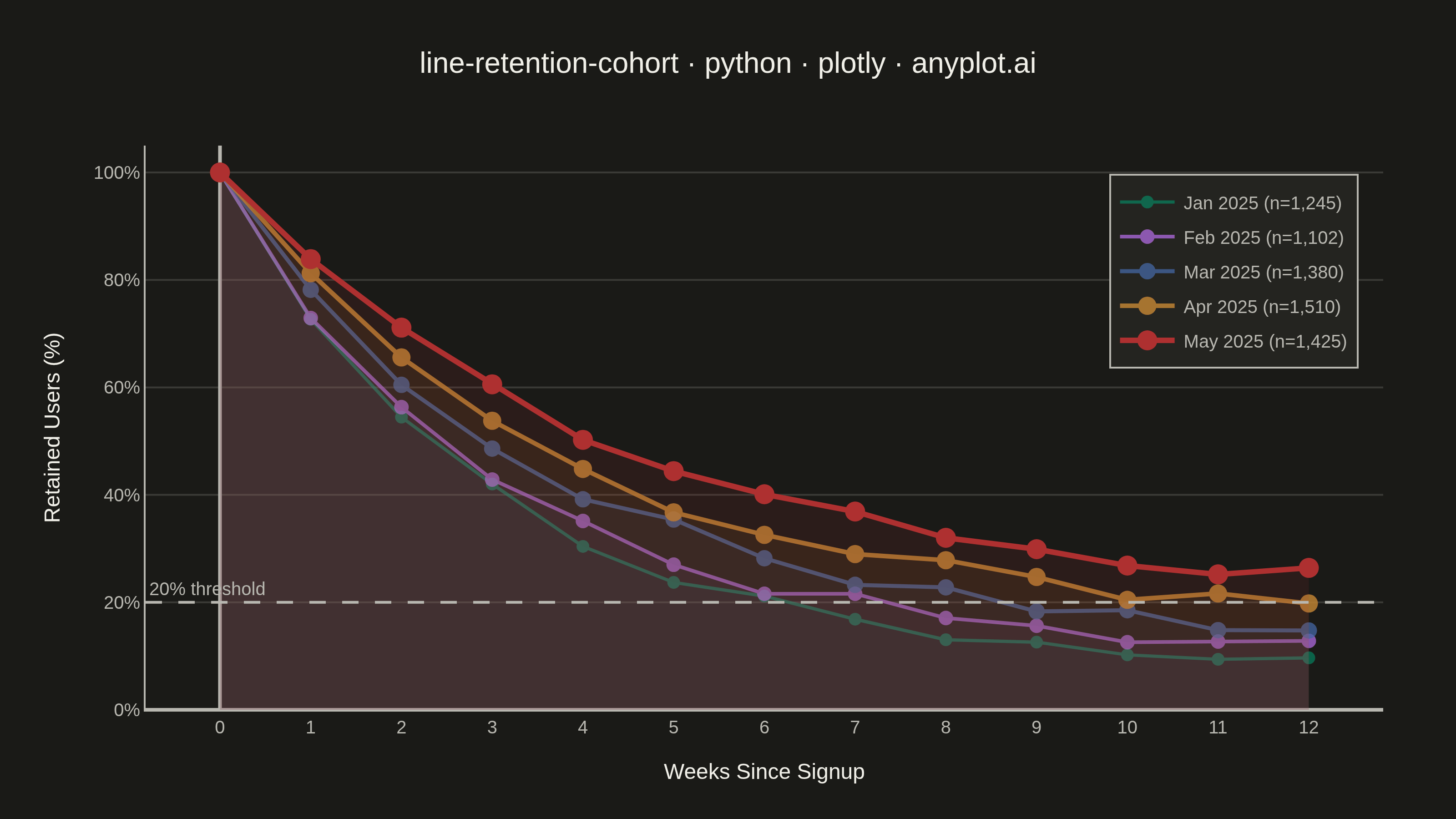

User Retention Curve by Cohort rendered with Plotly

Python source (Plotly)

""" anyplot.ai
line-retention-cohort: User Retention Curve by Cohort
Library: plotly 6.8.0 | Python 3.13.14
Quality: 90/100 | Updated: 2026-06-20
"""

import os

import numpy as np
import plotly.graph_objects as go


# Theme tokens — Imprint palette (see prompts/default-style-guide.md)
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
GRID = "rgba(26,26,23,0.15)" if THEME == "light" else "rgba(240,239,232,0.15)"

IMPRINT_PALETTE = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030"]

# Data — plateau-based retention decay: retention(t) = plateau + (100 - plateau) * exp(-steep * t)
# Later cohorts achieve higher plateaus, showing improving long-term retention.
np.random.seed(42)

cohorts = {
    "Jan 2025": {"size": 1245, "plateau": 8, "steep": 0.35},
    "Feb 2025": {"size": 1102, "plateau": 11, "steep": 0.33},
    "Mar 2025": {"size": 1380, "plateau": 14, "steep": 0.30},
    "Apr 2025": {"size": 1510, "plateau": 17, "steep": 0.27},
    "May 2025": {"size": 1425, "plateau": 21, "steep": 0.24},
}

weeks = np.arange(0, 13)

retention_data = {}
for cohort, params in cohorts.items():
    base = params["plateau"] + (100 - params["plateau"]) * np.exp(-params["steep"] * weeks)
    noise = np.random.normal(0, 1.2, len(weeks))
    noise[0] = 0
    retention = np.clip(base + noise, 0, 100)
    retention[0] = 100.0
    retention_data[cohort] = retention

# Older cohorts thinner / less opaque to emphasize recent improvement
line_widths = [1.8, 2.0, 2.2, 2.5, 3.0]
opacities = [0.55, 0.65, 0.75, 0.85, 1.0]

# Plot
fig = go.Figure()

for i, (cohort, retention) in enumerate(retention_data.items()):
    params = cohorts[cohort]
    color = IMPRINT_PALETTE[i]
    rgb = tuple(int(color[j : j + 2], 16) for j in (1, 3, 5))
    fill_alpha = 0.04 + i * 0.02

    fig.add_trace(
        go.Scatter(
            x=weeks,
            y=retention,
            mode="none",
            fill="tozeroy",
            fillcolor=f"rgba({rgb[0]},{rgb[1]},{rgb[2]},{fill_alpha})",
            showlegend=False,
            hoverinfo="skip",
        )
    )

    fig.add_trace(
        go.Scatter(
            x=weeks,
            y=retention,
            mode="lines+markers",
            name=f"{cohort} (n={params['size']:,})",
            line={"color": color, "width": line_widths[i]},
            marker={"size": 7 + i, "color": color},
            opacity=opacities[i],
        )
    )

# 20% long-term retention threshold
fig.add_hline(
    y=20,
    line_dash="dash",
    line_color=INK_SOFT,
    line_width=1.5,
    annotation_text="20% threshold",
    annotation_position="top left",
    annotation_font={"size": 10, "color": INK_SOFT},
)

# Title — compute fontsize from length (baseline 16px for ~67 chars)
title = "line-retention-cohort · python · plotly · anyplot.ai"
n = len(title)
title_fontsize = max(round(16 * 67 / n) if n > 67 else 16, 11)

# Style
fig.update_layout(
    autosize=False,
    title={"text": title, "font": {"size": title_fontsize, "color": INK}, "x": 0.5, "xanchor": "center"},
    xaxis={
        "title": {"text": "Weeks Since Signup", "font": {"size": 12, "color": INK}},
        "tickfont": {"size": 10, "color": INK_SOFT},
        "dtick": 1,
        "showgrid": False,
        "showline": True,
        "linecolor": INK_SOFT,
        "zerolinecolor": INK_SOFT,
    },
    yaxis={
        "title": {"text": "Retained Users (%)", "font": {"size": 12, "color": INK}},
        "tickfont": {"size": 10, "color": INK_SOFT},
        "range": [0, 105],
        "ticksuffix": "%",
        "dtick": 20,
        "showgrid": True,
        "gridcolor": GRID,
        "gridwidth": 1,
        "showline": True,
        "linecolor": INK_SOFT,
        "zerolinecolor": INK_SOFT,
    },
    paper_bgcolor=PAGE_BG,
    plot_bgcolor=PAGE_BG,
    font={"color": INK},
    legend={
        "font": {"size": 10, "color": INK_SOFT},
        "bgcolor": ELEVATED_BG,
        "bordercolor": INK_SOFT,
        "borderwidth": 1,
        "yanchor": "top",
        "y": 0.95,
        "xanchor": "right",
        "x": 0.98,
    },
    margin={"l": 80, "r": 40, "t": 80, "b": 60},
)

# Save
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")
fig.write_image(f"plot-{THEME}.png", width=800, height=450, scale=4)

Part of User Retention Curve by Cohort on anyplot.ai.
