Logistic Regression Curve Plot — Matplotlib

A logistic regression visualization showing the characteristic S-shaped (sigmoid) probability curve for binary classification. The plot displays data points colored by their binary class, the fitted logistic curve representing predicted probabilities, confidence intervals around the curve, and an optional decision threshold line. This visualization is essential for understanding how a logistic model maps continuous input features to class probabilities.

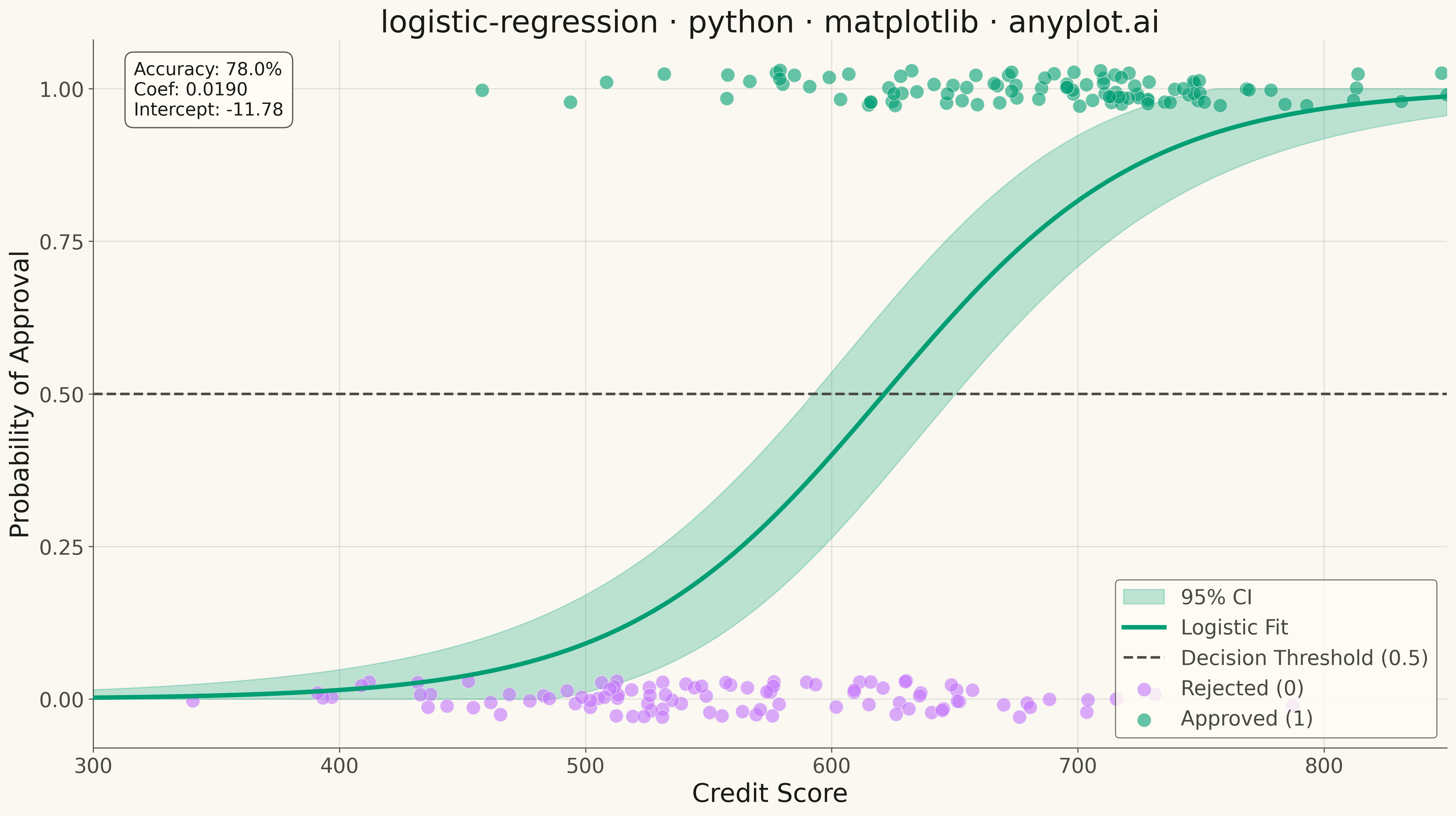

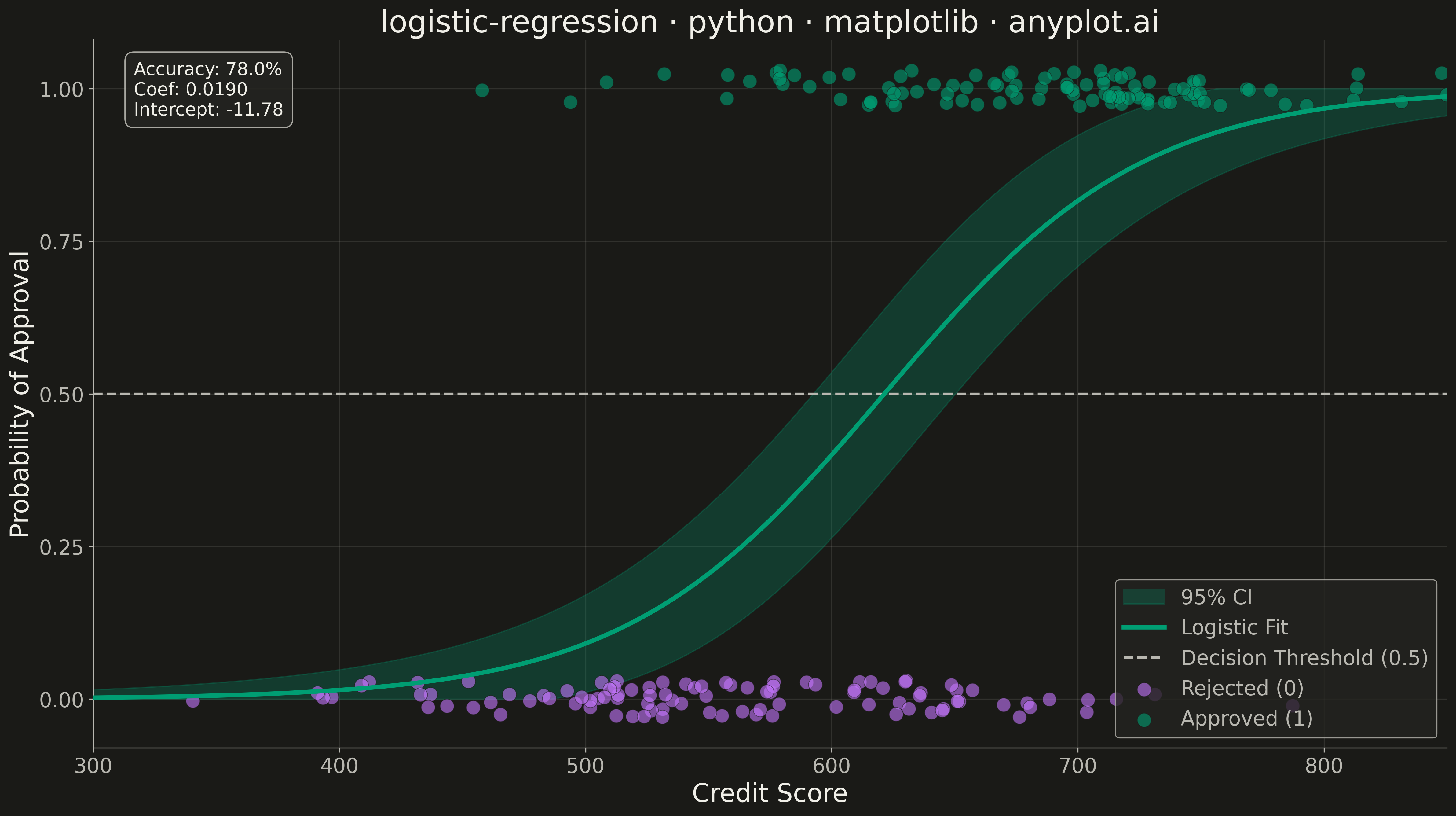

Logistic Regression Curve Plot rendered with Matplotlib

Python source (Matplotlib)

""" anyplot.ai
logistic-regression: Logistic Regression Curve Plot
Library: matplotlib 3.10.9 | Python 3.13.13
Quality: 90/100 | Updated: 2026-05-18
"""

import os
import sys


sys.path = [p for p in sys.path if "implementations" not in p]

import matplotlib.pyplot as plt
import numpy as np
from sklearn.linear_model import LogisticRegression
from sklearn.metrics import accuracy_score


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette (first series is brand green)
BRAND = "#009E73"
SECONDARY = "#C475FD"

# Data - Credit risk scoring: probability of loan approval based on credit score
np.random.seed(42)
n_points = 200

# Generate credit scores (300-850 range, typical credit score range)
credit_scores = np.concatenate([np.random.normal(550, 80, n_points // 2), np.random.normal(700, 60, n_points // 2)])
credit_scores = np.clip(credit_scores, 300, 850)

# Generate binary outcomes with logistic probability
true_probs = 1 / (1 + np.exp(-0.02 * (credit_scores - 620)))
y = (np.random.random(n_points) < true_probs).astype(int)

# Fit logistic regression model
X = credit_scores.reshape(-1, 1)
model = LogisticRegression()
model.fit(X, y)

# Generate smooth curve for predictions
x_curve = np.linspace(300, 850, 300)
y_probs = model.predict_proba(x_curve.reshape(-1, 1))[:, 1]

# Calculate confidence intervals (using standard error approximation)
p = y_probs
se = np.sqrt(p * (1 - p) / n_points) * 2
ci_lower = np.clip(y_probs - 1.96 * se, 0, 1)
ci_upper = np.clip(y_probs + 1.96 * se, 0, 1)

# Calculate accuracy
y_pred = model.predict(X)
accuracy = accuracy_score(y, y_pred)

# Jitter y values for visibility
y_jittered = y + np.random.uniform(-0.03, 0.03, n_points)

# Plot
fig, ax = plt.subplots(figsize=(16, 9), facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)

# Confidence interval band
ax.fill_between(x_curve, ci_lower, ci_upper, alpha=0.25, color=BRAND, label="95% CI")

# Logistic curve
ax.plot(x_curve, y_probs, color=BRAND, linewidth=3.5, label="Logistic Fit", zorder=3)

# Decision threshold line
ax.axhline(y=0.5, color=INK_SOFT, linestyle="--", linewidth=2, label="Decision Threshold (0.5)")

# Data points - class 0 (rejected)
mask_0 = y == 0
ax.scatter(
    credit_scores[mask_0],
    y_jittered[mask_0],
    s=120,
    alpha=0.6,
    color=SECONDARY,
    label="Rejected (0)",
    edgecolors=PAGE_BG,
    linewidth=0.5,
    zorder=2,
)

# Data points - class 1 (approved)
mask_1 = y == 1
ax.scatter(
    credit_scores[mask_1],
    y_jittered[mask_1],
    s=120,
    alpha=0.6,
    color=BRAND,
    label="Approved (1)",
    edgecolors=PAGE_BG,
    linewidth=0.5,
    zorder=2,
)

# Model annotation with theme-adaptive styling
coef = model.coef_[0][0]
intercept = model.intercept_[0]
annotation_text = f"Accuracy: {accuracy:.1%}\nCoef: {coef:.4f}\nIntercept: {intercept:.2f}"
ax.annotate(
    annotation_text,
    xy=(0.03, 0.97),
    xycoords="axes fraction",
    fontsize=14,
    color=INK,
    verticalalignment="top",
    bbox={"boxstyle": "round,pad=0.5", "facecolor": ELEVATED_BG, "alpha": 0.9, "edgecolor": INK_SOFT},
)

# Labels and styling
ax.set_xlabel("Credit Score", fontsize=20, color=INK)
ax.set_ylabel("Probability of Approval", fontsize=20, color=INK)
ax.set_title("logistic-regression · python · matplotlib · anyplot.ai", fontsize=24, fontweight="medium", color=INK)
ax.tick_params(axis="both", labelsize=16, colors=INK_SOFT)
ax.set_xlim(300, 850)
ax.set_ylim(-0.08, 1.08)
ax.set_yticks([0, 0.25, 0.5, 0.75, 1.0])

# Spine styling
ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)
for s in ("left", "bottom"):
    ax.spines[s].set_color(INK_SOFT)

# Grid styling
ax.grid(True, alpha=0.15, linestyle="-", linewidth=0.8, color=INK_SOFT)
ax.set_axisbelow(True)

# Legend styling
leg = ax.legend(fontsize=16, loc="lower right")
if leg:
    leg.get_frame().set_facecolor(ELEVATED_BG)
    leg.get_frame().set_edgecolor(INK_SOFT)
    leg.get_frame().set_linewidth(0.8)
    for text in leg.get_texts():
        text.set_color(INK_SOFT)

plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)

Part of Logistic Regression Curve Plot on anyplot.ai.
