Logistic Regression Curve Plot — Pygal

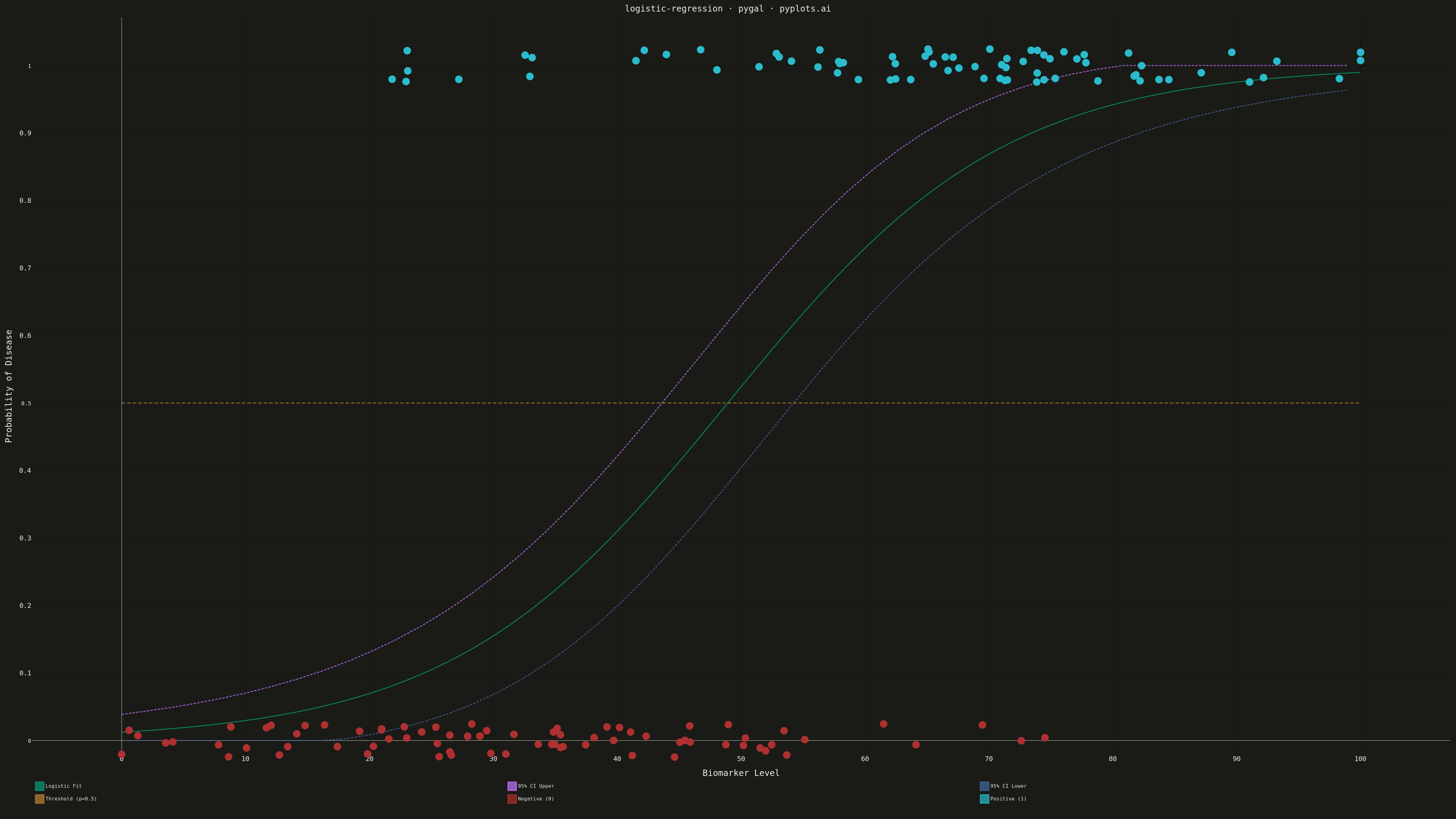

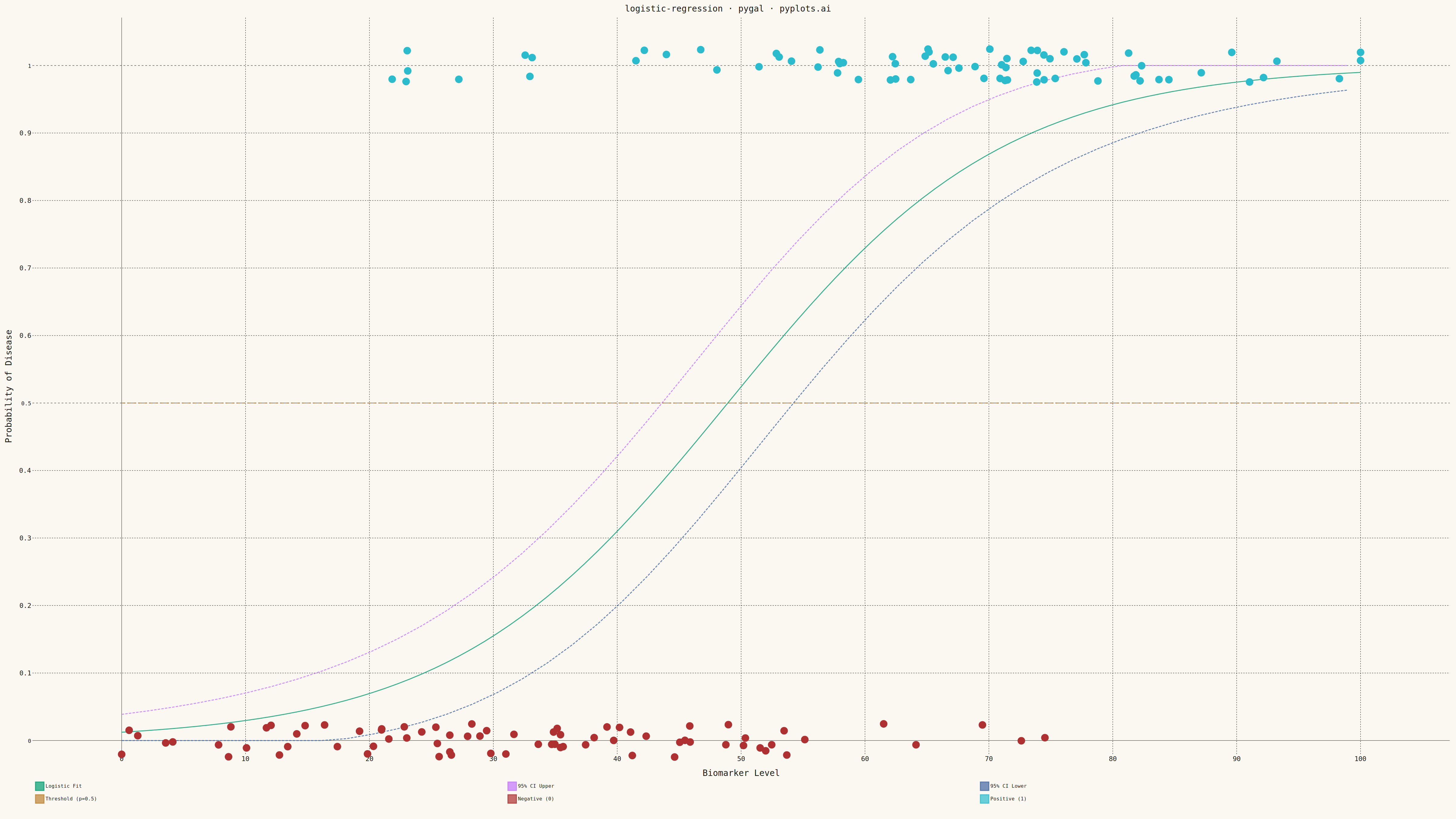

A logistic regression visualization showing the characteristic S-shaped (sigmoid) probability curve for binary classification. The plot displays data points colored by their binary class, the fitted logistic curve representing predicted probabilities, confidence intervals around the curve, and an optional decision threshold line. This visualization is essential for understanding how a logistic model maps continuous input features to class probabilities.

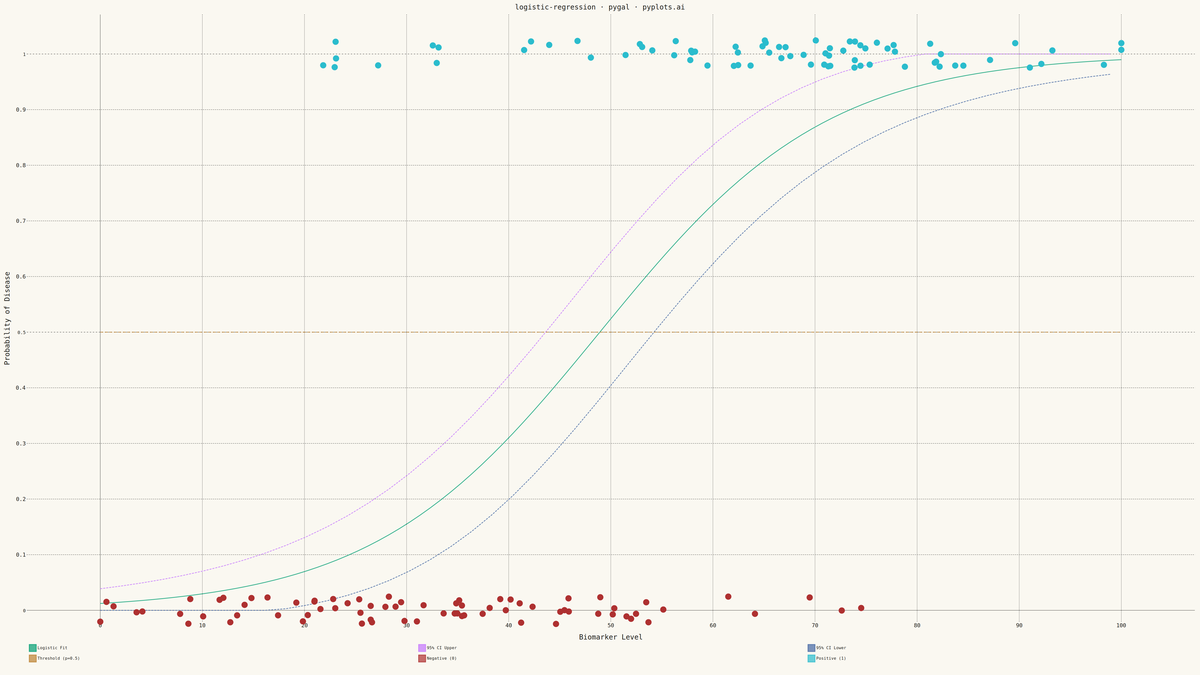

Logistic Regression Curve Plot rendered with Pygal

Python source (Pygal)

""" anyplot.ai
logistic-regression: Logistic Regression Curve Plot
Library: pygal 3.1.0 | Python 3.13.13
Quality: 86/100 | Updated: 2026-05-18
"""

import os

import numpy as np
import pygal
from pygal.style import Style


# Theme-adaptive colors
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"

# Okabe-Ito palette
IMPRINT = ("#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477")

# Data - Medical diagnosis based on biomarker level
np.random.seed(42)
n_samples = 150

# Generate biomarker levels (0-100 scale)
biomarker_levels = np.concatenate(
    [
        np.random.normal(30, 15, n_samples // 2),  # Lower levels (mostly negative)
        np.random.normal(70, 15, n_samples // 2),  # Higher levels (mostly positive)
    ]
)
biomarker_levels = np.clip(biomarker_levels, 0, 100)

# Generate binary outcomes with logistic probability
true_probs = 1 / (1 + np.exp(-0.08 * (biomarker_levels - 50)))
y = (np.random.random(n_samples) < true_probs).astype(int)

# Fit logistic regression using gradient descent
X = (biomarker_levels - biomarker_levels.mean()) / biomarker_levels.std()
b0, b1 = 0.0, 0.0
learning_rate = 0.1
for _ in range(1000):
    z = b0 + b1 * X
    p = 1 / (1 + np.exp(-np.clip(z, -500, 500)))
    grad_b0 = np.mean(p - y)
    grad_b1 = np.mean((p - y) * X)
    b0 -= learning_rate * grad_b0
    b1 -= learning_rate * grad_b1

# Generate smooth curve for predictions
x_curve = np.linspace(0, 100, 100)
x_curve_norm = (x_curve - biomarker_levels.mean()) / biomarker_levels.std()
y_proba = 1 / (1 + np.exp(-np.clip(b0 + b1 * x_curve_norm, -500, 500)))

# Confidence interval (approximate using binomial SE)
se = np.sqrt(y_proba * (1 - y_proba) / n_samples) * 1.5
ci_lower = np.clip(y_proba - 1.96 * se, 0, 1)
ci_upper = np.clip(y_proba + 1.96 * se, 0, 1)

# Jitter y values for visibility
y_jittered = y + np.random.uniform(-0.025, 0.025, n_samples)

# Custom style for large canvas with theme-adaptive colors
custom_style = Style(
    background=PAGE_BG,
    plot_background=PAGE_BG,
    foreground=INK,
    foreground_strong=INK,
    foreground_subtle=INK_MUTED,
    colors=IMPRINT,
    title_font_size=28,
    label_font_size=22,
    major_label_font_size=18,
    legend_font_size=16,
    value_font_size=14,
    stroke_width=3,
)

# Create XY chart
chart = pygal.XY(
    width=4800,
    height=2700,
    style=custom_style,
    title="logistic-regression · pygal · pyplots.ai",
    x_title="Biomarker Level",
    y_title="Probability of Disease",
    show_dots=True,
    stroke=True,
    show_x_guides=True,
    show_y_guides=True,
    dots_size=8,
    stroke_style={"width": 4},
    range=(0, 1.05),
    xrange=(-5, 105),
    explicit_size=True,
    legend_at_bottom=True,
    legend_box_size=28,
    truncate_legend=-1,
    print_values=False,
)

# Add logistic regression curve (main feature) - Okabe-Ito position 1 (green)
curve_points = [(float(x_curve[i]), float(y_proba[i])) for i in range(len(x_curve))]
chart.add("Logistic Fit", curve_points, stroke_style={"width": 5}, dots_size=0, show_dots=False, color=IMPRINT[0])

# Add confidence interval bounds - lighter/dashed variations
ci_upper_pts = [(float(x_curve[i]), float(ci_upper[i])) for i in range(0, len(x_curve), 2)]
ci_lower_pts = [(float(x_curve[i]), float(ci_lower[i])) for i in range(0, len(x_curve), 2)]
chart.add(
    "95% CI Upper",
    ci_upper_pts,
    stroke_style={"width": 2, "dasharray": "8,4"},
    dots_size=0,
    show_dots=False,
    color=IMPRINT[0],
)
chart.add(
    "95% CI Lower",
    ci_lower_pts,
    stroke_style={"width": 2, "dasharray": "8,4"},
    dots_size=0,
    show_dots=False,
    color=IMPRINT[0],
)

# Add decision threshold line (y = 0.5)
threshold_pts = [(0.0, 0.5), (100.0, 0.5)]
chart.add(
    "Threshold (p=0.5)",
    threshold_pts,
    stroke_style={"width": 3, "dasharray": "12,6"},
    dots_size=0,
    show_dots=False,
    color=INK_MUTED,
)

# Add data points - Negative (Class 0) - Okabe-Ito position 2 (vermillion)
negative_pts = [(float(biomarker_levels[i]), float(y_jittered[i])) for i in range(n_samples) if y[i] == 0]
chart.add("Negative (0)", negative_pts, stroke=False, dots_size=12, color=IMPRINT[1])

# Add data points - Positive (Class 1) - Okabe-Ito position 3 (blue)
positive_pts = [(float(biomarker_levels[i]), float(y_jittered[i])) for i in range(n_samples) if y[i] == 1]
chart.add("Positive (1)", positive_pts, stroke=False, dots_size=12, color=IMPRINT[2])

# Save as PNG and HTML with theme suffix
chart.render_to_png(f"plot-{THEME}.png")
with open(f"plot-{THEME}.html", "wb") as f:
    f.write(chart.render())

Part of Logistic Regression Curve Plot on anyplot.ai.
