A geographic map visualization showing a connected path or route between sequential waypoints. Unlike scatter maps that display discrete points, this plot connects coordinates in order to reveal journeys, tracks, and navigation paths. Ideal for GPS data, delivery routes, and travel visualization where the sequence and continuity of movement matters.
// anyplot.ai
// map-route-path: Route Path Map
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 88/100 | Created: 2026-09-02
const t = window.ANYPLOT_TOKENS;
// --- Data: a hiking trail GPS track (in-memory, deterministic) -------------
// Small LCG so the meander is reproducible without a network-fetched track.
function lcg(seed) {
let state = seed;
return () => {
state = (1103515245 * state + 12345) % 2147483648;
return state / 2147483648;
};
}
const rand = lcg(42);
const WAYPOINTS = 140;
const START_LAT = 40.3428; // Bear Lake trailhead, Rocky Mountain National Park
const START_LON = -105.6836;
const BASE_BEARING_DEG = 55; // roughly north-east climb toward the summit
const path = [];
let lat = START_LAT;
let lon = START_LON;
for (let i = 0; i < WAYPOINTS; i++) {
const progress = i / (WAYPOINTS - 1);
const meanderDeg = Math.sin(progress * Math.PI * 5.5) * 55 + (rand() - 0.5) * 30;
const bearing = ((BASE_BEARING_DEG + meanderDeg) * Math.PI) / 180;
const stepKm = 0.045 + rand() * 0.02;
path.push({ lat, lon, sequence: i });
lat += (stepKm / 111) * Math.cos(bearing);
lon += (stepKm / (111 * Math.cos((lat * Math.PI) / 180))) * Math.sin(bearing);
}
// --- Color gradient along the path (elapsed time: seq[0] -> seq[1]) --------
function hexToRgb(hex) {
const n = parseInt(hex.slice(1), 16);
return [(n >> 16) & 255, (n >> 8) & 255, n & 255];
}
function interpolateHex(hexA, hexB, frac) {
const [ar, ag, ab] = hexToRgb(hexA);
const [br, bg, bb] = hexToRgb(hexB);
const mix = (a, b) => Math.round(a + (b - a) * frac);
return `rgb(${mix(ar, br)}, ${mix(ag, bg)}, ${mix(ab, bb)})`;
}
const SEGMENTS = 9;
const pathSegments = [];
for (let s = 0; s < SEGMENTS; s++) {
const startIdx = Math.floor((s * (WAYPOINTS - 1)) / SEGMENTS);
const endIdx = Math.floor(((s + 1) * (WAYPOINTS - 1)) / SEGMENTS);
pathSegments.push({
type: "line",
name: `Segment ${s}`,
data: path.slice(startIdx, endIdx + 1).map((p) => ({ x: p.lon, y: p.lat, seq: p.sequence })),
color: interpolateHex(t.seq[0], t.seq[1], s / (SEGMENTS - 1)),
lineWidth: 3.5,
marker: { enabled: false, states: { hover: { enabled: true, radius: 5 } } },
enableMouseTracking: true,
showInLegend: false,
});
}
const start = path[0];
const finish = path[path.length - 1];
// --- Chart -------------------------------------------------------------------

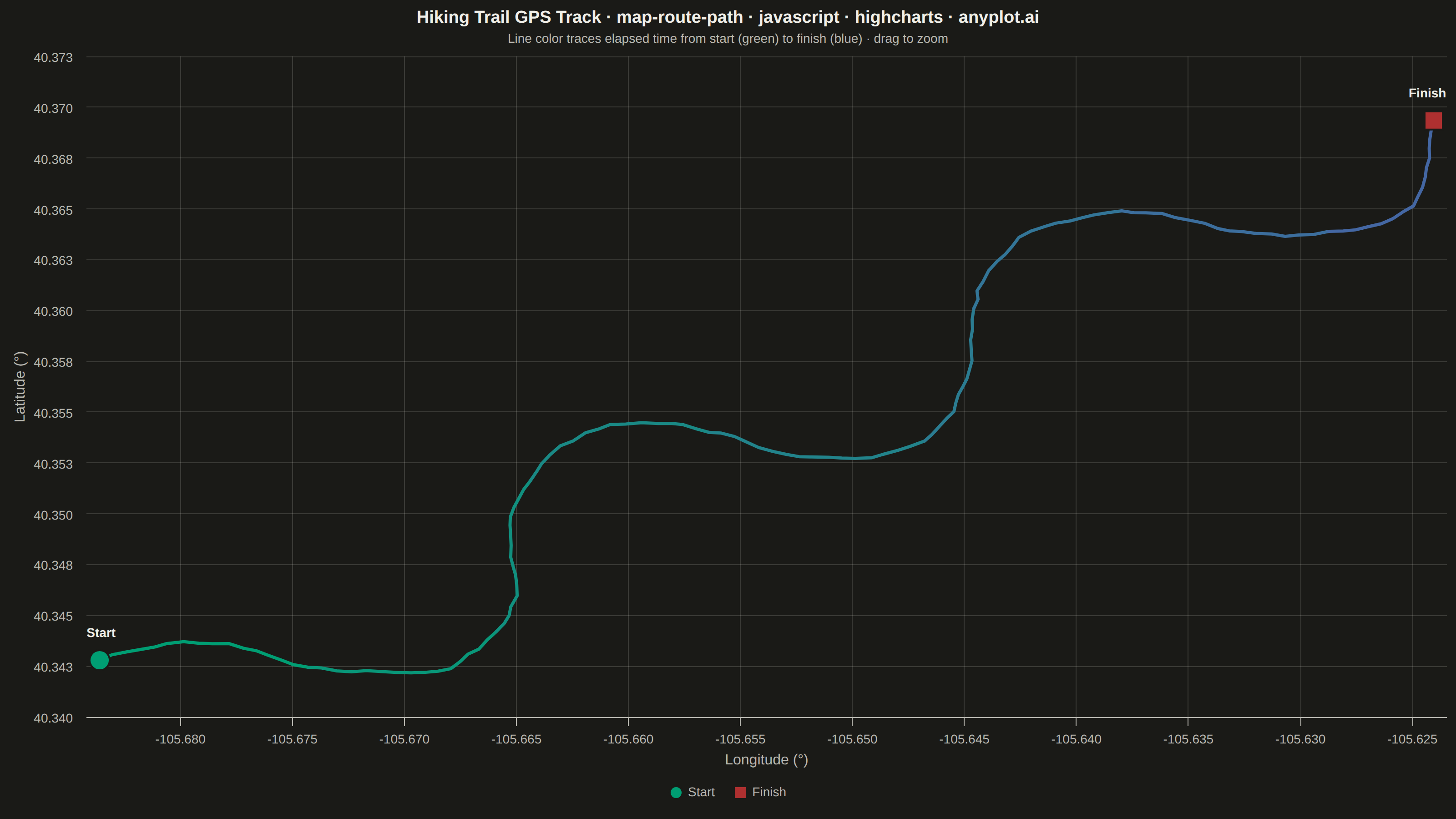

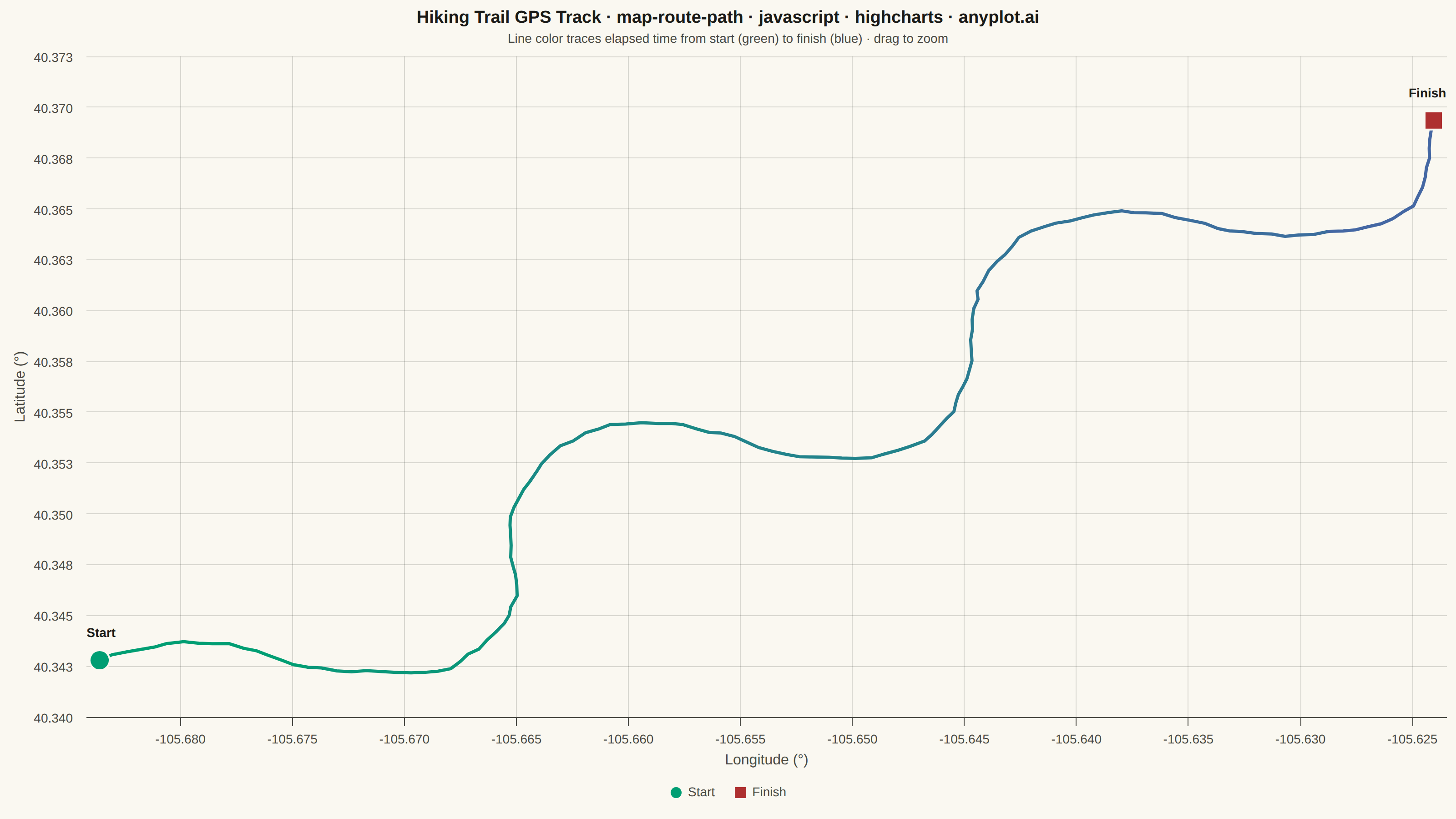

const title = "Hiking Trail GPS Track · map-route-path · javascript · highcharts · anyplot.ai";
const titleFontSize = Math.max(15, Math.round(22 * Math.min(1, 67 / title.length)));
Highcharts.chart("container", {
chart: {
type: "line",
backgroundColor: "transparent",
animation: false,
zoomType: "xy",
style: { fontFamily: "inherit" },
},
credits: { enabled: false },
colors: t.palette,
title: {
text: title,
style: { color: t.ink, fontSize: `${titleFontSize}px`, fontWeight: "600" },
},
subtitle: {
text: "Line color traces elapsed time from start (green) to finish (blue) · drag to zoom",
style: { color: t.inkSoft, fontSize: "14px" },
},
xAxis: {
title: { text: "Longitude (°)", style: { color: t.inkSoft, fontSize: "16px" } },
lineColor: t.inkSoft,
tickColor: t.inkSoft,
gridLineColor: t.grid,
gridLineWidth: 1,
labels: { style: { color: t.inkSoft, fontSize: "14px" }, format: "{value:.3f}" },
},
yAxis: {
title: { text: "Latitude (°)", style: { color: t.inkSoft, fontSize: "16px" } },
lineColor: t.inkSoft,
tickColor: t.inkSoft,
gridLineColor: t.grid,
gridLineWidth: 1,
labels: { style: { color: t.inkSoft, fontSize: "14px" }, format: "{value:.3f}" },
},
tooltip: {
formatter() {
return `Waypoint ${this.point.seq}<br/>Lon: ${this.x.toFixed(4)}°<br/>Lat: ${this.y.toFixed(4)}°`;
},
},
legend: {
itemStyle: { color: t.inkSoft, fontSize: "14px" },
itemHoverStyle: { color: t.ink },
},
plotOptions: {
series: { animation: false },
},
series: [
...pathSegments,
{
type: "scatter",
name: "Start",
data: [{ x: start.lon, y: start.lat, seq: start.sequence }],
color: t.palette[0],
marker: { symbol: "circle", radius: 11, lineColor: t.pageBg, lineWidth: 2 },
dataLabels: {
enabled: true,
format: "Start",
y: -18,
style: { color: t.ink, fontSize: "14px", fontWeight: "600", textOutline: "none" },
},
showInLegend: true,
},
{
type: "scatter",
name: "Finish",
data: [{ x: finish.lon, y: finish.lat, seq: finish.sequence }],
color: "#AE3030",
marker: { symbol: "square", radius: 10, lineColor: t.pageBg, lineWidth: 2 },
dataLabels: {
enabled: true,
format: "Finish",
y: -18,
style: { color: t.ink, fontSize: "14px", fontWeight: "600", textOutline: "none" },
},
showInLegend: true,
},
],
});
