A geographic map visualization showing a connected path or route between sequential waypoints. Unlike scatter maps that display discrete points, this plot connects coordinates in order to reveal journeys, tracks, and navigation paths. Ideal for GPS data, delivery routes, and travel visualization where the sequence and continuity of movement matters.
""" anyplot.ai
map-route-path: Route Path Map
Library: plotnine 0.15.4 | Python 3.13.13
Quality: 87/100 | Updated: 2026-05-21
"""
import os
import numpy as np
import pandas as pd
from plotnine import (
aes,
coord_fixed,
element_blank,
element_line,
element_rect,
element_text,
geom_path,
geom_point,
geom_polygon,
ggplot,
labs,
scale_color_cmap,
theme,
theme_minimal,
)
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
PARK_FILL = "#C8E6C9" if THEME == "light" else "#1B3A1F"
PARK_COLOR = "#4CAF50" if THEME == "light" else "#388E3C"
LAKE_FILL = "#81D4FA" if THEME == "light" else "#0D3B52"
LAKE_COLOR = "#0288D1" if THEME == "light" else "#01579B"
# Data
np.random.seed(42)
base_lat = 47.82
base_lon = -121.75
n_points = 200
t = np.linspace(0, 2 * np.pi, n_points)
radius_lat = 0.08 + 0.02 * np.sin(3 * t)
radius_lon = 0.12 + 0.03 * np.cos(2 * t)
noise_lat = np.random.normal(0, 0.002, n_points)
noise_lon = np.random.normal(0, 0.003, n_points)
lat = base_lat + radius_lat * np.sin(t) + noise_lat
lon = base_lon + radius_lon * np.cos(t) + noise_lon
df_trail = pd.DataFrame({"lat": lat, "lon": lon, "sequence": range(n_points)})
df_trail["lat_smooth"] = df_trail["lat"].rolling(window=3, center=True, min_periods=1).mean()
df_trail["lon_smooth"] = df_trail["lon"].rolling(window=3, center=True, min_periods=1).mean()
df_trail["progress"] = df_trail["sequence"] / (n_points - 1) * 100
start_point = df_trail.iloc[[0]].copy()
end_point = df_trail.iloc[[-1]].copy()
park_boundary_lon = [
base_lon - 0.20,
base_lon - 0.18,
base_lon - 0.10,
base_lon + 0.05,
base_lon + 0.15,
base_lon + 0.18,
base_lon + 0.15,
base_lon + 0.05,
base_lon - 0.08,
base_lon - 0.18,
base_lon - 0.20,
]
park_boundary_lat = [
base_lat - 0.05,
base_lat + 0.05,
base_lat + 0.12,
base_lat + 0.14,
base_lat + 0.10,
base_lat,
base_lat - 0.10,
base_lat - 0.12,
base_lat - 0.10,
base_lat - 0.08,
base_lat - 0.05,
]
df_park = pd.DataFrame(
{"lon": park_boundary_lon, "lat": park_boundary_lat, "order": range(len(park_boundary_lon)), "area": "park"}
)
lake_t = np.linspace(0, 2 * np.pi, 20)
lake_lon = base_lon + 0.03 + 0.025 * np.cos(lake_t)
lake_lat = base_lat + 0.02 + 0.015 * np.sin(lake_t)
df_lake = pd.DataFrame({"lon": lake_lon, "lat": lake_lat, "order": range(len(lake_t)), "area": "lake"})
# Plot
plot = (
ggplot()
+ geom_polygon(aes(x="lon", y="lat"), data=df_park, fill=PARK_FILL, color=PARK_COLOR, size=0.5, alpha=0.7)
+ geom_polygon(aes(x="lon", y="lat"), data=df_lake, fill=LAKE_FILL, color=LAKE_COLOR, size=0.4, alpha=0.8)
+ geom_path(
aes(x="lon_smooth", y="lat_smooth", color="progress"), data=df_trail, size=2.5, alpha=0.85, lineend="round"
)
+ geom_point(
aes(x="lon_smooth", y="lat_smooth"),
data=start_point,
color="#2E7D32",
fill="#4CAF50",
size=5,
shape="o",
stroke=1.5,
)
+ geom_point(
aes(x="lon_smooth", y="lat_smooth"),
data=end_point,
color="#C62828",
fill="#EF5350",
size=5,
shape="s",
stroke=1.5,
)
+ scale_color_cmap(cmap_name="viridis", name="Trail Progress (%)")
+ coord_fixed(ratio=1.3)
+ labs(title="map-route-path · python · plotnine · anyplot.ai", x="Longitude (°)", y="Latitude (°)")
+ theme_minimal()
+ theme(
figure_size=(8, 4.5),
plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
panel_background=element_rect(fill=PAGE_BG),
panel_grid_major=element_line(color=INK, size=0.3, alpha=0.10),
panel_grid_minor=element_blank(),
panel_border=element_rect(color=INK_SOFT, fill=None),
axis_title=element_text(size=10, color=INK),
axis_text=element_text(size=8, color=INK_SOFT),
axis_line=element_line(color=INK_SOFT),
plot_title=element_text(size=12, color=INK),
legend_title=element_text(size=8, color=INK),
legend_text=element_text(size=8, color=INK_SOFT),
legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
legend_position="right",
)
)
# Save

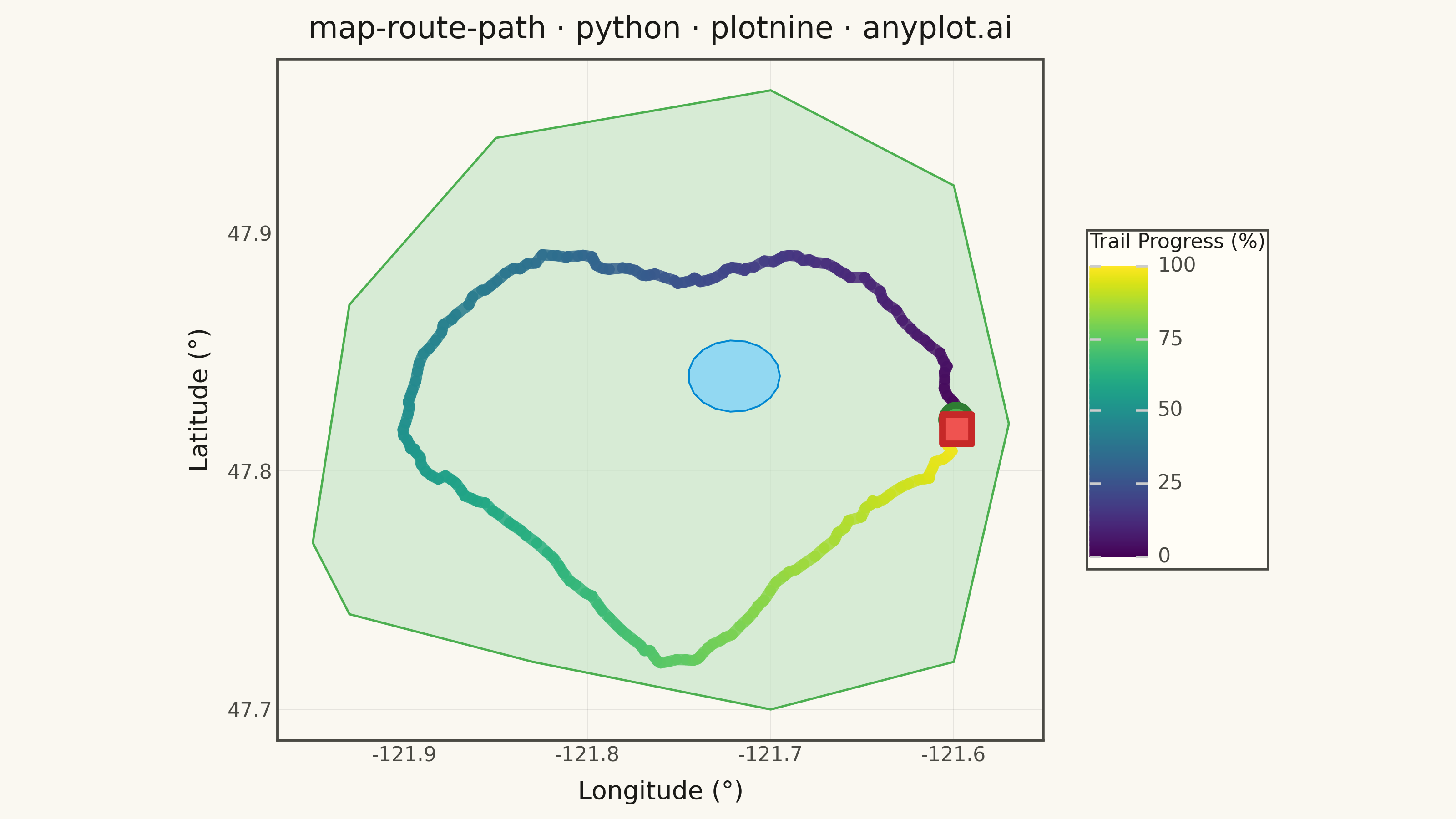

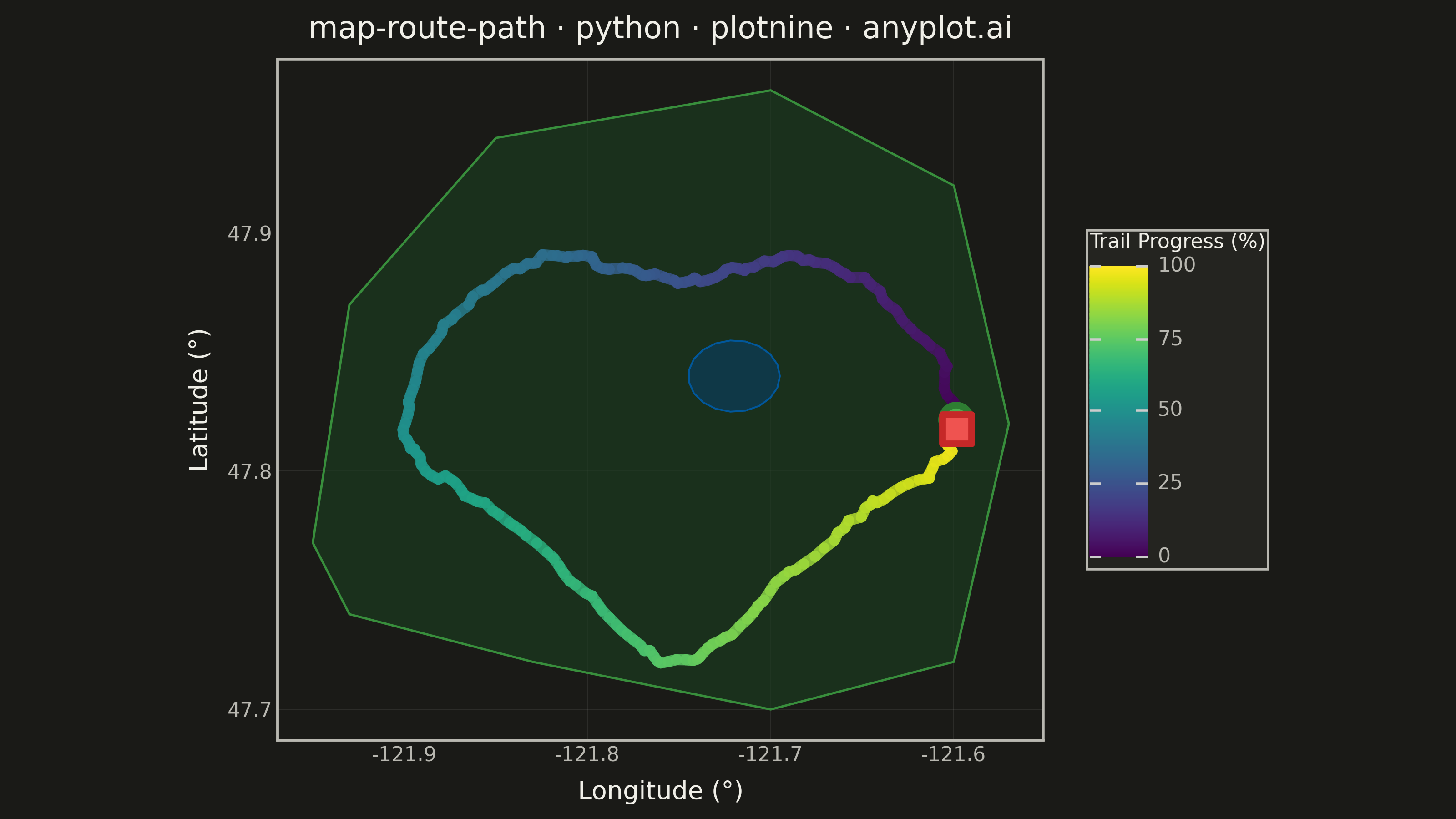

plot.save(f"plot-{THEME}.png", dpi=400, width=8, height=4.5, units="in", verbose=False)
Part of Route Path Map on anyplot.ai.
