Route Path Map — lets-plot

A geographic map visualization showing a connected path or route between sequential waypoints. Unlike scatter maps that display discrete points, this plot connects coordinates in order to reveal journeys, tracks, and navigation paths. Ideal for GPS data, delivery routes, and travel visualization where the sequence and continuity of movement matters.

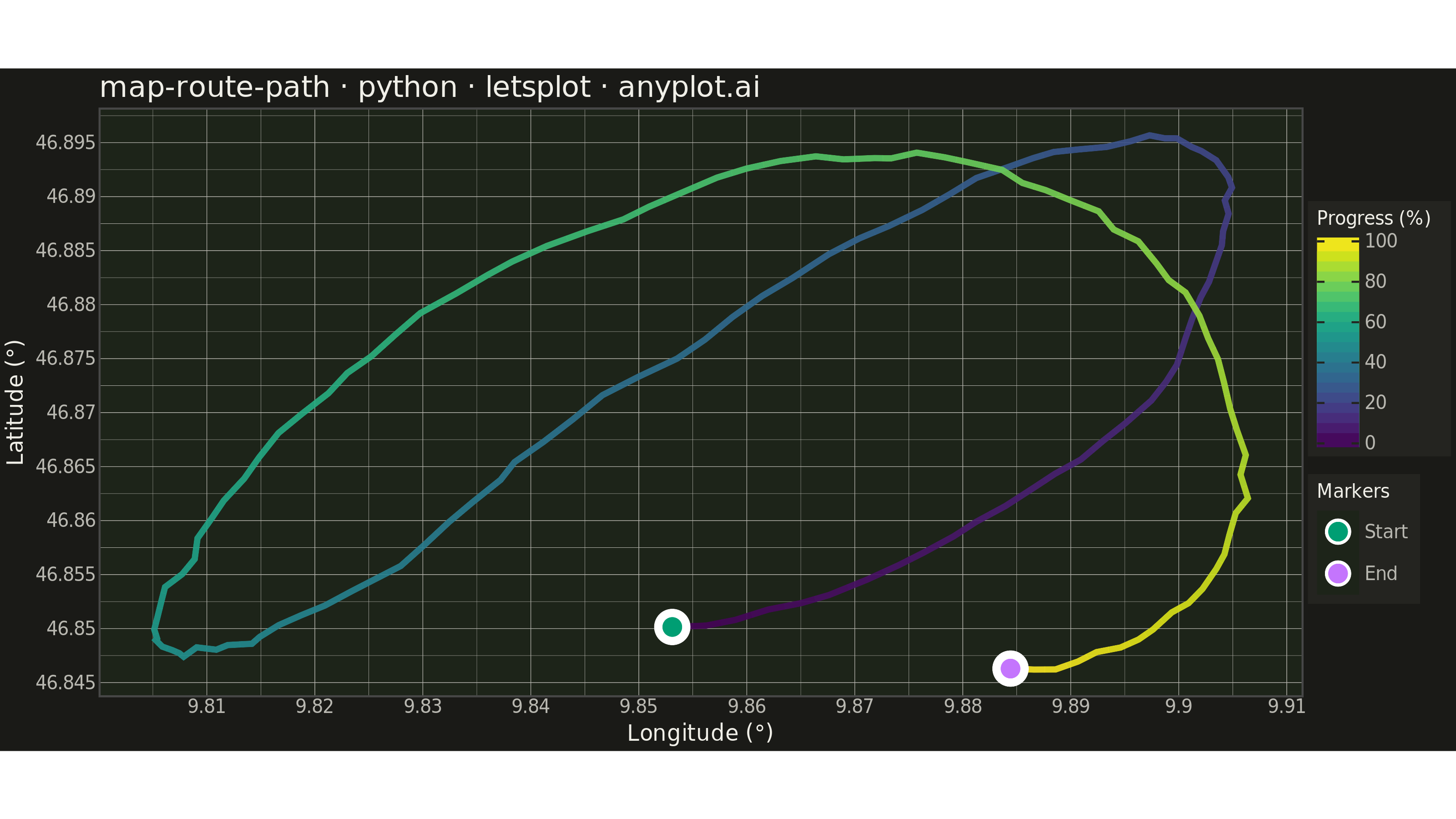

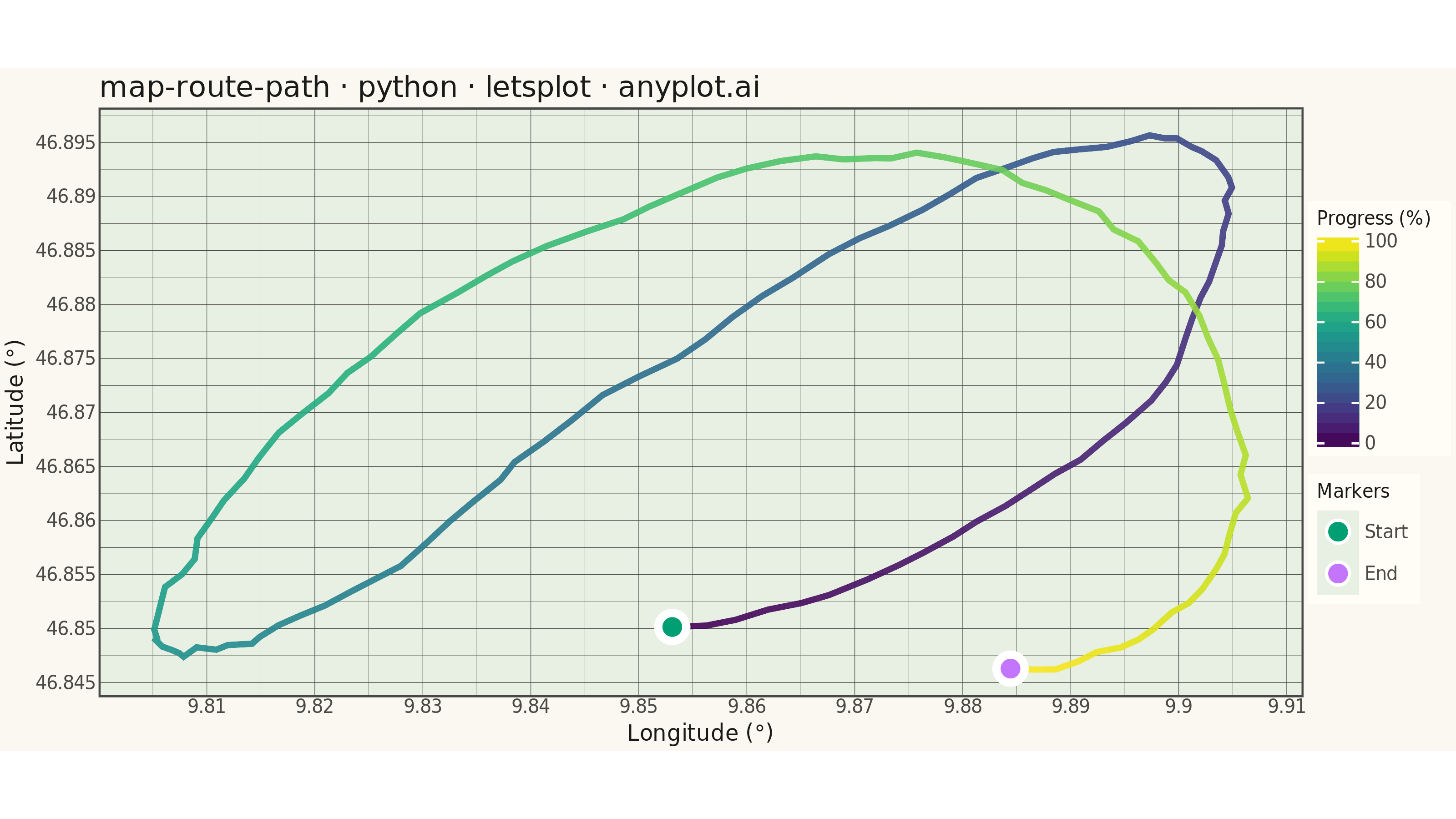

Route Path Map rendered with lets-plot

Python source (lets-plot)

""" anyplot.ai
map-route-path: Route Path Map
Library: letsplot 4.10.1 | Python 3.13.13
Quality: 90/100 | Updated: 2026-05-21
"""

import os

import numpy as np
import pandas as pd
from lets_plot import (
    LetsPlot,
    aes,
    coord_fixed,
    element_line,
    element_rect,
    element_text,
    geom_path,
    geom_point,
    ggplot,
    ggsize,
    labs,
    layer_tooltips,
    scale_color_viridis,
    scale_fill_manual,
    theme,
    theme_minimal,
)
from lets_plot.export import ggsave


LetsPlot.setup_html()

# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
TERRAIN_BG = "#E8F0E4" if THEME == "light" else "#1D2419"

# Data — Swiss Alps hiking trail (GPS track simulation)
np.random.seed(42)
start_lat, start_lon = 46.85, 9.85
n_points = 150

t = np.linspace(0, 4 * np.pi, n_points)
lat_offset = np.cumsum(np.sin(t) * 0.002 + np.random.randn(n_points) * 0.0003)
lon_offset = np.cumsum(np.cos(t * 0.7) * 0.003 + np.random.randn(n_points) * 0.0004)

lat = start_lat + lat_offset
lon = start_lon + lon_offset
sequence = np.arange(n_points)

df = pd.DataFrame({"lat": lat, "lon": lon, "sequence": sequence, "progress": sequence / (n_points - 1) * 100})

start_pt = df.iloc[[0]].copy()
start_pt["marker"] = "Start"
end_pt = df.iloc[[-1]].copy()
end_pt["marker"] = "End"
markers_df = pd.concat([start_pt, end_pt], ignore_index=True)

# Plot
anyplot_theme = theme(
    plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
    panel_background=element_rect(fill=TERRAIN_BG),
    panel_grid_major=element_line(color=INK_SOFT, size=0.3),
    panel_grid_minor=element_line(color=INK_SOFT, size=0.15),
    axis_title=element_text(color=INK, size=12),
    axis_text=element_text(color=INK_SOFT, size=10),
    plot_title=element_text(color=INK, size=16),
    legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
    legend_text=element_text(color=INK_SOFT, size=10),
    legend_title=element_text(color=INK, size=10),
)

plot = (
    ggplot()
    + geom_path(
        aes(x="lon", y="lat", color="progress"),
        data=df,
        size=1.5,
        alpha=0.9,
        tooltips=layer_tooltips()
        .line("Progress|@progress%")
        .line("Lat|@lat")
        .line("Lon|@lon")
        .format("@progress", ".1f")
        .format("@lat", ".4f")
        .format("@lon", ".4f"),
    )
    + geom_point(
        aes(x="lon", y="lat", fill="marker"),
        data=markers_df,
        size=5,
        shape=21,
        stroke=2,
        color="white",
        tooltips=layer_tooltips().line("@marker"),
    )
    + scale_color_viridis(name="Progress (%)")
    + scale_fill_manual(values={"Start": "#009E73", "End": "#C475FD"}, name="Markers")
    + labs(x="Longitude (°)", y="Latitude (°)", title="map-route-path · python · letsplot · anyplot.ai")
    + theme_minimal()
    + anyplot_theme
    + coord_fixed(ratio=1.0)
    + ggsize(800, 450)
)

# Save
ggsave(plot, f"plot-{THEME}.png", path=".", scale=4)
ggsave(plot, f"plot-{THEME}.html", path=".")

Part of Route Path Map on anyplot.ai.
