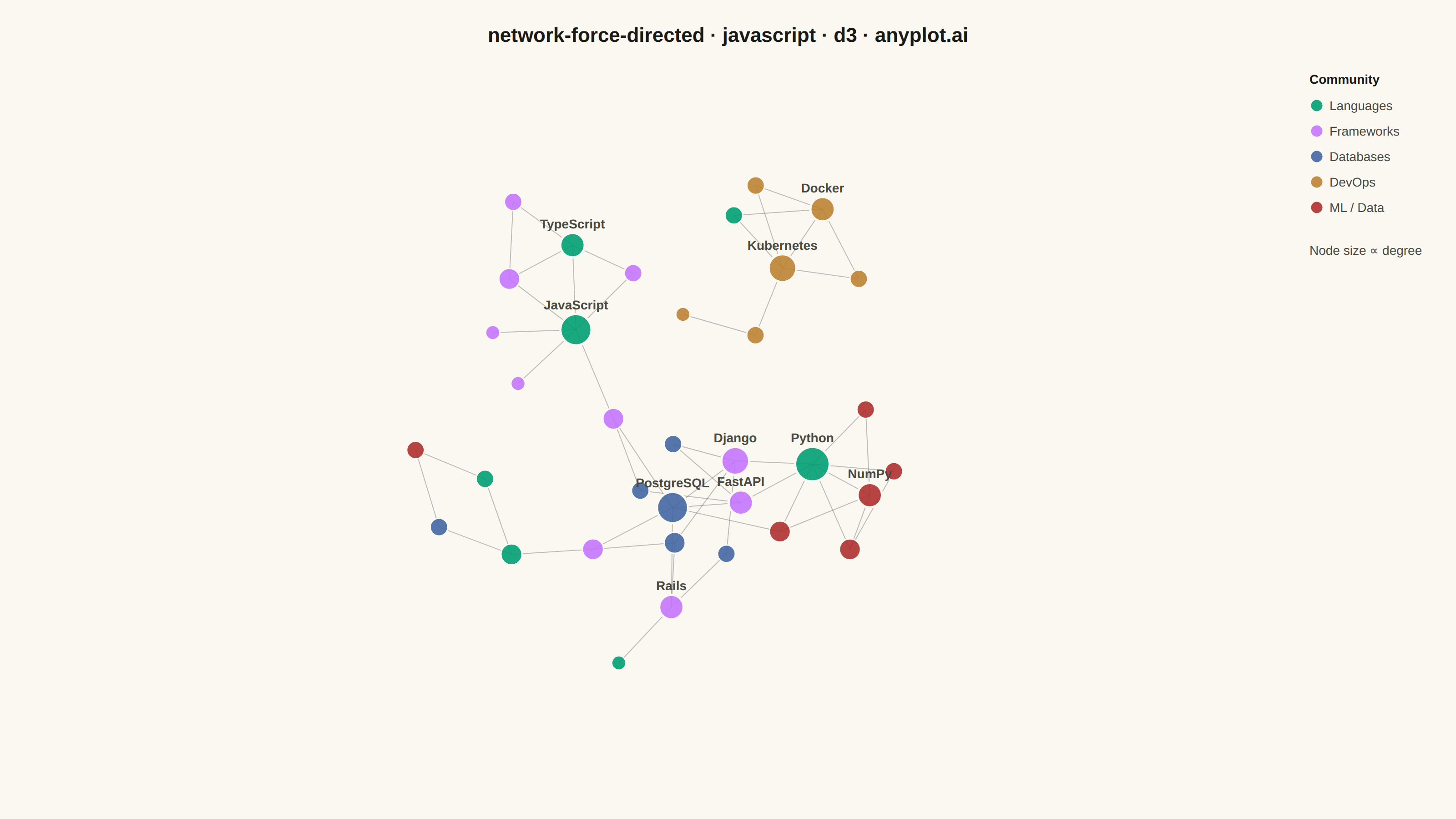

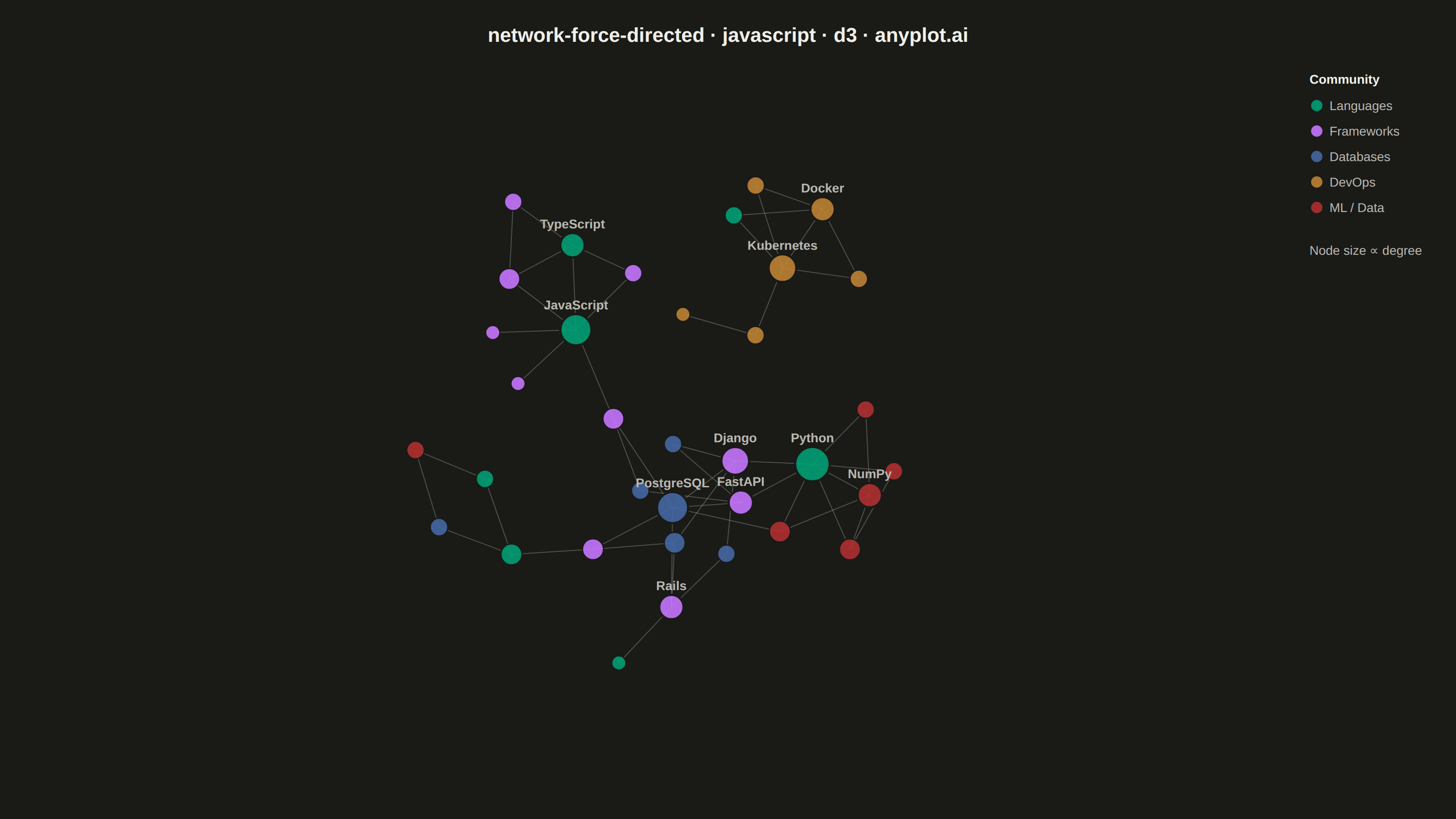

A force-directed graph uses physics simulation to position nodes, where connected nodes attract each other and all nodes repel. This creates organic layouts that naturally reveal community structure, central nodes, and overall network topology without manual positioning. The algorithm balances attractive forces (edges pulling connected nodes together) and repulsive forces (nodes pushing apart) until reaching equilibrium.
// anyplot.ai
// network-force-directed: Force-Directed Graph
// Library: d3 7.9.0 | JavaScript 22.23.0
// Quality: 87/100 | Created: 2026-07-01
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
const margin = { top: 72, right: 185, bottom: 60, left: 60 };
const iw = width - margin.left - margin.right;
const ih = height - margin.top - margin.bottom;
// --- Data: Tech Ecosystem Dependency Network (35 nodes, 51 edges) ---
const GROUPS = ["Languages", "Frameworks", "Databases", "DevOps", "ML / Data"];
const rawNodes = [
{ id: "Python", group: 0 }, { id: "JavaScript", group: 0 },
{ id: "TypeScript", group: 0 }, { id: "Java", group: 0 },
{ id: "Go", group: 0 }, { id: "Scala", group: 0 },
{ id: "Ruby", group: 0 },
{ id: "React", group: 1 }, { id: "Angular", group: 1 },
{ id: "Vue", group: 1 }, { id: "Django", group: 1 },
{ id: "FastAPI", group: 1 }, { id: "Spring", group: 1 },
{ id: "Express", group: 1 }, { id: "Rails", group: 1 },
{ id: "Next.js", group: 1 }, { id: "Svelte", group: 1 },
{ id: "PostgreSQL", group: 2 }, { id: "MySQL", group: 2 },
{ id: "MongoDB", group: 2 }, { id: "Redis", group: 2 },
{ id: "SQLite", group: 2 }, { id: "Elasticsearch", group: 2 },
{ id: "Docker", group: 3 }, { id: "Kubernetes", group: 3 },
{ id: "AWS", group: 3 }, { id: "GitHub", group: 3 },
{ id: "Terraform", group: 3 }, { id: "Nginx", group: 3 },
{ id: "TensorFlow", group: 4 }, { id: "PyTorch", group: 4 },
{ id: "NumPy", group: 4 }, { id: "Pandas", group: 4 },
{ id: "Spark", group: 4 }, { id: "Keras", group: 4 },
];
const rawLinks = [
{ source: "Python", target: "Django" },
{ source: "Python", target: "FastAPI" },
{ source: "Python", target: "TensorFlow" },
{ source: "Python", target: "PyTorch" },
{ source: "Python", target: "NumPy" },
{ source: "Python", target: "Pandas" },
{ source: "Python", target: "Keras" },
{ source: "JavaScript", target: "React" },
{ source: "JavaScript", target: "Angular" },
{ source: "JavaScript", target: "Vue" },
{ source: "JavaScript", target: "Express" },
{ source: "JavaScript", target: "Svelte" },
{ source: "JavaScript", target: "TypeScript" },
{ source: "TypeScript", target: "React" },
{ source: "TypeScript", target: "Angular" },
{ source: "TypeScript", target: "Next.js" },
{ source: "React", target: "Next.js" },
{ source: "Java", target: "Spring" },
{ source: "Java", target: "Elasticsearch" },
{ source: "Scala", target: "Spark" },
{ source: "Scala", target: "Java" },
{ source: "Go", target: "Docker" },
{ source: "Go", target: "Kubernetes" },
{ source: "Ruby", target: "Rails" },
{ source: "Django", target: "PostgreSQL" },
{ source: "Django", target: "MySQL" },
{ source: "Django", target: "SQLite" },
{ source: "Django", target: "Redis" },
{ source: "FastAPI", target: "PostgreSQL" },
{ source: "FastAPI", target: "MongoDB" },
{ source: "FastAPI", target: "Redis" },
{ source: "Spring", target: "PostgreSQL" },
{ source: "Spring", target: "MySQL" },
{ source: "Express", target: "MongoDB" },
{ source: "Express", target: "PostgreSQL" },
{ source: "Rails", target: "PostgreSQL" },
{ source: "Rails", target: "MySQL" },
{ source: "Rails", target: "SQLite" },
{ source: "Docker", target: "Kubernetes" },
{ source: "Kubernetes", target: "AWS" },
{ source: "Terraform", target: "AWS" },
{ source: "Nginx", target: "Docker" },
{ source: "Nginx", target: "Kubernetes" },
{ source: "GitHub", target: "Docker" },
{ source: "GitHub", target: "Kubernetes" },
{ source: "TensorFlow", target: "Keras" },
{ source: "TensorFlow", target: "NumPy" },
{ source: "PyTorch", target: "NumPy" },
{ source: "Pandas", target: "NumPy" },
{ source: "Pandas", target: "PostgreSQL" },
{ source: "Spark", target: "Elasticsearch" },
];
// --- Degree computation (before simulation mutates links) ---
const degMap = new Map(rawNodes.map(n => [n.id, 0]));
rawLinks.forEach(({ source, target }) => {
degMap.set(source, degMap.get(source) + 1);
degMap.set(target, degMap.get(target) + 1);
});
const nodes = rawNodes.map(n => ({ ...n, degree: degMap.get(n.id) }));
const links = rawLinks.map(l => ({ ...l }));
const maxDeg = d3.max(nodes, d => d.degree);
const nodeRadius = d => 6 + (d.degree / maxDeg) * 13;
// --- Force simulation (run synchronously for static render) ---
const sim = d3.forceSimulation(nodes)
.force("link", d3.forceLink(links).id(d => d.id).distance(80).strength(0.7))
.force("charge", d3.forceManyBody().strength(-280))
.force("center", d3.forceCenter(iw / 2, ih / 2))
.force("x", d3.forceX(iw / 2).strength(0.10))
.force("y", d3.forceY(ih / 2).strength(0.10))
.force("collide", d3.forceCollide().radius(d => nodeRadius(d) + 5).iterations(2))
.stop();
for (let i = 0; i < 300; i++) sim.tick();
nodes.forEach(n => {
const r = nodeRadius(n);
n.x = Math.max(r + 2, Math.min(iw - r - 2, n.x));
n.y = Math.max(r + 2, Math.min(ih - r - 2, n.y));
});
// --- SVG mount ---
const svg = d3.select("#container").append("svg")
.attr("width", width).attr("height", height);
const g = svg.append("g").attr("transform", `translate(${margin.left},${margin.top})`);
// --- Edges ---
g.append("g")
.selectAll("line")
.data(links)
.join("line")
.attr("x1", d => d.source.x).attr("y1", d => d.source.y)
.attr("x2", d => d.target.x).attr("y2", d => d.target.y)
.attr("stroke", t.inkSoft)
.attr("stroke-width", 1)
.attr("stroke-opacity", 0.35);
// --- Nodes (hub nodes get thicker stroke for visual emphasis) ---
g.append("g")
.selectAll("circle")
.data(nodes)
.join("circle")
.attr("cx", d => d.x)
.attr("cy", d => d.y)
.attr("r", d => nodeRadius(d))
.attr("fill", d => t.palette[d.group])
.attr("stroke", t.pageBg)
.attr("stroke-width", d => d.degree >= 4 ? 2.5 : 1.5)
.attr("fill-opacity", 0.9);
// --- Labels for hub nodes (degree >= 4) ---
g.append("g")
.selectAll("text")
.data(nodes.filter(d => d.degree >= 4))
.join("text")
.attr("x", d => d.x)
.attr("y", d => d.y - nodeRadius(d) - 5)
.attr("text-anchor", "middle")
.attr("fill", t.inkSoft)
.style("font-size", "14px")
.style("font-weight", "600")
.text(d => d.id);
// --- Legend ---
const lgX = margin.left + iw + 24;
const lgY = margin.top + 20;
const lgG = svg.append("g").attr("transform", `translate(${lgX},${lgY})`);
lgG.append("text")
.attr("x", 0).attr("y", 0)
.attr("fill", t.ink)
.style("font-size", "14px")
.style("font-weight", "600")
.text("Community");
GROUPS.forEach((name, i) => {
const row = lgG.append("g").attr("transform", `translate(0,${24 + i * 28})`);
row.append("circle")
.attr("cx", 8).attr("cy", 0).attr("r", 7)
.attr("fill", t.palette[i]).attr("fill-opacity", 0.9)
.attr("stroke", t.pageBg).attr("stroke-width", 1.5);
row.append("text")
.attr("x", 22).attr("y", 5)
.attr("fill", t.inkSoft)
.style("font-size", "14px")
.text(name);
});
lgG.append("text")
.attr("x", 0)
.attr("y", 24 + GROUPS.length * 28 + 24)
.attr("fill", t.inkSoft)
.style("font-size", "14px")
.text("Node size ∝ degree");
// --- Title ---
svg.append("text")
.attr("x", width / 2).attr("y", 46)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "22px")
.style("font-weight", "600")
.text("network-force-directed · javascript · d3 · anyplot.ai");
Part of Force-Directed Graph on anyplot.ai.
