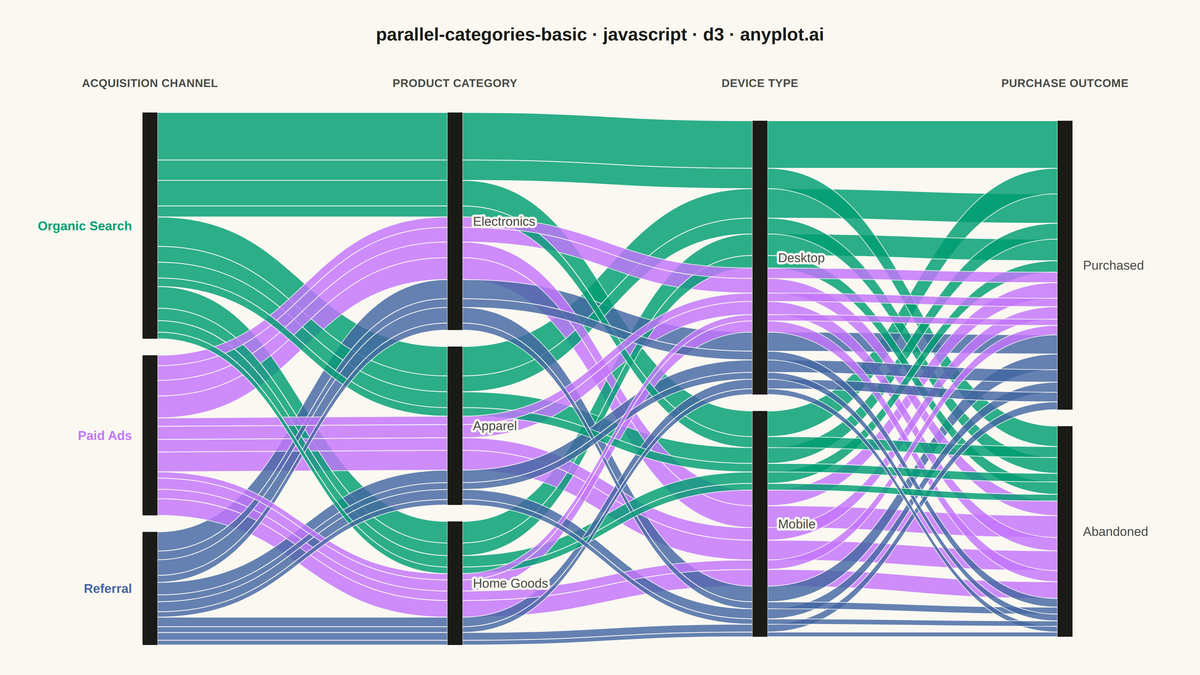

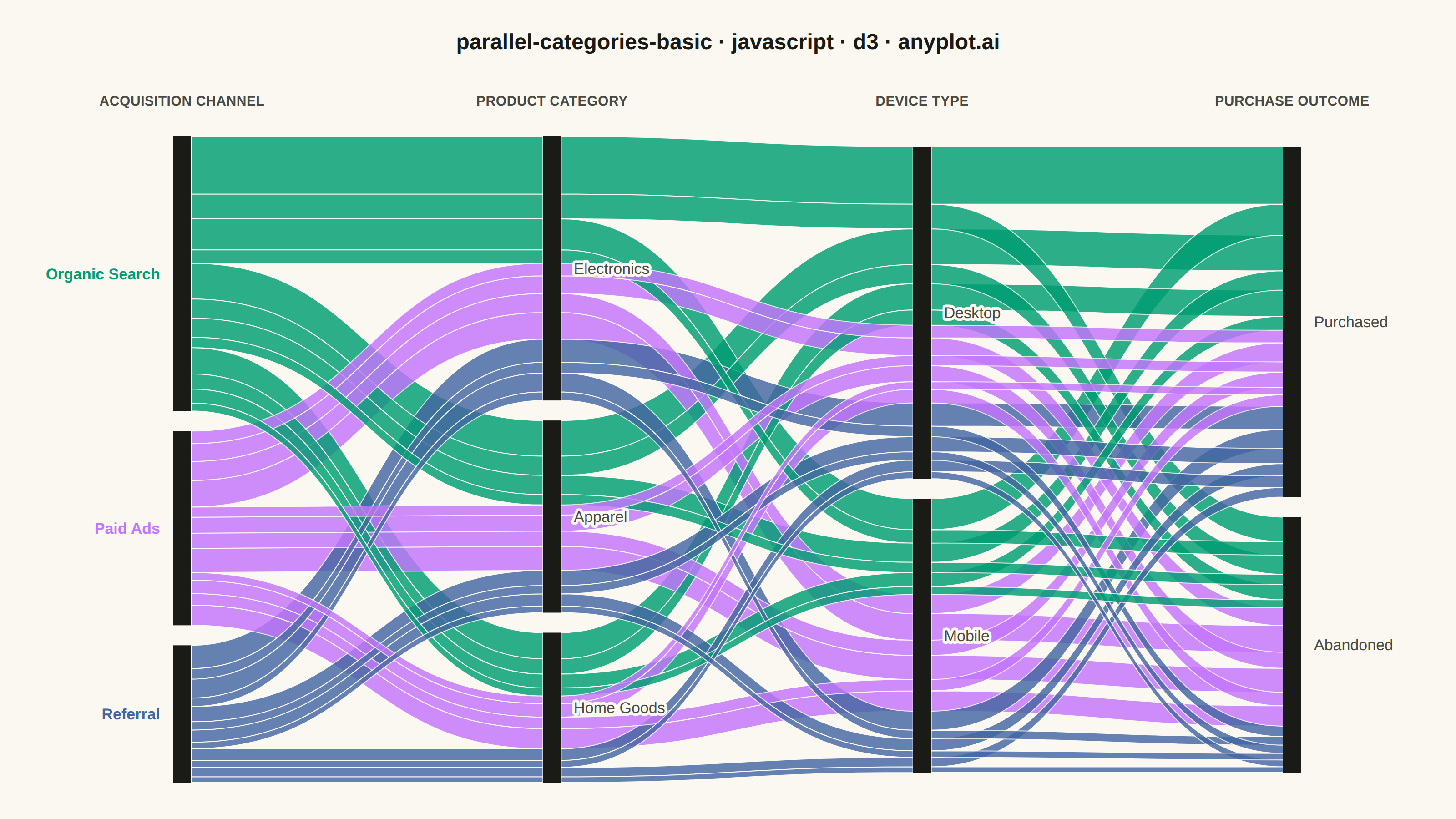

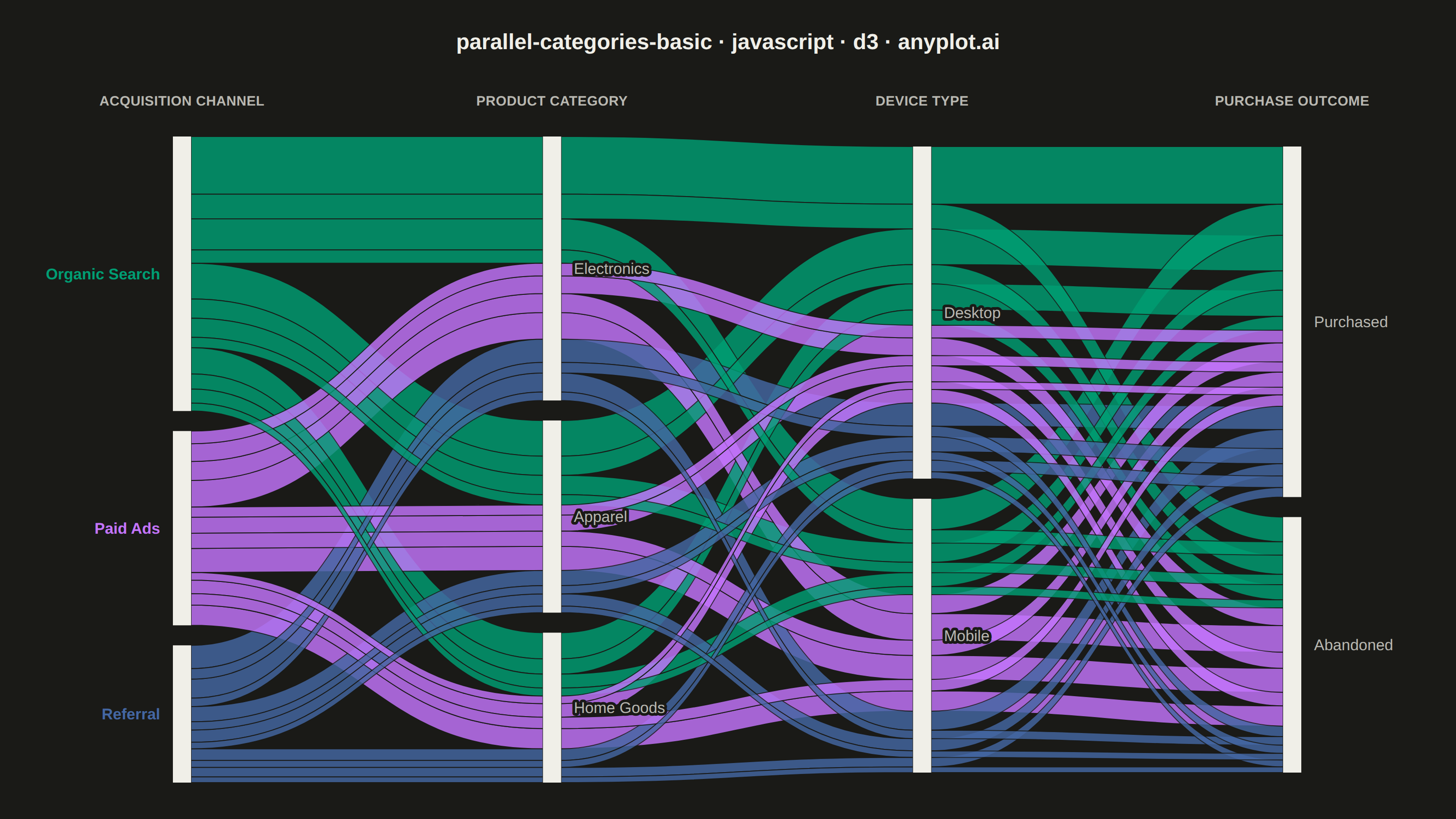

A parallel categories plot visualizes categorical data across multiple dimensions, with vertical axes representing each categorical variable and ribbons connecting categories to show observation flow. Unlike parallel coordinates (which use lines for numeric data), parallel categories use width-proportional ribbons to show counts or frequencies, making it ideal for understanding how categorical values co-occur and flow across multiple classification dimensions.
// anyplot.ai
// parallel-categories-basic: Basic Parallel Categories Plot
// Library: d3 7.9.0 | JavaScript 22.23.2
// Quality: 81/100 | Created: 2026-09-05
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
const margin = { top: 150, right: 190, bottom: 40, left: 190 };
const iw = width - margin.left - margin.right;
const ih = height - margin.top - margin.bottom;
const barWidth = 20;
const nodePadding = 22;
// --- Data: customer journey from acquisition channel through product
// category and device type to purchase outcome (in-memory, deterministic).
// Device counts are a fixed per-channel desktop/mobile split of each
// channel-category-outcome total (Organic Search skews desktop-heavy research
// behavior 65/35, Paid Ads skews mobile 40/60, Referral is closer to even
// 55/45) — no RNG, every count traces back to an explicit ratio. ------------
const dims = [
{ key: "channel", label: "Acquisition Channel", values: ["Organic Search", "Paid Ads", "Referral"] },
{ key: "category", label: "Product Category", values: ["Electronics", "Apparel", "Home Goods"] },
{ key: "device", label: "Device Type", values: ["Desktop", "Mobile"] },
{ key: "outcome", label: "Purchase Outcome", values: ["Purchased", "Abandoned"] },
];
const flows = [
{ channel: "Organic Search", category: "Electronics", device: "Desktop", outcome: "Purchased", count: 273 },
{ channel: "Organic Search", category: "Electronics", device: "Desktop", outcome: "Abandoned", count: 117 },
{ channel: "Organic Search", category: "Electronics", device: "Mobile", outcome: "Purchased", count: 147 },
{ channel: "Organic Search", category: "Electronics", device: "Mobile", outcome: "Abandoned", count: 63 },
{ channel: "Organic Search", category: "Apparel", device: "Desktop", outcome: "Purchased", count: 169 },
{ channel: "Organic Search", category: "Apparel", device: "Desktop", outcome: "Abandoned", count: 91 },
{ channel: "Organic Search", category: "Apparel", device: "Mobile", outcome: "Purchased", count: 91 },
{ channel: "Organic Search", category: "Apparel", device: "Mobile", outcome: "Abandoned", count: 49 },
{ channel: "Organic Search", category: "Home Goods", device: "Desktop", outcome: "Purchased", count: 124 },
{ channel: "Organic Search", category: "Home Goods", device: "Desktop", outcome: "Abandoned", count: 72 },
{ channel: "Organic Search", category: "Home Goods", device: "Mobile", outcome: "Purchased", count: 66 },
{ channel: "Organic Search", category: "Home Goods", device: "Mobile", outcome: "Abandoned", count: 38 },
{ channel: "Paid Ads", category: "Electronics", device: "Desktop", outcome: "Purchased", count: 60 },
{ channel: "Paid Ads", category: "Electronics", device: "Desktop", outcome: "Abandoned", count: 84 },
{ channel: "Paid Ads", category: "Electronics", device: "Mobile", outcome: "Purchased", count: 90 },
{ channel: "Paid Ads", category: "Electronics", device: "Mobile", outcome: "Abandoned", count: 126 },
{ channel: "Paid Ads", category: "Apparel", device: "Desktop", outcome: "Purchased", count: 48 },
{ channel: "Paid Ads", category: "Apparel", device: "Desktop", outcome: "Abandoned", count: 76 },
{ channel: "Paid Ads", category: "Apparel", device: "Mobile", outcome: "Purchased", count: 72 },
{ channel: "Paid Ads", category: "Apparel", device: "Mobile", outcome: "Abandoned", count: 114 },
{ channel: "Paid Ads", category: "Home Goods", device: "Desktop", outcome: "Purchased", count: 36 },
{ channel: "Paid Ads", category: "Home Goods", device: "Desktop", outcome: "Abandoned", count: 64 },
{ channel: "Paid Ads", category: "Home Goods", device: "Mobile", outcome: "Purchased", count: 54 },
{ channel: "Paid Ads", category: "Home Goods", device: "Mobile", outcome: "Abandoned", count: 96 },
{ channel: "Referral", category: "Electronics", device: "Desktop", outcome: "Purchased", count: 110 },
{ channel: "Referral", category: "Electronics", device: "Desktop", outcome: "Abandoned", count: 50 },
{ channel: "Referral", category: "Electronics", device: "Mobile", outcome: "Purchased", count: 90 },
{ channel: "Referral", category: "Electronics", device: "Mobile", outcome: "Abandoned", count: 40 },
{ channel: "Referral", category: "Apparel", device: "Desktop", outcome: "Purchased", count: 72 },
{ channel: "Referral", category: "Apparel", device: "Desktop", outcome: "Abandoned", count: 39 },
{ channel: "Referral", category: "Apparel", device: "Mobile", outcome: "Purchased", count: 58 },
{ channel: "Referral", category: "Apparel", device: "Mobile", outcome: "Abandoned", count: 31 },
{ channel: "Referral", category: "Home Goods", device: "Desktop", outcome: "Purchased", count: 55 },
{ channel: "Referral", category: "Home Goods", device: "Desktop", outcome: "Abandoned", count: 33 },
{ channel: "Referral", category: "Home Goods", device: "Mobile", outcome: "Purchased", count: 45 },
{ channel: "Referral", category: "Home Goods", device: "Mobile", outcome: "Abandoned", count: 27 },
];
const totalCount = flows.reduce((s, f) => s + f.count, 0);
const byIndex = (list) => (v) => list.indexOf(v);
const ixOf = dims.map((d) => byIndex(d.values));
// A single global dimension-order sort (channel -> category -> device ->
// outcome) drives every node's internal stacking below, so a flow keeps the
// same relative vertical slot on both faces of every interior node instead
// of twisting inside the node bar — the source of most avoidable crossings.
const flowOrder = [...flows].sort((a, b) => {
for (let i = 0; i < dims.length; i++) {
const diff = ixOf[i](a[dims[i].key]) - ixOf[i](b[dims[i].key]);
if (diff !== 0) return diff;
}
return 0;
});
// --- Column layout: a shared pixels-per-unit scale keeps a flow's ribbon the
// same height on both ends it touches, regardless of how many values share
// that column ----------------------------------------------------------------
function columnTotals(values, key) {
return values.map((v) => ({
value: v,
total: flows.filter((f) => f[key] === v).reduce((s, f) => s + f.count, 0),
}));
}
function rawKy(n) {
return (ih - nodePadding * (n - 1)) / totalCount;
}
const ky = Math.min(...dims.map((d) => rawKy(d.values.length)));
function layoutColumn(values, key) {
const items = columnTotals(values, key);
const contentHeight = items.reduce((s, d) => s + d.total * ky, 0) + nodePadding * (items.length - 1);
let y = margin.top + (ih - contentHeight) / 2;
const nodes = new Map();
for (const d of items) {
const h = d.total * ky;
nodes.set(d.value, { y0: y, y1: y + h, total: d.total });
y += h + nodePadding;
}
return nodes;
}
const xs = dims.map((_, i) => margin.left + (iw * i) / (dims.length - 1));
const dimNodes = dims.map((d) => layoutColumn(d.values, d.key));
// Stack every flow within each dimension's nodes, in the shared global order,
// recording the y-band it occupies at that dimension — reused as the link
// target on its left and the link source on its right.
for (let i = 0; i < dims.length; i++) {
const key = dims[i].key;
const cursor = new Map(dims[i].values.map((v) => [v, dimNodes[i].get(v).y0]));
for (const f of flowOrder) {
const v = f[key];
const y0 = cursor.get(v);
const y1 = y0 + f.count * ky;
f.bandY0 = f.bandY0 || [];
f.bandY1 = f.bandY1 || [];
f.bandY0[i] = y0;
f.bandY1[i] = y1;
cursor.set(v, y1);
}
}
// --- Ribbon shape: two cubic-bezier edges between a source band and a target
// band, filled as a single closed path ---------------------------------------
function ribbonPath(xa, xb, sy0, sy1, ty0, ty1) {
const xm = (xa + xb) / 2;
return `M${xa},${sy0}C${xm},${sy0} ${xm},${ty0} ${xb},${ty0}L${xb},${ty1}C${xm},${ty1} ${xm},${sy1} ${xa},${sy1}Z`;
}
// --- SVG mount ----------------------------------------------------------------
const svg = d3.select("#container").append("svg").attr("width", width).attr("height", height);
const color = d3.scaleOrdinal().domain(dims[0].values).range(t.palette.slice(0, dims[0].values.length));
// Ribbons (drawn first, nodes sit on top of their edges). Largest flows first
// so the smaller, easier-to-lose ribbons draw on top at crossing points —
// combined with the higher opacity below this keeps multi-channel overlaps
// readable instead of blending into a muddy composite color.
const drawOrder = [...flows].sort((a, b) => b.count - a.count);
for (let i = 0; i < dims.length - 1; i++) {
const xa = xs[i] + barWidth;
const xb = xs[i + 1];
svg
.selectAll(`.ribbon-${i}`)
.data(drawOrder)
.join("path")
.attr("d", (f) => ribbonPath(xa, xb, f.bandY0[i], f.bandY1[i], f.bandY0[i + 1], f.bandY1[i + 1]))
.attr("fill", (f) => color(f.channel))
.attr("stroke", t.pageBg)
.attr("stroke-width", 1)
.attr("opacity", 0.82);
}
// Node bars: theme-adaptive neutral anchor — these represent structural
// totals, not a categorical series, so they stay ink-colored rather than
// pulling another Imprint hue.
for (let i = 0; i < dims.length; i++) {
const dim = dims[i];
const nodes = dimNodes[i];
const isFirst = i === 0;
const x = xs[i];
svg
.append("g")
.selectAll("rect")
.data(dim.values)
.join("rect")
.attr("x", x)
.attr("y", (v) => nodes.get(v).y0)
.attr("width", barWidth)
.attr("height", (v) => nodes.get(v).y1 - nodes.get(v).y0)
.attr("fill", t.ink);
svg
.append("g")
.selectAll("text")
.data(dim.values)
.join("text")
.attr("x", isFirst ? x - 14 : x + barWidth + 14)
.attr("y", (v) => (nodes.get(v).y0 + nodes.get(v).y1) / 2)
.attr("dy", "0.35em")
.attr("text-anchor", isFirst ? "end" : "start")
.style("font-size", "17px")
.style("font-weight", isFirst ? "600" : "400")
.style("paint-order", "stroke")
.attr("stroke", t.pageBg)
.attr("stroke-width", 6)
.attr("stroke-linejoin", "round")
.attr("fill", isFirst ? (v) => color(v) : t.inkSoft)
.text((v) => v);
svg
.append("text")
.attr("x", x + barWidth / 2)
.attr("y", margin.top - 34)
.attr("text-anchor", "middle")
.style("font-size", "15px")
.style("font-weight", "600")
.style("letter-spacing", "0.02em")
.attr("fill", t.inkSoft)
.text(dim.label.toUpperCase());
}
// --- Title --------------------------------------------------------------------
svg
.append("text")
.attr("x", width / 2)
.attr("y", 54)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "24px")
.style("font-weight", "600")
.text("parallel-categories-basic · javascript · d3 · anyplot.ai");
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/parallel-categories-basic/d3/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "parallel-categories-basic",
"language": "javascript",
"library": "d3",
"page": "https://anyplot.ai/parallel-categories-basic/javascript/d3",
"hub": "https://anyplot.ai/parallel-categories-basic",
"code_json": "https://api.anyplot.ai/specs/parallel-categories-basic/d3/code",
"spec_json": "https://api.anyplot.ai/specs/parallel-categories-basic",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/parallel-categories-basic/javascript/d3/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/parallel-categories-basic/javascript/d3/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/parallel-categories-basic/javascript/d3/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/parallel-categories-basic/javascript/d3/plot-dark.html",
"quality_score": 81.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Basic Parallel Categories Plot on anyplot.ai.
