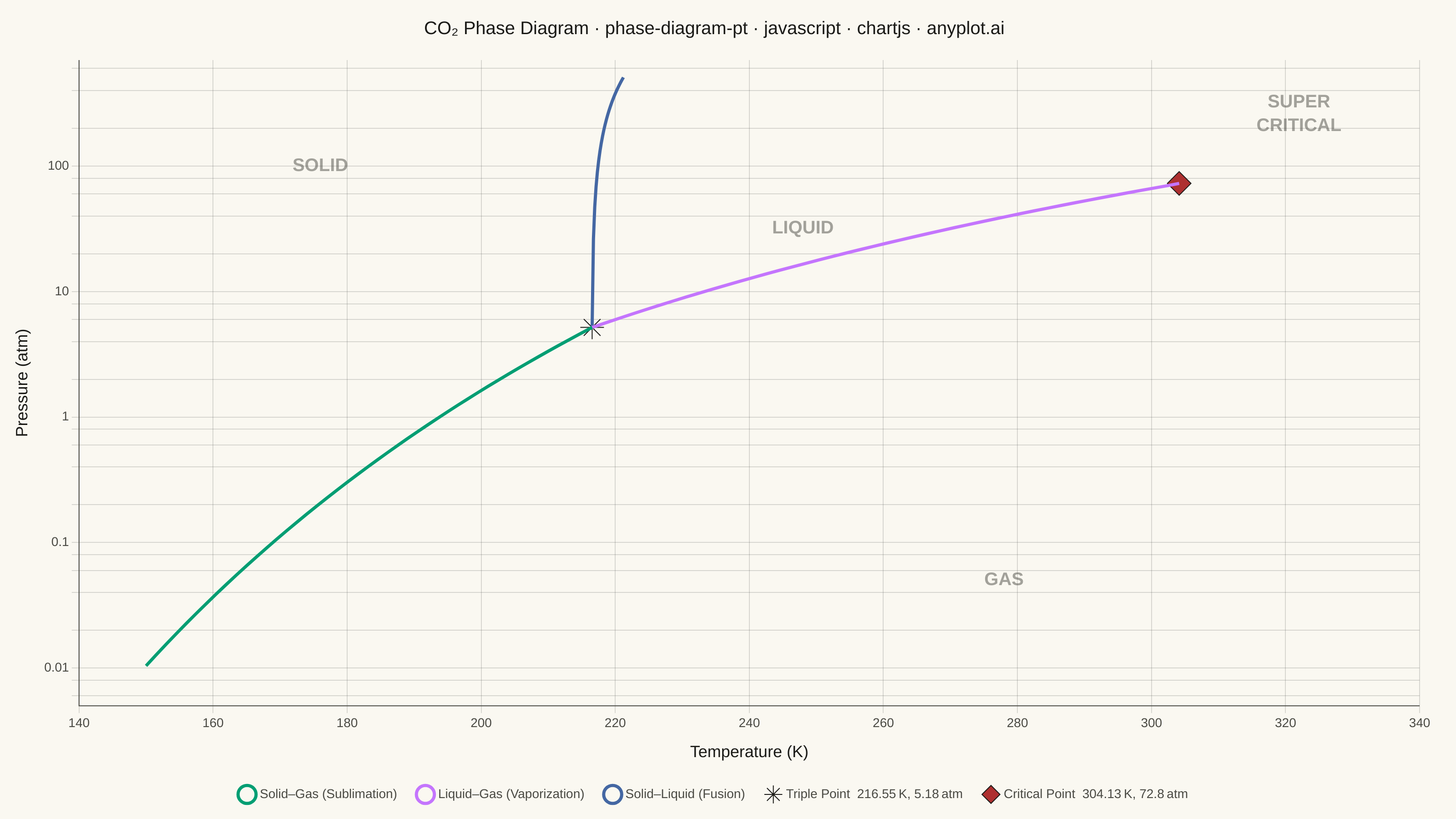

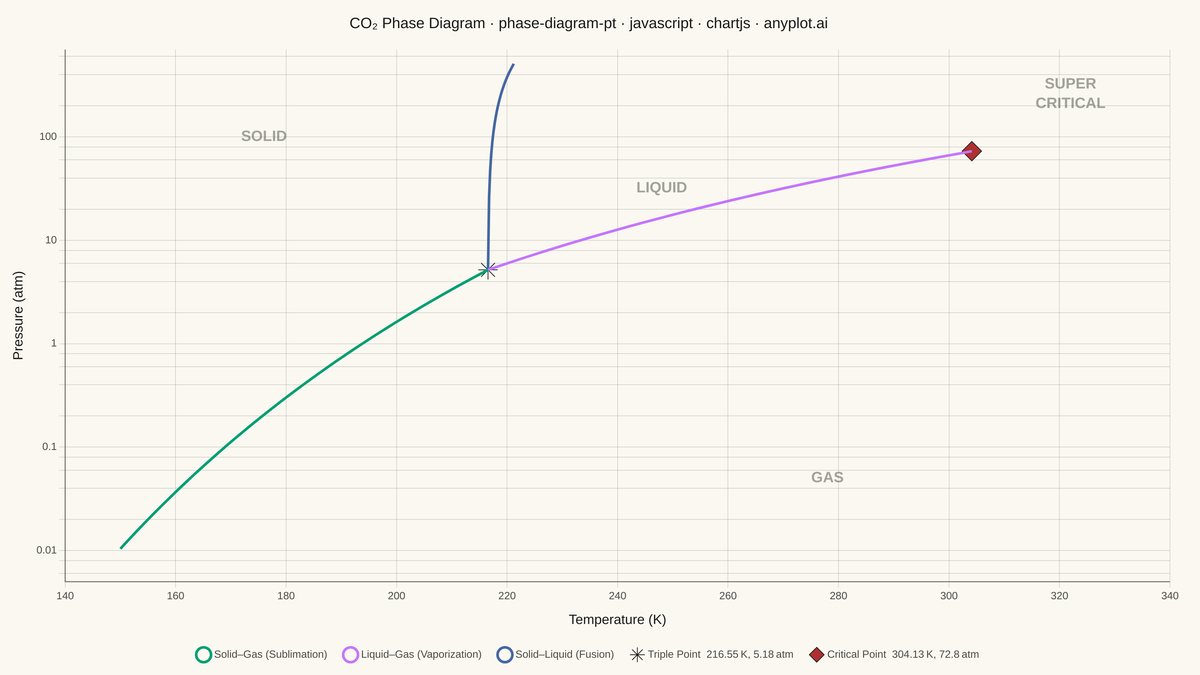

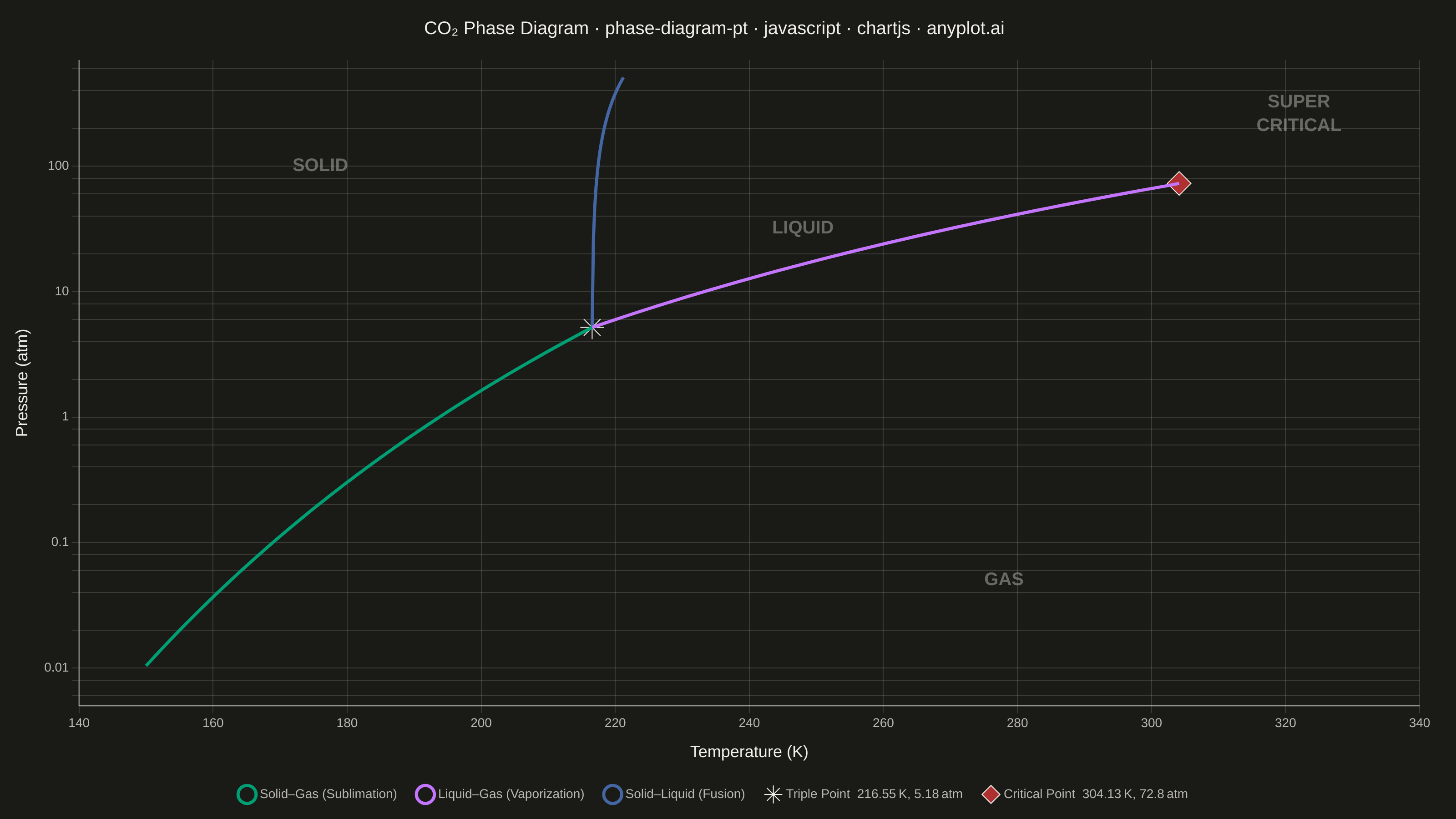

A pressure-temperature (P-T) phase diagram showing the boundaries between solid, liquid, and gas phases of a substance. The diagram includes the triple point where all three phases coexist and the critical point beyond which the liquid-gas distinction vanishes. This is one of the most fundamental diagrams in chemistry and physics, essential for understanding phase transitions and states of matter.
// anyplot.ai
// phase-diagram-pt: Thermodynamic Phase Diagram (Pressure-Temperature)
// Library: chartjs 4.4.7 | JavaScript 22.22.3
// Quality: 91/100 | Created: 2026-06-08
const t = window.ANYPLOT_TOKENS;
// CO2 phase diagram constants (pressures in atm, temperatures in K)
const R = 8.314;
const T_tp = 216.55, P_tp = 5.18; // triple point
const T_cp = 304.13, P_cp = 72.8; // critical point
const H_sub = 25200; // J/mol — sublimation enthalpy
const H_vap = 16500; // J/mol — effective vaporization enthalpy
const dPdT = 108; // atm/K — CO2 fusion curve slope (positive)
// Sublimation curve (solid ↔ gas): 150 K → triple point
const sublimation = [];
for (let T = 150; T <= T_tp; T += 1.5) {
sublimation.push({ x: T, y: P_tp * Math.exp((H_sub / R) * (1 / T_tp - 1 / T)) });
}
sublimation.push({ x: T_tp, y: P_tp });
// Vaporization curve (liquid ↔ gas): triple point → critical point
const vaporization = [{ x: T_tp, y: P_tp }];
for (let T = T_tp + 2; T <= T_cp; T += 2) {
vaporization.push({ x: T, y: P_tp * Math.exp((H_vap / R) * (1 / T_tp - 1 / T)) });
}
vaporization.push({ x: T_cp, y: P_cp });
// Fusion curve (solid ↔ liquid): steep positive slope for CO2
const fusion = [];
for (let i = 0; i <= 24; i++) {
const P = P_tp + i * 21;
fusion.push({ x: T_tp + (P - P_tp) / dPdT, y: P });
}
// Mount canvas
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);
// Plugin: draw phase-region labels directly on the canvas
const regionPlugin = {
id: "phaseRegions",
afterDraw({ ctx, scales: { x, y } }) {
const regions = [
{ lines: ["SOLID"], T: 176, P: 100 },
{ lines: ["LIQUID"], T: 248, P: 32 },
{ lines: ["GAS"], T: 278, P: 0.05 },
{ lines: ["SUPER", "CRITICAL"], T: 322, P: 260 },
];
ctx.save();
ctx.font = "bold 20px sans-serif";
ctx.textAlign = "center";
ctx.textBaseline = "middle";
ctx.globalAlpha = 0.5;
ctx.fillStyle = t.inkSoft;
const lineH = 26;
for (const { lines, T, P } of regions) {
const px = x.getPixelForValue(T);
const py = y.getPixelForValue(P);
const offset = (lines.length - 1) * lineH / 2;
lines.forEach((line, i) => ctx.fillText(line, px, py - offset + i * lineH));
}
ctx.restore();
},
};
// Plugin: draw only bottom + left border lines (L-shape)
const lFramePlugin = {
id: "lFrame",
afterDraw({ ctx, chartArea: { top, right, bottom, left } }) {
ctx.save();
ctx.strokeStyle = t.inkSoft;
ctx.lineWidth = 1;
ctx.beginPath();
ctx.moveTo(left, top);
ctx.lineTo(left, bottom);
ctx.lineTo(right, bottom);
ctx.stroke();
ctx.restore();
},
};
const title = "CO₂ Phase Diagram · phase-diagram-pt · javascript · chartjs · anyplot.ai";
const titleSize = Math.max(16, Math.round(22 * 67 / title.length));
new Chart(canvas, {
type: "scatter",
plugins: [regionPlugin, lFramePlugin],
data: {
datasets: [
{
label: "Solid–Gas (Sublimation)",
data: sublimation,
borderColor: t.palette[0],
backgroundColor: "transparent",
showLine: true,
borderWidth: 3.5,
pointRadius: 0,
},
{
label: "Liquid–Gas (Vaporization)",
data: vaporization,
borderColor: t.palette[1],
backgroundColor: "transparent",
showLine: true,
borderWidth: 3.5,
pointRadius: 0,
},
{
label: "Solid–Liquid (Fusion)",
data: fusion,
borderColor: t.palette[2],
backgroundColor: "transparent",
showLine: true,
borderWidth: 3.5,
pointRadius: 0,
},
{
label: `Triple Point ${T_tp} K, ${P_tp} atm`,
data: [{ x: T_tp, y: P_tp }],
backgroundColor: t.palette[3],
borderColor: t.ink,
borderWidth: 1,
pointRadius: 13,
pointHoverRadius: 15,
pointStyle: "star",
showLine: false,
},
{
label: `Critical Point ${T_cp} K, ${P_cp} atm`,
data: [{ x: T_cp, y: P_cp }],
backgroundColor: t.palette[4],
borderColor: t.ink,
borderWidth: 1,
pointRadius: 13,
pointHoverRadius: 15,
pointStyle: "rectRot",
showLine: false,
},
],
},
options: {
responsive: true,
maintainAspectRatio: false,
animation: false,
layout: { padding: { top: 10, right: 40, bottom: 10, left: 10 } },
plugins: {
title: {
display: true,
text: title,
color: t.ink,
font: { size: titleSize, weight: "500" },
padding: { top: 10, bottom: 22 },
},
legend: {
position: "bottom",
labels: {
color: t.inkSoft,
font: { size: 14 },
usePointStyle: true,
padding: 24,
boxWidth: 20,
},
},
},
scales: {
x: {
type: "linear",
min: 140,
max: 340,
title: {
display: true,
text: "Temperature (K)",
color: t.ink,
font: { size: 18 },
padding: { top: 10 },
},
ticks: {
color: t.inkSoft,
font: { size: 14 },
stepSize: 20,
},
grid: { color: t.grid },
border: { display: false },
},
y: {
type: "logarithmic",
min: 0.005,
max: 700,
title: {
display: true,
text: "Pressure (atm)",
color: t.ink,
font: { size: 18 },
padding: { bottom: 10 },
},
ticks: {
color: t.inkSoft,
font: { size: 14 },
callback(value) {
const pow = Math.round(Math.log10(value));
const expected = Math.pow(10, pow);
if (Math.abs(value - expected) / expected < 0.002) {
return expected < 1 ? expected.toFixed(-pow) : String(Math.round(expected));
}
return "";
},
},
grid: { color: t.grid },
border: { display: false },
},
},
},
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/phase-diagram-pt/chartjs/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
