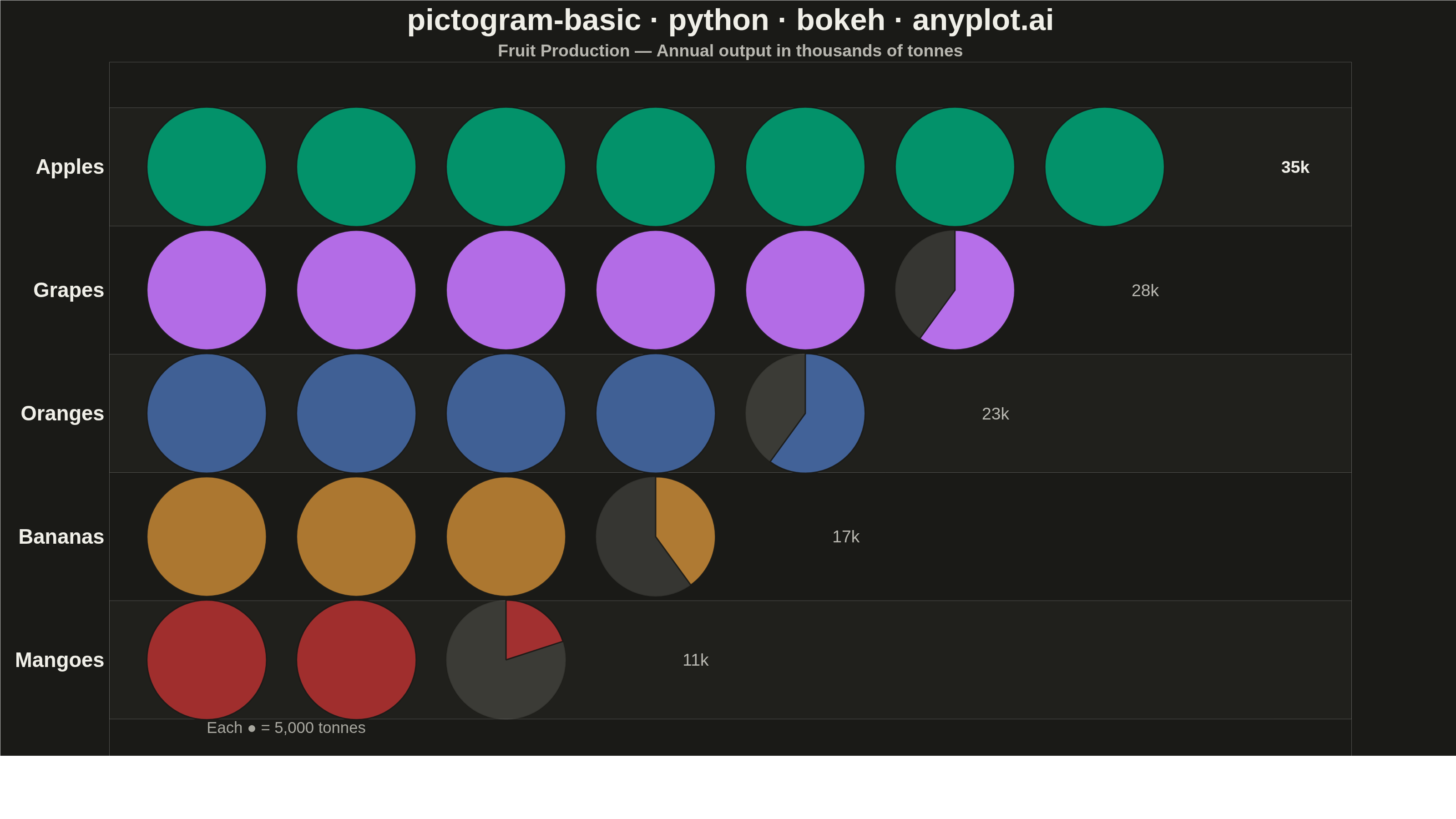

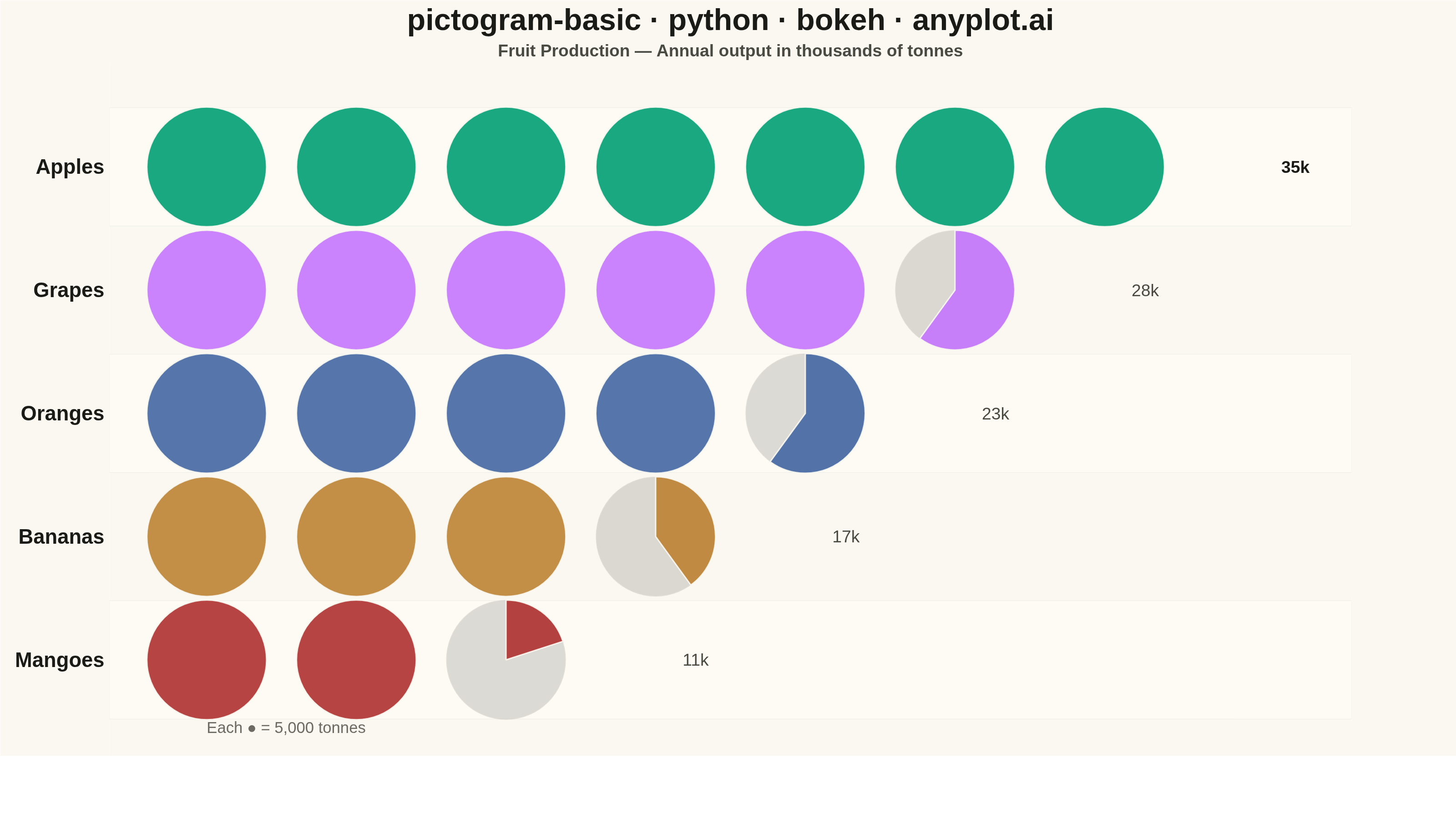

A pictogram chart represents quantities using repeated icons or symbols, where each icon stands for a fixed number of units. Inspired by Otto Neurath's ISOTYPE system, this visualization makes numerical comparisons more intuitive and engaging than plain bar charts. It is especially effective for public-facing data communication and infographics where visual appeal and immediate comprehension are important.
""" anyplot.ai
pictogram-basic: Pictogram Chart (Isotype Visualization)
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 92/100 | Updated: 2026-06-03
"""
import base64
import os
import sys
import time
from pathlib import Path
# Prevent this file (bokeh.py) from shadowing the real bokeh package
_script_dir = os.path.dirname(os.path.abspath(__file__))
sys.path = [p for p in sys.path if os.path.abspath(p) != _script_dir]
import numpy as np
from bokeh.io import output_file, save
from bokeh.models import (
BoxAnnotation,
ColumnDataSource,
CustomJSTickFormatter,
FixedTicker,
HoverTool,
Label,
Range1d,
Title,
)
from bokeh.plotting import figure
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
# Theme tokens — Imprint palette, see prompts/default-style-guide.md
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"
# Imprint categorical palette — canonical order, position 1 always first
IMPRINT_PALETTE = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030"]
# Data — fruit production (thousands of tonnes), icon = 5k tonnes
categories = ["Apples", "Oranges", "Bananas", "Grapes", "Mangoes"]
values = [35, 23, 17, 28, 11]
icon_value = 5
# Sort by value descending, assign Imprint colors in ordinal rank order
sorted_data = sorted(zip(categories, values, strict=True), key=lambda x: x[1], reverse=True)
categories = [d[0] for d in sorted_data]
values = [d[1] for d in sorted_data]
colors = IMPRINT_PALETTE[: len(categories)]
# Build icon grid positions
full_x, full_y, full_c, full_cat, full_val = [], [], [], [], []
bg_x, bg_y = [], []
wedge_x, wedge_y, wedge_c, wedge_end = [], [], [], []
n_cats = len(categories)
radius = 0.40
for i, (cat, val, color) in enumerate(zip(categories, values, colors, strict=True)):
n_full = int(val // icon_value)
remainder = val % icon_value
fraction = remainder / icon_value
y = n_cats - 1 - i
for j in range(n_full):
full_x.append(j)
full_y.append(y)
full_c.append(color)
full_cat.append(cat)
full_val.append(f"{val}k tonnes")
if fraction > 0:
bg_x.append(n_full)
bg_y.append(y)
wedge_x.append(n_full)
wedge_y.append(y)
wedge_c.append(color)
wedge_end.append(np.pi / 2 - fraction * 2 * np.pi)
# Figure — canonical landscape 3200×1800, toolbar_location=None is mandatory
max_icons = max(int(np.ceil(v / icon_value)) for v in values)
TITLE = "pictogram-basic · python · bokeh · anyplot.ai"
title_n = len(TITLE)
title_fs = f"{round(50 * min(1.0, 67 / title_n))}pt"
p = figure(
width=3200,
height=1800,
x_range=Range1d(-0.65, max_icons + 0.65),
y_range=Range1d(-0.85, n_cats - 0.15),
toolbar_location=None,
title=TITLE,
min_border_left=240,
min_border_bottom=120,
min_border_top=110,
min_border_right=230,
)
# Subtitle
subtitle = Title(
text="Fruit Production — Annual output in thousands of tonnes",
text_font_size="28pt",
text_color=INK_SOFT,
align="center",
)
p.add_layout(subtitle, "above")
# Alternating row background bands for readability
for i in range(n_cats):
if i % 2 == 0:
band = BoxAnnotation(bottom=i - 0.48, top=i + 0.48, fill_color=ELEVATED_BG, fill_alpha=0.6, level="underlay")
p.add_layout(band)
# Full icons — circles with page-background stroke for definition
full_source = ColumnDataSource(
data={"x": full_x, "y": full_y, "color": full_c, "category": full_cat, "value": full_val}
)
circles = p.circle(
x="x", y="y", radius=radius, source=full_source, color="color", alpha=0.90, line_color=PAGE_BG, line_width=3
)
# Interactive hover tooltip (Bokeh HTML output feature)
hover = HoverTool(renderers=[circles], tooltips=[("Category", "@category"), ("Production", "@value")])
p.add_tools(hover)
# Partial icon backgrounds (muted ghost circles)
if bg_x:
bg_source = ColumnDataSource(data={"x": bg_x, "y": bg_y})
p.circle(
x="x", y="y", radius=radius, source=bg_source, color=INK_SOFT, alpha=0.18, line_color=PAGE_BG, line_width=3
)
# Partial icon wedge fills
wedge_source = ColumnDataSource(data={"x": wedge_x, "y": wedge_y, "color": wedge_c, "end_angle": wedge_end})
p.wedge(
x="x",
y="y",
radius=radius,
start_angle=np.pi / 2,
end_angle="end_angle",
direction="clock",
source=wedge_source,
color="color",
alpha=0.90,
line_color=PAGE_BG,
line_width=3,
)
# Value labels on the right of each row
for i, (_cat, val) in enumerate(zip(categories, values, strict=True)):
y = n_cats - 1 - i
n_icons = int(np.ceil(val / icon_value))
val_label = Label(
x=n_icons + 0.18,
y=y,
text=f"{val:,}k",
text_font_size="28pt",
text_font_style="bold" if i == 0 else "normal",
text_color=INK if i == 0 else INK_SOFT,
text_baseline="middle",
text_align="left",
x_units="data",
y_units="data",
)
p.add_layout(val_label)
# Legend key
legend_label = Label(
x=0,
y=-0.62,
text="Each ● = 5,000 tonnes",
text_font_size="26pt",
text_color=INK_MUTED,
x_units="data",
y_units="data",
)
p.add_layout(legend_label)
# Title styling
p.title.text_font_size = title_fs
p.title.align = "center"
p.title.text_color = INK
# Y-axis: category labels
cat_labels = [categories[n_cats - 1 - i] for i in range(n_cats)]
p.yaxis.ticker = FixedTicker(ticks=list(range(n_cats)))
p.yaxis.formatter = CustomJSTickFormatter(args={"labels": cat_labels}, code="return labels[tick] || '';")
p.yaxis.major_label_text_font_size = "34pt"
p.yaxis.major_label_text_font_style = "bold"
p.yaxis.major_label_text_color = INK
# X-axis: hidden (icon count readable from row widths)
p.xaxis.visible = False
# Remove spines and grid — clean isotype layout
p.outline_line_color = None
p.grid.grid_line_color = None
p.xaxis.axis_line_color = None
p.yaxis.axis_line_color = None
p.yaxis.major_tick_line_color = None
p.yaxis.minor_tick_line_color = None
# Theme-adaptive background
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
# Save interactive HTML, then screenshot with Selenium (export_png unavailable on this runner)
output_file(f"plot-{THEME}.html")
save(p)
W, H = 3200, 1800
opts = Options()
for arg in (
"--headless=new",
"--no-sandbox",
"--disable-dev-shm-usage",
"--disable-gpu",
f"--window-size={W},{H}",
"--hide-scrollbars",
):
opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)
# Use CDP clip to get exactly W×H pixels regardless of Chrome viewport overhead
png_data = driver.execute_cdp_cmd(
"Page.captureScreenshot", {"format": "png", "clip": {"x": 0, "y": 0, "width": W, "height": H, "scale": 1}}
)
with open(f"plot-{THEME}.png", "wb") as f:
f.write(base64.b64decode(png_data["data"]))
driver.quit()
Part of Pictogram Chart (Isotype Visualization) on anyplot.ai.
