Point Estimate Plot — Makie.jl

A point estimate plot displays central tendency values (means, medians, or other estimates) with confidence intervals or error bars for each category. Each point represents the estimate, and the lines extending from it show the uncertainty range.

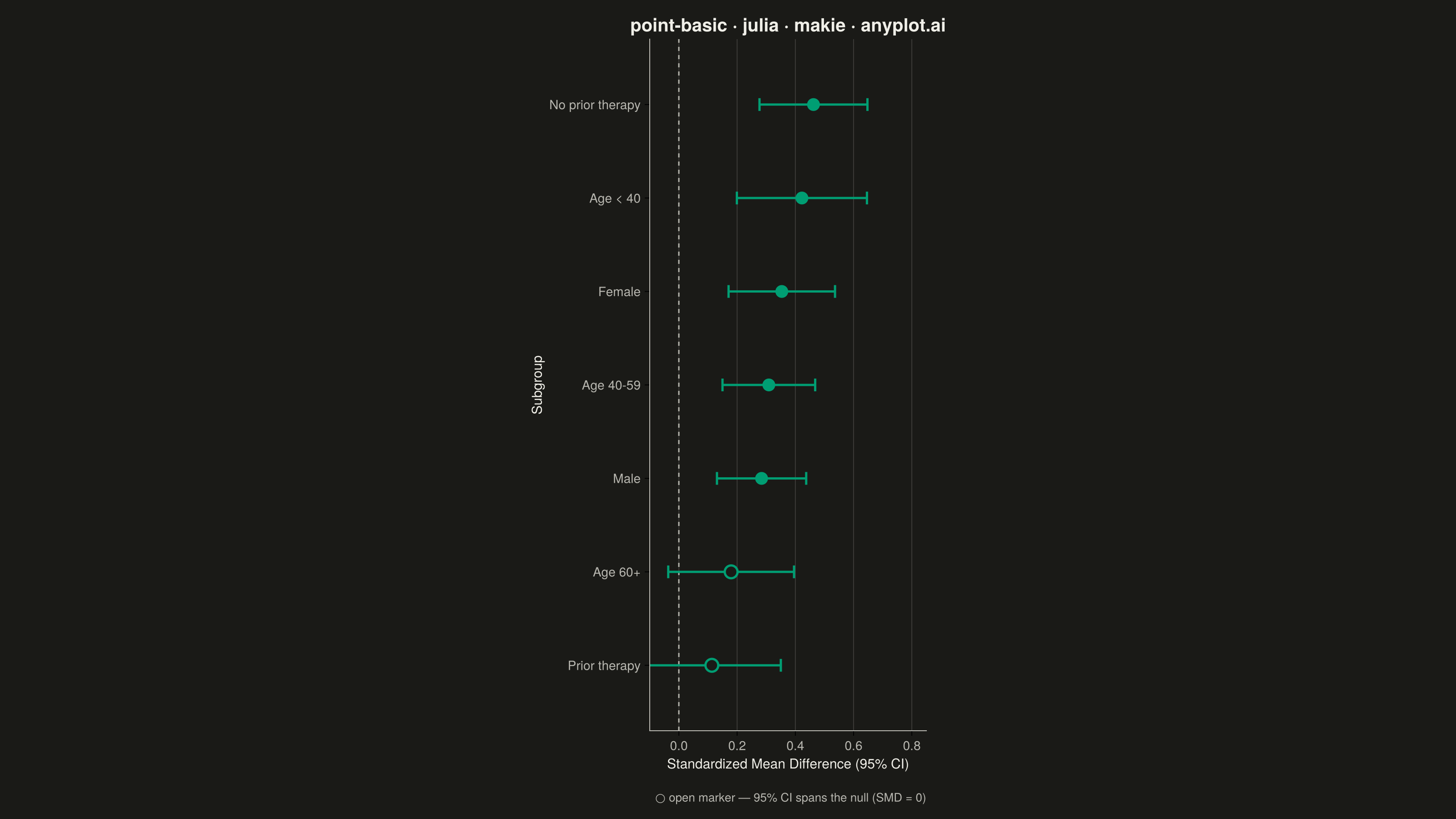

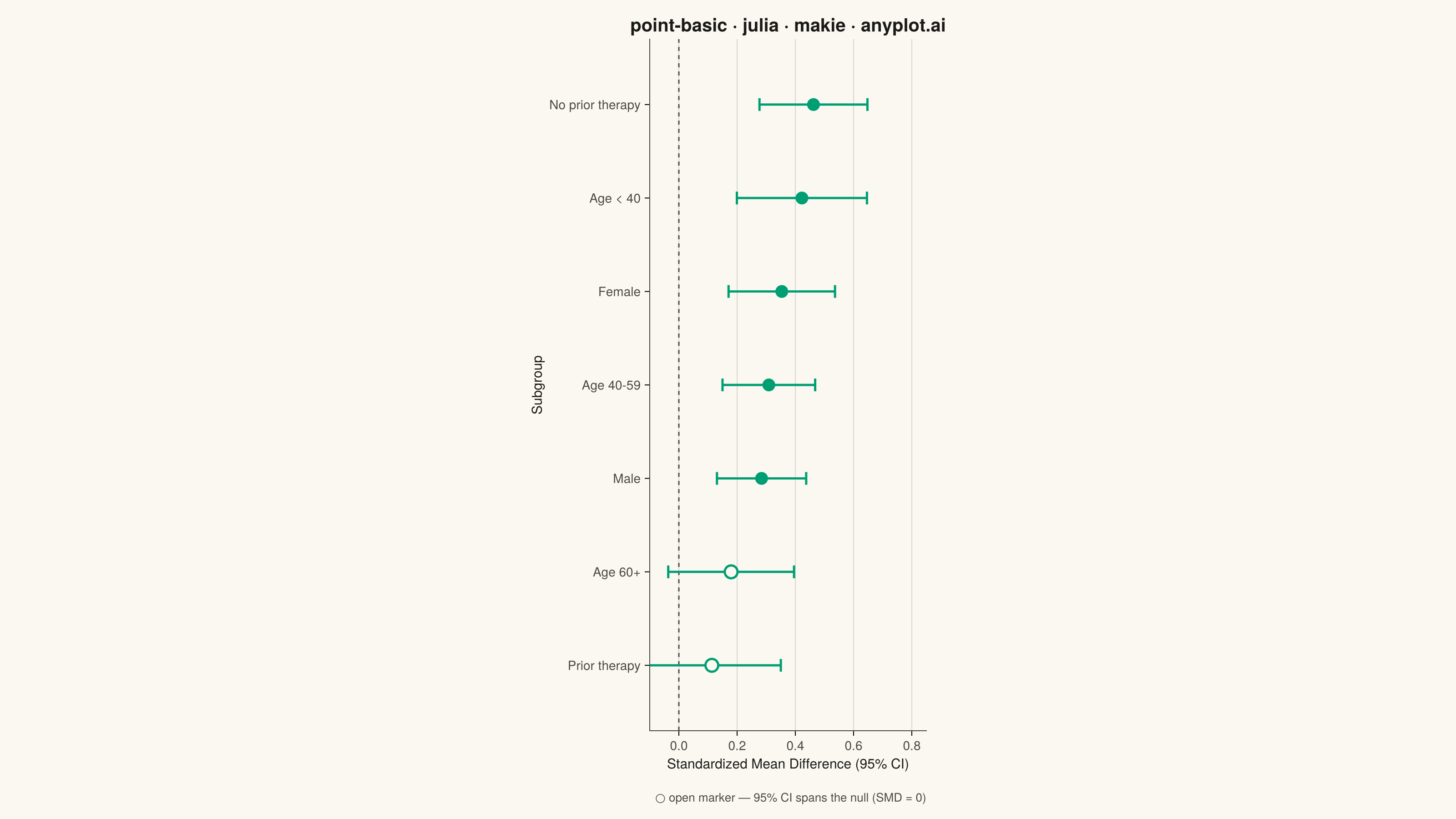

Point Estimate Plot rendered with Makie.jl

Renders

Julia source (Makie.jl)

# anyplot.ai
# point-basic: Point Estimate Plot
# Library: makie 0.21.9 | Julia 1.11.9
# Quality: 89/100 | Created: 2026-09-05

using CairoMakie
using Colors
using Random

Random.seed!(42)

# --- Theme tokens -----------------------------------------------------------
const THEME    = get(ENV, "ANYPLOT_THEME", "light")
const PAGE_BG  = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
const INK      = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
const INK_SOFT = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"
const BRAND    = colorant"#009E73"  # Imprint palette position 1 — ALWAYS first series

# --- Data: standardized mean difference (SMD) per clinical trial subgroup ---
subgroups = [
    "Age < 40", "Age 40-59", "Age 60+", "Male", "Female",
    "Prior therapy", "No prior therapy",
]
n = length(subgroups)
baseline_estimate   = [0.42, 0.31, 0.18, 0.28, 0.35, 0.12, 0.46]
baseline_half_width = [0.22, 0.16, 0.22, 0.15, 0.18, 0.24, 0.19]
estimate    = baseline_estimate .+ (rand(n) .- 0.5) .* 0.02
half_width  = baseline_half_width .+ (rand(n) .- 0.5) .* 0.02
lower_bound = estimate .- half_width
upper_bound = estimate .+ half_width

order = sortperm(estimate)
subgroups   = subgroups[order]
estimate    = estimate[order]
lower_bound = lower_bound[order]
upper_bound = upper_bound[order]
positions   = 1:n
crosses_null = (lower_bound .< 0) .& (upper_bound .> 0)

# --- Plot ---------------------------------------------------------------
fig = Figure(
    size            = (1600, 900),
    fontsize        = 14,
    backgroundcolor = PAGE_BG,
)

ax = Axis(
    fig[1, 1];
    title              = "point-basic · julia · makie · anyplot.ai",
    titlesize          = 20,
    titlecolor         = INK,
    xlabel             = "Standardized Mean Difference (95% CI)",
    ylabel             = "Subgroup",
    xlabelsize         = 15,
    ylabelsize         = 15,
    xlabelcolor        = INK,
    ylabelcolor        = INK,
    xticklabelcolor    = INK_SOFT,
    yticklabelcolor    = INK_SOFT,
    xticklabelsize     = 14,
    yticklabelsize     = 14,
    backgroundcolor    = PAGE_BG,
    topspinevisible    = false,
    rightspinevisible  = false,
    leftspinecolor     = INK_SOFT,
    bottomspinecolor   = INK_SOFT,
    xgridcolor         = RGBAf(INK.r, INK.g, INK.b, 0.15),
    ygridvisible       = false,
    yticks             = (positions, subgroups),
)

vlines!(ax, [0.0]; color = INK_SOFT, linestyle = :dash, linewidth = 1.5)
rangebars!(ax, positions, lower_bound, upper_bound;
    direction = :x, color = BRAND, linewidth = 2.5, whiskerwidth = 14)

# Filled markers = CI excludes the null; open (hollow) markers = CI spans it —
# a classic forest-plot convention that reads at a glance without adding a
# second hue (palette stays single-accent).
sig, nonsig = .!crosses_null, crosses_null
scatter!(ax, estimate[sig], positions[sig];
    color = BRAND, markersize = 20, strokewidth = 0)
scatter!(ax, estimate[nonsig], positions[nonsig];
    color = PAGE_BG, markersize = 20, strokewidth = 2.5, strokecolor = BRAND)

xlims!(ax, -0.1, 0.85)
ylims!(ax, 0.3, n + 0.7)

Label(fig[2, 1], "○ open marker — 95% CI spans the null (SMD = 0)";
    color = INK_SOFT, fontsize = 13, halign = :left, padding = (6, 0, 0, 4))

# --- Save -------------------------------------------------------------------
save("plot-$(THEME).png", fig; px_per_unit = 2)
