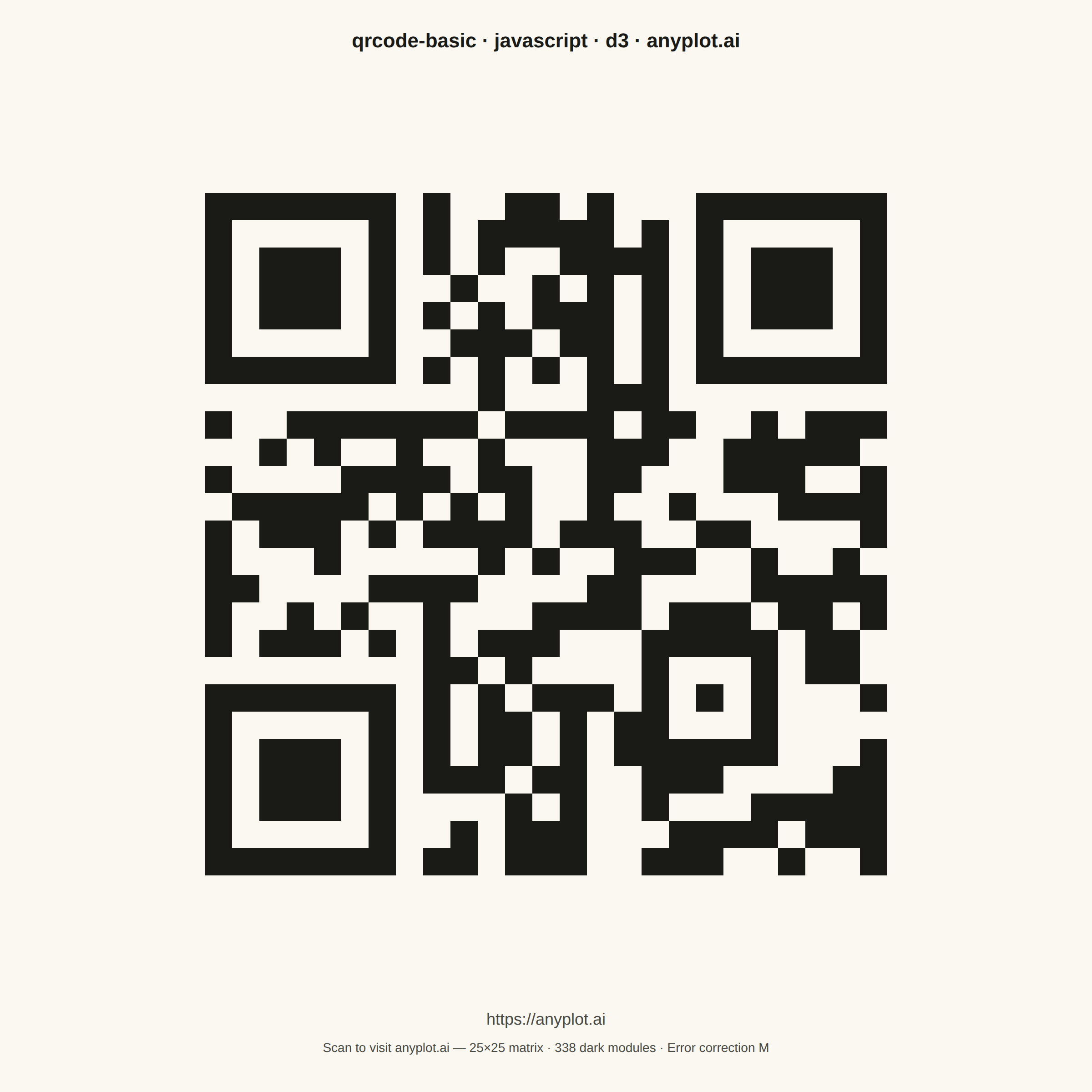

A QR (Quick Response) code visualization that encodes text or URL data into a square matrix barcode pattern. QR codes are two-dimensional barcodes that store information in a grid of black and white squares, readable by smartphones and dedicated scanners. This visualization is useful for generating scannable codes for quick data sharing and mobile access.
// anyplot.ai
// qrcode-basic: Basic QR Code Generator
// Library: d3 7.9.0 | JavaScript 22.22.3
// Quality: 88/100 | Created: 2026-06-24
//# anyplot-orientation: square
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
const ENCODED_URL = "https://anyplot.ai";
// QR code matrix for https://anyplot.ai (Version 2, Error Correction M)
const QR_MATRIX = [
[1,1,1,1,1,1,1,0,1,0,0,1,1,0,1,0,0,0,1,1,1,1,1,1,1],
[1,0,0,0,0,0,1,0,1,0,1,1,1,1,1,0,1,0,1,0,0,0,0,0,1],
[1,0,1,1,1,0,1,0,1,0,1,0,0,1,1,1,1,0,1,0,1,1,1,0,1],
[1,0,1,1,1,0,1,0,0,1,0,0,1,0,1,0,1,0,1,0,1,1,1,0,1],
[1,0,1,1,1,0,1,0,1,0,1,0,1,1,1,0,1,0,1,0,1,1,1,0,1],
[1,0,0,0,0,0,1,0,0,1,1,1,0,1,1,0,1,0,1,0,0,0,0,0,1],
[1,1,1,1,1,1,1,0,1,0,1,0,1,0,1,0,1,0,1,1,1,1,1,1,1],
[0,0,0,0,0,0,0,0,0,0,1,0,0,0,1,1,1,0,0,0,0,0,0,0,0],
[1,0,0,1,1,1,1,1,1,1,0,1,1,1,1,0,1,1,0,0,1,0,1,1,1],
[0,0,1,0,1,0,0,1,0,0,1,0,0,0,1,1,1,0,0,1,1,1,1,1,0],
[1,0,0,0,0,1,1,1,1,0,1,1,0,0,1,1,0,0,0,1,1,1,0,0,1],
[0,1,1,1,1,1,0,1,0,1,0,1,0,0,1,0,0,1,0,0,0,1,1,1,1],
[1,0,1,1,1,0,1,0,1,1,1,1,0,1,1,1,0,0,1,1,0,0,0,0,1],
[1,0,0,0,1,0,0,0,0,0,1,0,1,0,0,1,1,1,0,0,1,0,0,1,0],
[1,1,0,0,0,0,1,1,1,1,0,0,0,0,1,1,0,0,0,0,1,1,1,1,1],
[1,0,0,1,0,1,0,0,1,0,0,0,1,1,1,1,0,1,1,1,0,1,1,0,1],
[1,0,1,1,1,0,1,0,1,0,1,1,1,0,0,0,1,1,1,1,1,0,1,1,0],
[0,0,0,0,0,0,0,0,1,1,0,1,0,0,0,0,1,0,0,0,1,0,1,1,0],
[1,1,1,1,1,1,1,0,1,0,1,0,1,1,1,0,1,0,1,0,1,0,0,0,1],
[1,0,0,0,0,0,1,0,1,0,1,1,0,1,0,1,1,0,0,0,1,0,0,0,0],
[1,0,1,1,1,0,1,0,1,0,1,1,0,1,0,1,1,1,1,1,1,0,0,0,1],
[1,0,1,1,1,0,1,0,1,1,1,0,1,1,0,0,1,1,1,0,0,0,0,1,1],
[1,0,1,1,1,0,1,0,0,0,0,1,0,1,0,0,1,0,0,0,1,1,1,1,1],
[1,0,0,0,0,0,1,0,0,1,0,1,1,1,0,0,0,1,1,1,1,0,1,1,1],
[1,1,1,1,1,1,1,0,1,1,0,1,1,1,0,0,1,1,1,0,0,1,0,0,1],
];
const QR_SIZE = QR_MATRIX.length;
const QUIET_ZONE = 4;
const TOTAL_MODULES = QR_SIZE + QUIET_ZONE * 2;
// Flatten QR matrix to cell objects for D3 data binding
const cells = QR_MATRIX.flatMap((row, ri) =>
row.map((val, ci) => ({ row: ri, col: ci, on: val === 1 }))
);
const darkModules = cells.filter(d => d.on);
// Layout
const TITLE_Y = 52;
const QR_TOP = TITLE_Y + 40;
const LABEL_RESERVE = 100;
const CELL_SIZE = Math.floor(
Math.min((width - 80) / TOTAL_MODULES, (height - QR_TOP - LABEL_RESERVE) / TOTAL_MODULES)
);
const QR_PX = CELL_SIZE * TOTAL_MODULES;
const QR_X = Math.floor((width - QR_PX) / 2);
const QR_Y = QR_TOP;
// D3 linear scales — map module grid indices to pixel coordinates
const xScale = d3.scaleLinear()
.domain([0, TOTAL_MODULES])
.range([QR_X, QR_X + QR_PX]);
const yScale = d3.scaleLinear()
.domain([0, TOTAL_MODULES])
.range([QR_Y, QR_Y + QR_PX]);
// QR module colors — fixed high-contrast pair for reliable scanning
const MODULE_ON = "#1A1A17";
const MODULE_OFF = "#FAF8F1";
// SVG mount
const svg = d3.select("#container").append("svg")
.attr("width", width).attr("height", height);
// QR card background (warm white, covers quiet zone)
svg.append("rect")
.attr("x", QR_X)
.attr("y", QR_Y)
.attr("width", QR_PX)
.attr("height", QR_PX)
.attr("fill", MODULE_OFF)
.attr("rx", 10)
.attr("ry", 10);

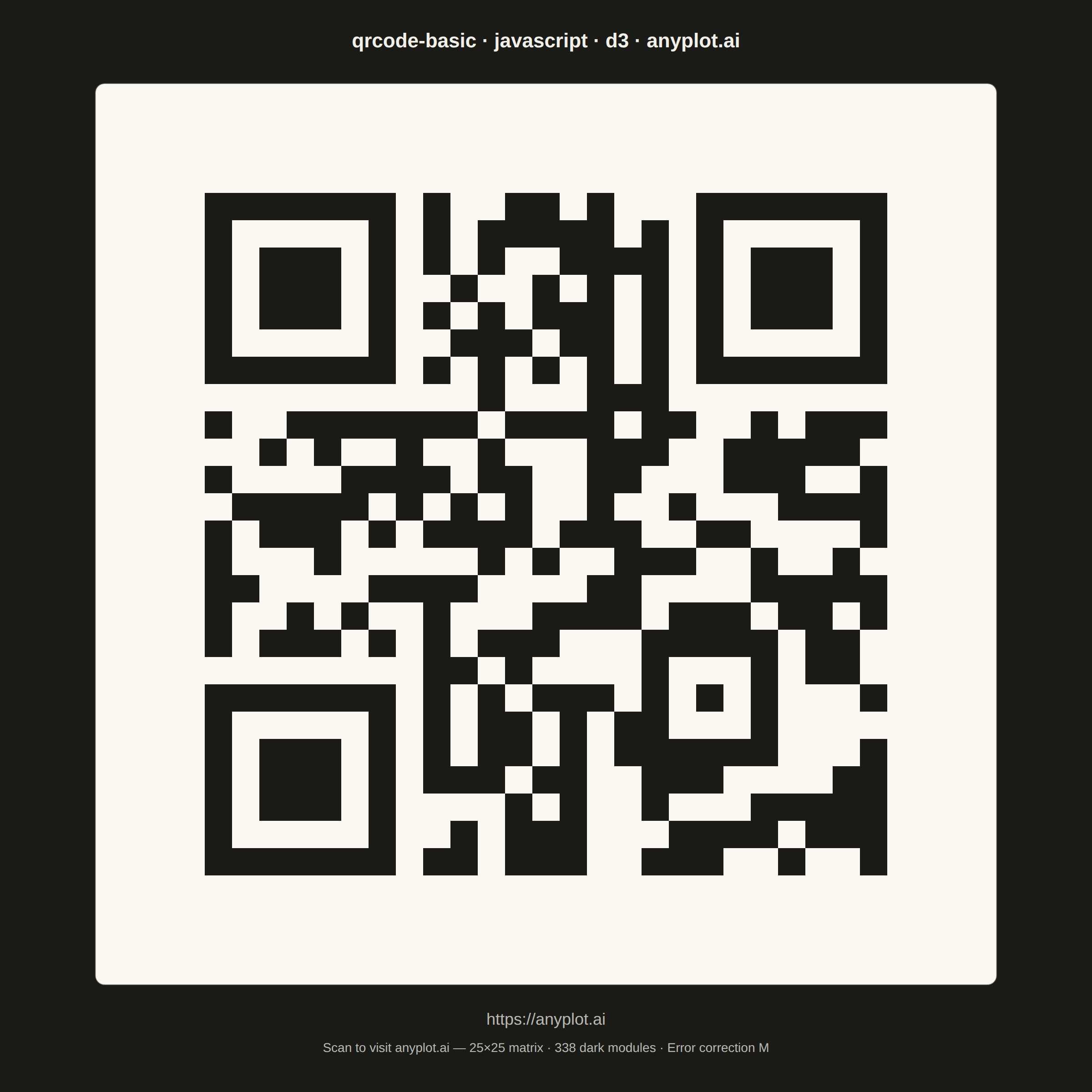

// Dark-theme card border for visual separation
if (window.ANYPLOT_THEME === "dark") {
svg.append("rect")
.attr("x", QR_X)
.attr("y", QR_Y)
.attr("width", QR_PX)
.attr("height", QR_PX)
.attr("fill", "none")
.attr("stroke", t.inkSoft)
.attr("stroke-width", 1.5)
.attr("stroke-opacity", 0.25)
.attr("rx", 10)
.attr("ry", 10);
}
// QR modules — D3 data binding: xScale/yScale position each module via grid coordinates
svg.selectAll("rect.module")
.data(darkModules)
.join("rect")
.attr("class", "module")
.attr("x", d => xScale(QUIET_ZONE + d.col))
.attr("y", d => yScale(QUIET_ZONE + d.row))
.attr("width", CELL_SIZE)
.attr("height", CELL_SIZE)
.attr("fill", MODULE_ON);
// Title
svg.append("text")
.attr("x", width / 2)
.attr("y", TITLE_Y)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "22px")
.style("font-weight", "600")
.text("qrcode-basic · javascript · d3 · anyplot.ai");
// URL label below QR code
const LABEL_Y = QR_Y + QR_PX + 44;
svg.append("text")
.attr("x", width / 2)
.attr("y", LABEL_Y)
.attr("text-anchor", "middle")
.attr("fill", t.inkSoft)
.style("font-size", "18px")
.text(ENCODED_URL);
// Caption — scan context and matrix stats
svg.append("text")
.attr("x", width / 2)
.attr("y", LABEL_Y + 30)
.attr("text-anchor", "middle")
.attr("fill", t.inkSoft)
.style("font-size", "14px")
.text(`Scan to visit anyplot.ai — ${QR_SIZE}×${QR_SIZE} matrix · ${darkModules.length} dark modules · Error correction M`);
Part of Basic QR Code Generator on anyplot.ai.
