Basic QR Code Generator — Matplotlib

A QR (Quick Response) code visualization that encodes text or URL data into a square matrix barcode pattern. QR codes are two-dimensional barcodes that store information in a grid of black and white squares, readable by smartphones and dedicated scanners. This visualization is useful for generating scannable codes for quick data sharing and mobile access.

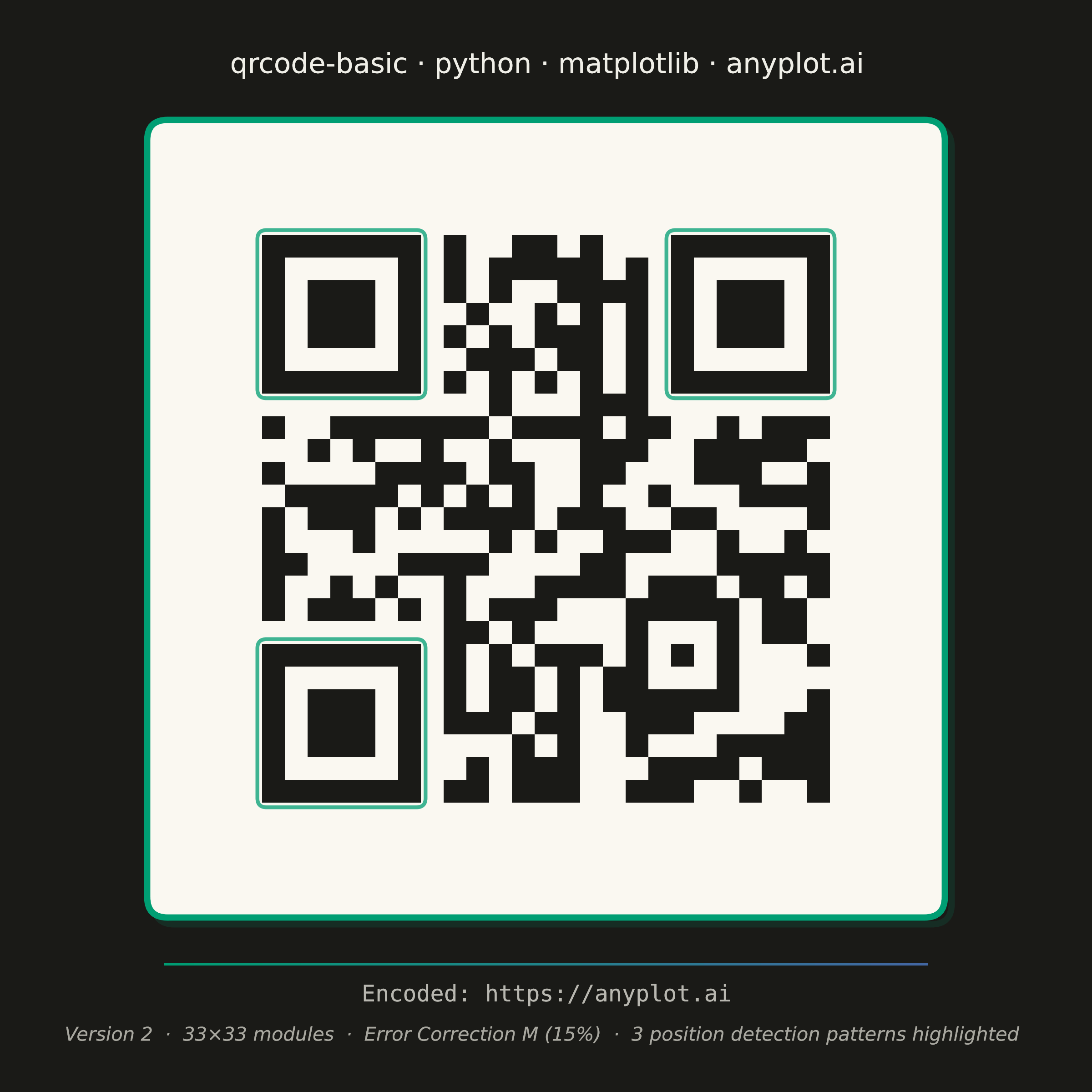

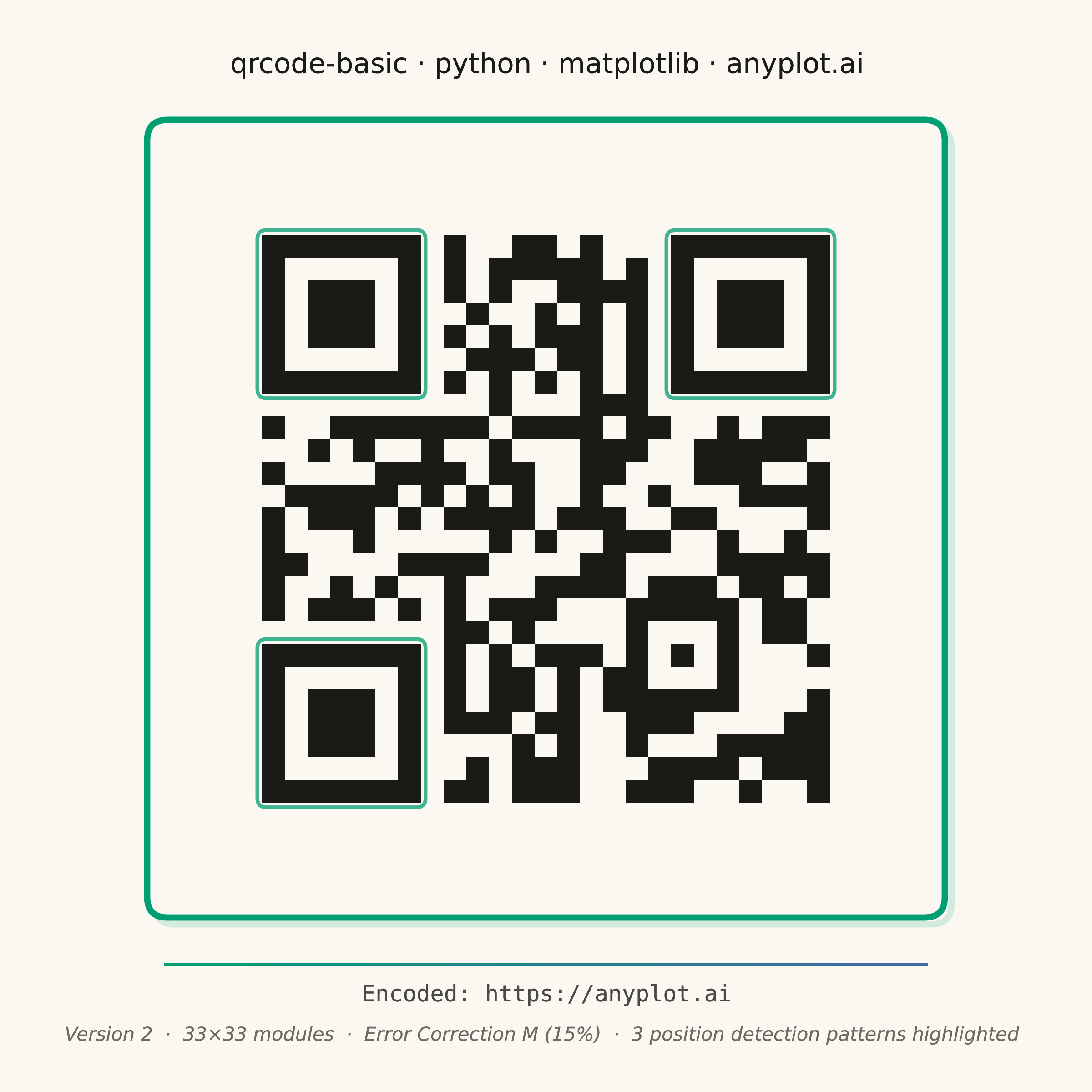

Basic QR Code Generator rendered with Matplotlib

Python source (Matplotlib)

""" anyplot.ai
qrcode-basic: Basic QR Code Generator
Library: matplotlib 3.11.0 | Python 3.13.14
Quality: 91/100 | Updated: 2026-06-24
"""

import os
import sys


# This file is named matplotlib.py. Remove its directory from sys.path to
# prevent it from shadowing the matplotlib package during import.
_this_dir = os.path.dirname(os.path.abspath(__file__))
sys.path = [p for p in sys.path if os.path.abspath(p or ".") != _this_dir]

import matplotlib.patches as mpatches
import matplotlib.patheffects as pe
import matplotlib.pyplot as plt
import numpy as np
import qrcode
from matplotlib.colors import LinearSegmentedColormap, ListedColormap


# Theme-adaptive chrome tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"

# Imprint palette — first categorical series always #009E73
IMPRINT_PALETTE = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477", "#99B314"]
BRAND = IMPRINT_PALETTE[0]  # #009E73

# Data — generate a real, scannable QR code encoding URL
content = "https://anyplot.ai"
qr = qrcode.QRCode(version=1, error_correction=qrcode.constants.ERROR_CORRECT_M, box_size=1, border=4)
qr.add_data(content)
qr.make(fit=True)
qr_matrix = np.array(qr.get_matrix(), dtype=int)
rows, cols = qr_matrix.shape  # includes 4-module quiet zone border on each side

# Square canvas: 2400×2400 px — QR code is inherently square
fig, ax = plt.subplots(figsize=(6, 6), dpi=400, facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)

# QR modules: always dark on light background for reliable scanner recognition
QR_CARD = "#FAF8F1"  # cream card, scannable in both light and dark themes
QR_MOD = "#1A1A17"  # dark modules, high contrast
qr_cmap = ListedColormap([QR_CARD, QR_MOD])
ax.imshow(qr_matrix, cmap=qr_cmap, interpolation="nearest", vmin=0, vmax=1, aspect="equal", zorder=2)
ax.set_axis_off()

# Axes limits: margin provides space for the decorative frame
margin = 2.5
ax.set_xlim(-margin, cols - 1 + margin)
ax.set_ylim(rows - 1 + margin, -margin)  # inverted y so row-0 appears at top

# Rounded card background (keeps QR on light surface even in dark theme)
cp = 0.7  # card padding around QR module boundary
card = mpatches.FancyBboxPatch(
    (-0.5 - cp, -0.5 - cp),
    cols + 2 * cp,
    rows + 2 * cp,
    boxstyle=mpatches.BoxStyle.Round(pad=0.35, rounding_size=0.9),
    facecolor=QR_CARD,
    edgecolor=BRAND,
    linewidth=2.5,
    zorder=1,
)
ax.add_patch(card)

# Shadow for visual depth (behind card)
shadow = mpatches.FancyBboxPatch(
    (-0.5 - cp + 0.3, -0.5 - cp + 0.3),
    cols + 2 * cp,
    rows + 2 * cp,
    boxstyle=mpatches.BoxStyle.Round(pad=0.35, rounding_size=0.9),
    facecolor="none",
    edgecolor=BRAND,
    linewidth=2.5,
    alpha=0.15,
    zorder=0,
)
ax.add_patch(shadow)

# Highlight the 3 Position Detection (finder) patterns with BRAND green outlines
# QR v2: 25×25 data area + 4-module quiet zone → 33×33 total matrix
# Finder centers in data coords (x=col, y=row):
#   top-left (bsz+3, bsz+3), top-right (cols-1-bsz-3, bsz+3), bottom-left (bsz+3, rows-1-bsz-3)
bsz = qr.border  # quiet zone border width in modules
fhalf = 3.5  # half of 7-module finder pattern width

finder_centers = [
    (bsz + 3, bsz + 3),  # top-left
    (cols - 1 - bsz - 3, bsz + 3),  # top-right
    (bsz + 3, rows - 1 - bsz - 3),  # bottom-left
]
for fx, fy in finder_centers:
    ax.add_patch(
        mpatches.FancyBboxPatch(
            (fx - fhalf, fy - fhalf),
            7,
            7,
            boxstyle=mpatches.BoxStyle.Round(pad=0.2, rounding_size=0.4),
            facecolor="none",
            edgecolor=BRAND,
            linewidth=1.5,
            alpha=0.75,
            zorder=3,
        )
    )

# Title with subtle PathEffects glow
title_str = "qrcode-basic · python · matplotlib · anyplot.ai"
title = ax.set_title(title_str, fontsize=11, fontweight="medium", color=INK, pad=10)
title.set_path_effects([pe.withStroke(linewidth=2.5, foreground=PAGE_BG), pe.Normal()])

# Gradient accent divider: Imprint palette brand green → blue
imprint_grad = LinearSegmentedColormap.from_list("imprint_grad", [BRAND, IMPRINT_PALETTE[2]])
accent_ax = fig.add_axes([0.15, 0.116, 0.70, 0.0018])
accent_ax.imshow(np.linspace(0, 1, 256).reshape(1, -1), aspect="auto", cmap=imprint_grad, extent=[0, 1, 0, 1])
accent_ax.set_axis_off()

# Footer: encoded URL (monospace) and QR structural metadata
encoded_t = fig.text(0.5, 0.083, f"Encoded: {content}", ha="center", fontsize=9, color=INK_SOFT, family="monospace")
encoded_t.set_path_effects([pe.withStroke(linewidth=1.5, foreground=PAGE_BG), pe.Normal()])

meta_str = (
    f"Version {qr.version}  ·  {rows}×{cols} modules  ·  "
    f"Error Correction M (15%)  ·  3 position detection patterns highlighted"
)
meta_t = fig.text(0.5, 0.047, meta_str, ha="center", fontsize=7.5, color=INK_MUTED, style="italic")
meta_t.set_path_effects([pe.withStroke(linewidth=1.2, foreground=PAGE_BG), pe.Normal()])

fig.subplots_adjust(left=0.08, right=0.92, top=0.91, bottom=0.14)

plt.savefig(f"plot-{THEME}.png", dpi=400, facecolor=PAGE_BG)
plt.close()

Part of Basic QR Code Generator on anyplot.ai.
