Basic QR Code Generator — Makie.jl

A QR (Quick Response) code visualization that encodes text or URL data into a square matrix barcode pattern. QR codes are two-dimensional barcodes that store information in a grid of black and white squares, readable by smartphones and dedicated scanners. This visualization is useful for generating scannable codes for quick data sharing and mobile access.

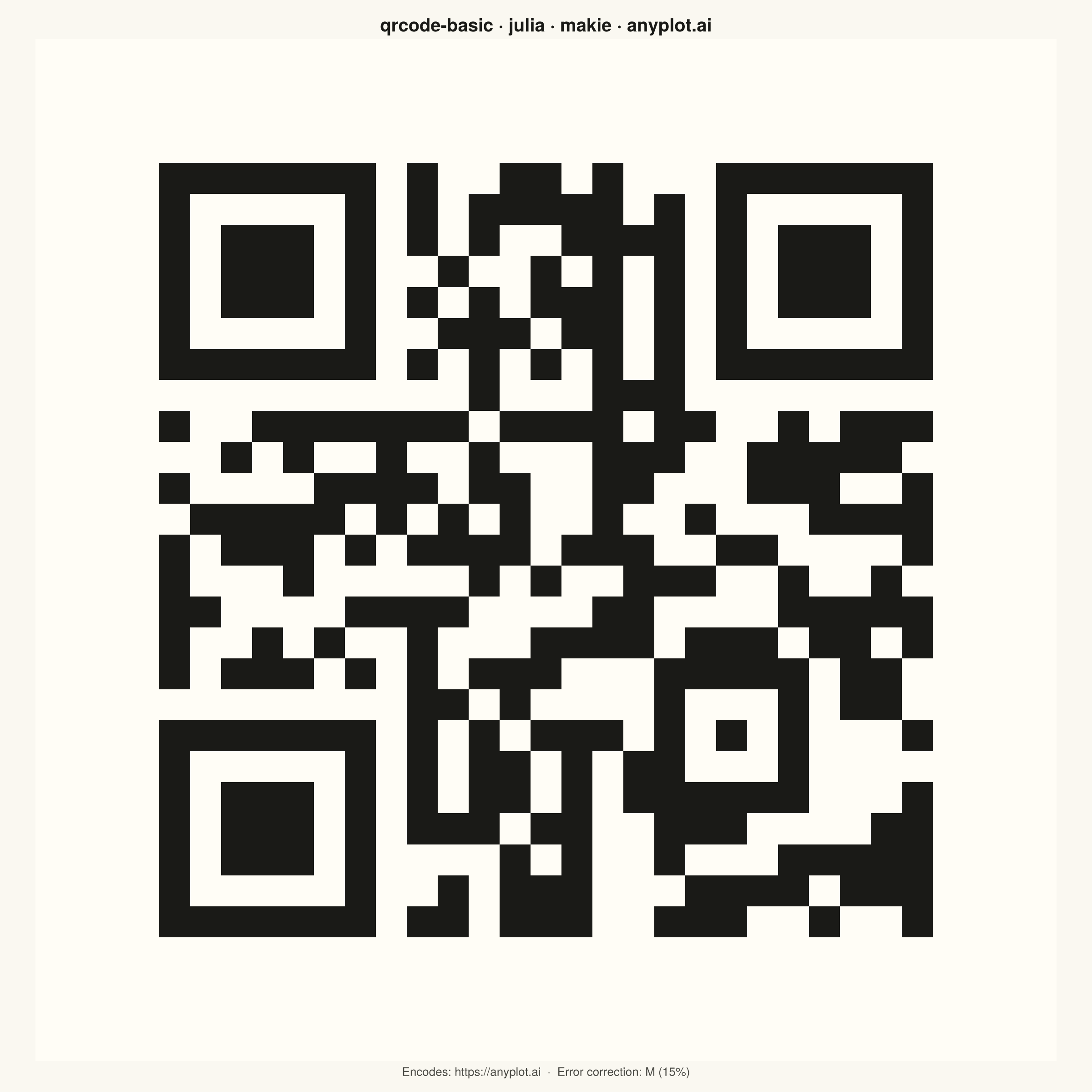

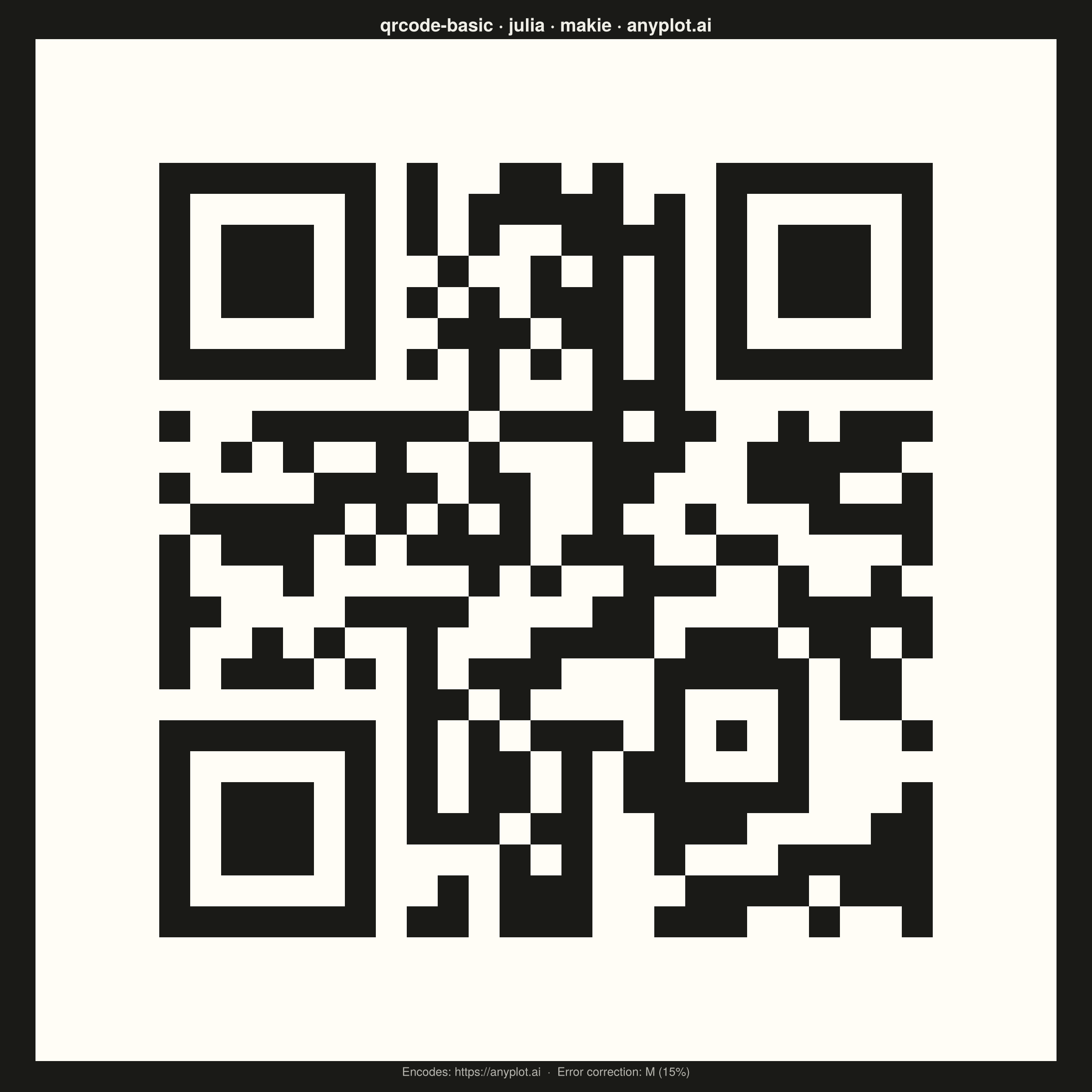

Basic QR Code Generator rendered with Makie.jl

Renders

Julia source (Makie.jl)

# anyplot.ai
# qrcode-basic: Basic QR Code Generator
# Library: makie 0.21.9 | Julia 1.11.9
# Quality: 94/100 | Created: 2026-06-24

using CairoMakie
using Colors
using QRCoders

const THEME       = get(ENV, "ANYPLOT_THEME", "light")
const PAGE_BG     = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
const INK         = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
const INK_SOFT    = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"

# QR code is always dark-on-light for scanner reliability
const QR_MODULE = colorant"#1A1A17"
const QR_BG     = colorant"#FFFDF6"

# Data: encode the anyplot.ai URL with Medium error correction (M = 15%)
url       = "https://anyplot.ai"
qr_raw    = qrcode(url; eclevel = Medium())
n         = size(qr_raw, 1)

# Add ISO/IEC 18004 quiet zone: 4 modules on each side
quiet  = 4
m      = n + 2 * quiet
padded = falses(m, m)
padded[quiet+1:quiet+n, quiet+1:quiet+n] .= qr_raw

# Convert to Float64 for the heatmap colormap (0 = light, 1 = dark)
z = Float64.(padded')

# Plot
fig = Figure(
    size            = (1200, 1200),
    fontsize        = 14,
    backgroundcolor = PAGE_BG,
)

ax = Axis(
    fig[1, 1];
    aspect             = DataAspect(),
    backgroundcolor    = QR_BG,
    title              = "Encode URL as QR Code · qrcode-basic · julia · makie · anyplot.ai",
    titlesize          = 20,
    titlecolor         = INK,
    xlabel             = "Encodes: $url  ·  Error correction: M (15%)",
    xlabelsize         = 15,
    xlabelcolor        = INK_SOFT,
    topspinevisible    = false,
    rightspinevisible  = false,
    leftspinevisible   = false,
    bottomspinevisible = false,
    xticksvisible      = false,
    yticksvisible      = false,
    xticklabelsvisible = false,
    yticklabelsvisible = false,
    xgridvisible       = false,
    ygridvisible       = false,
    yreversed          = true,
)

heatmap!(ax, z;
    colormap   = [QR_BG, QR_MODULE],
    colorrange = (0.0, 1.0),
)

save("plot-$(THEME).png", fig; px_per_unit = 2)

Part of Basic QR Code Generator on anyplot.ai.
