Basic QR Code Generator — ggplot2

A QR (Quick Response) code visualization that encodes text or URL data into a square matrix barcode pattern. QR codes are two-dimensional barcodes that store information in a grid of black and white squares, readable by smartphones and dedicated scanners. This visualization is useful for generating scannable codes for quick data sharing and mobile access.

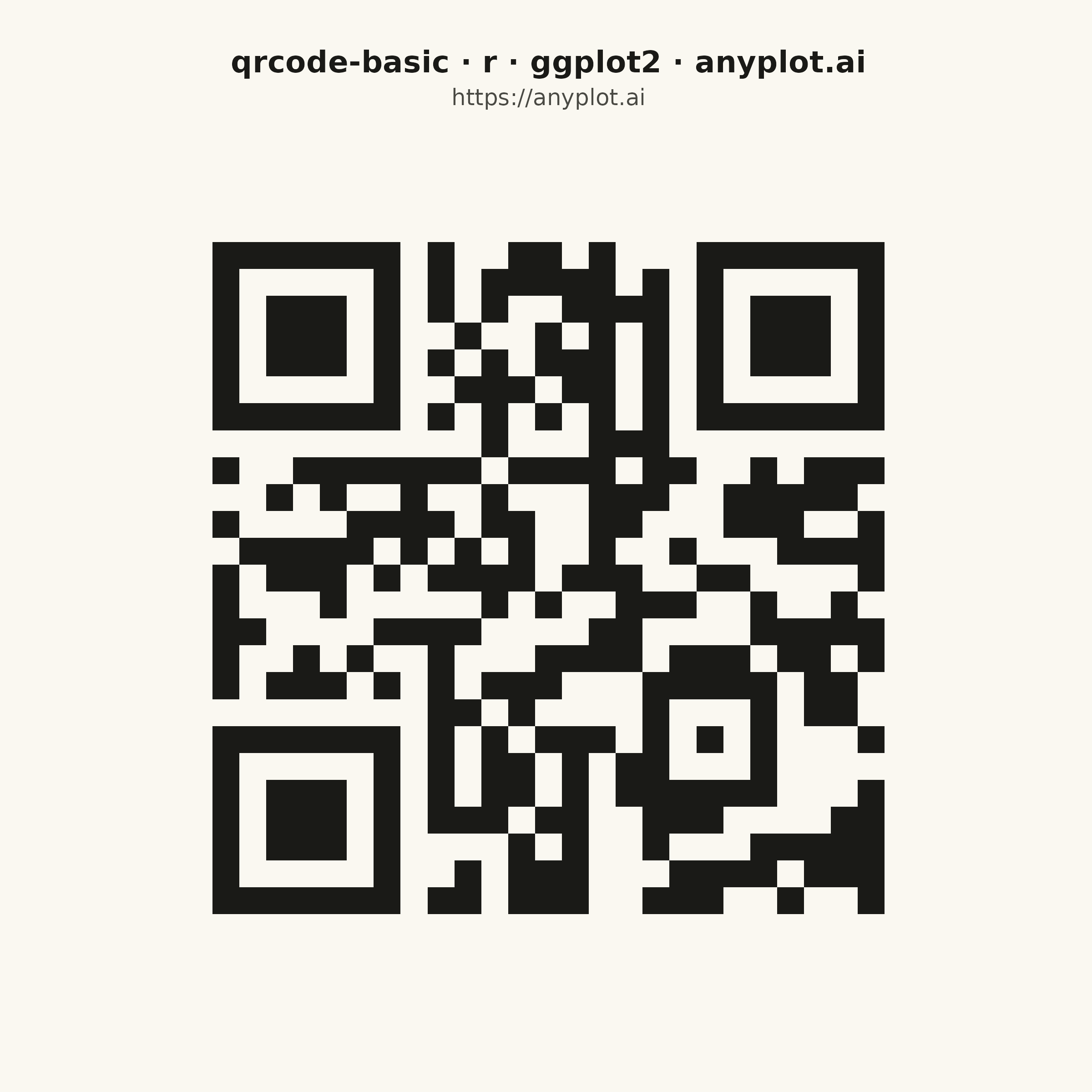

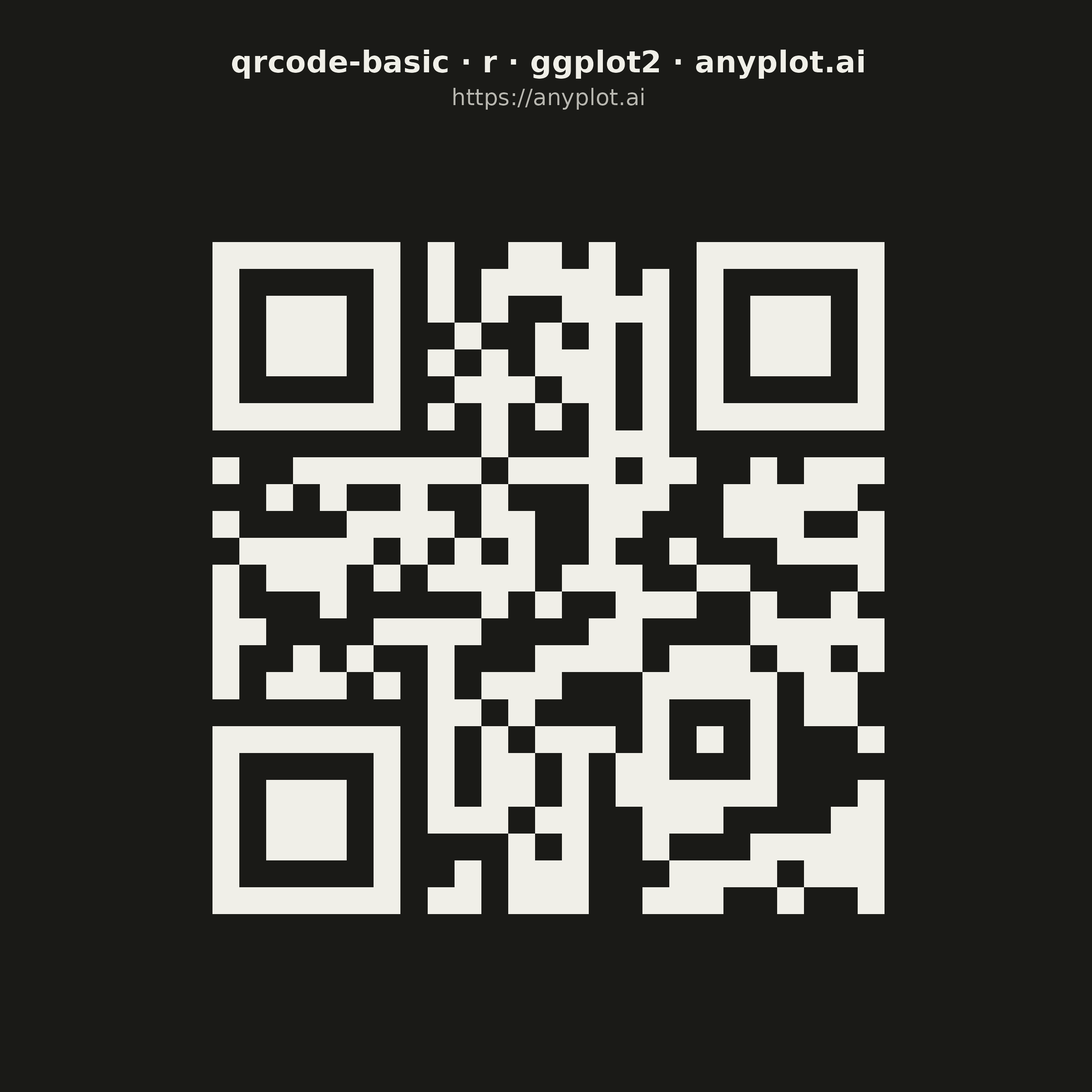

Basic QR Code Generator rendered with ggplot2

Renders

R source (ggplot2)

#' anyplot.ai
#' qrcode-basic: Basic QR Code Generator
#' Library: ggplot2 3.5.1 | R 4.4.1
#' Quality: 90/100 | Created: 2026-06-24

library(ggplot2)
library(ragg)
library(qrcode)

# Theme tokens — Imprint palette, theme-adaptive chrome
THEME       <- Sys.getenv("ANYPLOT_THEME", "light")
PAGE_BG     <- if (THEME == "light") "#FAF8F1" else "#1A1A17"
ELEVATED_BG <- if (THEME == "light") "#FFFDF6" else "#242420"
INK         <- if (THEME == "light") "#1A1A17" else "#F0EFE8"
INK_SOFT    <- if (THEME == "light") "#4A4A44" else "#B8B7B0"
INK_MUTED   <- if (THEME == "light") "#6B6A63" else "#A8A79F"

# QR module colors — high contrast ink/paper tones for reliable scanning
MODULE_DARK  <- INK      # encodes data bits
MODULE_LIGHT <- PAGE_BG  # background (quiet) modules

# Content to encode
encode_url <- "https://anyplot.ai"

# Generate QR code (error correction level M = 15%)
# Returns a logical matrix: TRUE = dark module, FALSE = light module
# The package includes a 3-module quiet zone border in the matrix
qr     <- qr_code(encode_url, ecl = "M")
qr_mat <- as.matrix(qr)
n      <- nrow(qr_mat)

# Build tidy data frame for geom_tile
# as.vector(t(m)) = row-major order: m[1,1], m[1,2], ..., m[n,n]
# y is flipped so matrix row 1 appears at the top of the plot
qr_df <- data.frame(
  x    = rep(seq_len(n), times = n),
  y    = rep(seq(n, 1L),  each  = n),
  dark = as.character(as.vector(t(qr_mat)))
)

# Title fontsize: baseline 12pt for ~67-char title; scale down if longer
plot_title <- "qrcode-basic · r · ggplot2 · anyplot.ai"
title_n    <- nchar(plot_title)
title_size <- if (title_n > 67) max(round(12L * 67L / title_n), 8L) else 12L

# Build plot — square canvas suits the symmetric QR grid
p <- ggplot(qr_df, aes(x = x, y = y, fill = dark)) +
  geom_tile(color = NA, linewidth = 0) +
  scale_fill_manual(
    values = c("TRUE" = MODULE_DARK, "FALSE" = MODULE_LIGHT),
    guide  = "none"
  ) +
  coord_fixed() +
  labs(
    title    = plot_title,
    subtitle = encode_url,
    x        = NULL,
    y        = NULL
  ) +
  theme_minimal(base_size = 8) +
  theme(
    plot.background  = element_rect(fill = PAGE_BG, color = PAGE_BG),
    panel.background = element_rect(fill = PAGE_BG, color = NA),
    panel.grid.major = element_blank(),
    panel.grid.minor = element_blank(),
    panel.border     = element_blank(),
    axis.text        = element_blank(),
    axis.ticks       = element_blank(),
    axis.title       = element_blank(),
    plot.title       = element_text(
      color  = INK,
      size   = title_size,
      hjust  = 0.5,
      face   = "bold"
    ),
    plot.subtitle    = element_text(
      color  = INK_SOFT,
      size   = 9,
      hjust  = 0.5
    ),
    plot.margin      = margin(20, 20, 20, 20)
  )

# Save — square PNG (2400 × 2400 px at dpi = 400)
ggsave(
  filename = sprintf("plot-%s.png", THEME),
  plot     = p,
  device   = ragg::agg_png,
  width    = 6,
  height   = 6,
  units    = "in",
  dpi      = 400
)

Part of Basic QR Code Generator on anyplot.ai.
