Basic QR Code Generator in MUI X Charts (JavaScript)

The same plot in 14 other libraries — JavaScript: Chart.js, D3.js, Apache ECharts, Highcharts; Python: Altair, Bokeh, lets-plot, Matplotlib, Plotly, plotnine, Pygal, Seaborn; R: ggplot2; Julia: Makie.jl. Compare all 15 side by side: Basic QR Code Generator in Python, R, Julia and JavaScript.

A QR (Quick Response) code visualization that encodes text or URL data into a square matrix barcode pattern. QR codes are two-dimensional barcodes that store information in a grid of black and white squares, readable by smartphones and dedicated scanners. This visualization is useful for generating scannable codes for quick data sharing and mobile access.

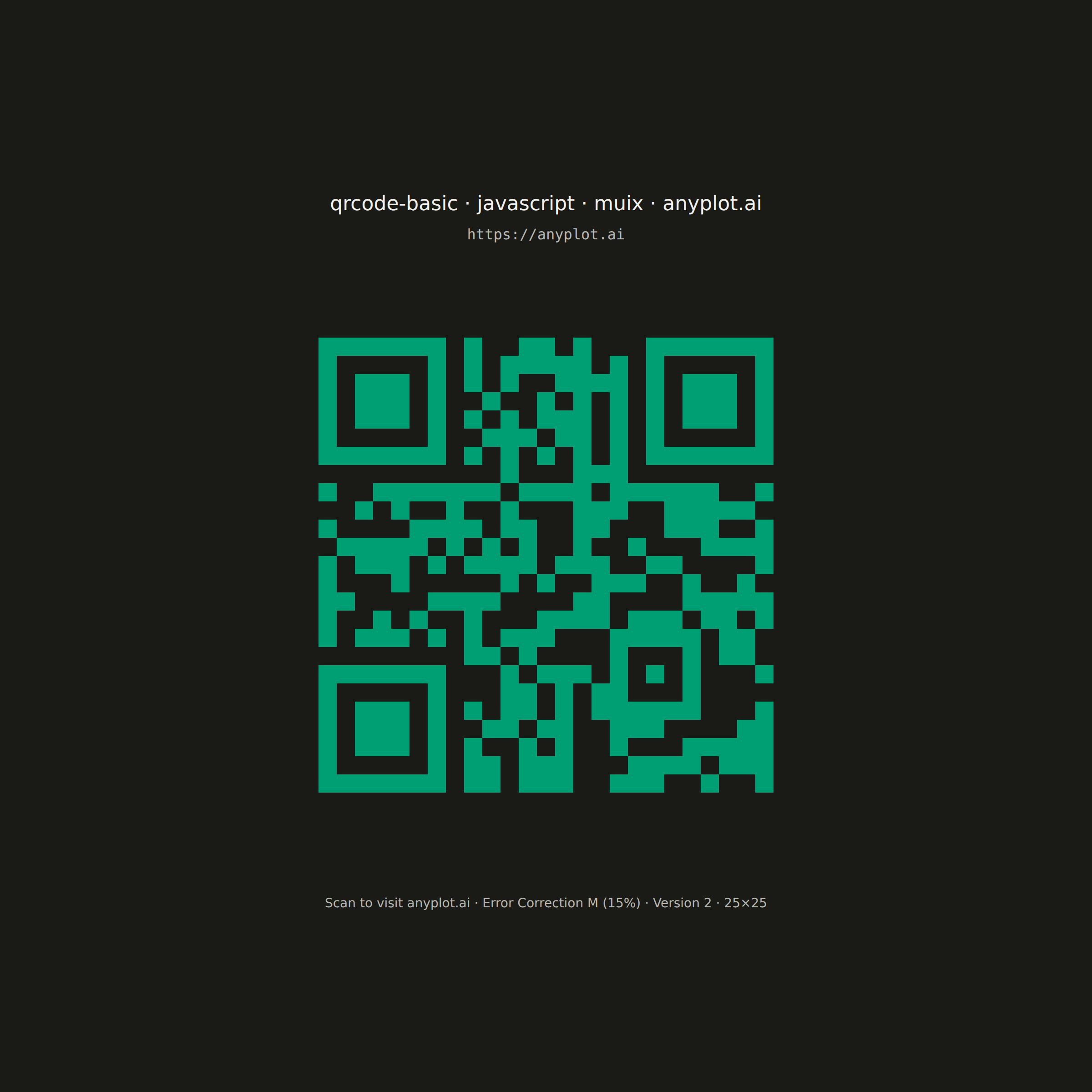

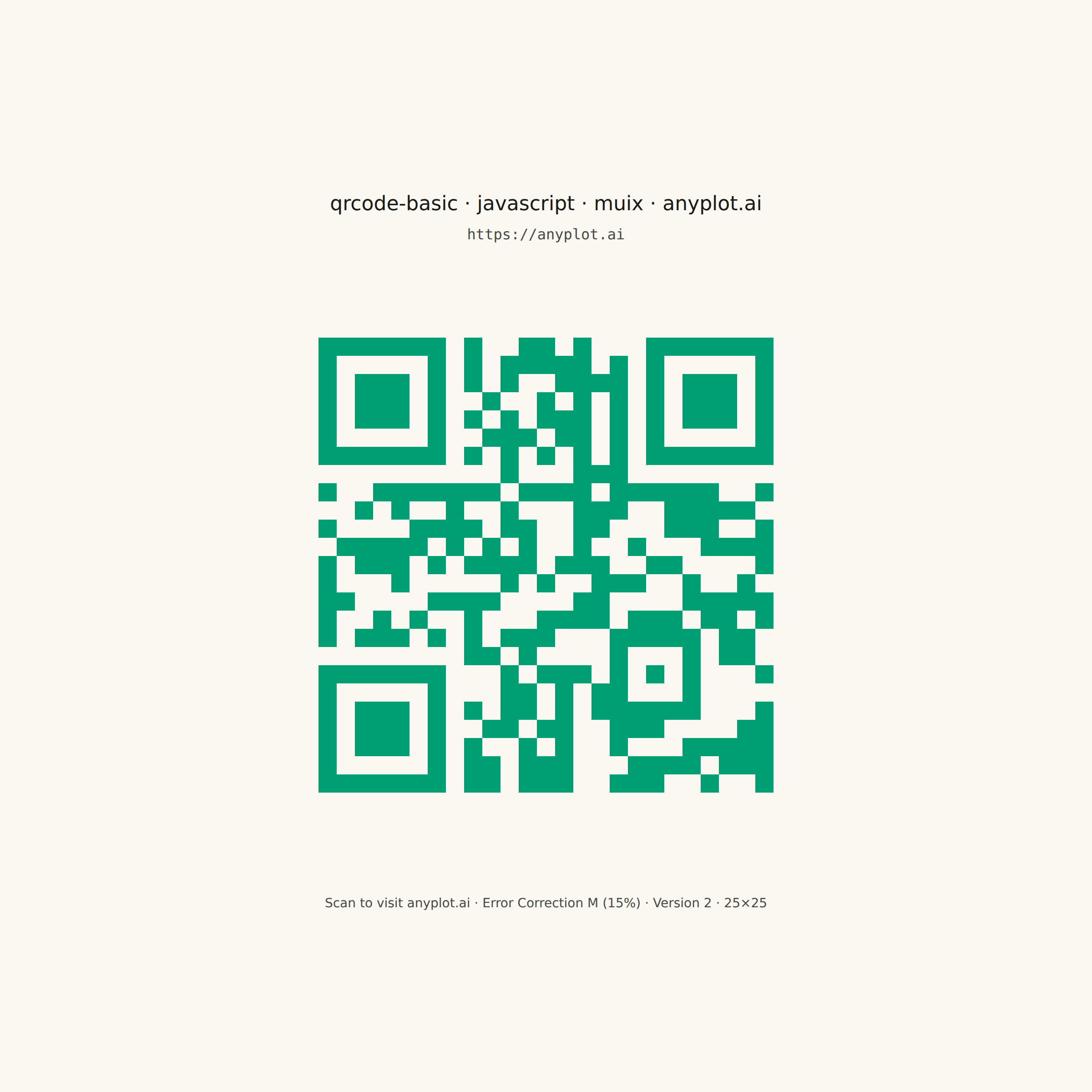

Basic QR Code Generator rendered with MUI X Charts

Renders

JavaScript source (MUI X Charts)

// anyplot.ai
// qrcode-basic: Basic QR Code Generator
// Library: muix 9.17.0 | JavaScript 22.23.4
// Quality: 88/100 | Updated: 2026-11-08
//# anyplot-orientation: square
import { ChartsContainer } from "@mui/x-charts/ChartsContainer";
import { useDrawingArea } from "@mui/x-charts/hooks";

const t = window.ANYPLOT_TOKENS;

// Constants
// A QR symbol is black on white in both themes; only the page chrome flips
const MODULE_INK = "#1A1A17";
const SYMBOL_PAPER = "#FAF8F1";
const QUIET_ZONE = 4; // modules of blank border, the QR standard's minimum
const EC_RECOVERY = { L: 7, M: 15, Q: 25, H: 30 }; // percent of codewords each level can restore
const TITLE_H = 64;
const CAPTION_H = 56;
const OUTER_MARGIN = 40;

// Data: replace these parameters with your own content and its encoded symbol
const CONTENT = "https://anyplot.ai"; // role: content
const ERROR_CORRECTION = "M"; // role: error_correction
// The symbol a QR encoder writes for CONTENT at ERROR_CORRECTION (segno 1.6.6: version 2, byte mode,
// mask 1), one string per module row, 1 = dark. The browser has no QR encoder, so new content needs
// a new matrix from one, for example segno.make_qr(content, error="m").matrix
// The matrix is precomputed for CONTENT and ERROR_CORRECTION: changing CONTENT does not re-encode it.
const SYMBOL_ROWS = [
  "1111111010101010001111111",
  "1000001000000000101000001",
  "1011101011011101101011101",
  "1011101001000000001011101",
  "1011101001011110001011101",
  "1000001010101000001000001",
  "1111111010101010101111111",
  "0000000001001001100000000",
  "1010001100010110100100101",
  "1001000011111101001101011",
  "0111111100011001100011101",
  "0010100101111100101001000",
  "0111001101001101001100001",
  "0101110010101001111100011",
  "1110011010101111010001101",
  "0011010001011011110111000",
  "1100101100100110111110010",
  "0000000010100110100010001",
  "1111111011010000101010001",
  "1000001000000101100010001",
  "1011101000111101111110011",
  "1011101000001000010010110",
  "1011101011101110000111011",
  "1000001001111010100110000",
  "1111111011000110111001001",
];

// Plot: reads only the parameters and the constants above
const size = SYMBOL_ROWS.length;
const darkModules = SYMBOL_ROWS.flatMap((row, r) => [...row].flatMap((cell, c) => (cell === "1" ? [{ r, c }] : [])));
const version = (size - 17) / 4;

const TITLE = "qrcode-basic · javascript · muix · anyplot.ai";
const CAPTION = `Encodes “${CONTENT}” · error correction ${ERROR_CORRECTION} (${EC_RECOVERY[ERROR_CORRECTION]} %) · version ${version}, ${size} × ${size} modules`;

// Whole-pixel module size so every module edge is sharp; the quiet zone is part of the tile
function SymbolModules() {
  const { left, top, width } = useDrawingArea();
  const cell = Math.floor(width / (size + 2 * QUIET_ZONE));
  const tile = cell * (size + 2 * QUIET_ZONE);
  const x0 = left + (width - tile) / 2;
  const y0 = top + (width - tile) / 2;

  return (
    <g shapeRendering="crispEdges">
      <rect x={x0} y={y0} width={tile} height={tile} fill={SYMBOL_PAPER} />
      {darkModules.map(({ r, c }) => (
        <rect
          key={`${r}-${c}`}
          x={x0 + (QUIET_ZONE + c) * cell}
          y={y0 + (QUIET_ZONE + r) * cell}
          width={cell}
          height={cell}
          fill={MODULE_INK}
        />
      ))}
    </g>
  );
}

export default function Chart() {
  const { width, height } = window.ANYPLOT_SIZE;
  const side = Math.min(width, height - TITLE_H - CAPTION_H) - OUTER_MARGIN * 2;

  return (
    <div style={{ width, height, display: "flex", flexDirection: "column", alignItems: "center" }}>
      <div style={{ height: TITLE_H, display: "flex", alignItems: "center", fontSize: 22, fontWeight: 600, color: t.ink }}>
        {TITLE}
      </div>
      <div style={{ flex: 1, display: "flex", alignItems: "center", justifyContent: "center" }}>
        <ChartsContainer
          width={side}
          height={side}
          series={[]}
          xAxis={[{ position: "none" }]}
          yAxis={[{ position: "none" }]}
          margin={{ top: 0, right: 0, bottom: 0, left: 0 }}
          skipAnimation
        >
          <SymbolModules />
        </ChartsContainer>
      </div>
      <div style={{ height: CAPTION_H, display: "flex", alignItems: "center", fontSize: 16, color: t.inkSoft }}>
        {CAPTION}
      </div>
    </div>
  );
}

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/qrcode-basic/muix/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "qrcode-basic",
  "language": "javascript",
  "library": "muix",
  "page": "https://anyplot.ai/qrcode-basic/javascript/muix",
  "hub": "https://anyplot.ai/qrcode-basic",
  "code_json": "https://api.anyplot.ai/specs/qrcode-basic/muix/code",
  "spec_json": "https://api.anyplot.ai/specs/qrcode-basic",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/qrcode-basic/javascript/muix/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/qrcode-basic/javascript/muix/plot-dark.png",
  "interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/qrcode-basic/javascript/muix/plot-light.html",
  "interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/qrcode-basic/javascript/muix/plot-dark.html",
  "quality_score": 88.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Basic QR Code Generator on anyplot.ai.
