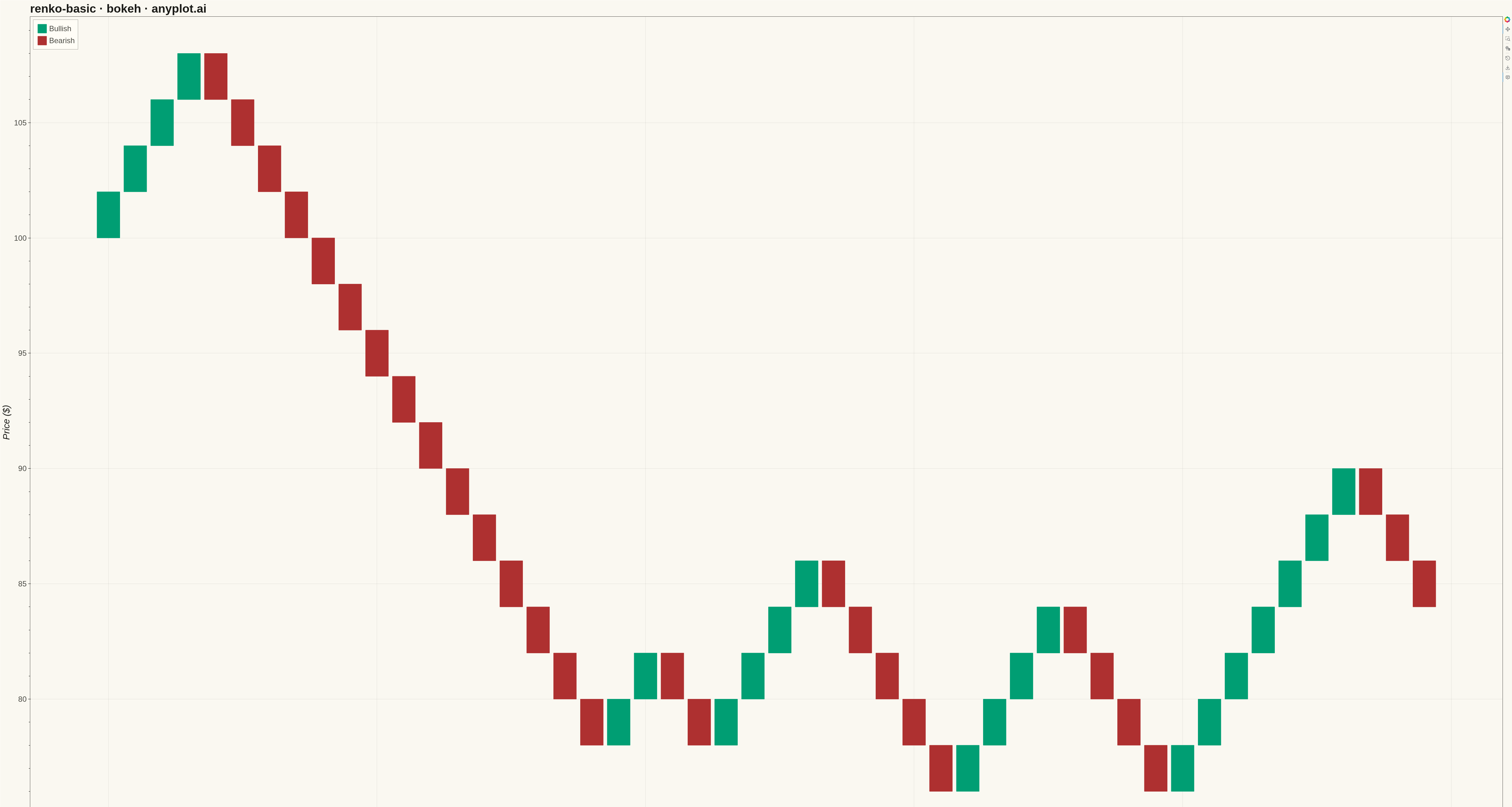

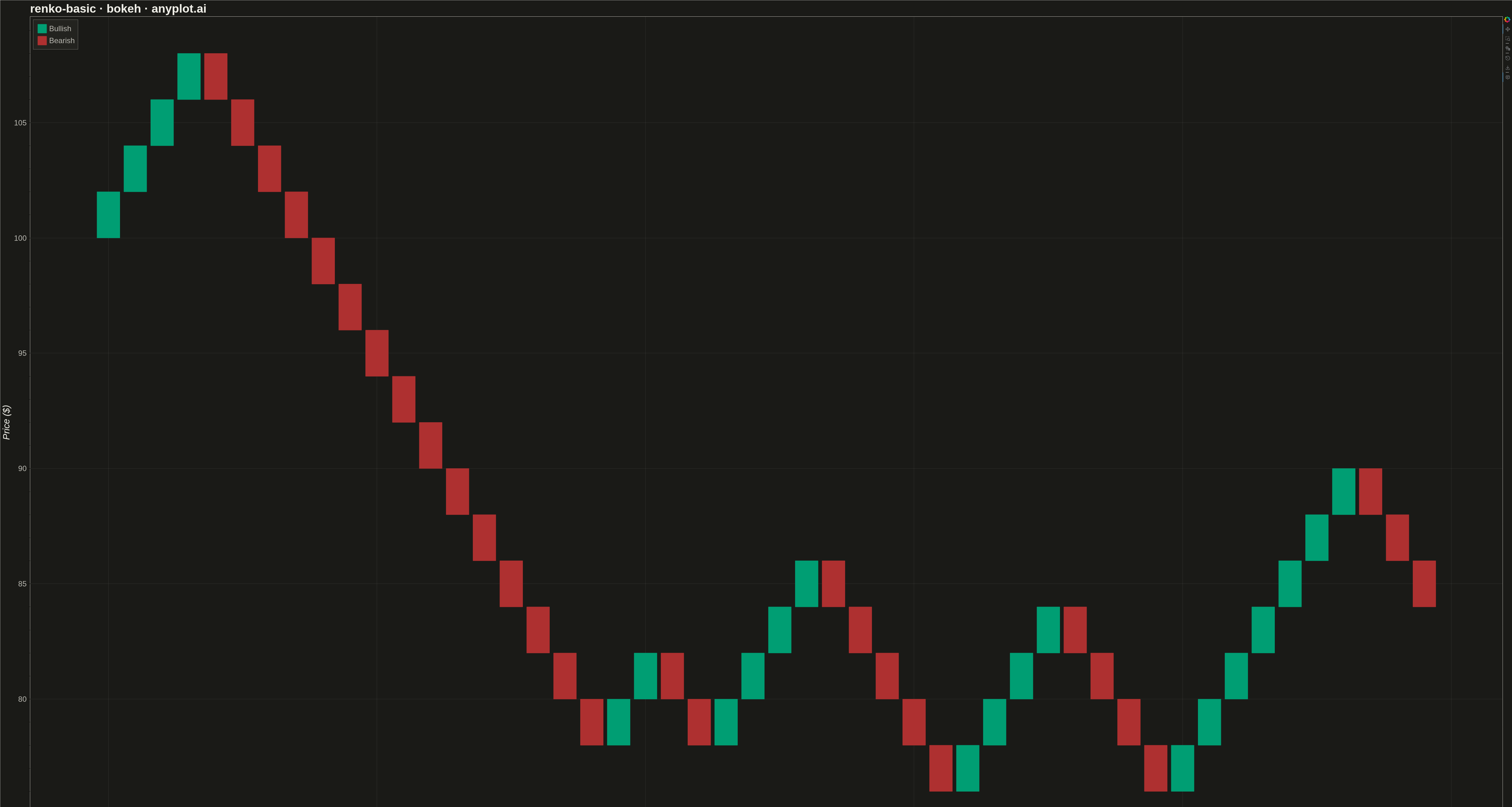

A Renko chart displays price movements using fixed-size bricks that ignore time and focus purely on price action. A new brick is drawn only when the price moves by a specified amount (brick size), filtering out market noise and minor fluctuations. Bullish bricks (price increase) and bearish bricks (price decrease) alternate direction on trend reversals, making it easy to identify trends, support/resistance levels, and potential trading signals.
""" anyplot.ai
renko-basic: Basic Renko Chart
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 88/100 | Updated: 2026-05-17
"""
import os
import sys
import time
from pathlib import Path
import numpy as np
import pandas as pd
# Remove current directory from path to avoid name conflict with bokeh.py
sys.path = [p for p in sys.path if p != "." and not p.endswith(os.path.dirname(__file__))]
from bokeh.io import output_file, save
from bokeh.models import ColumnDataSource, HoverTool
from bokeh.plotting import figure
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
BULLISH_COLOR = "#009E73" # Okabe-Ito position 1 — always first series (green)
BEARISH_COLOR = "#AE3030" # imprint red — down bricks
# Generate synthetic stock price data
np.random.seed(42)
n_days = 200
dates = pd.date_range("2024-01-01", periods=n_days, freq="D")
returns = np.random.randn(n_days) * 0.02
price = 100 * np.cumprod(1 + returns)
# Build Renko bricks
brick_size = 2.0
bricks = []
current_price = price[0]
brick_start = current_price - (current_price % brick_size)
direction = None
brick_index = 0
for close in price:
while True:
if direction is None:
if close >= brick_start + brick_size:
bricks.append(
{
"index": brick_index,
"bottom": brick_start,
"top": brick_start + brick_size,
"direction": "up",
"price_range": f"${brick_start:.2f} - ${brick_start + brick_size:.2f}",
}
)
brick_start += brick_size
direction = "up"
brick_index += 1
elif close <= brick_start - brick_size:
bricks.append(
{
"index": brick_index,
"bottom": brick_start - brick_size,
"top": brick_start,
"direction": "down",
"price_range": f"${brick_start - brick_size:.2f} - ${brick_start:.2f}",
}
)
brick_start -= brick_size
direction = "down"
brick_index += 1
else:
break
elif direction == "up":
if close >= brick_start + brick_size:
bricks.append(
{
"index": brick_index,
"bottom": brick_start,
"top": brick_start + brick_size,
"direction": "up",
"price_range": f"${brick_start:.2f} - ${brick_start + brick_size:.2f}",
}
)
brick_start += brick_size
brick_index += 1
elif close <= brick_start - 2 * brick_size:
bricks.append(
{
"index": brick_index,
"bottom": brick_start - brick_size,
"top": brick_start,
"direction": "down",
"price_range": f"${brick_start - brick_size:.2f} - ${brick_start:.2f}",
}
)
brick_start -= brick_size
direction = "down"
brick_index += 1
else:
break
else:
if close <= brick_start - brick_size:
bricks.append(
{
"index": brick_index,
"bottom": brick_start - brick_size,
"top": brick_start,
"direction": "down",
"price_range": f"${brick_start - brick_size:.2f} - ${brick_start:.2f}",
}
)
brick_start -= brick_size
brick_index += 1
elif close >= brick_start + 2 * brick_size:
bricks.append(
{
"index": brick_index,
"bottom": brick_start,
"top": brick_start + brick_size,
"direction": "up",
"price_range": f"${brick_start:.2f} - ${brick_start + brick_size:.2f}",
}
)
brick_start += brick_size
direction = "up"
brick_index += 1
else:
break
# Prepare data for plotting
brick_df = pd.DataFrame(bricks)
bullish = brick_df[brick_df["direction"] == "up"]
bearish = brick_df[brick_df["direction"] == "down"]
# Create figure
p = figure(
width=4800,
height=2700,
title="renko-basic · bokeh · anyplot.ai",
x_axis_label="Brick Number",
y_axis_label="Price ($)",
tools="pan,wheel_zoom,box_zoom,reset,save",
)
# Text styling for large canvas
p.title.text_font_size = "28pt"
p.xaxis.axis_label_text_font_size = "22pt"
p.yaxis.axis_label_text_font_size = "22pt"
p.xaxis.major_label_text_font_size = "18pt"
p.yaxis.major_label_text_font_size = "18pt"
# Theme-adaptive chrome
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = INK_SOFT
p.title.text_color = INK
p.xaxis.axis_label_text_color = INK
p.yaxis.axis_label_text_color = INK
p.xaxis.major_label_text_color = INK_SOFT
p.yaxis.major_label_text_color = INK_SOFT
p.xaxis.axis_line_color = INK_SOFT
p.yaxis.axis_line_color = INK_SOFT
# Grid styling
p.xgrid.grid_line_color = INK
p.ygrid.grid_line_color = INK
p.xgrid.grid_line_alpha = 0.10
p.ygrid.grid_line_alpha = 0.10
# Brick width
brick_width = 0.85
# Draw bullish bricks
if len(bullish) > 0:
bullish_source = ColumnDataSource(
data={
"x": bullish["index"].values,
"bottom": bullish["bottom"].values,
"top": bullish["top"].values,
"price_range": bullish["price_range"].values,
}
)
bullish_bars = p.vbar(
x="x",
width=brick_width,
bottom="bottom",
top="top",
source=bullish_source,
color=BULLISH_COLOR,
line_color=BULLISH_COLOR,
line_width=1,
legend_label="Bullish",
)
hover_bullish = HoverTool(
renderers=[bullish_bars], tooltips=[("Brick", "@x"), ("Price Range", "@price_range"), ("Direction", "Up")]
)
p.add_tools(hover_bullish)
# Draw bearish bricks
if len(bearish) > 0:
bearish_source = ColumnDataSource(
data={
"x": bearish["index"].values,
"bottom": bearish["bottom"].values,
"top": bearish["top"].values,
"price_range": bearish["price_range"].values,
}
)
bearish_bars = p.vbar(
x="x",
width=brick_width,
bottom="bottom",
top="top",
source=bearish_source,
color=BEARISH_COLOR,
line_color=BEARISH_COLOR,
line_width=1,
legend_label="Bearish",
)
hover_bearish = HoverTool(
renderers=[bearish_bars], tooltips=[("Brick", "@x"), ("Price Range", "@price_range"), ("Direction", "Down")]
)
p.add_tools(hover_bearish)
# Legend styling
if p.legend:
p.legend.location = "top_left"
p.legend.label_text_font_size = "18pt"
p.legend.background_fill_color = ELEVATED_BG
p.legend.border_line_color = INK_SOFT
p.legend.label_text_color = INK_SOFT
p.legend.glyph_height = 35
p.legend.glyph_width = 35
# Save HTML output
output_file(f"plot-{THEME}.html")
save(p)
# Screenshot with headless Chrome
W, H = 4800, 2700
opts = Options()
for arg in (
"--headless=new",
"--no-sandbox",
"--disable-dev-shm-usage",
"--disable-gpu",
f"--window-size={W},{H}",
"--hide-scrollbars",
):
opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)
driver.save_screenshot(f"plot-{THEME}.png")
driver.quit()
Part of Basic Renko Chart on anyplot.ai.
