Basic Renko Chart — Matplotlib

A Renko chart displays price movements using fixed-size bricks that ignore time and focus purely on price action. A new brick is drawn only when the price moves by a specified amount (brick size), filtering out market noise and minor fluctuations. Bullish bricks (price increase) and bearish bricks (price decrease) alternate direction on trend reversals, making it easy to identify trends, support/resistance levels, and potential trading signals.

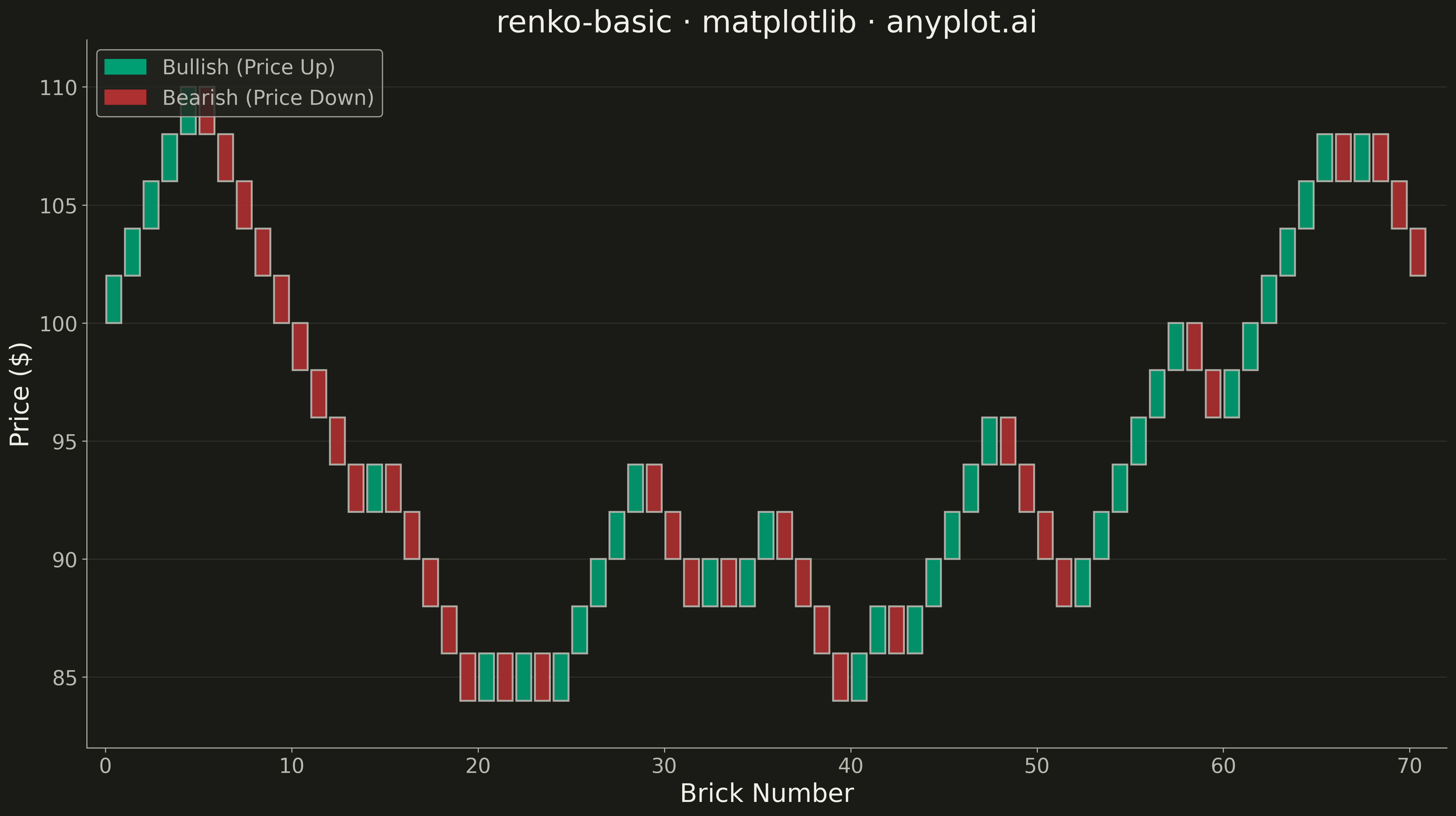

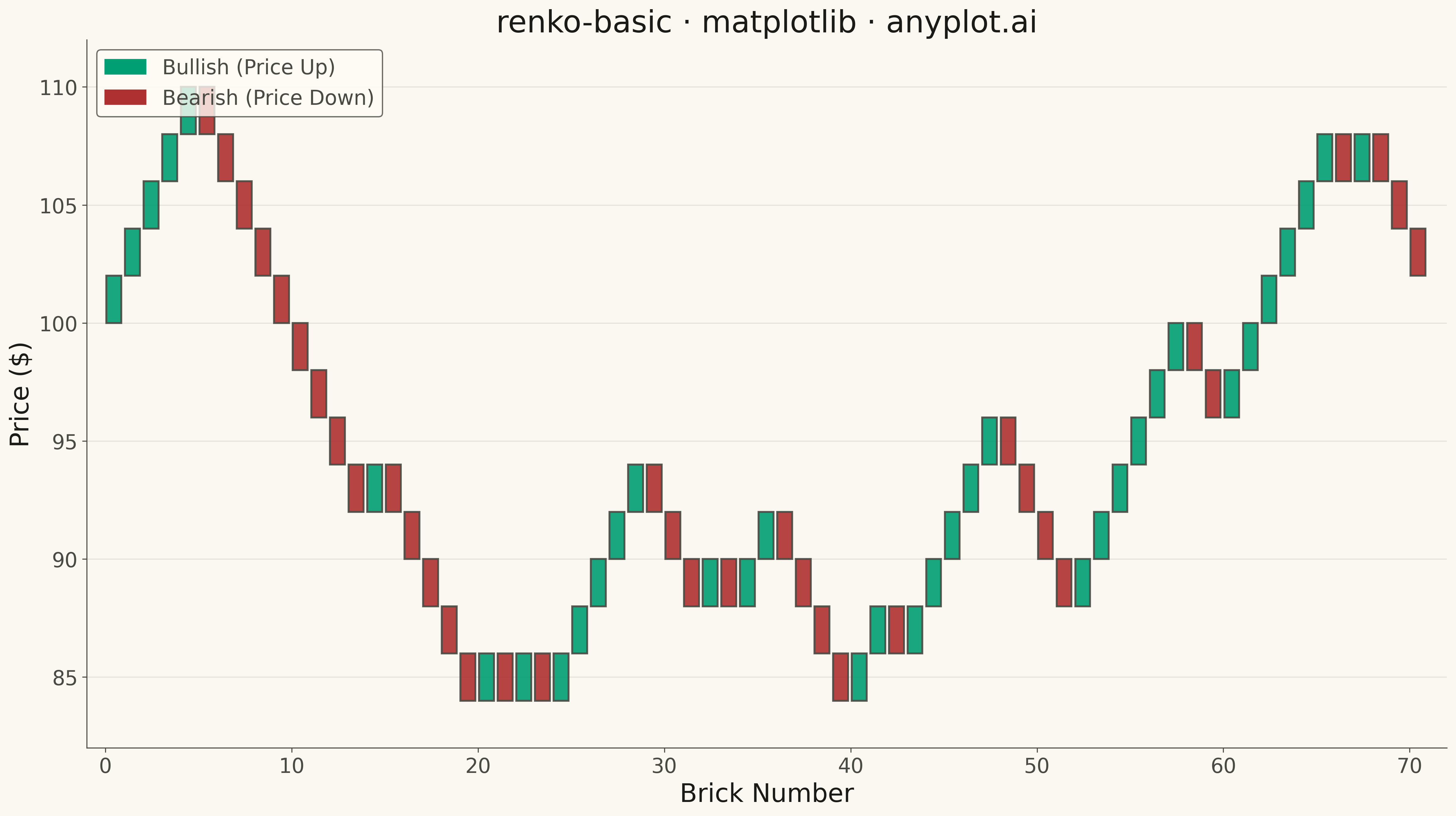

Basic Renko Chart rendered with Matplotlib

Python source (Matplotlib)

""" anyplot.ai
renko-basic: Basic Renko Chart
Library: matplotlib 3.10.9 | Python 3.13.13
Quality: 88/100 | Updated: 2026-05-17
"""

import os

import matplotlib.patches as mpatches
import matplotlib.pyplot as plt
import numpy as np


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# imprint semantic anchors
BULLISH = "#009E73"  # green — upward
BEARISH = "#AE3030"  # red — downward

# Generate synthetic price data
np.random.seed(42)
n_points = 200

# Start price and simulate daily returns
start_price = 100
returns = np.random.normal(0.001, 0.02, n_points)
prices = start_price * np.cumprod(1 + returns)

# Renko brick calculation
brick_size = 2.0


def calculate_renko_bricks(close_prices, brick_size):
    """Calculate Renko bricks from close prices."""
    bricks = []
    if len(close_prices) == 0:
        return bricks

    current_price = np.floor(close_prices[0] / brick_size) * brick_size

    for price in close_prices:
        diff = price - current_price
        num_bricks = int(abs(diff) // brick_size)

        if num_bricks > 0:
            direction = 1 if diff > 0 else -1
            for _ in range(num_bricks):
                brick_bottom = current_price if direction > 0 else current_price - brick_size
                bricks.append({"bottom": brick_bottom, "top": brick_bottom + brick_size, "direction": direction})
                current_price += direction * brick_size

    return bricks


# Calculate Renko bricks
bricks = calculate_renko_bricks(prices, brick_size)

# Create figure
fig, ax = plt.subplots(figsize=(16, 9), facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)

# Draw bricks
brick_width = 0.8
gap = 0.1

for i, brick in enumerate(bricks):
    color = BULLISH if brick["direction"] > 0 else BEARISH
    edge_color = INK_SOFT

    rect = mpatches.Rectangle(
        (i + gap / 2, brick["bottom"]),
        brick_width,
        brick_size,
        linewidth=1.5,
        edgecolor=edge_color,
        facecolor=color,
        alpha=0.9,
    )
    ax.add_patch(rect)

# Set axis limits
ax.set_xlim(-1, len(bricks) + 1)
all_prices = [b["bottom"] for b in bricks] + [b["top"] for b in bricks]
ax.set_ylim(min(all_prices) - brick_size, max(all_prices) + brick_size)

# Labels and styling
ax.set_xlabel("Brick Number", fontsize=20, color=INK)
ax.set_ylabel("Price ($)", fontsize=20, color=INK)
ax.set_title("renko-basic · matplotlib · anyplot.ai", fontsize=24, fontweight="medium", color=INK)
ax.tick_params(axis="both", labelsize=16, colors=INK_SOFT)

# Subtle grid for price levels
ax.yaxis.grid(True, alpha=0.10, linewidth=0.8, color=INK)
ax.set_axisbelow(True)

# Spine styling
ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)
for s in ("left", "bottom"):
    ax.spines[s].set_color(INK_SOFT)

# Legend with theme-adaptive styling
bullish_patch = mpatches.Patch(color=BULLISH, label="Bullish (Price Up)")
bearish_patch = mpatches.Patch(color=BEARISH, label="Bearish (Price Down)")
leg = ax.legend(handles=[bullish_patch, bearish_patch], loc="upper left", fontsize=16)
if leg:
    leg.get_frame().set_facecolor(ELEVATED_BG)
    leg.get_frame().set_edgecolor(INK_SOFT)
    plt.setp(leg.get_texts(), color=INK_SOFT)

plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)

Part of Basic Renko Chart on anyplot.ai.
