A Renko chart displays price movements using fixed-size bricks that ignore time and focus purely on price action. A new brick is drawn only when the price moves by a specified amount (brick size), filtering out market noise and minor fluctuations. Bullish bricks (price increase) and bearish bricks (price decrease) alternate direction on trend reversals, making it easy to identify trends, support/resistance levels, and potential trading signals.

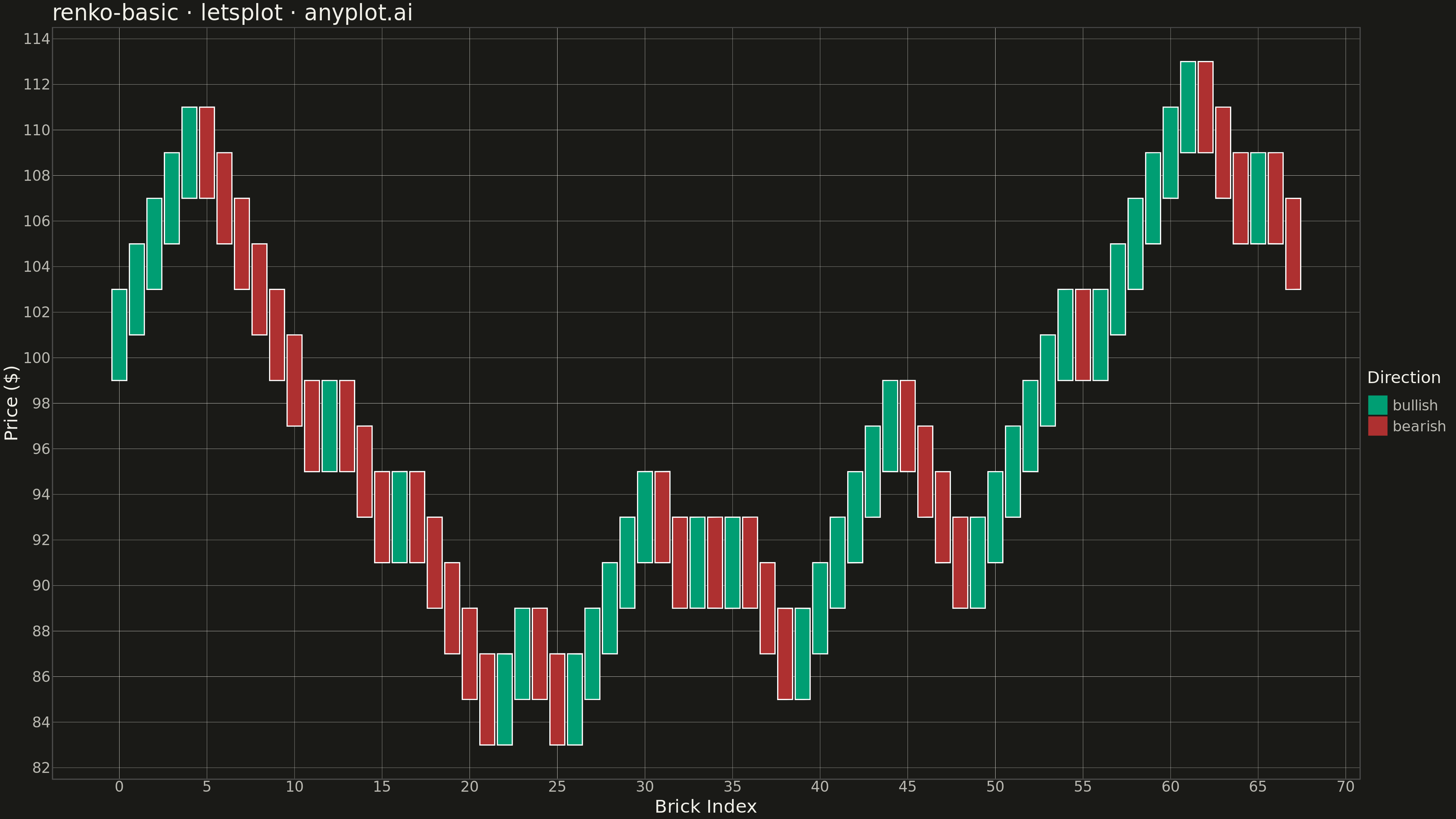

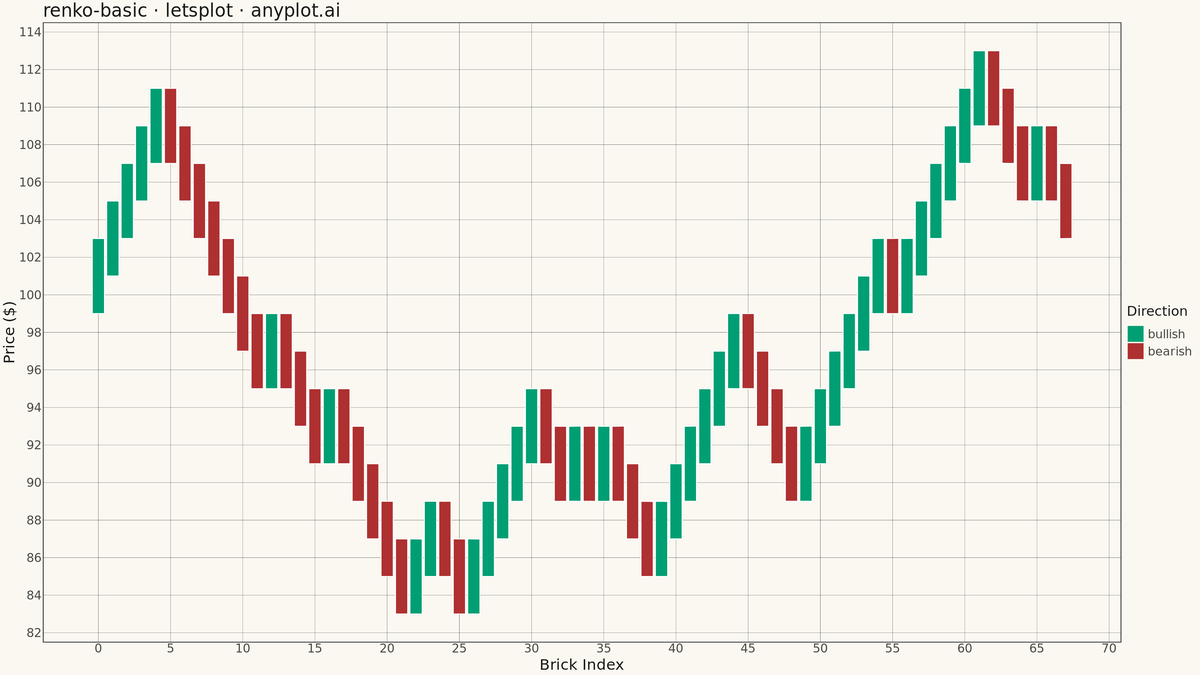

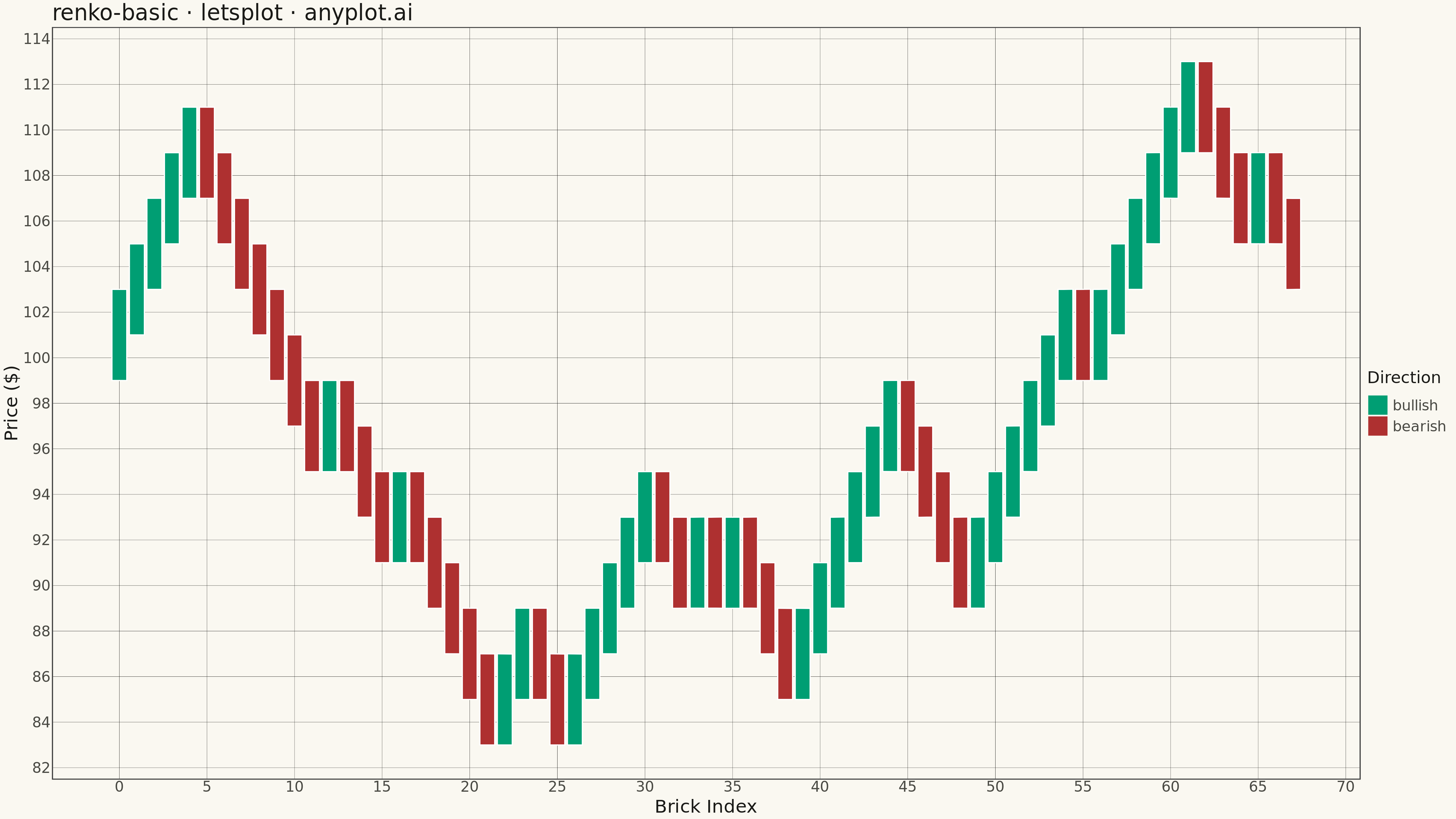

Basic Renko Chart rendered with lets-plot

Python source (lets-plot)

""" anyplot.ai
renko-basic: Basic Renko Chart
Library: letsplot 4.9.0 | Python 3.13.13
Quality: 92/100 | Updated: 2026-05-17
"""

import os

import numpy as np
import pandas as pd
from lets_plot import *
from lets_plot import element_blank, element_line, element_rect, element_text, theme
from lets_plot.export import ggsave


LetsPlot.setup_html()

# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
RULE = "rgba(26,26,23,0.10)" if THEME == "light" else "rgba(240,239,232,0.10)"

# Okabe-Ito palette (bullish: position 1, bearish: position 2 for better accessibility)
BULLISH = "#009E73"  # Okabe-Ito position 1
BEARISH = "#AE3030"  # imprint red — bearish

# Generate synthetic stock price data
np.random.seed(42)
n_days = 200
dates = pd.date_range("2024-01-01", periods=n_days, freq="D")
returns = np.random.normal(0.001, 0.02, n_days)
prices = 100 * np.exp(np.cumsum(returns))

# Renko brick calculation
brick_size = 2.0  # $2 brick size
renko_bricks = []
current_price = prices[0]
brick_base = (current_price // brick_size) * brick_size
direction = None

for price in prices:
    while price >= brick_base + brick_size:
        new_base = brick_base + brick_size
        renko_bricks.append(
            {"brick_index": len(renko_bricks), "open": brick_base, "close": new_base, "direction": "bullish"}
        )
        brick_base = new_base
        direction = "bullish"

    while price <= brick_base - brick_size:
        new_base = brick_base - brick_size
        renko_bricks.append(
            {"brick_index": len(renko_bricks), "open": brick_base, "close": new_base, "direction": "bearish"}
        )
        brick_base = new_base
        direction = "bearish"

# Create DataFrame for plotting
df_renko = pd.DataFrame(renko_bricks)

# Calculate brick positions for visualization
df_renko["x"] = df_renko["brick_index"]
df_renko["y_min"] = df_renko[["open", "close"]].min(axis=1)
df_renko["y_max"] = df_renko[["open", "close"]].max(axis=1)
df_renko["y_center"] = (df_renko["y_min"] + df_renko["y_max"]) / 2
df_renko["height"] = brick_size

# Create Renko chart
plot = (
    ggplot(df_renko, aes(x="x", y="y_center", fill="direction"))
    + geom_tile(aes(height="height"), width=0.85, color="white", size=0.5)
    + scale_fill_manual(
        values={"bullish": BULLISH, "bearish": BEARISH}, name="Direction"
    )
    + labs(x="Brick Index", y="Price ($)", title="renko-basic · letsplot · anyplot.ai")
    + theme_minimal()
    + theme(
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG),
        panel_grid_major=element_line(color=INK, size=0.2),
        panel_grid_minor=element_blank(),
        axis_title=element_text(size=20, color=INK),
        axis_text=element_text(size=16, color=INK_SOFT),
        axis_line=element_line(color=INK_SOFT),
        plot_title=element_text(size=24, color=INK),
        legend_background=element_rect(fill=PAGE_BG, color=INK_SOFT),
        legend_text=element_text(size=16, color=INK_SOFT),
        legend_title=element_text(size=18, color=INK),
        legend_position="right",
    )
    + ggsize(1600, 900)
)

# Save as PNG (scale 3x for 4800 × 2700 px)
ggsave(plot, f"plot-{THEME}.png", path=".", scale=3)

# Save as HTML for interactive viewing
ggsave(plot, f"plot-{THEME}.html", path=".")

Part of Basic Renko Chart on anyplot.ai.
