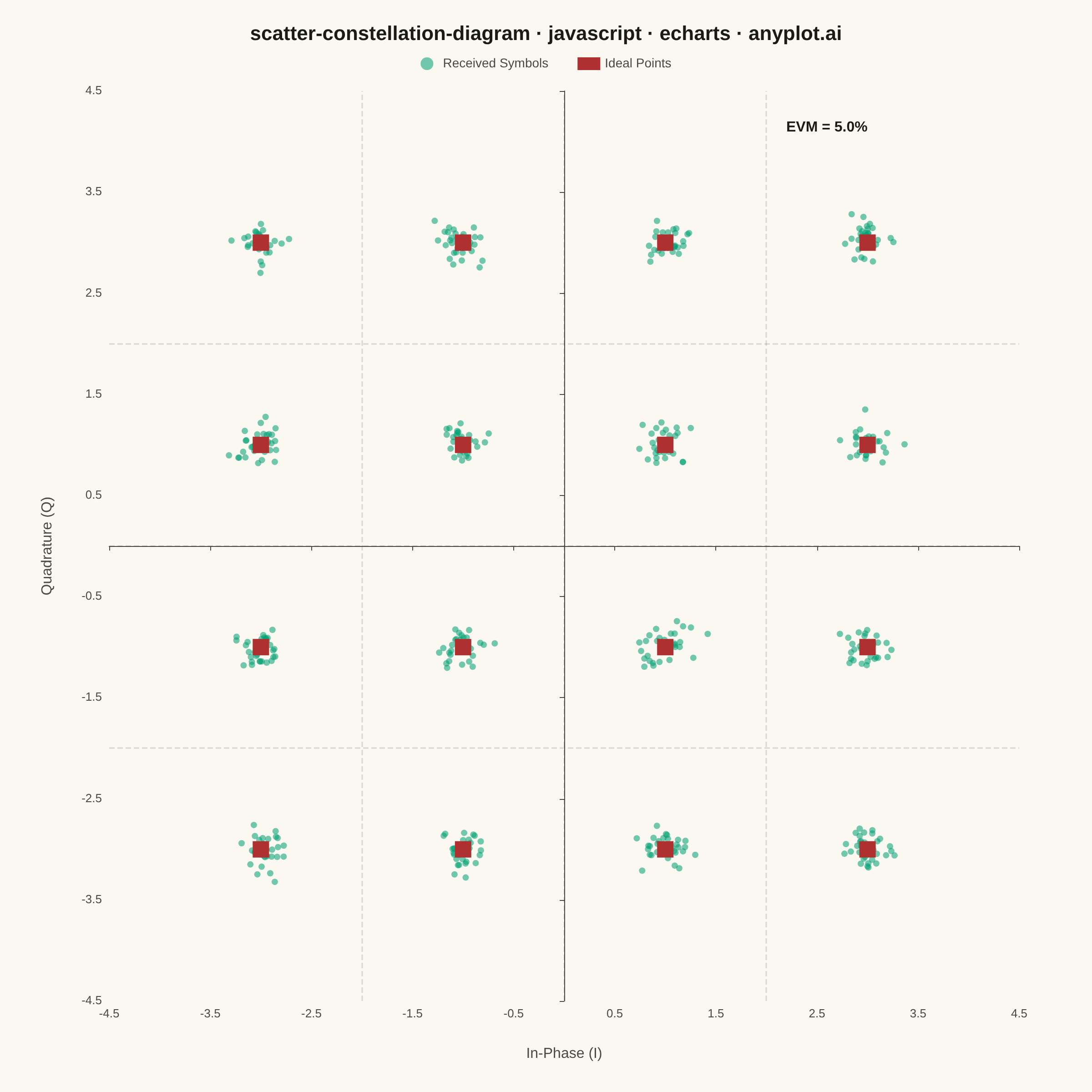

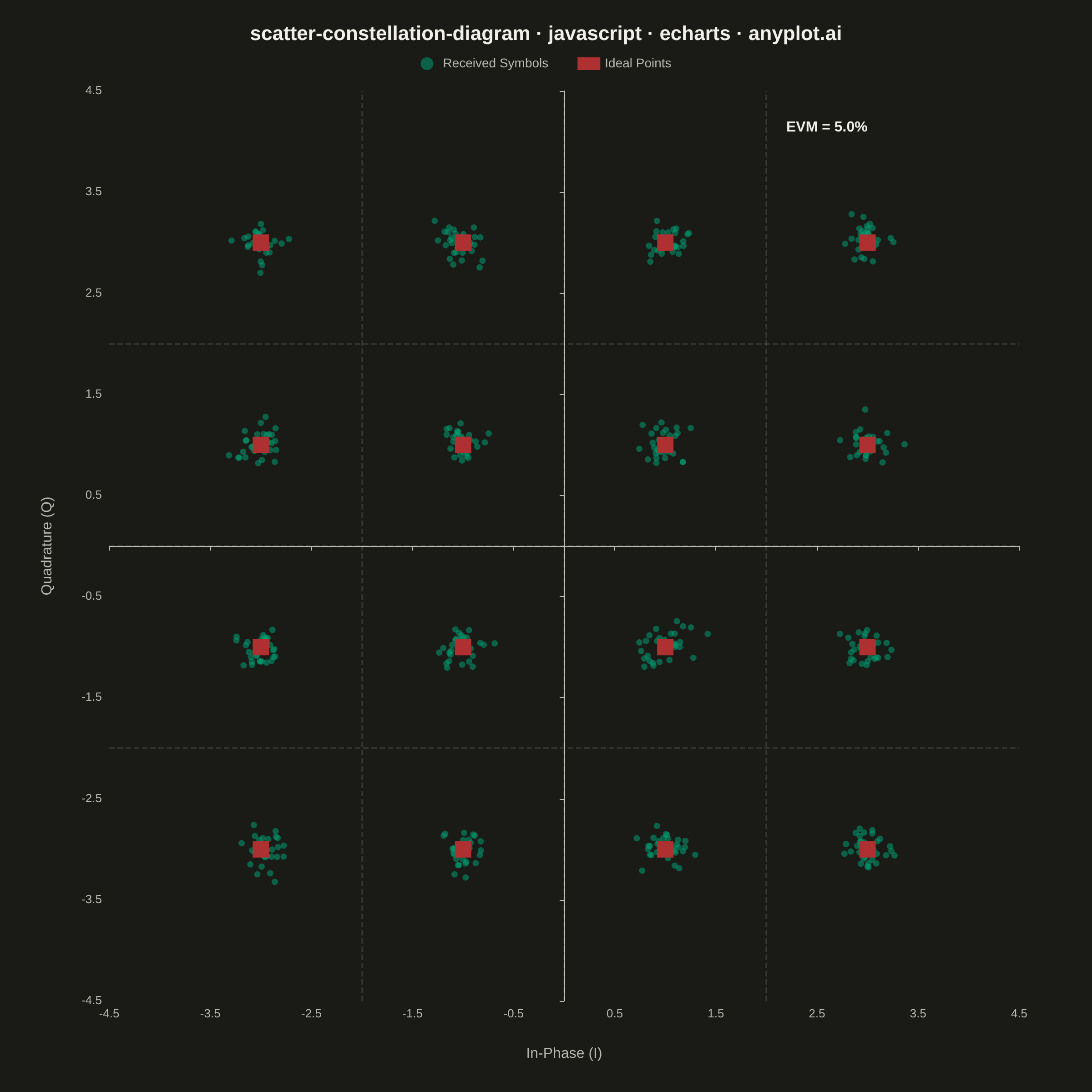

An I/Q (In-phase/Quadrature) scatter plot showing symbol positions of a digitally modulated signal. Ideal constellation points are displayed as reference markers with received symbols scattered around them, revealing modulation quality and signal impairments such as noise, phase offset, and amplitude distortion. This plot is the standard diagnostic tool for evaluating digital modulation schemes like 16-QAM.

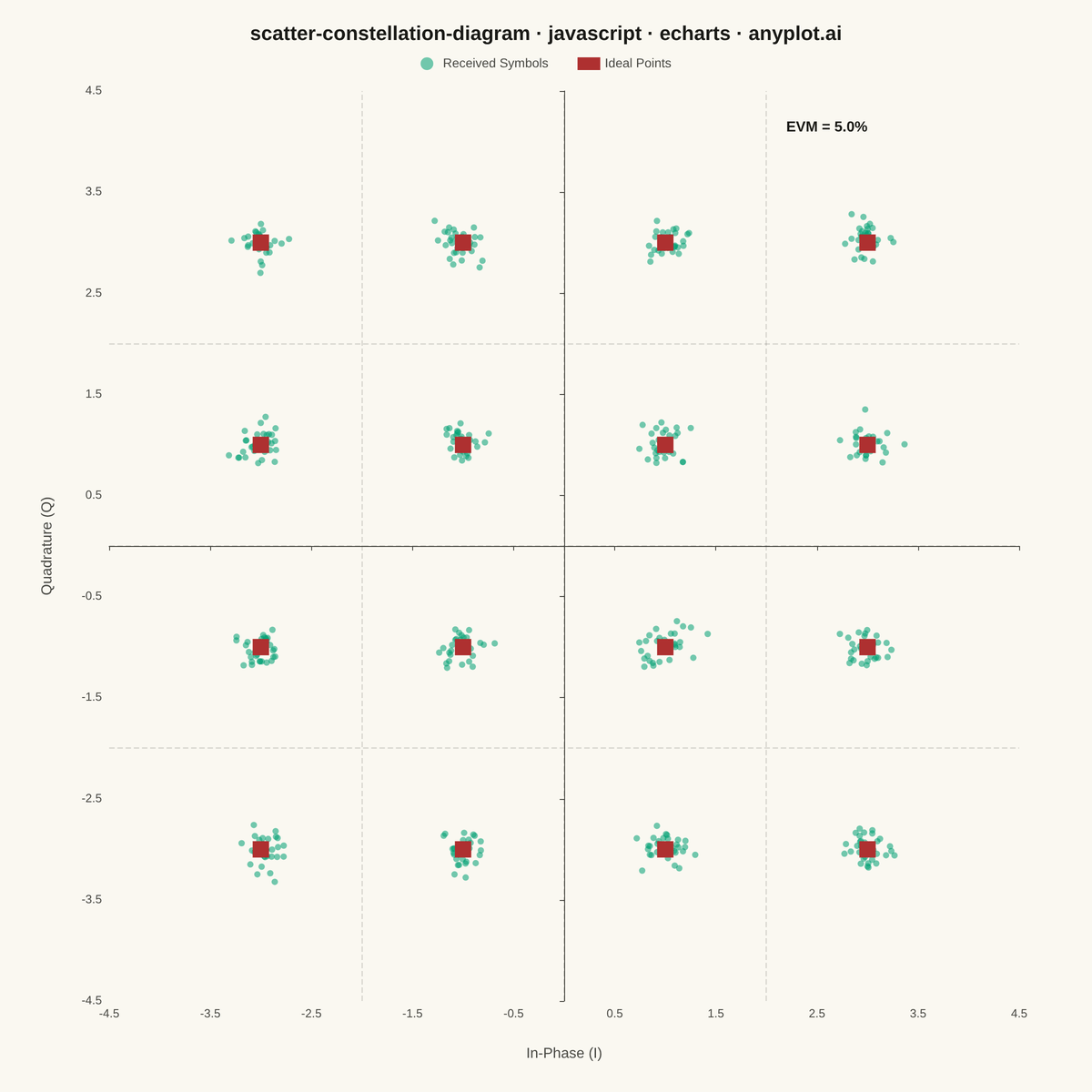

Digital Modulation Constellation Diagram rendered with Apache ECharts

JavaScript source (Apache ECharts)

// anyplot.ai
// scatter-constellation-diagram: Digital Modulation Constellation Diagram
// Library: echarts 5.5.1 | JavaScript 22.22.3
// Quality: 90/100 | Created: 2026-06-18
//# anyplot-orientation: square
// anyplot.ai
// scatter-constellation-diagram: Digital Modulation Constellation Diagram
// Library: echarts 5.5.1 | JavaScript 22
// Quality: pending | Created: 2026-06-18

const t = window.ANYPLOT_TOKENS;

// Seeded LCG PRNG — reproducible data without Math.random()
function mkRng(seed) {
  let s = seed >>> 0;
  return function () {
    s = (Math.imul(s, 1664525) + 1013904223) >>> 0;
    return s / 4294967296;
  };
}

// Box-Muller: uniform → Gaussian
function gaussian(rng, sigma) {
  const u1 = rng() + 1e-10;
  const u2 = rng();
  return sigma * Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
}

// 16-QAM ideal constellation: 16 points on {-3, -1, +1, +3}² grid
const ampLevels = [-3, -1, 1, 3];
const idealPoints = [];
for (const q of ampLevels) {
  for (const i of ampLevels) {
    idealPoints.push([i, q]);
  }
}

// Received symbols: 32 per ideal point (512 total) with AWGN noise (noiseStd = 0.12)
const rng = mkRng(42);
const noiseStd = 0.12;
const symbolsPerPoint = 32;
const received = [];
let totalErrorPower = 0;

for (const [i0, q0] of idealPoints) {
  for (let k = 0; k < symbolsPerPoint; k++) {
    const ni = gaussian(rng, noiseStd);
    const nq = gaussian(rng, noiseStd);
    received.push([i0 + ni, q0 + nq]);
    totalErrorPower += ni * ni + nq * nq;
  }
}

// EVM = sqrt(mean error power / mean symbol power) × 100%
// 16-QAM mean symbol power: mean(I²+Q²) for I,Q ∈ {±1,±3} = 2×(1+9)/2 = 10
const evm = (Math.sqrt(totalErrorPower / received.length / 10) * 100).toFixed(1);

// Decision boundary lines at ±2 and 0 (midpoints between adjacent symbol levels)
const boundaryLines = [
  { xAxis: -2 }, { xAxis: 0 }, { xAxis: 2 },
  { yAxis: -2 }, { yAxis: 0 }, { yAxis: 2 },
];

const chart = echarts.init(document.getElementById("container"));

chart.setOption({
  animation: false,
  color: t.palette,
  backgroundColor: "transparent",

  title: {
    text: "scatter-constellation-diagram · javascript · echarts · anyplot.ai",
    left: "center",
    top: 22,
    textStyle: { color: t.ink, fontSize: 22, fontWeight: "bold" },
  },

  legend: {
    data: ["Received Symbols", "Ideal Points"],
    top: 58,
    left: "center",
    orient: "horizontal",
    textStyle: { color: t.inkSoft, fontSize: 14 },
    itemGap: 32,
  },

  // Square grid: left+right = top+bottom = 200 → 1000×1000 CSS plot area
  // Equal I/Q range [-4.5, 4.5] on a 1000×1000 area ensures equal aspect ratio
  grid: { left: 120, right: 80, top: 100, bottom: 100 },

  xAxis: {
    type: "value",
    name: "In-Phase (I)",
    nameLocation: "middle",
    nameGap: 50,
    nameTextStyle: { color: t.inkSoft, fontSize: 16 },
    min: -4.5,
    max: 4.5,
    interval: 1,
    axisLabel: { color: t.inkSoft, fontSize: 13 },
    axisLine: { lineStyle: { color: t.inkSoft } },
    axisTick: { lineStyle: { color: t.inkSoft } },
    splitLine: { show: false },
  },

  yAxis: {
    type: "value",
    name: "Quadrature (Q)",
    nameLocation: "middle",
    nameGap: 60,
    nameTextStyle: { color: t.inkSoft, fontSize: 16 },
    min: -4.5,
    max: 4.5,
    interval: 1,
    axisLabel: { color: t.inkSoft, fontSize: 13 },
    axisLine: { lineStyle: { color: t.inkSoft } },
    axisTick: { lineStyle: { color: t.inkSoft } },
    splitLine: { show: false },
  },

  series: [
    {
      name: "Received Symbols",
      type: "scatter",
      data: received,
      symbolSize: 7,
      itemStyle: {
        color: t.palette[0],  // #009E73 brand green — always first series (Imprint palette)
        opacity: 0.55,
      },
      // Decision boundary grid overlaid on the received-symbols series
      markLine: {
        silent: true,
        symbol: "none",
        label: { show: false },
        lineStyle: { type: "dashed", color: t.grid, width: 1.5 },
        data: boundaryLines,
      },
    },
    {
      name: "Ideal Points",
      type: "scatter",
      data: idealPoints,
      symbol: "rect",
      symbolSize: [18, 18],
      itemStyle: {
        color: t.palette[4],  // #AE3030 matte red — engineering convention for ideal I/Q reference points
        opacity: 1,
      },
    },
  ],

  // EVM annotation placed in the upper-right quadrant of the constellation
  graphic: [
    {
      type: "text",
      left: "72%",
      top: "11%",
      style: {
        text: `EVM = ${evm}%`,
        fill: t.ink,
        font: "bold 16px sans-serif",
      },
    },
  ],
});
