Digital Modulation Constellation Diagram — Highcharts

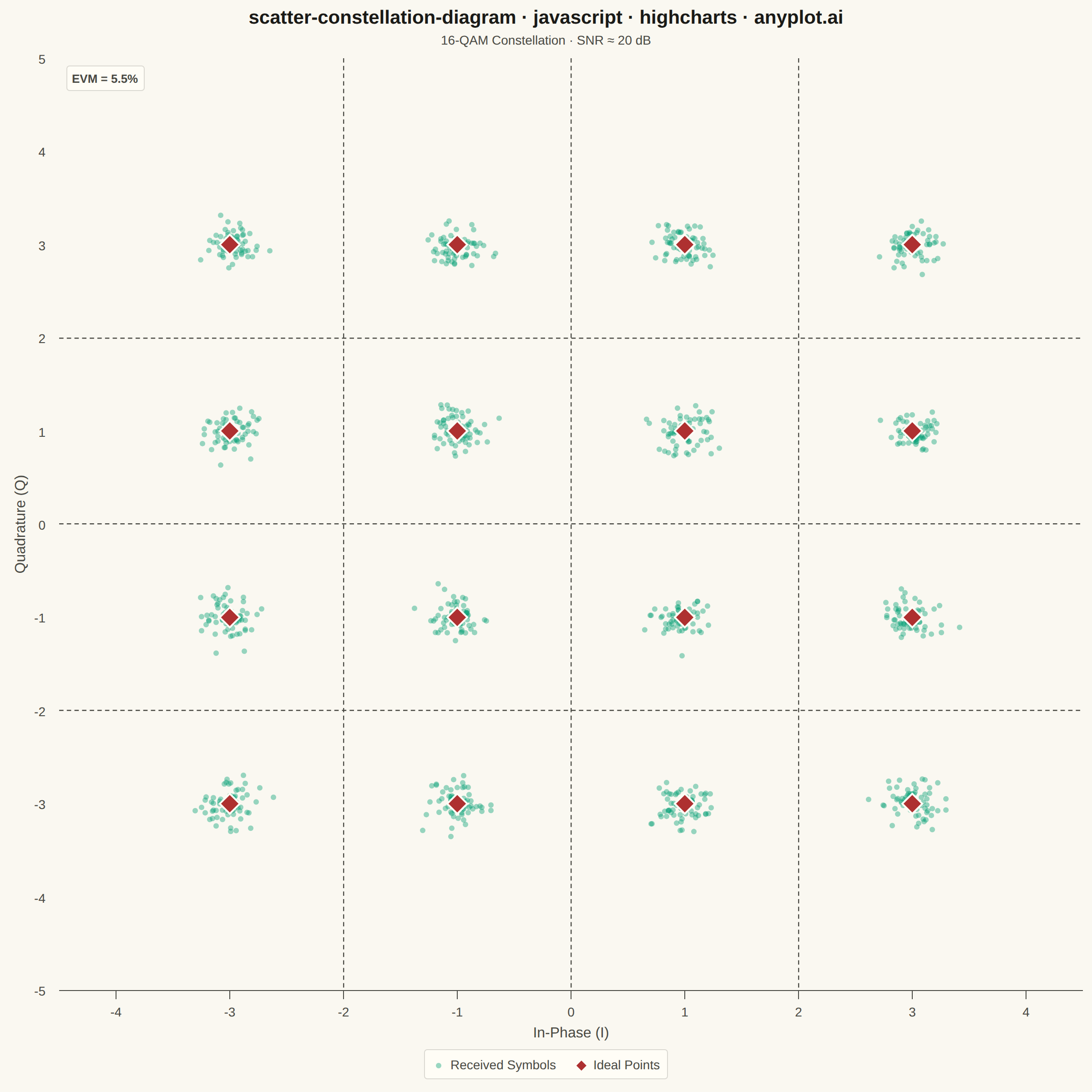

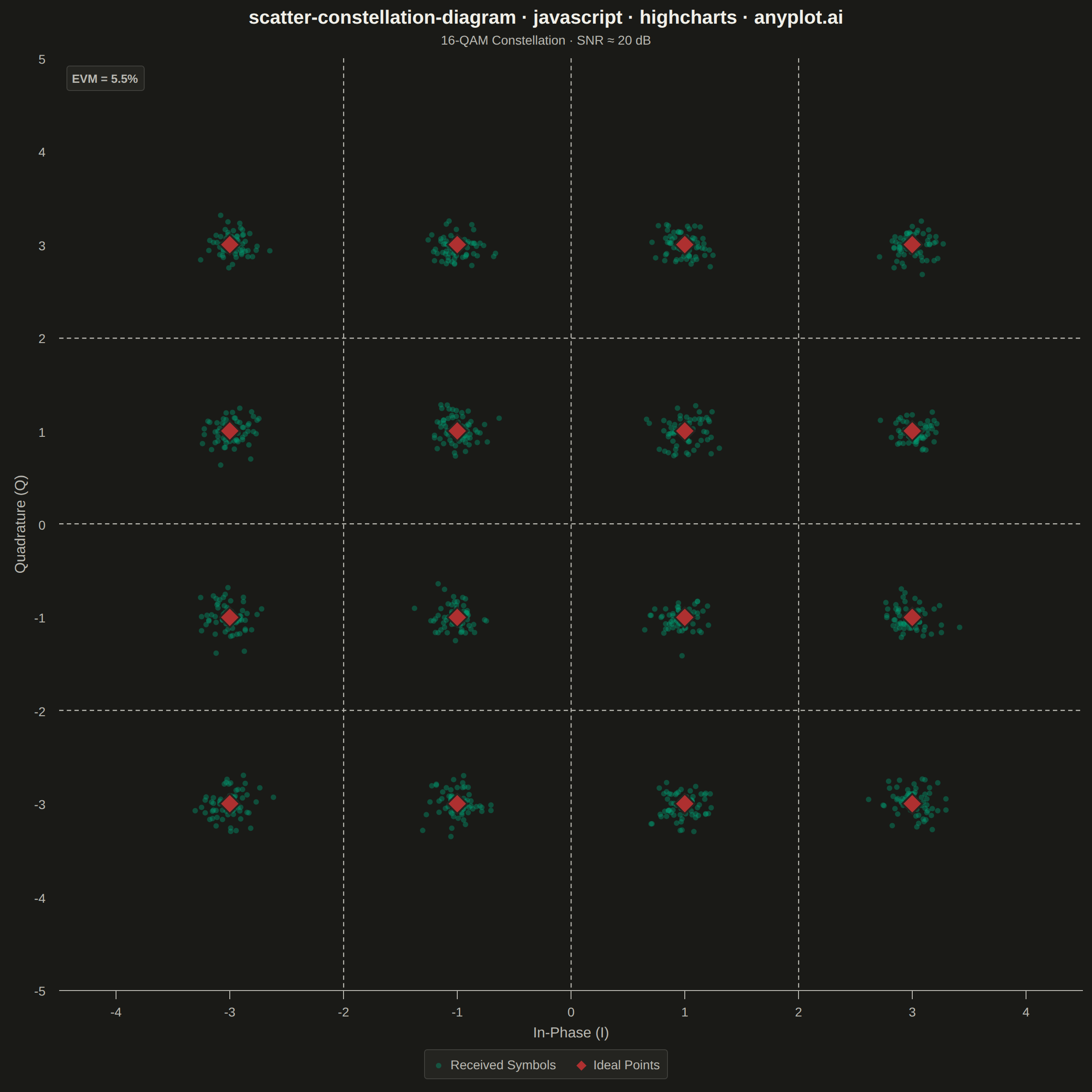

An I/Q (In-phase/Quadrature) scatter plot showing symbol positions of a digitally modulated signal. Ideal constellation points are displayed as reference markers with received symbols scattered around them, revealing modulation quality and signal impairments such as noise, phase offset, and amplitude distortion. This plot is the standard diagnostic tool for evaluating digital modulation schemes like 16-QAM.

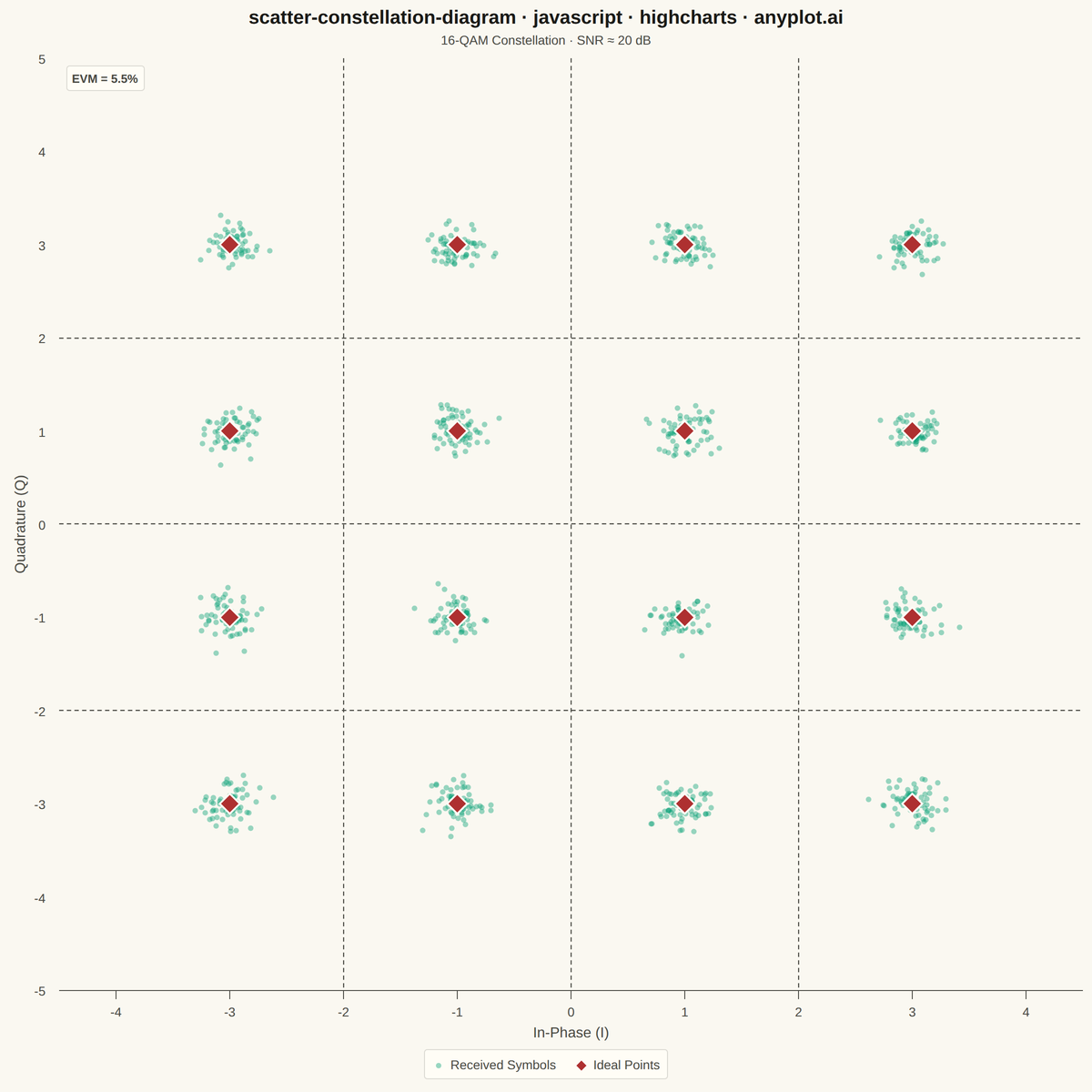

Digital Modulation Constellation Diagram rendered with Highcharts

JavaScript source (Highcharts)

// anyplot.ai
// scatter-constellation-diagram: Digital Modulation Constellation Diagram
// Library: highcharts 12.6.0 | JavaScript 22.22.3
// Quality: 87/100 | Created: 2026-06-18
//# anyplot-orientation: square
// anyplot.ai
// scatter-constellation-diagram: Digital Modulation Constellation Diagram
// Library: Highcharts 12.6.0 | Node 22
// License: Highcharts — commercial license, free for non-commercial use (highcharts.com/license)
// Quality: pending | Created: 2026-06-18

const t = window.ANYPLOT_TOKENS;

// Deterministic LCG for reproducible Gaussian noise (Box-Muller)
let seed = 42195;
function lcg() {
    seed = (1664525 * seed + 1013904223) >>> 0;
    return seed / 0x100000000;
}
function randn() {
    const u1 = lcg() || 1e-10;
    const u2 = lcg();
    return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
}

// 16-QAM ideal constellation points at {-3,-1,+1,+3} × {-3,-1,+1,+3}
const LEVELS = [-3, -1, 1, 3];
const idealPoints = [];
for (const iVal of LEVELS) {
    for (const qVal of LEVELS) {
        idealPoints.push({ x: iVal, y: qVal });
    }
}

// Received symbols: 64 per ideal point with additive Gaussian noise (SNR ≈ 20 dB)
const NOISE_STD = 0.12;
const PER_POINT = 64;
const received = [];
let sumSqErr = 0;
for (const { x: ip, y: qp } of idealPoints) {
    for (let k = 0; k < PER_POINT; k++) {
        const iRx = ip + randn() * NOISE_STD;
        const qRx = qp + randn() * NOISE_STD;
        received.push({ x: iRx, y: qRx });
        sumSqErr += (iRx - ip) ** 2 + (qRx - qp) ** 2;
    }
}

// EVM = sqrt(mean squared error / mean signal power) × 100%
// Mean signal power for 16-QAM at ±1,±3: mean(I²+Q²) = 10
const AVG_SIGNAL_POWER = 10;
const evmPct = (Math.sqrt(sumSqErr / received.length / AVG_SIGNAL_POWER) * 100).toFixed(1);

// Decision boundary positions (midpoints between adjacent symbol levels)
const BOUNDARIES = [-2, 0, 2];

const chart = Highcharts.chart('container', {
    chart: {
        type: 'scatter',
        backgroundColor: 'transparent',
        plotBorderWidth: 0,
        animation: false,
        style: { fontFamily: 'inherit' },
    },
    credits: { enabled: false },
    colors: t.palette,
    title: {
        text: 'scatter-constellation-diagram · javascript · highcharts · anyplot.ai',
        style: { color: t.ink, fontSize: '21px', fontWeight: '600' },
    },
    subtitle: {
        text: '16-QAM Constellation · SNR ≈ 20 dB',
        style: { color: t.inkSoft, fontSize: '14px' },
    },
    xAxis: {
        title: {
            text: 'In-Phase (I)',
            style: { color: t.inkSoft, fontSize: '16px' },
        },
        min: -4.5,
        max: 4.5,
        tickInterval: 1,
        lineColor: t.inkSoft,
        tickColor: t.inkSoft,
        gridLineWidth: 0,
        labels: { style: { color: t.inkSoft, fontSize: '14px' } },
        plotLines: BOUNDARIES.map(val => ({
            value: val,
            color: t.inkSoft,
            dashStyle: 'Dash',
            width: 1.2,
            zIndex: 2,
        })),
    },
    yAxis: {
        title: {
            text: 'Quadrature (Q)',
            style: { color: t.inkSoft, fontSize: '16px' },
        },
        min: -4.5,
        max: 4.5,
        tickInterval: 1,
        lineColor: t.inkSoft,
        tickColor: t.inkSoft,
        gridLineWidth: 0,
        labels: { style: { color: t.inkSoft, fontSize: '14px' } },
        plotLines: BOUNDARIES.map(val => ({
            value: val,
            color: t.inkSoft,
            dashStyle: 'Dash',
            width: 1.2,
            zIndex: 2,
        })),
    },
    legend: {
        itemStyle: { color: t.inkSoft, fontSize: '14px' },
        itemHoverStyle: { color: t.ink },
        backgroundColor: t.elevatedBg,
        borderColor: t.grid,
        borderRadius: 3,
        borderWidth: 1,
    },
    plotOptions: {
        series: { animation: false, enableMouseTracking: false },
        scatter: { marker: { symbol: 'circle' } },
    },
    series: [
        {
            name: 'Received Symbols',
            data: received,
            color: t.palette[0],
            marker: {
                radius: 3,
                fillColor: t.palette[0] + '66',
                lineWidth: 0,
            },
        },
        {
            name: 'Ideal Points',
            data: idealPoints,
            color: t.palette[4],
            marker: {
                symbol: 'diamond',
                radius: 11,
                fillColor: t.palette[4],
                lineWidth: 2,
                lineColor: t.elevatedBg,
            },
        },
    ],
});

// EVM annotation placed directly on the plot area via Highcharts SVG renderer
chart.renderer.label(
    `EVM = ${evmPct}%`,
    chart.plotLeft + 8,
    chart.plotTop + 8
).css({
    color: t.inkSoft,
    fontSize: '13px',
    fontWeight: '600',
    fontFamily: 'inherit',
}).attr({
    fill: t.elevatedBg,
    stroke: t.grid,
    'stroke-width': 1,
    padding: 6,
    r: 3,
    zIndex: 5,
}).add();

Part of Digital Modulation Constellation Diagram on anyplot.ai.
